  • Mini Circuit Breaker C80 1p Mcb Breaker C80 Single Phase Miniature Circuit Breaker
  • Mini Circuit Breaker C80 1p Mcb Breaker C80 Single Phase Miniature Circuit Breaker
  • Mini Circuit Breaker C80 1p Mcb Breaker C80 Single Phase Miniature Circuit Breaker
  • Mini Circuit Breaker C80 1p Mcb Breaker C80 Single Phase Miniature Circuit Breaker
Mini Circuit Breaker C80 1p Mcb Breaker C80 Single Phase Miniature Circuit Breaker

Mini Circuit Breaker C80 1p Mcb Breaker C80 Single Phase Miniature Circuit Breaker

  • 50 - 99 Pieces
    $5
  • >= 100 Pieces
    $1

Customization:

Customized logo（Min.Order: 3000 pieces）
Customized packaging（Min.Order: 3000 pieces）
Graphic customization（Min.Order: 3000 pieces）
View product details

Mini Circuit Breaker C80 1p Mcb Breaker C80 Single Phase Miniature Circuit Breaker

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Overcurrent & Short Circuit Protection: The HM201-C80 Miniature Circuit Breaker (MCB) safeguards electrical circuits by tripping automatically when currents exceed 80A (rated capacity) or during short circuits, preventing damage and hazards.
  • Multi-Curve Protection: Equipped with B, C, and D tripping curves, it adapts to varying load requirements, ensuring precise protection for diverse applications.
  • High Breaking Capacity: Offers 4.5kA or 6kA breaking capacities to handle severe fault currents, ensuring robust reliability in demanding environments.

Key features

  • 1. Durable Plastic Construction for Enhanced Safety

    • With a rugged plastic material, ensure long-term reliability and resistance to environmental stress while maintaining electrical safety.

  • 2. Visible Red Handle for Intuitive Operation

    • With a prominent red handle, quickly identify circuit status and safely toggle power, minimizing accidental contact with live circuits.

  • 3. High-Breaking Capacity with Versatile Protection Curves

    • With a breaking capacity of up to 6kA and B/C/D curves, protect against surges and provide precise overcurrent safeguards for diverse applications.

  • 4. Compact Design for Flexible Installation

    • With a compact form factor, seamlessly integrate into standard electrical panels for reliable use in homes or small commercial settings.

  • 5. CE & IEC 60947-2 Certified for Global Compliance

    • With CE certification and adherence to IEC 60947-2 standards, ensure compliance with international safety and performance regulations.

Product details

Mini Circuit Breaker C80 1p Mcb Breaker C80 Single Phase Miniature Circuit Breaker

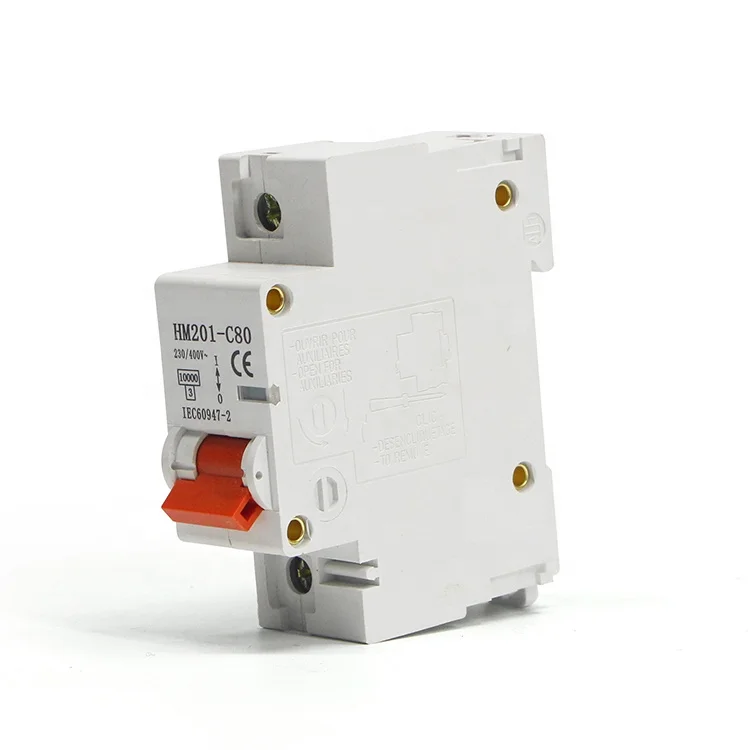

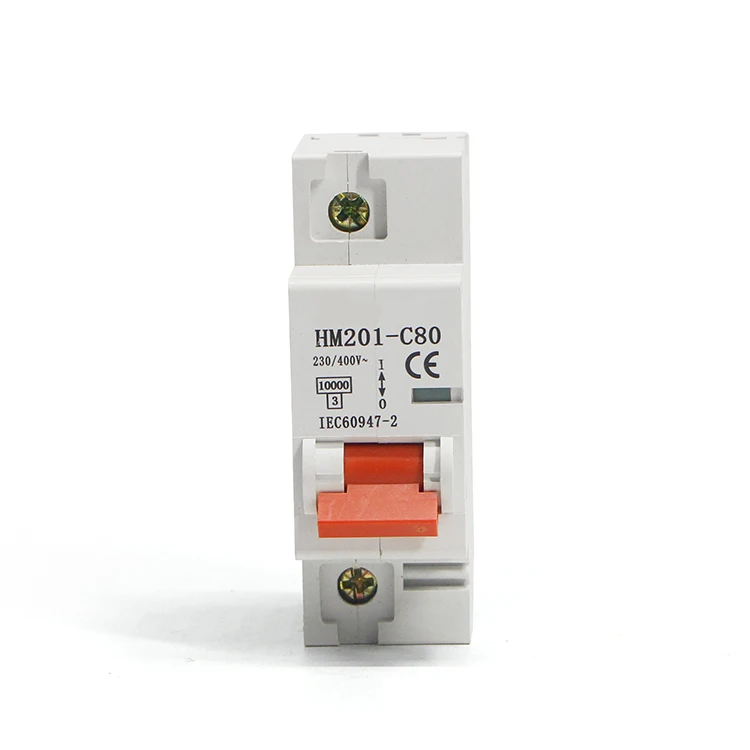

The HM201-C80 Miniature Circuit Breaker (MCB) is a single-phase protection device rated for 220V and 80A, designed to safeguard electrical circuits against overcurrents and short circuits. Constructed from durable plastic with a CE-certified safety profile, it offers robust performance in residential and commercial applications. Its B, C, and D trip curves and variable breaking capacities (4.5kA/6kA) provide flexible protection tailored to specific load requirements.

Technical specifications

FeatureSpecificationApplication Scenario
BCD Curve TypesB, C, DMatches varying load sensitivity needs (e.g., motors, lighting)
Breaking Capacity4.5kA / 6kAHandles high surge currents in industrial or high-power setups
MaterialPlastic (flame-retardant)Ensures lightweight, non-conductive safety in standard enclosures
Rated Voltage220V ACCompatible with single-phase residential/commercial systems
CertificationsCE, IEC 60947-2Meets EU safety and global electrical standards

Customization guide

Adjustable parameters:

  • Trip Curve Selection: Customize B, C, or D curves to match load characteristics (e.g., inductive vs. resistive).
  • Breaking Capacity: Opt for 4.5kA (standard) or 6kA (high surge) based on system requirements.
  • Labeling: Add custom markings for facility-specific identification.

Get inspired

Ideal for protecting lighting circuits, appliances, or small machinery. For example, the 6kA breaking capacity ensures safety in workshops with power tools, while the D-curve variant suits motor-driven equipment.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Breaking Capacity4.5kA6kA (+33%)6kA + RCBO features
Trip Curve OptionsB/CB/C/DB/C/D (programmable)
CertificationsCECE + ULCE + IEC 61009

Supplier's note

  1. Technical Breakthroughs:

    • Enhanced Breaking Capacity: The Pro Model’s 6kA rating (33% higher than Base) handles extreme surges in industrial settings.
    • Flexible Trip Curves: The Advanced Model’s D-curve supports motor-starting inrush currents without nuisance tripping.
    • Integrated RCBO: The Pro Model combines overcurrent and earth leakage protection, reducing the need for separate devices.

  2. Version Selection Guidance:

    • Base Model: Best for standard residential circuits (e.g., lighting, sockets) where cost-efficiency is prioritized.
    • Advanced Model: Suited for commercial facilities (e.g., HVAC systems) requiring D-curve flexibility and global certifications.
    • Pro Model: Ideal for industrial plants needing 6kA resilience and combined fault protection (e.g., machinery control panels).

With the Pro Model’s 6kA breaking capacity, you can safely handle high surge currents in manufacturing environments. Pair its programmable D-curve with motor-driven equipment to prevent false tripping, ensuring uninterrupted operations.

Frequently asked questions

  • Which miniature circuit breaker suits single-phase residential use with 220V?

  • How to clean and maintain a plastic MCB to ensure longevity?

  • Plastic vs Metal: Which material is better for MCB durability and safety?

  • Can this C80 MCB be customized with specific labeling or certifications?

  • Is the HM201-C80 MCB CE-certified for European safety standards?

  • Which MCB model handles up to 80A for small businesses or offices?

  • Does the C80 MCB have sufficient breaking capacity for short circuits?

  • What safety features does the HM201-C80 MCB offer beyond standard models?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Breaking CapacityIndustrial fault protectionIndustry Standard: 4kA (IEC 60947-2)
Our Base: 4.5kA (▲12.5%)
Our Advanced: 6kA (▲50%)		Handles larger fault currents safely (e.g., 6kA withstands 6,000A surges)
Advanced: Mitigates catastrophic failures in high-power systems		Base: Limited to 4.5kA (may fail in extreme overloads)
Advanced: Higher cost
Trip Curve (BCD)Load-type matching (residential/industrial)Industry Standard: B, C curves
Our Base: B, C curves
Our Advanced: B, C, D (▲1 curve)		Advanced: D curve suits motor-driven loads (e.g., HVAC systems)
Base: Reliable for standard residential/commercial circuits		Base: No D curve for inrush current tolerance
Advanced: Requires expert configuration
Enclosure MaterialHarsh environments (moisture/dust)Industry Standard: Basic plastic (UL94 HB)
Our Base: Flame-retardant (UL94 V-0)
Our Advanced: Reinforced polymer (UL94 V-2 + IP54)		Advanced: Resists flames (V-2 rating) and dust/water ingress (IP54)
Base: Improved fire safety over standard plastics		Base: No IP rating for harsh environments
Advanced: Heavier and bulkier
Protection TypeEarth leakage + overcurrent protectionIndustry Standard: Overcurrent only
Our Base: Overcurrent only
Our Advanced: Overcurrent + RCCB (▲ adds earth leakage detection)		Advanced: Dual protection (e.g., prevents electrocution in wet areas)
Base: Cost-effective for basic overcurrent needs		Base: No earth leakage detection
Advanced: Requires ground fault wiring
Rated CurrentHigh-power appliance circuitsIndustry Standard: Up to 63A
Our Base: 80A (▲27%)
Our Advanced: 80A (same as Base)		Base/Advanced: Supports 80A loads (e.g., industrial heaters)
Industry: Limited to 63A for standard devices		Industry: Lower capacity risks overload risks in high-demand setups
Mounting CompatibilityFlexible installation needsIndustry Standard: DIN rail only
Our Base: DIN rail only
Our Advanced: DIN + surface mounting (▲ adds versatility)		Advanced: Installs on panels or walls without adapters
Base: Standard DIN rail for electrical cabinets		Base: Limited to panels
Advanced: Requires surface mounting hardware
