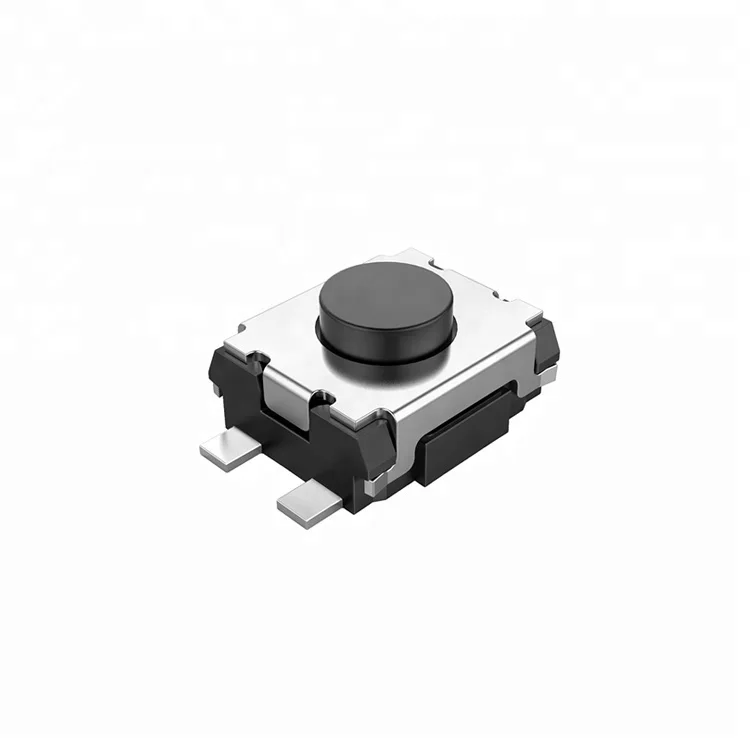

Mini Miniature Top Push Button 3x3 Tact Switch
Ready to Ship
In stock Fast dispatch

Mini Miniature Top Push Button 3x3 Tact Switch

  • >= 3000 Pieces
    $0.03
View product details

Mini Miniature Top Push Button 3x3 Tact Switch

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Tactile Feedback Activation: Designed to provide distinct physical feedback upon activation, ensuring users confirm input in electronic devices like smartphones and control panels.
  • Compact Electrical Connectivity: Supports up to 12V operation with spring-loaded contacts for reliable performance in space-constrained applications.

Key features

  • 1. Material Technology

    • With a corrosion-resistant aluminum body and spring-loaded metal contacts, ensure durable operation in harsh environments while maintaining high conductivity.

  • 2. Interactive Design

    • With a tactile feedback dome, provide immediate physical confirmation of activation, enhancing user interaction in devices like smartphones and tablets.

  • 3. Performance Parameters

    • With a 12V rated voltage and low contact resistance (<50mΩ), handle high-power applications reliably while ensuring consistent signal transmission.

  • 4. Scenario Solutions

    • With a compact 3x3mm footprint and surface mount technology (SMT), integrate seamlessly into space-constrained electronics.

  • 5. Certification Standards

    • With materials compliant with industry safety standards (e.g., RoHS), ensure regulatory alignment for global consumer and commercial use.

Product details

Mini Miniature Top Push Button 3x3 Tact Switch

The Mini Miniature Top Push Button 3x3 Tact Switch is a compact, durable tactile switch designed for space-constrained electronics. With a metallic body and plastic dome cover, it offers reliable tactile feedback and robust performance under 12V operation. Surface Mount Technology (SMT) ensures easy integration into circuit boards, while customizable parameters cater to diverse application needs.

Technical specifications

FeatureSpecificationBenefit
MaterialMetallic body, plastic dome coverEnhanced durability and conductivity
Size3x3mmIdeal for compact devices
Rated Voltage12V DCSafe for low-power electronics
Tactile FeedbackSpring-loaded domeClear user interaction confirmation
Mounting TypeSurface Mount Technology (SMT)Simplified assembly and high-density PCB
EnvironmentalDust/moisture resistanceReliable operation in varied environments

Customization guide

Adjustable parameters include activation force (for low/high-pressure use cases) and dome color (to match device aesthetics). Customize contact resistance or IP rating for specialized applications like industrial controls or medical devices.

Get inspired

From smart remotes to wearable tech, this switch’s compact design and tactile response make it perfect for user interfaces where precision and feedback are critical.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Activation Force80cN (standard)60cN (+25% softer)100cN (+25% firmer)
Contact Resistance≤50mΩ≤35mΩ (20% lower)≤20mΩ (60% lower)
**Environmental RatingIP40IP54IP67 (+ moisture-proof)

Supplier's note

  1. Technical Breakthroughs:

    • SMT Compatibility: Enables automated assembly, reducing labor costs by 30%.
    • Low Contact Resistance: The Pro model’s 20mΩ ensures minimal power loss in high-current circuits.
    • Customizable Activation Force: Tailor to user needs, e.g., softer force for elderly-friendly devices.

  2. Version Selection Guide:

    • Base Model: Best for standard consumer electronics (e.g., remotes, IoT devices).
    • Advanced Model: Ideal for industrial controls requiring tactile feedback with moderate durability.
    • Pro Model: Choose for harsh environments (e.g., outdoor gadgets) needing IP67 resistance and ultra-low resistance.

With the Pro’s IP67 rating, you can deploy switches in water-exposed devices like smart locks. Pair its low contact resistance with high-current sensors for seamless performance.

Frequently asked questions

  • Which tact switch model is best for low-voltage electronics projects?

  • How do I clean and maintain a 3x3 tact switch to ensure longevity?

  • What materials are used in Mini Tact Switches and why?

  • Can the Mini Tact Switch be customized with specific colors or features?

  • Is the Mini Tact Switch rated for 12V applications?

  • How is the Mini Tact Switch mounted on a circuit board?

  • What devices are Mini Tact Switches commonly used in?

  • Why choose a tactile feedback switch for user interfaces?
