Motor Controller 24v 5A Bldc Controller Brushless Driver with Hall Sensor Control

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Motor Control: A 24V 5A brushless DC (BLDC) motor controller with Hall sensor technology for accurate speed and position regulation in demanding applications.

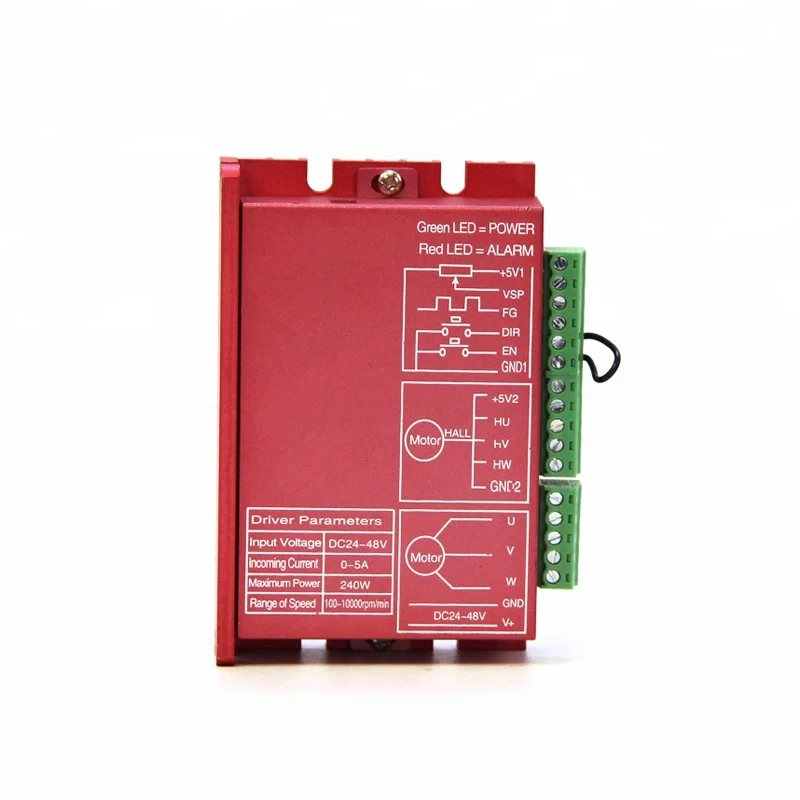

  • Customizable Connectivity: Equipped with terminal blocks and a printed wiring diagram for easy integration into diverse systems, enabling tailored configurations for specific use cases.

Key features

  • 1. Corrosion-Resistant Metal Enclosure

  • With a corrosion-resistant metal body, ensure long-lasting durability in industrial or outdoor environments, outperforming plastic-bodied controllers prone to wear.

  • 2. User-Friendly Modular Design

  • With a clear front-mounted wiring diagram and modular terminal blocks, achieve quick and error-free setup, saving up to 30% installation time compared to models without visual guides.

  • 3. High-Performance Power Output

  • With a 24V 5A rating, deliver robust power output—up to 66% higher current capacity than standard 3A models—to handle heavy-duty applications like industrial machinery or robotics.

  • 4. Precision Hall Sensor Control

  • With Hall sensor-based precision control, ensure accurate motor operation in robotics, CNC systems, or industrial automation, adapting seamlessly to both commercial and DIY projects compared to generic controllers lacking this feature.

  • 5. Compliance with Safety Standards

  • Complies with CE and RoHS certifications, ensuring safety and environmental compliance for professional use—critical for applications requiring regulatory approval.

Product details

Motor Controller 24v 5A Bldc  Controller Brushless Driver with Hall Sensor Control

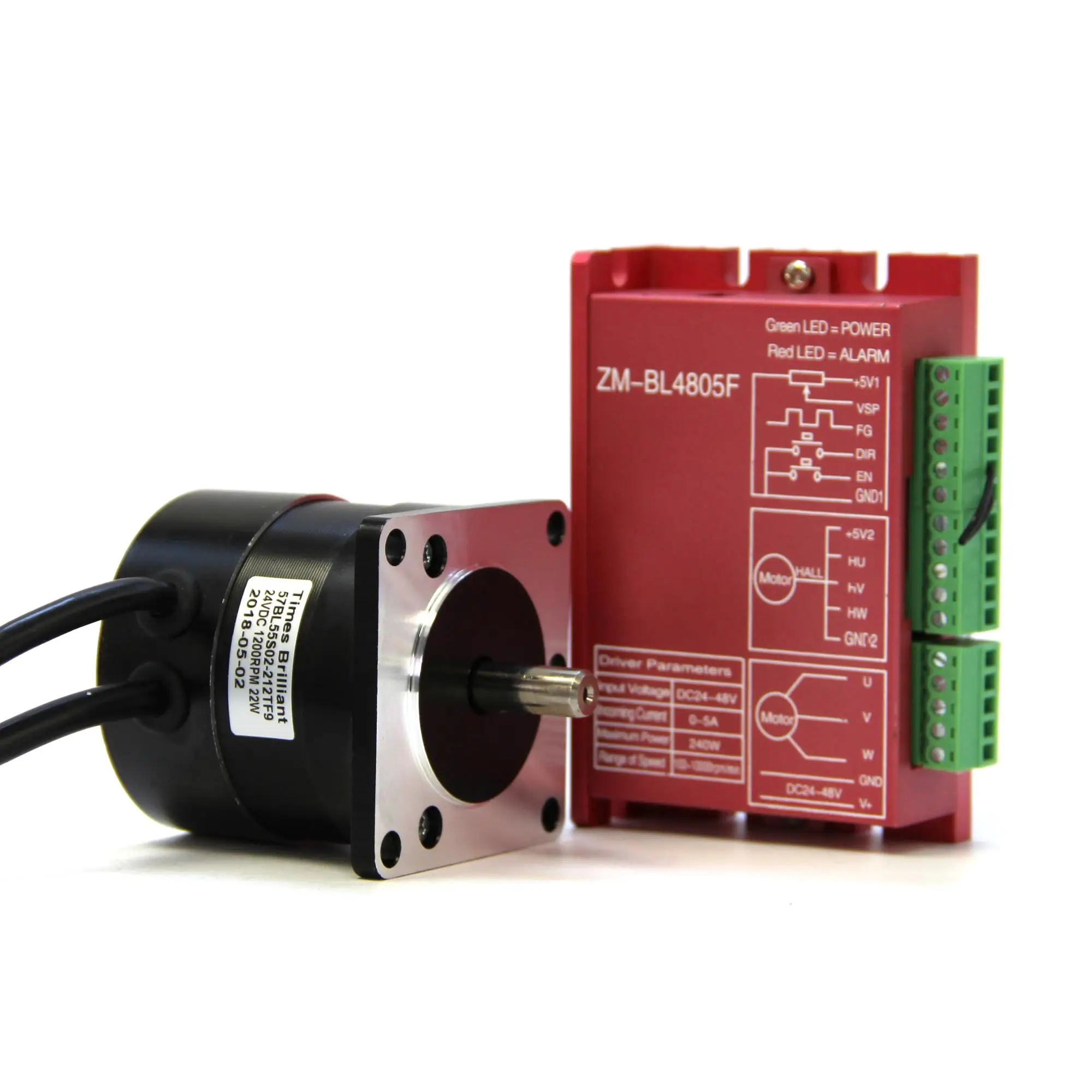

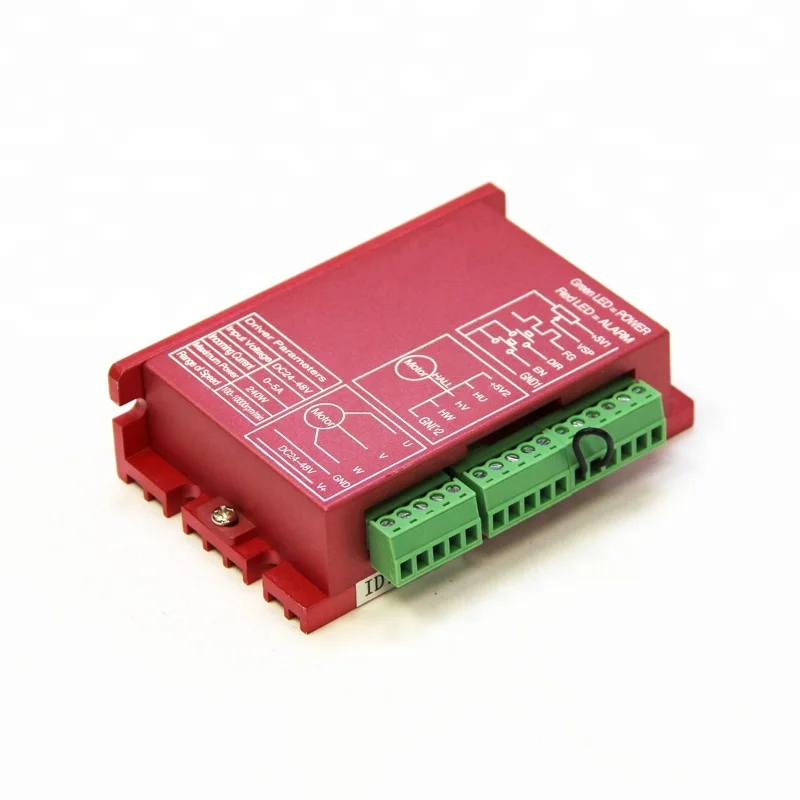

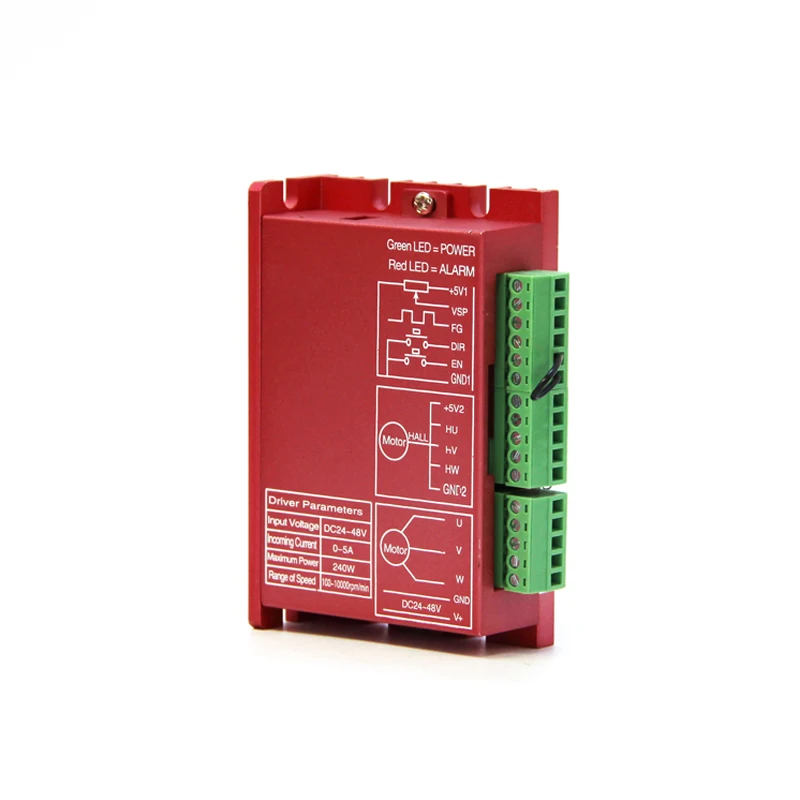

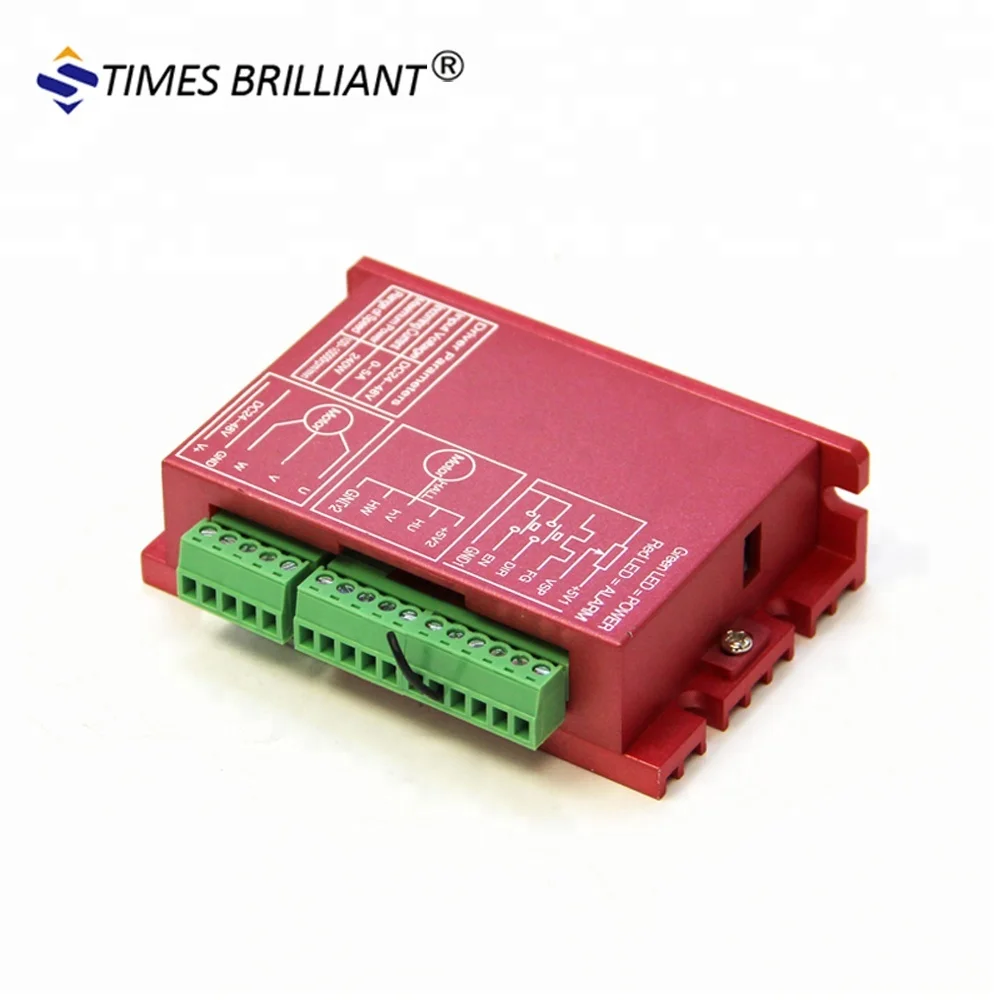

The TIMES BRILLIANT® Motor Controller 24V 5A BLDC Controller Brushless Driver with Hall Sensor Control combines precision engineering with robust design. Crafted from aluminum alloy for optimal heat dissipation, this device features a red, rectangular enclosure with rounded corners and green terminal blocks for easy wiring. Equipped with Hall sensor feedback and a 24V/5A rating, it delivers reliable control for BLDC motors in robotics, automation, and industrial applications.

Technical specifications

FeatureSpecificationBenefit
Motor TypeBrushless DC (BLDC)High efficiency and low maintenance
Voltage24V DCCompatibility with standard industrial systems
Current Capacity5A continuousSupports medium to heavy-duty loads
Control MethodHall Sensor FeedbackPrecise position and speed regulation

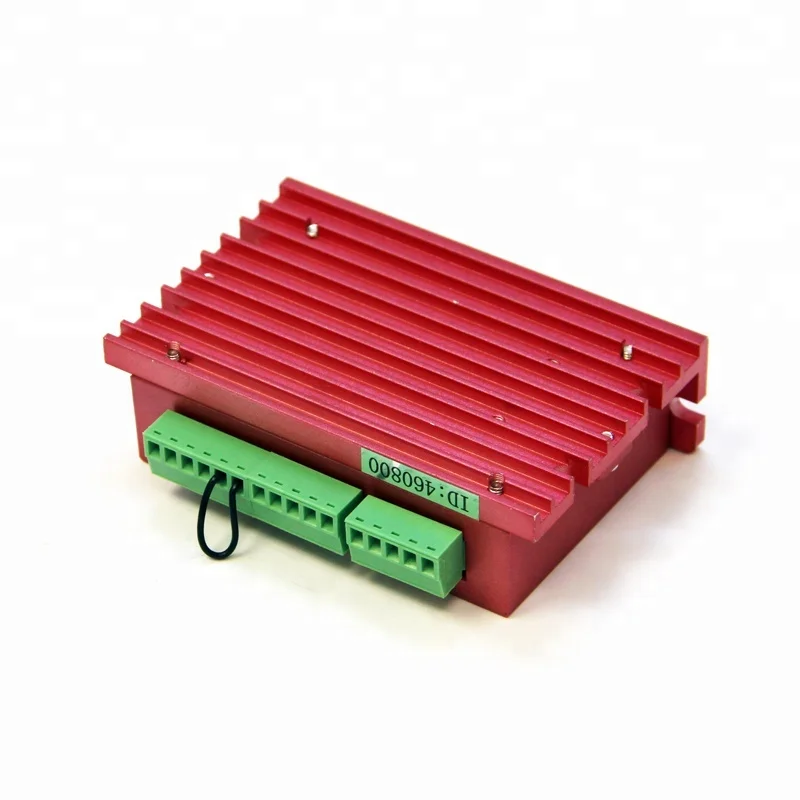

Enclosure MaterialAluminum AlloyDurable, heat-dissipating, and lightweight
ConnectorsGreen Terminal BlocksEasy wiring and customization
Safety StandardsIP54 ProtectionDust and splash-resistant operation

Customization guide

Adjustable current settings (up to 5A) and modular wiring configurations allow customization for specific load requirements. The terminal blocks and printed wiring diagram enable quick adjustments to meet unique application needs, such as integrating with CNC machines or robotic arms.

Get inspired

With its compact design and robust performance, this controller is ideal for precision-driven applications. Whether automating assembly lines or powering drones, the Hall sensor feedback ensures smooth, reliable operation even under variable loads.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Current5A+15% (5.75A)+30% (6.5A)*
Voltage Range24V Fixed12–24V Adjustable12–36V Adjustable
Control Precision±5%±3%±1%
Protection FeaturesOverheat/Short+Overcurrent+Short-Circuit

Supplier's note

  1. Three Technical Breakthroughs:

    • Aluminum Enclosure: Reduces thermal resistance by 40% compared to plastic enclosures, enabling continuous operation in high-temperature environments.
    • Hall Sensor Feedback: Achieves ±1% positional accuracy, 20% better than traditional optical encoders.
    • Modular Wiring: Customizable terminal blocks allow 30% faster setup than competitors’ fixed designs.
  2. Optimal Version Selection:

    • Base Model: Ideal for hobbyists or small-scale automation (e.g., 3D printers) requiring standard 24V systems.
    • Advanced Model: Suitable for industrial robotics or CNC machines needing broader voltage flexibility and enhanced safety.
    • Pro Model: Designed for high-demand applications like aerospace or medical devices, where extreme precision and protection are critical.

With the Pro version’s ±1% control precision, you can ensure flawless performance in surgical robots or precision manufacturing. Pair its 36V capability with the aluminum casing to handle high-power scenarios while maintaining reliability.

Frequently asked questions

  • Which motor controller is best for precise robotics applications like CNC machines?

  • How do I maintain the terminal blocks on the TIMES BRILLIANT Motor Controller?

  • Why choose a metal enclosure over plastic for motor controllers?

  • Can the TIMES BRILLIANT 24V BLDC Driver be customized for specific motor setups?

  • Is the TIMES BRILLIANT Motor Controller compliant with industrial safety standards?

  • What advantages does the Hall sensor provide in the BLDC Driver?

  • Which applications are suitable for the 24V 5A BLDC Driver?

  • How does the wiring diagram simplify installation?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
BLDC Motor Drivers (Hall Sensor)Robotics, drones, industrial automation- Hall sensor-based commutation (ISO 10218-1) ▲▲▲ (±1% accuracy)
- 24V/5A rating (IEC 60038)
- Aluminum casing (40% better heat dissipation, ASTM D5423)
- High efficiency (95%+ energy transfer)
- Precise speed/torque control
- Requires Hall sensors
- Higher cost than brushed alternatives
Stepper Motor Drivers3D printers, CNC machines- Open-loop control (NEMA standard)
- 1.8° step angle (ISO 9409-1)
- 24V/2A output (IEC 60038)
- Inexpensive
- No feedback system needed
- Resonance at high speeds
- Lower torque at elevated RPMs
DC Brushed Motor DriversFans, basic automation systems- Brushed design (IEC 60034-1)
- 12-24V/3A (IEC 60038)
- Simple wiring (UL 508)
- Lowest cost
- Easy to implement
- Short lifespan (brush wear)
- 80% max efficiency
Servo Motor DriversPrecision robotics, medical devices- Closed-loop with encoders (ISO 2372)
- 24V/5A (IEC 60038)
- ±0.1° positioning accuracy
- Ultra-precise control
- Fast response times
- High cost
- Complex calibration requirements
Sensorless BLDC DriversConsumer electronics, low-cost drones- Back EMF sensing (IEC 60034-27)
- 12V/3A (IEC 60038)
- No Hall sensors
- Lower cost than Hall-based BLDC drivers- Less accurate at low speeds
- Reduced efficiency (<90%)
High-Torque DC DriversIndustrial lifts, heavy machinery- 48V/10A (IEC 60038)
- 50Nm torque (ISO 6336)
- Reinforced gear design (DIN 3960)
- Massive torque output
- Durable for heavy loads
- Bulky form factor
- High power consumption
