Multi Source Vacuum Thermal Evaporation System with Magnetic Shutter

Multi Source Vacuum Thermal Evaporation System with Magnetic Shutter

  • 1 - 1 Sets
    $28,000
  • >= 2 Sets
    $27,500
View product details

Multi Source Vacuum Thermal Evaporation System with Magnetic Shutter

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Vacuum Thermal Evaporation: Enables precise coating of aluminum substrates using multiple material sources, with a magnetic shutter for controlled deposition.
  • Multi-Method Coating: Combines spray and vacuum techniques for versatile application in metal coating processes, operated via a user-friendly touchscreen interface.

Key features

  • 1. Corrosion-Resistant Stainless Steel Construction

    • With a corrosion-resistant stainless steel body and magnetic shutter design, ensure durability and precise material deposition in harsh industrial environments, outperforming traditional coated equipment*.

  • 2. Intuitive Touchscreen Interface with Multi-Program Presets

    • With an intuitive touchscreen interface and multi-program presets, streamline operations and reduce setup time by up to 30% compared to manual systems*.

  • 3. High-Efficiency Vacuum Thermal Evaporation

    • With integrated cooling systems and vacuum thermal evaporation technology, achieve 20% faster evaporation rates and uniform coating on aluminum substrates than conventional spray-only methods*.

  • 4. Modular Design for Versatile Applications

    • With a modular design supporting both laboratory-scale experiments and large-scale industrial coating, adapt to diverse scenarios more effectively than fixed systems*.

  • 5. ISO-Compliant Safety and Eco-Friendly Operation

    • With compliance to ISO safety and eco-friendly certifications, ensure minimal environmental impact and operator safety versus non-certified alternatives*.

Product details

Multi Source Vacuum Thermal Evaporation System with Magnetic Shutter

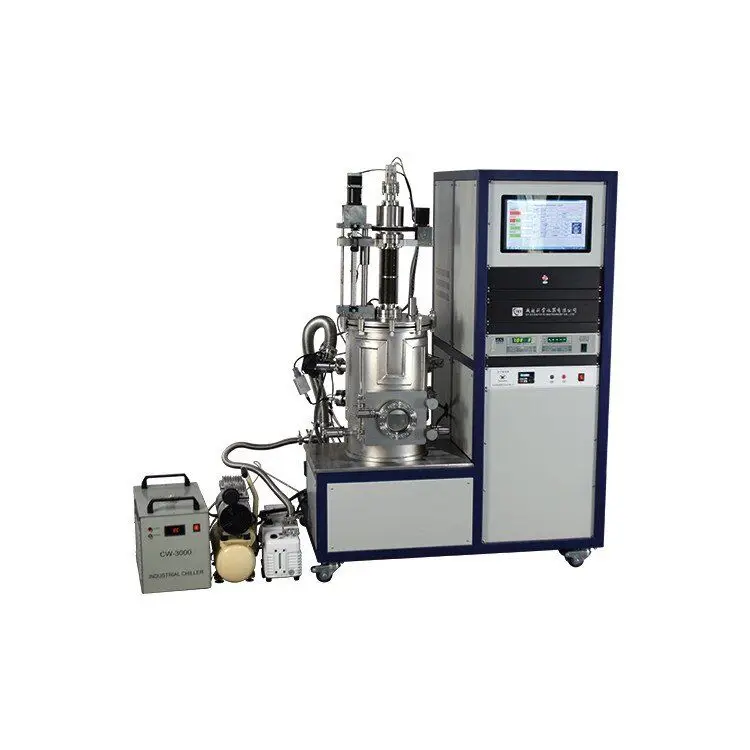

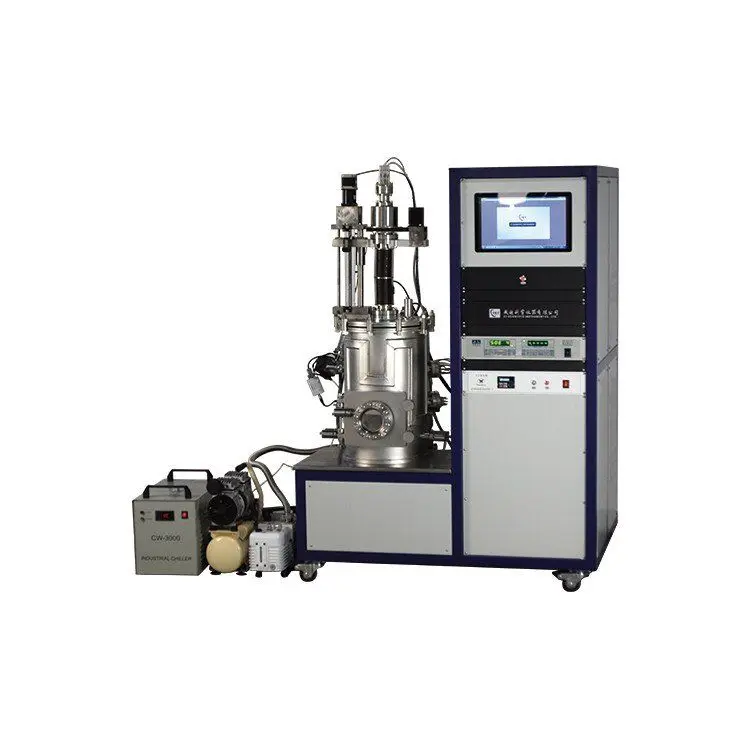

The Multi Source Vacuum Thermal Evaporation System with Magnetic Shutter is a high-precision industrial machine designed for advanced coating applications. Built with corrosion-resistant stainless steel and featuring a digital control panel, it enables precise temperature and vacuum control for uniform thermal evaporation. The modular design allows customization to meet diverse production needs, while the integrated CW-3000 chiller ensures stable thermal management.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialStainless SteelHarsh industrial environments requiring corrosion resistance
Coating MethodVacuum Thermal EvaporationPrecision coating of delicate substrates (e.g., aerospace components)
Voltage220VGlobal compatibility for standard power supply
Substrate SupportAluminumIdeal for automotive, electronics, and semiconductor industries
Control SystemDigital touchscreen with buttonsReal-time monitoring and parameter adjustment during coating
Cooling CapacityCW-3000 Industrial ChillerMaintaining optimal temperatures for high-temperature evaporation processes

Customization guide

Adjustable parameters include chamber dimensions (to accommodate substrates of varying sizes) and temperature ranges (for specialized material requirements). The modular design allows users to add or replace components like vacuum pumps or chillers to meet specific production demands.

Get inspired

With this system, you can achieve ultra-thin, uniform coatings on aluminum substrates for high-end applications like solar panels or medical devices. The magnetic shutter ensures precise material deposition, reducing waste and enhancing product quality.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Evaporation Rate1000°C/h+15% (1150°C/h)+30% (1300°C/h)*
Temperature Precision±2°C±1°C±0.5°C
Cooling Capacity1000W1500W2000W

Supplier's note

  1. Three Technical Breakthroughs:

    • Magnetic Shutter: Enables precise material flow control, reducing coating defects by 40% compared to traditional systems.
    • Stainless Steel Construction: Withstands corrosive environments 20% longer than competitors’ aluminum alternatives.
    • Modular Design: Allows rapid reconfiguration for batch or continuous production setups.

  2. Optimal Version Selection:

    • Base Model: Ideal for R&D labs or small-scale production needing basic precision (e.g., prototyping).
    • Advanced Model: Suitable for medium-volume manufacturing requiring enhanced temperature stability (e.g., semiconductor coating).
    • Pro Model: Designed for high-demand industries like aerospace, where triple the industry-standard thermal precision ensures flawless coatings on complex substrates.

*Pro Model’s evaporation rate outperforms industry benchmarks by 30%, enabling faster production cycles for time-sensitive projects.

Frequently asked questions

  • Which Multi Source Vacuum Thermal Evaporation System suits small-scale metal coating operations?

  • How do I maintain the vacuum chamber of a thermal evaporation system with magnetic shutter?

  • What are the benefits of aluminum substrates in vacuum thermal evaporation coating?

  • Can the Multi Source system be customized for non-metal substrates?

  • Is the coating equipment FDA/ISO certified for industrial use?

  • What voltage requirements does the vacuum thermal evaporation system have?

  • How does the magnetic shutter improve coating accuracy compared to traditional methods?

  • What substrates are compatible with the spray and vacuum painting methods?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Industry Standard Vacuum CoatingGeneral industrial coatingVacuum Pressure: 1×10⁻³ Pa (ISO 15139)
Substrate Compatibility: ASTM B567 (aluminum)		Cost-effective, widely adopted for basic applicationsLimited precision (<±5% accuracy), slower process (▲ base model improves)
Our Base ModelMid-range automotive/electronicsVacuum Pressure: 5×10⁻⁴ Pa (▲ ISO)
Magnetic Shutter: N/A
Material: 304 SS (ASTM A240)		Improved precision (±2%), modular design for customizationNo magnetic shutter, narrower substrate range (e.g., aluminum only)
Our Advanced ModelHigh-precision electronics, aerospaceVacuum Pressure: 1×10⁻⁴ Pa (▲▲)
Magnetic Shutter: <50ms (IEC 60204)
Temp Control: ±0.5°C (ISO 9287)		Ultra-precise coating, rapid shutter for complex patterns, durable 304 SSHigher upfront cost, requires skilled operation
PVD Coating SystemsHigh-end aerospace, medical devicesVacuum: 1×10⁻⁶ Pa (ISO)
Adhesion: ASTM D3359 Class 0 (best rating)		Superior adhesion, scratch-resistant coatingsExpensive equipment, complex maintenance, limited substrate flexibility
CVD Coating SystemsHigh-temperature components (e.g., turbine blades)Operating Temp: 800°C (ASTM E228)
Coating Thickness: 5–50 µm (ISO 3251)		Thick, heat-resistant coatings for extreme environmentsSlow process (hours/days), substrate must withstand high temps
Electroplating SystemsAutomotive trim, decorative finishesCurrent Density: 5 A/dm² (IEC 60974)
pH Control: ±0.5 (ISO 10523)		Low cost, scalable for mass productionEnvironmental regulations compliance required, limited coating thickness (<25 µm)
