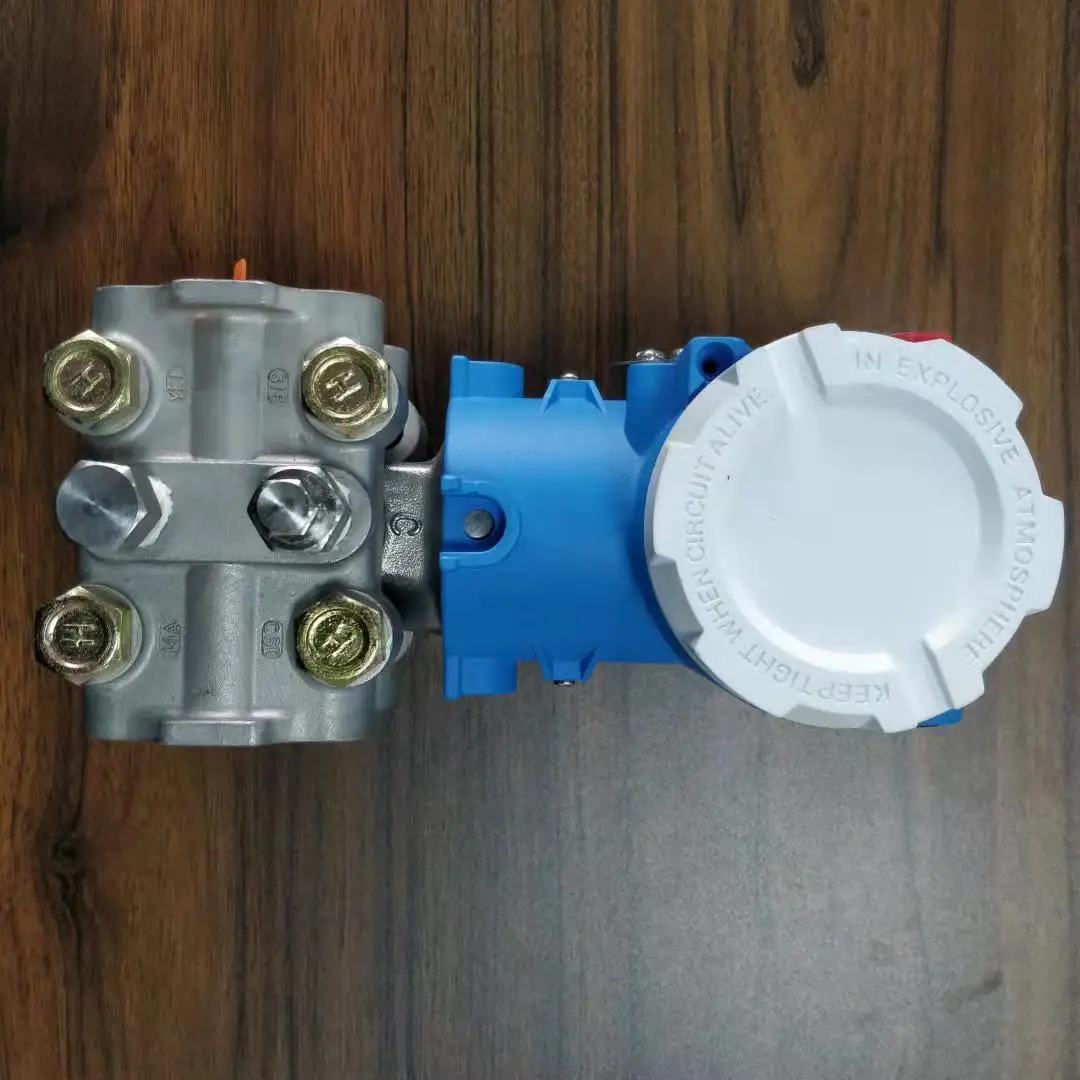

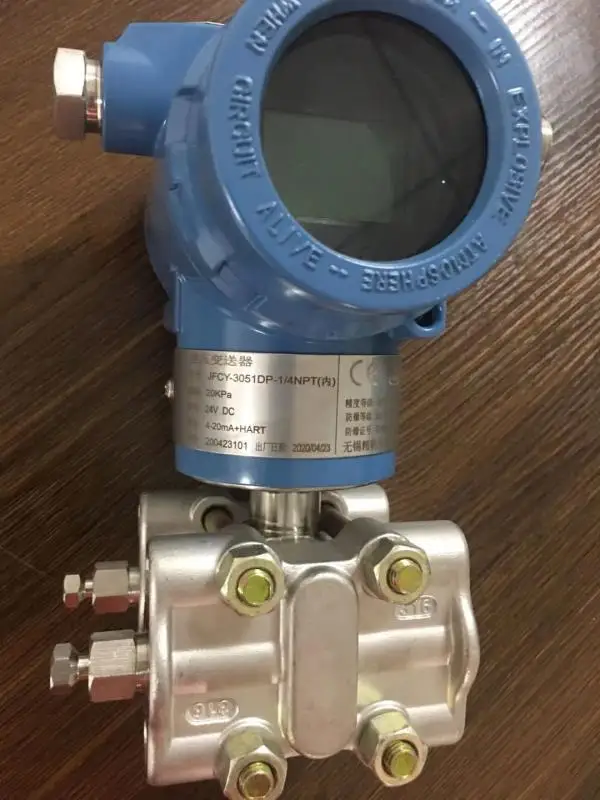

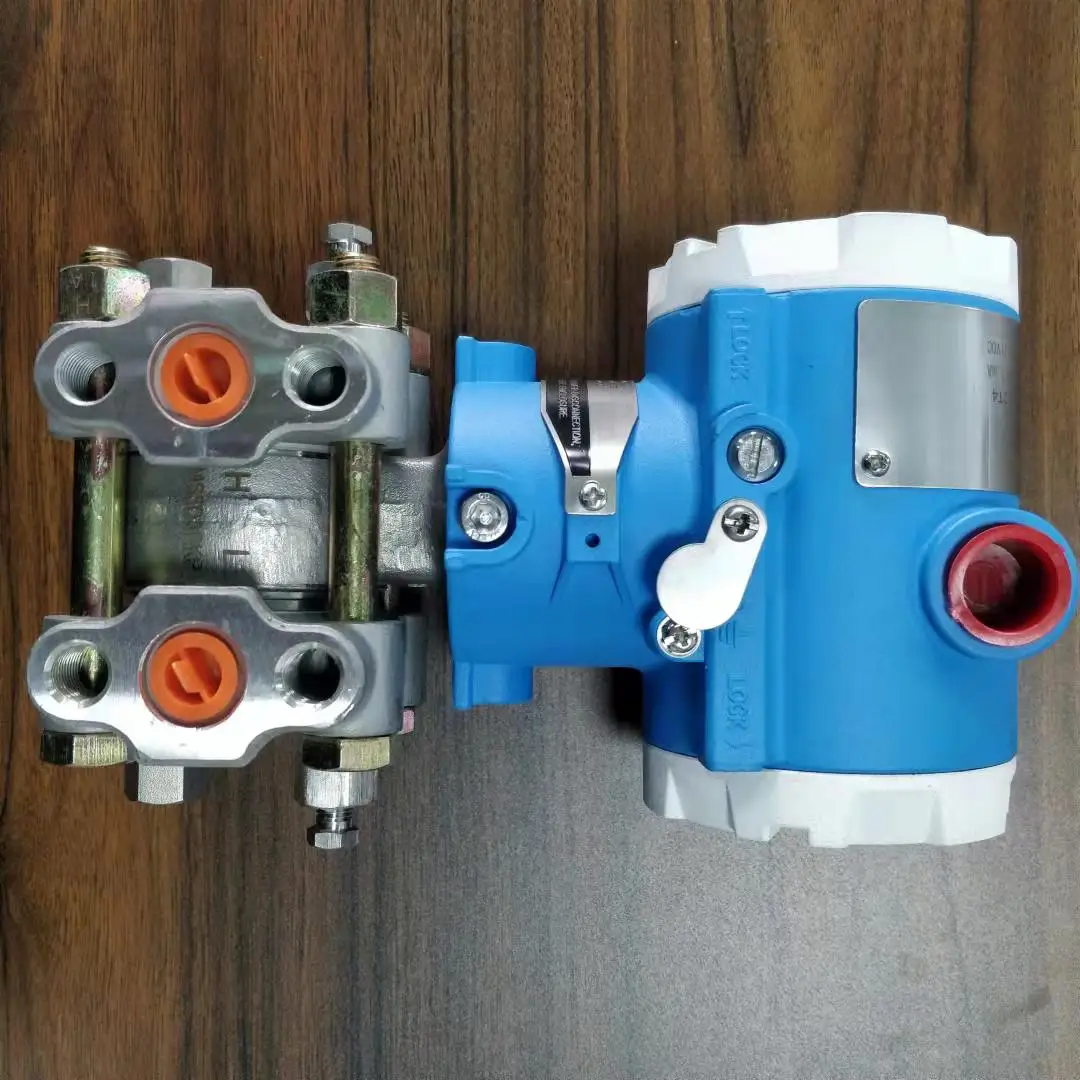

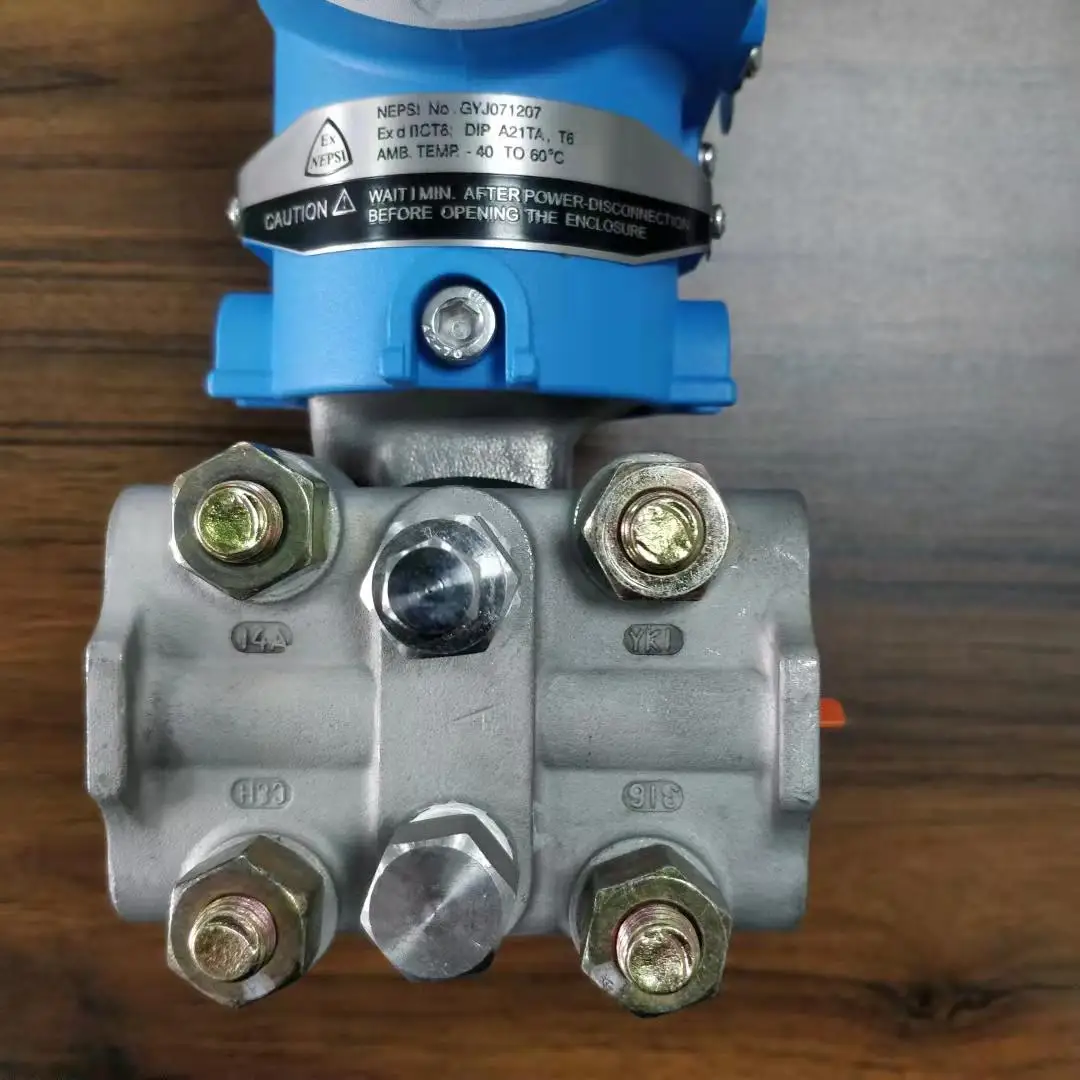

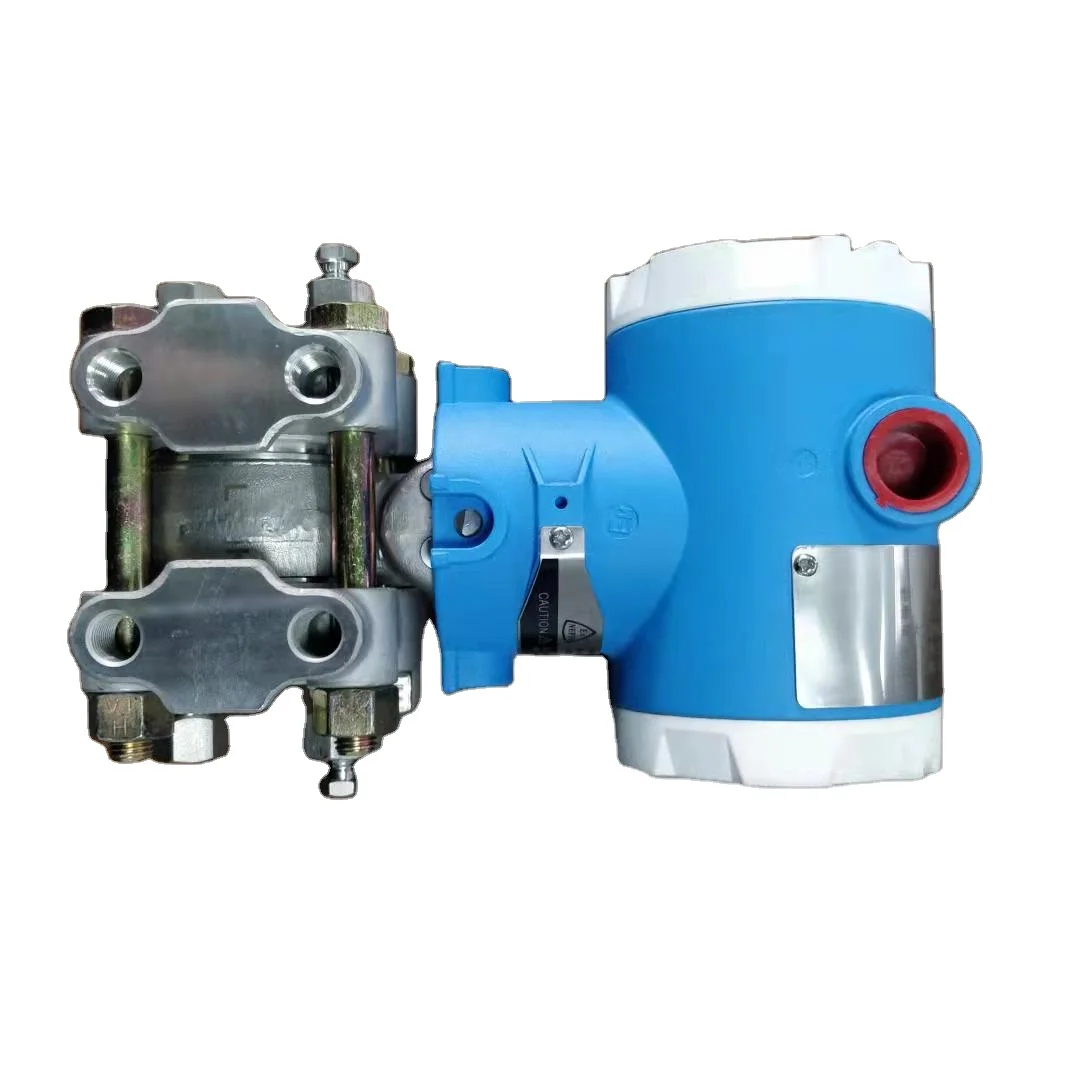

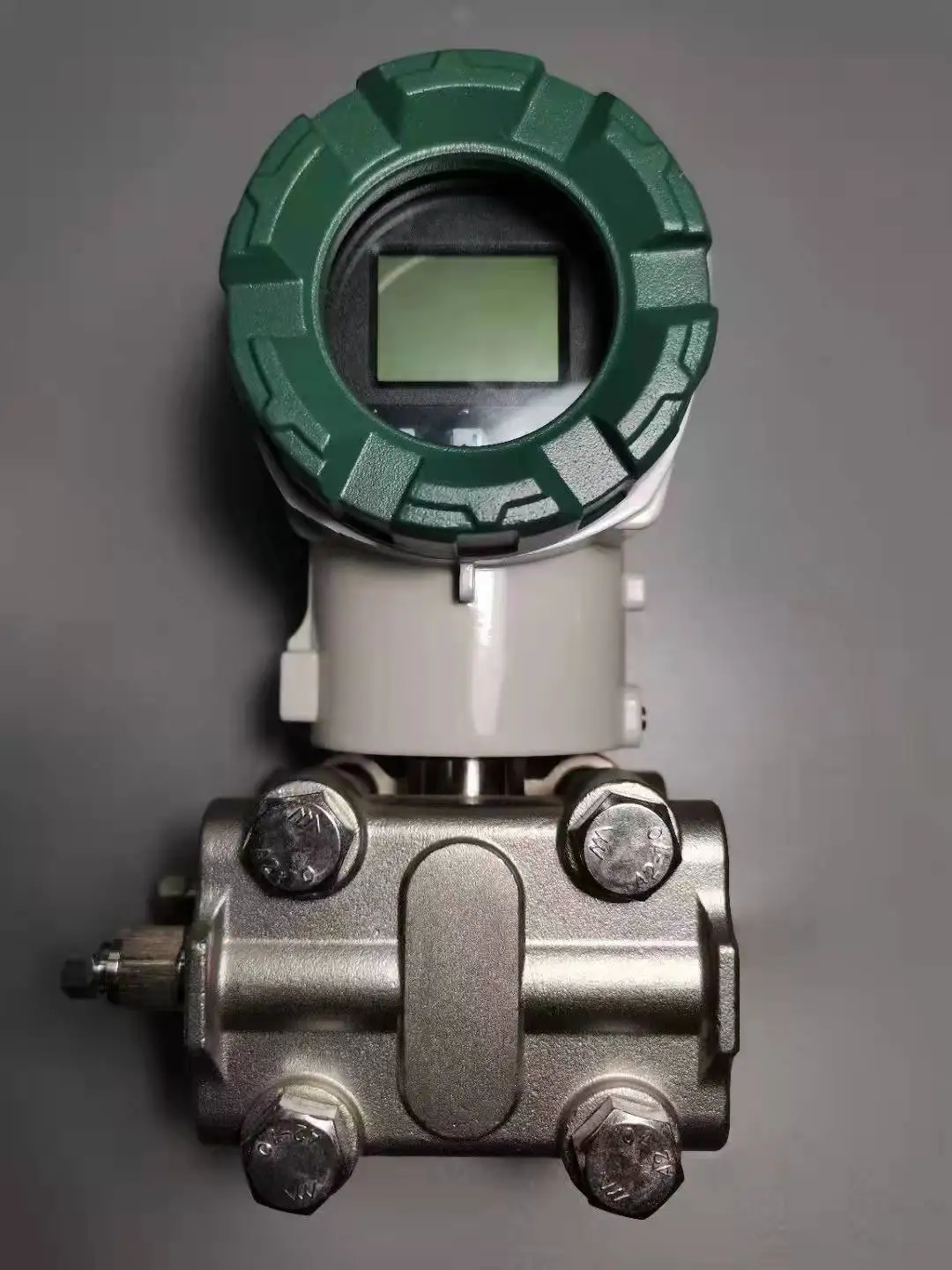

Orifice Plate Flow Meter Differential Pressure Transmitter

Technical specifications

Customization guide

Adjustable parameters include:

• Pressure Measurement Type: Select gauge, absolute, or differential for specific flow requirements.
• Connection Ports: Customize thread standards (NPT, BSPT, DIN) for piping compatibility.
• Environmental Protection: Upgrade IP rating (IP65 to IP68) for dust/moisture resistance.

Get inspired

With its adaptable design and precise 4-20mA output, this transmitter enables real-time monitoring of critical flow parameters. Ideal for applications like oil refinery pipelines or chemical plant ventilation systems where accuracy and reliability are paramount.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Triple Chemical Resistance: The Pro Model’s stainless steel components withstand aggressive chemicals 3x longer than industry standards.
   • Enhanced Accuracy: Advanced Model’s ±0.5% FS ensures precise flow control in high-stakes processes.
   • Extended Pressure Range: Pro Model handles 2000 PSI, enabling use in high-pressure oil/gas pipelines.

2. Optimal Version Selection:

   • Base Model: Ideal for basic applications (e.g., water flow in HVAC systems) where cost efficiency is prioritized.
   • Advanced Model: Best for moderate industrial use (e.g., chemical processing) requiring mid-range accuracy and pressure handling.
   • Pro Model: Designed for extreme environments (e.g., offshore oil rigs) needing ultra-precision and corrosion resistance.

With the Pro Model’s IP68 rating, you can deploy it underwater or in corrosive fluids without downtime. Pair its 2000 PSI capacity with petroleum-based media to ensure safe operation in heavy-duty refining setups.
