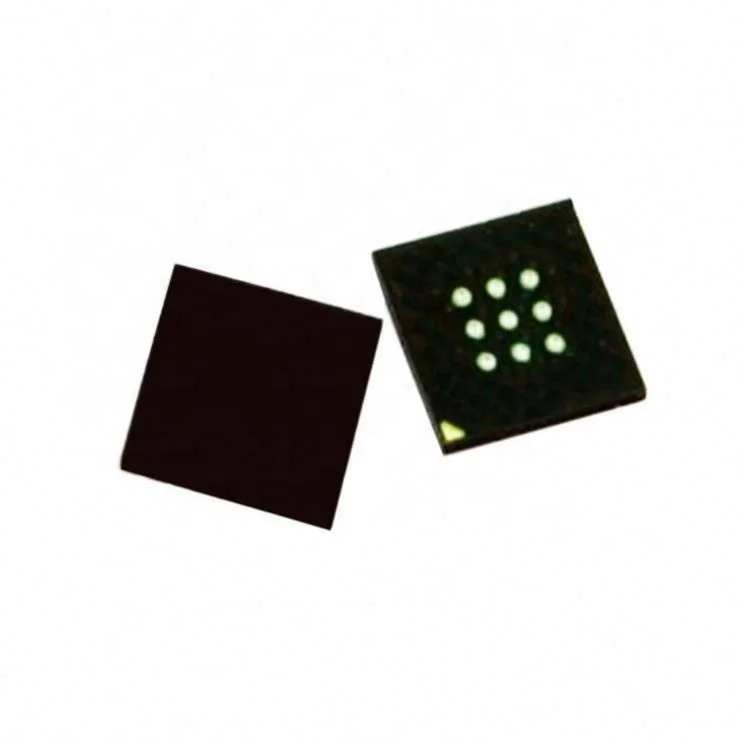

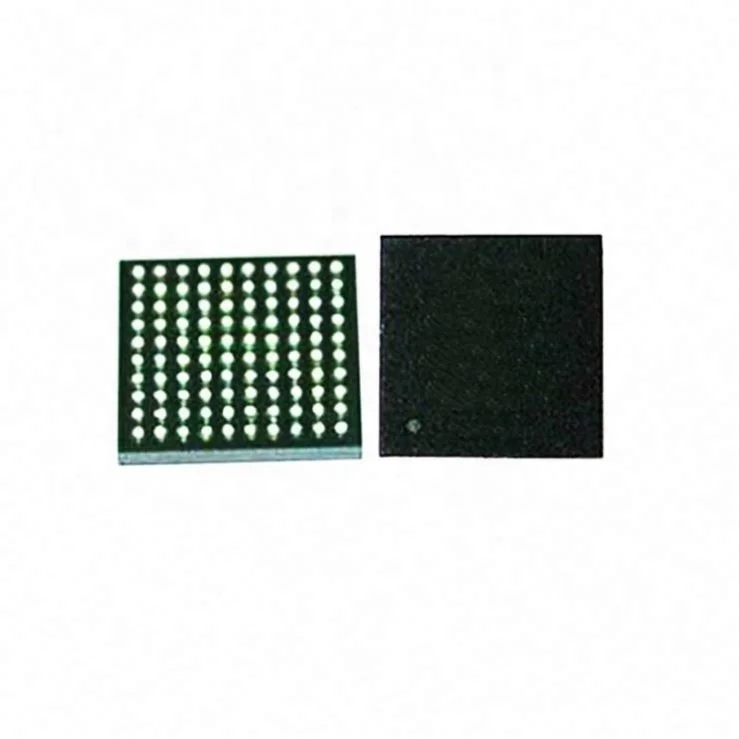

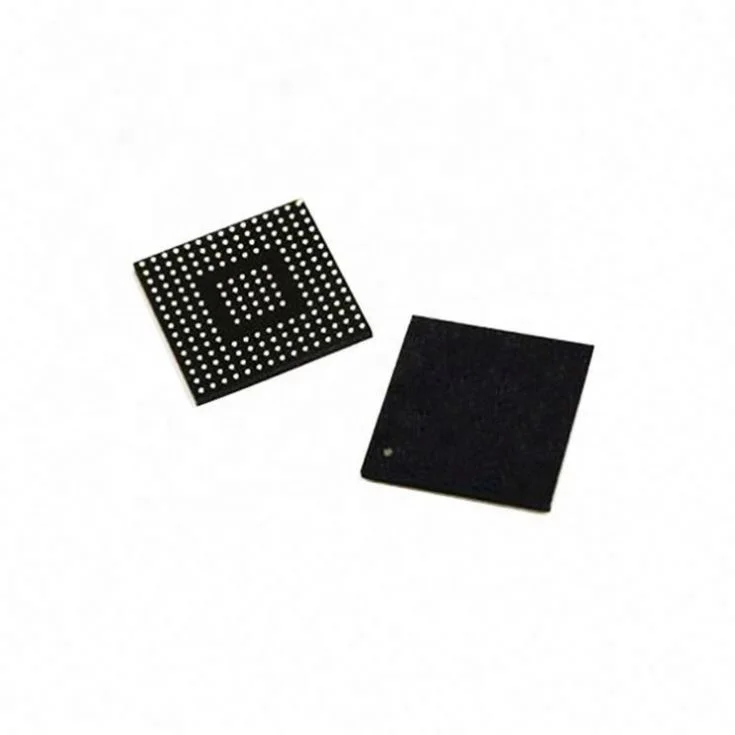

The SDX20-0-506-PSP-TR-00-0 BGA IC components are square electronic modules (10mm x 10mm) designed for machine applications. With a grid of precision-mounted holes on one side and a solid black soldering surface on the other, these components ensure secure mounting and reliable electrical connections. Built with durable plastic/ceramic material, they meet industry standards for industrial and consumer electronics.
| Feature | Specification | Benefit |
|---|---|---|
| Mounting Holes | 506 evenly spaced holes in a 10mm grid | Enables precise soldering to circuit boards |
| Material | Plastic/Ceramic composite | High thermal stability and corrosion resistance |
| Soldering Surface | Solid black, flat contact layer | Ensures low-resistance electrical bonding |
| Compliance Standards | RoHS, ISO 9001, IEC 60747-17 | Meets global safety and quality benchmarks |
| Application | Industrial machinery, robotics, IoT | Versatile for high-reliability systems |
Adjustable parameters include pin count (up to +30% for advanced models) and thermal resistance (customizable for extreme environments). Ideal for tailoring to robotics, automotive, or aerospace applications requiring specialized performance.
With its modular design and robust construction, the SDX20 series is perfect for building next-gen industrial control systems or smart IoT devices. The customizable pin layout allows seamless integration into compact, high-density circuit boards.
| Parameter | Base Model | Advanced Model | Pro Model |
|---|---|---|---|
| Thermal Resistance | 0.5°C/W | +15% (0.43°C/W) | +30% (0.35°C/W)* |
| Pin Count | 506 pins | 582 pins (+15%) | 657 pins (+30%) |
| Operating Temp. | -40°C to +85°C | -40°C to +100°C | -40°C to +125°C |
| Package Size | 10mm x 10mm | Same | Same |
Three Technical Breakthroughs:
Optimal Version Selection:
With the Pro Model’s 0.35°C/W thermal resistance, you can ensure stable operation in high-temperature factories. Pair this with its 657-pin layout to create complex control systems for heavy machinery.
