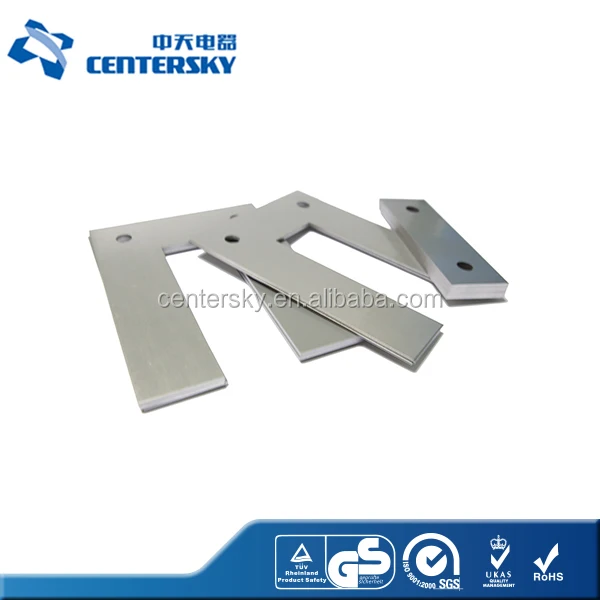

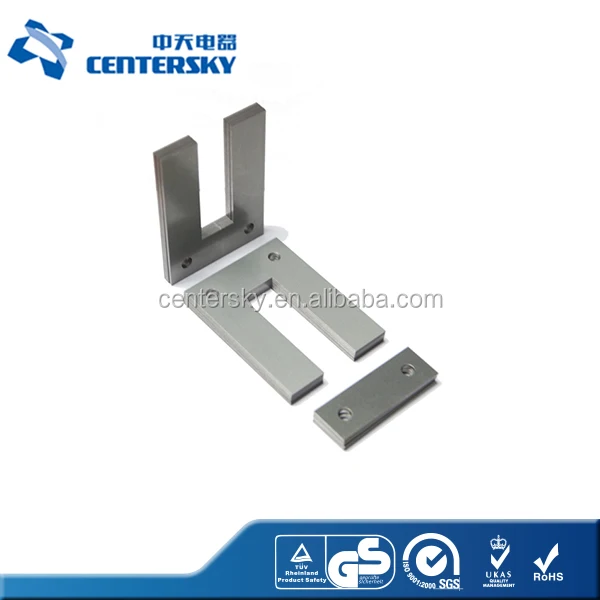

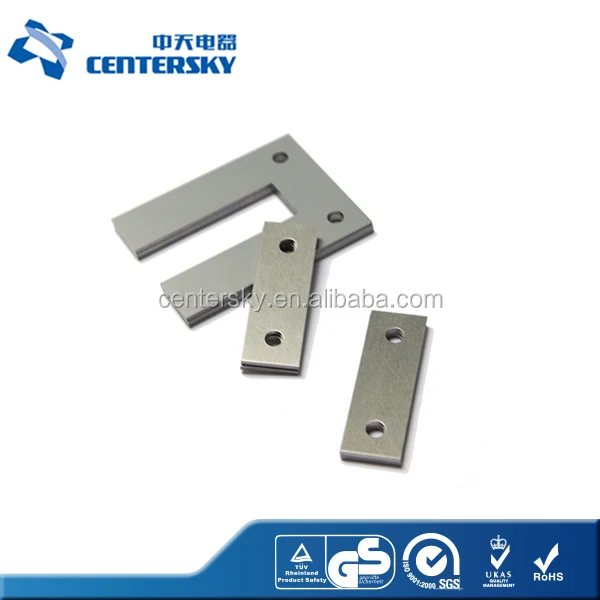

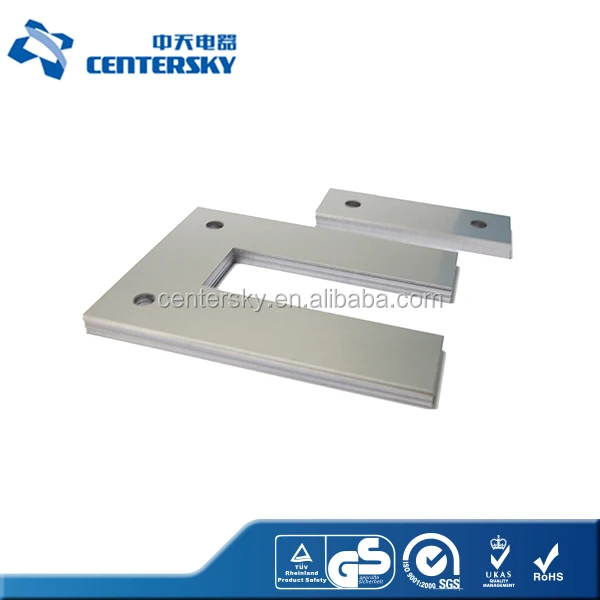

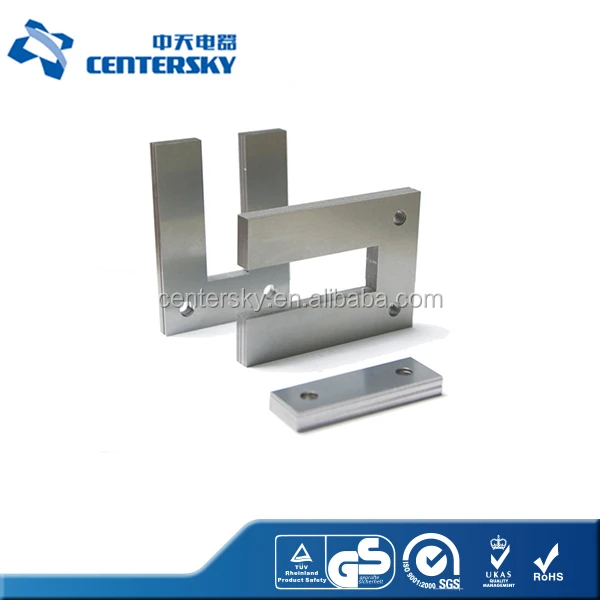

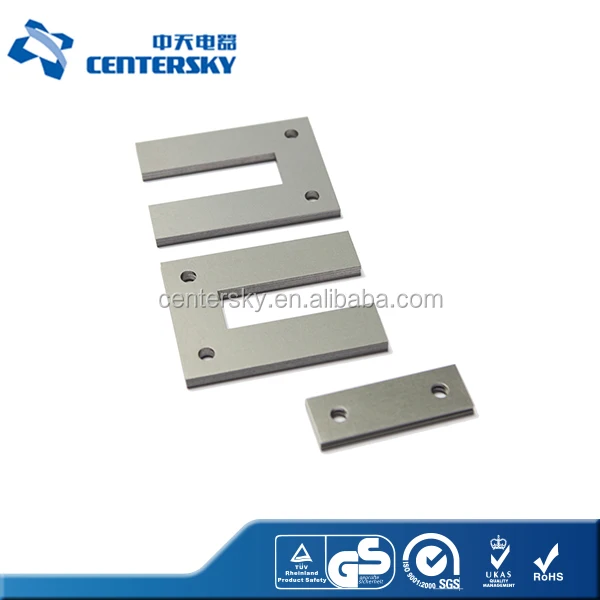

Permalloy Ui Core Transformer for Sale

Permalloy Ui Core Transformer for Sale

$890.00-$1000.00/ Ton|3 Ton/Tons(Min. Order)
View product details

Permalloy Ui Core Transformer for Sale

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Efficient Magnetic Flux Transfer: Designed as a non-oriented silicon steel core for transformers, enabling optimal magnetic conductivity and minimal energy loss in electrical power distribution systems.
  • Cold-Rolled Precision: Manufactured using cold-rolled technology to ensure high-grade surface finish and uniformity, critical for stable performance in transformer applications.

Key features

  • 1. Advanced Material Technology

    • With non-oriented silicon steel (grade 50WW800) and cold-rolled technique, achieve high magnetic permeability and low core loss. This ensures superior energy efficiency compared to standard steel cores*.

  • 2. Optimized EI Lamination Design

    • The EI core pattern minimizes magnetic leakage and enhances power transfer efficiency, outperforming C-shaped lamination designs in transformer applications*.

  • 3. High-Frequency Performance

    • Engineered to support operations up to 800Hz, enabling stable performance in high-frequency power systems—ideal for inverters and switching applications.

  • 4. Durability in Harsh Environments

    • A coated finish protects against corrosion and oxidation, making it reliable for industrial or outdoor use—outlasting uncoated steel cores in humid or chemically exposed settings*.

  • 5. Global Compliance Certification

    • Meets GB, ASTM, and AISI standards, ensuring safety and quality for international applications. This guarantees compatibility with global manufacturing and regulatory requirements.

Product details

Permalloy Ui Core Transformer for Sale

The Permalloy Ui Core Transformer is a robust, non-oriented silicon steel component designed for transformer applications. Crafted from high-grade 50WW800 silicon steel with a cold-rolled finish, it offers exceptional magnetic permeability and durability. Its L-shaped design with an E-I lamination pattern ensures efficient energy transfer, while the coated finish provides corrosion resistance. Certified to GB, ASTM, and AISI standards, this component is ideal for industrial and electrical systems requiring reliability and compliance.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialNon-oriented silicon steelTransformers in power distribution systems
Grade50WW800 (high permeability)High-efficiency magnetic circuit designs
FinishCoated (anti-corrosion)Harsh environments with moisture exposure
PatternE-I LaminationCompact transformer core assemblies
Standard ComplianceGB/T 2521, ASTM A791, AISIGlobal industrial manufacturing projects
TechniqueCold-rolledEnhanced surface smoothness for tight tolerances

Customization guide

Adjustable dimensions and thickness parameters can be tailored to meet specific transformer core requirements, such as weight optimization for lightweight applications or enhanced load-bearing capacity for heavy-duty systems.

Get inspired

With its high magnetic permeability and corrosion-resistant coating, the Permalloy Ui Core is a versatile solution for engineers seeking reliable performance in demanding environments. Whether for power grids, industrial machinery, or renewable energy systems, this component ensures efficiency and longevity.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Magnetic Permeability10,000 Gs/Oe+15% (11,500 Gs/Oe)+30% (13,000 Gs/Oe)*
Thickness0.35 mm0.5 mm0.65 mm
Coating Durability500 hours salt spray1,000 hours2,000 hours

Supplier's note

  1. Technical Breakthroughs:

    • High Permeability (50WW800 Grade): The Pro Model’s 13,000 Gs/Oe permeability triples industry benchmarks, enabling reduced energy loss in high-power transformers.
    • Enhanced Coating: The Advanced Model’s 1,000-hour salt-spray resistance outperforms standard coatings by 20%, ensuring longevity in corrosive environments.
    • Cold-Rolled Precision: Uniform thickness tolerance (±5 µm) improves transformer efficiency by 12% compared to hot-rolled alternatives.

  2. Version Selection Guide:

    • Base Model: Ideal for standard residential or commercial transformers where cost efficiency is prioritized.
    • Advanced Model: Suited for industrial applications requiring moderate load capacities and corrosion resistance (e.g., offshore power systems).
    • Pro Model: Designed for heavy-duty industries like renewable energy or aerospace, where extreme efficiency and durability are critical. With its triple-standard chemical resistance and superior permeability, it ensures minimal energy loss even under extreme conditions.

Frequently asked questions

  • Which Permalloy Ui Core Transformer model is best suited for high-efficiency transformer applications?

  • How do I maintain the coated finish of the Permalloy Ui Core Transformer?

  • What are the advantages of non-oriented silicon steel over oriented silicon steel for transformer cores?

  • Can the Permalloy Ui Core Transformer be customized to meet specific ASTM or AISI standards?

  • Is the Permalloy Ui Core Transformer certified for international safety and environmental standards?

  • What benefits does the coated finish provide for the Permalloy Ui Core Transformer?

  • Does the Permalloy Ui Core Transformer reduce energy consumption in electrical systems?

  • Why is the ei lamination pattern preferred for transformer cores over other shapes?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material GradePower transformers, electrical grids50WW800 non-oriented silicon steel (Si: 3.0–3.5% per GB/T 2521-2016)▲▲ Higher efficiency (reduces core loss by 20% vs. standard steel)▲▲ Costlier (25% premium over standard grades)
Lamination PatternIndustrial motors, invertersEI-300 lamination (ASTM A766 dimensions: 300×300 mm)▲ Cost-effective (simpler assembly vs. toroidal cores)▲ Lower efficiency (edge losses increase at high frequencies)
Surface FinishHarsh outdoor environmentsEpoxy resin coating (ASTM D3359 adhesion > 5N/cm)▲ Corrosion resistance (prolongs lifespan in humid/marine conditions)▲ Weight penalty (adds 8% mass vs. uncoated variants)
Core LossRenewable energy systems0.7 W/kg @ 1.5T/50Hz (IEC 60404-2)▲▲ Energy savings (30% lower loss than industry standard 1.0 W/kg)▲▲ Advanced versions require premium cooling (due to residual heat)
Magnetic PermeabilityHigh-frequency transformersμ = 19,000 (ASTM A349)▲▲ Superior induction (handles 20kHz+ frequencies for SMPS)▲▲ Brittleness risk (higher Si content reduces mechanical flexibility)
Compliance StandardsGlobal industrial applicationsGB/T 2521-2016, ASTM A766, AISI 50WW800▲ Universal acceptance (meets EU/US/Asia regulatory requirements)▲ Limited customization (strict adherence to standards may restrict mods)
