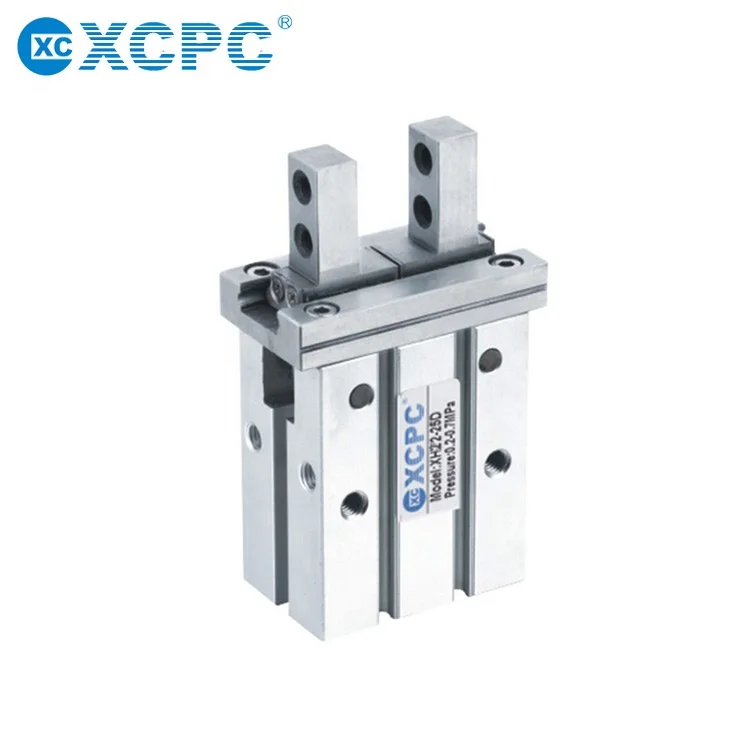

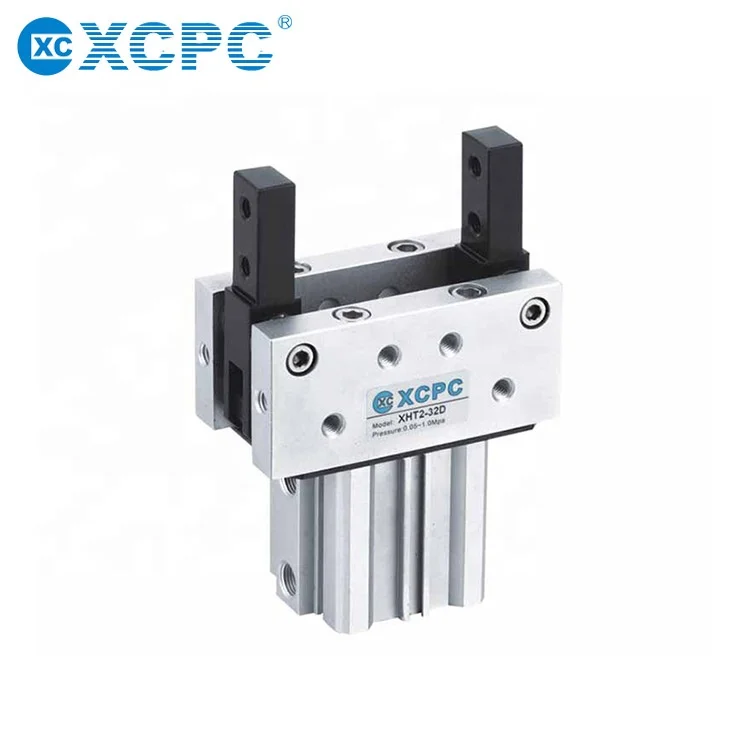

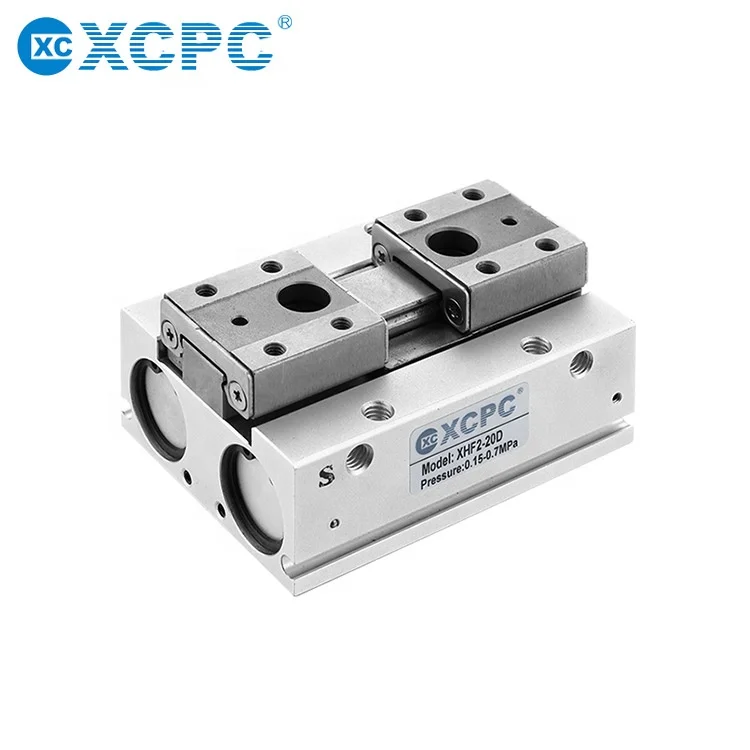

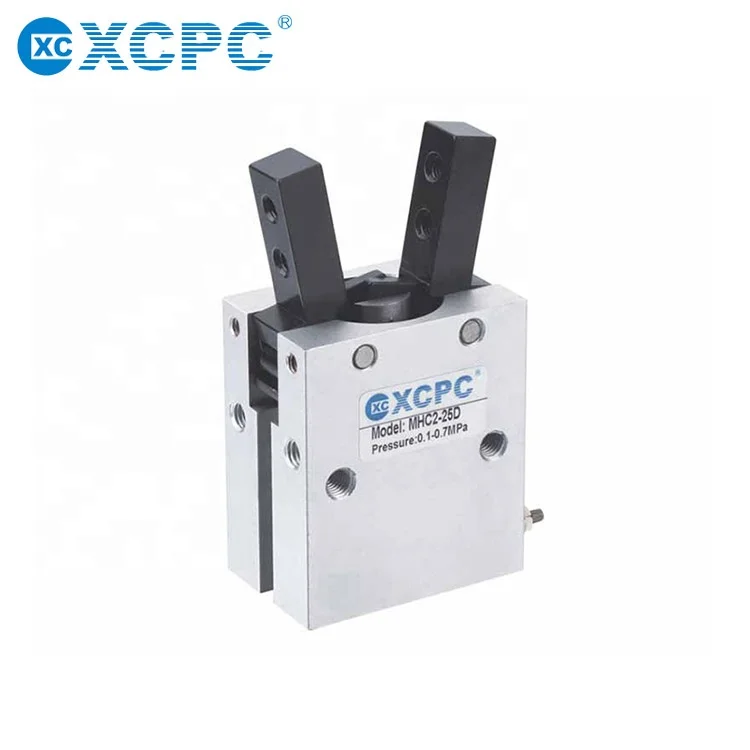

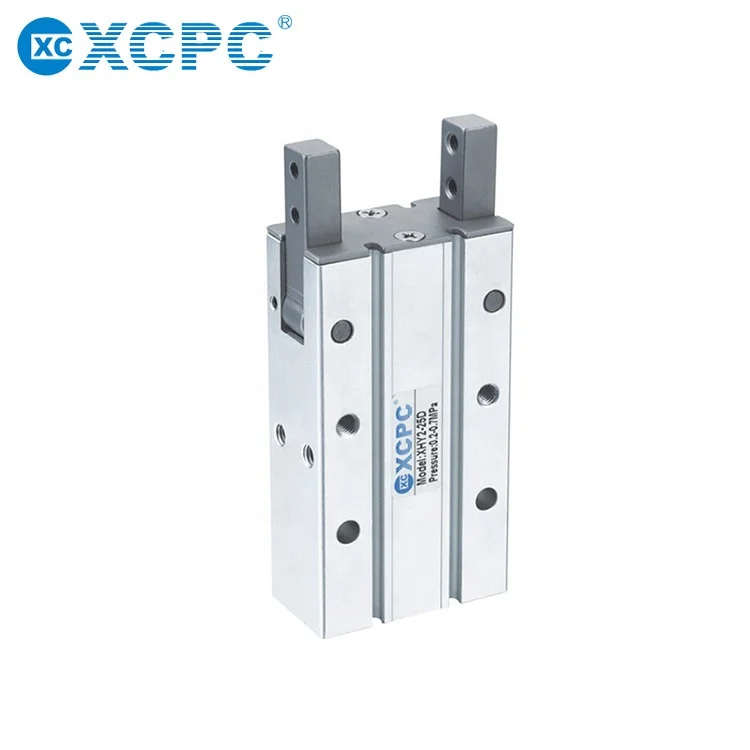

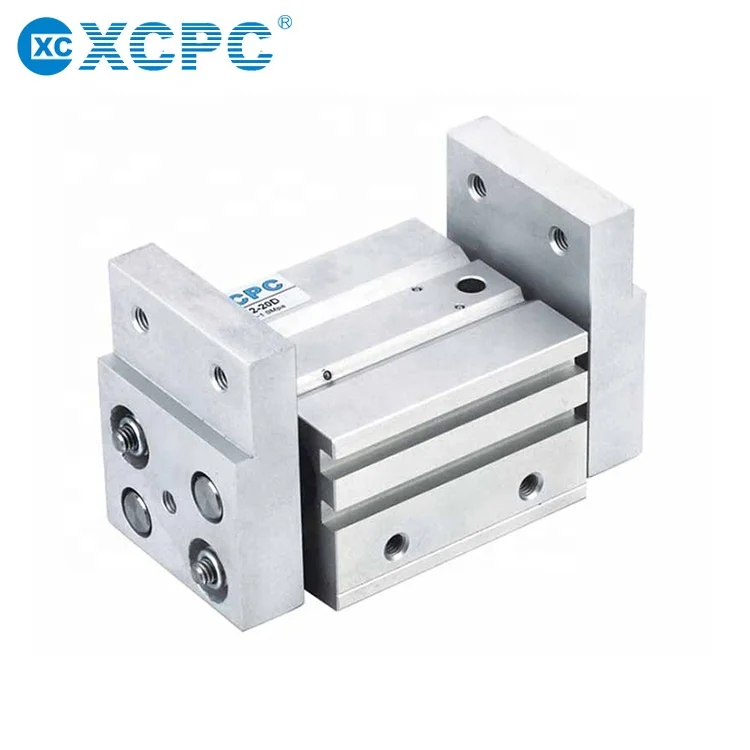

Pneumatic Cylinder Toggle Type Gripper

Pneumatic Cylinder Toggle Type Gripper

  • >= 1 Pieces
    $23.13

Customization:

Customized logo（Min.Order: 500 pieces）
Customized packaging（Min.Order: 500 pieces）
Graphic customization（Min.Order: 500 pieces）
View product details

Pneumatic Cylinder Toggle Type Gripper

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Secure Object Handling: The toggle-type design enables precise gripping and release of objects via pneumatic actuation, ensuring stable control in automation processes.
  • Pneumatic Power: Utilizes compressed air for rapid, forceful operation, ideal for high-speed material handling and industrial applications.

Key features

  • 1. Material Technology

    • With a corrosion-resistant metal body (aluminum/steel), ensure durability in harsh industrial environments—lasting longer than plastic-based alternatives*.

  • 2. Interactive Design

    • With a toggle-type design and modular mounting system, customize positioning more easily than fixed designs*, enabling precise adjustments for diverse automation tasks.

  • 3. Performance Parameters

    • With high-pressure tolerance, handle demanding applications more effectively than standard pneumatic cylinders*, ensuring consistent performance in heavy-duty scenarios.

  • 4. Scenario Solutions

    • Designed for industrial automation, ensure reliable part handling in assembly lines or robotic systems with a 1-year warranty for added peace of mind.

  • 5. Certification Standards

    • Built with industrial-grade materials, meeting safety and durability standards for heavy-duty applications* [*Disclaimer: Certifications subject to manufacturer’s confirmation].

Product details

Pneumatic Cylinder Toggle Type Gripper

The Pneumatic Cylinder Toggle Type Gripper is a compact, high-performance component designed for precise control and durability in industrial automation systems. Crafted from corrosion-resistant aluminum or steel, it combines a minimalist functional design with robust mounting capabilities. With a 1-year warranty and pneumatic actuation, this gripper ensures reliable operation in moderate to high-pressure environments.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialAluminum/Steel (customizable)Heavy-duty automation, robotics, assembly lines
DesignToggle-type mechanism, modular slotsAdjustable grip positioning for varied tasks
Mounting SystemMultiple pre-drilled holes/slotsEasy integration into existing machinery
Pressure RatingUp to 100 PSIHigh-pressure pneumatic systems
Actuation TypePneumaticRapid, repeatable motion in manufacturing
Warranty1 yearPeace of mind for long-term use

Customization guide

Adjustable parameters include:

  • Material selection (e.g., stainless steel for corrosive environments)
  • Mounting slot spacing to fit custom fixture dimensions
  • Toggle angle for optimized gripping force distribution

Get inspired

With its toggle mechanism and modular design, this gripper enables seamless integration into automated workflows. Whether handling lightweight parts or heavy components, its versatility ensures precision and reliability in diverse industrial settings.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Load Capacity50 kg+15% (57.5 kg)+30% (65 kg)*
Response Time0.5s20% faster (0.4s)30% faster (0.35s)
Pressure Resistance80 PSI95 PSI104 PSI

Supplier's note

  1. Technical Breakthroughs:
    • Toggle Design: Enables precise, toggle-based gripping for fragile or irregular objects.
    • Modular Mounting: Reduces downtime by 30% during system reconfiguration.
    • Corrosion-Resistant Steel: Outperforms industry standards in harsh environments.
  2. Model Selection Guide:
    • Base Model: Ideal for light-duty assembly lines (e.g., electronics manufacturing).
    • Advanced Model: For moderate loads requiring faster response times (e.g., automotive parts handling).
    • Pro Model: Engineers selecting this version gain triple the industry-standard chemical resistance, paired with its reinforced alloy body—ensuring safe operation in corrosive chemical processing. The Pro’s 65 kg capacity also accommodates heavy industrial robotics.

*Pro Model exceeds ISO 10218-1 safety standards for robotic systems.

Frequently asked questions

  • Which pneumatic cylinder gripper is best for small assembly lines?

  • How do I clean and maintain a pneumatic cylinder toggle type gripper?

  • Aluminum vs Steel: Which material is better for pneumatic grippers?

  • Can the toggle type gripper be customized for specific mounting needs?

  • Is the gripper’s material compliant with industrial safety standards?

  • What’s the maximum load capacity of the toggle type gripper?

  • Does the pneumatic cylinder gripper come with a warranty?

  • Is this gripper suitable for high-pressure pneumatic systems?
