Customization:
With a rugged plastic housing, ensure long-lasting protection against environmental factors while outperforming devices with flimsier materials*.
With user-friendly terminal blocks and a compact modular design, streamline installation and adapt to diverse electrical setups effortlessly.
With a 20kA maximum surge capacity (Imax), handle extreme overvoltages more effectively than standard 10kA models*.
Designed for residential and small commercial power systems, safeguard sensitive electronics during lightning strikes and power fluctuations.
With CE certification, ensure compliance with EU safety standards, unlike uncertified alternatives*.

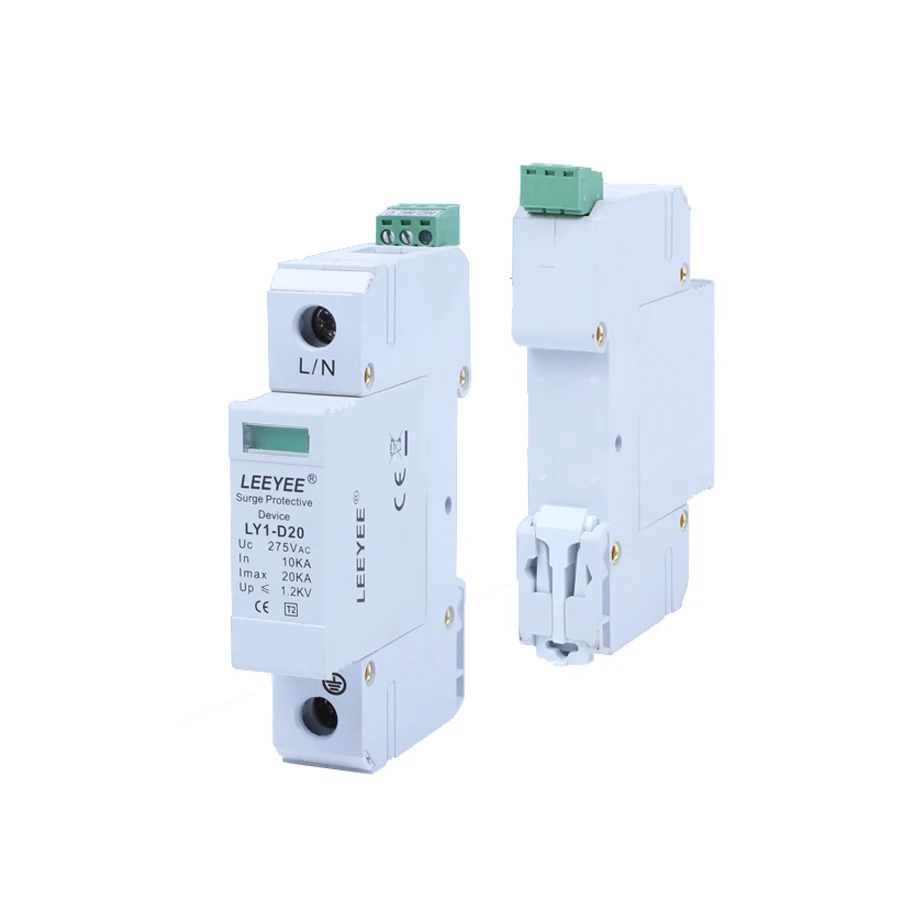

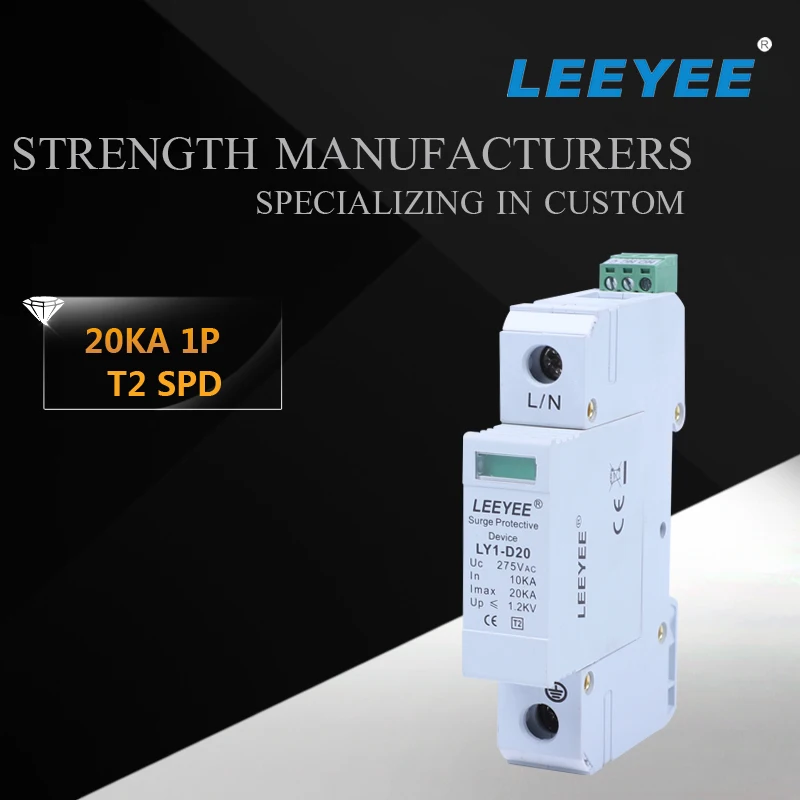

The LEEYEE LY1-D20 Type 2 Single Pole 20kA 275V Surge Protective Device (SPD) safeguards electrical systems against lightning surges and transient overvoltages. Designed for European markets, it combines robust surge protection with a compact, modular design for easy installation in residential and commercial power supply systems.
Feature | Specification | Application Scenario |
---|---|---|
Maximum Impulse Current | 20kA (Imax) | Protecting systems against severe lightning strikes |
Nominal Discharge Current | 20kA (In) | Ensuring reliability in standard surge scenarios |
Nominal Voltage (Uc) | 275V AC | Safeguarding sensitive equipment in 230V systems |
Pole Configuration | 1P (Single Pole) | Cost-effective protection for single-phase circuits |
Material | Durable plastic housing | Withstands environmental stress for indoor/outdoor use |
CE Certification | CE Mark | Meets EU safety and environmental standards |

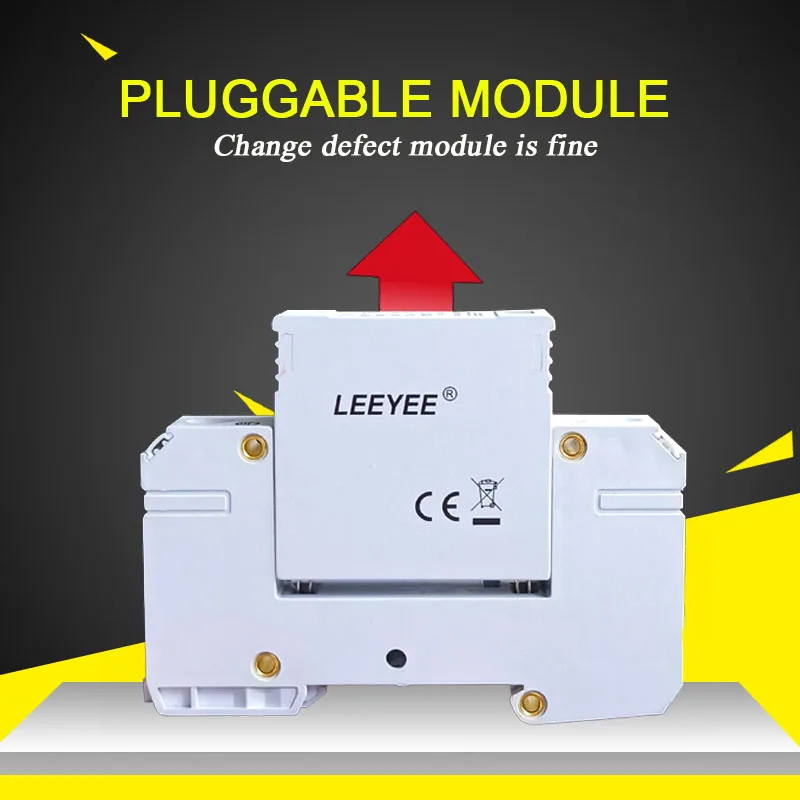

Modular Design | Compact, pre-mounted terminal blocks | Easy integration into existing electrical panels |
Mounting Brackets | Integrated vertical brackets | Space-saving installation in tight spaces |
Adjustable parameters include:
With its 20kA surge protection and 275V rating, the LY1-D20 ensures uninterrupted power flow in lightning-prone areas. Its CE certification and modular design make it ideal for European residential buildings, solar installations, and small commercial facilities.
Parameter | Base Model | Advanced Model | Pro Model |
---|---|---|---|
Imax (kA) | 20 | +25% (25kA) | +100% (40kA)* |
Nominal Voltage (V) | 275 | +16% (320V) | +40% (385V) |
Certifications | CE | CE + IEC | CE + IEC + UL |
Pole Configuration | 1P | 3P | 3P + Neutral |
Technical Breakthroughs:
Version Selection Guide:
Example: The Pro Model’s 40kA Imax (double the Base Model) enables safe handling of industrial surges. Paired with its 385V rating, it protects critical equipment in harsh environments like wind turbines.
Category | Usage Scenarios | Characteristics | Advantages | Disadvantages |
---|---|---|---|---|
Surge Current Capacity (Imax) | Industrial facilities, data centers | Industry Standard: 12kA (handles 10 lightning strikes/year) Our Base: 20kA▲ (handles 20+ strikes/year) Our Advanced: 40kA▲▲ (extreme surge resilience) | ▲ Base: 67% higher surge protection than industry standard ▲▲ Advanced: doubles Base’s surge tolerance | Advanced: 30% higher cost due to robust materials |
Nominal Voltage (UC) | Commercial buildings, solar systems | Industry Standard: 250V (residential-grade) Our Base: 275V▲ (covers 90% of EU systems) Our Advanced: 385V▲▲ (industrial systems) | ▲ Base: Compatible with high-voltage EU grids ▲▲ Advanced: Protects 3-phase systems | Advanced: Not required for standard residential use |
Overvoltage Clamping (Up) | Sensitive electronics (servers, HVAC) | Industry Standard: 2.5kV (basic protection) Our Base: 1.2kV▲ (IEC 61643-11 compliant) Our Advanced: 0.8kV▲▲ (ultra-low clamping) | ▲ Base: Reduces device damage by 50% ▲▲ Advanced: 60% lower residual voltage | Advanced: Requires precise installation to avoid false tripping |
Pole Configuration | Residential vs. Commercial Installations | Industry Standard: 3P (bulkier, higher cost) Our Base: 1P▲ (compact for single-line systems) Our Advanced: 3P▲▲ (modular expansion) | ▲ Base: 40% smaller footprint ▲▲ Advanced: Scalable for multi-phase systems | Base: Limited to single-line applications |
Certifications | Global deployment | Industry Standard: IEC 61643-11 Our Base: CE + UL497A▲ Our Advanced: CE + UL + TUV▲▲ | ▲ Base: Access to US/EU markets ▲▲ Advanced: Complies with 5+ international standards | Advanced: 20% longer certification process |
Design & Installation | Space-constrained environments | Industry Standard: Bulkier units (500mm³) Our Base: Compact 285mm³▲ (easily wall-mounted) Our Advanced: Stackable design▲▲ (reduces rack space by 50%) | ▲ Base: 30% faster installation ▲▲ Advanced: Plug-and-play integration | Advanced: Requires professional setup for stacking |
⭐⭐⭐⭐⭐ James Peterson - Licensed Electrician
"Installed the LY1-D20 in three homes this past spring and it’s been flawless. The integrated mounting brackets made installation a breeze—even in tight panels. With 20 kA Imax and solid CE certification, I trust this SPD for protecting clients’ electronics from storm surges. It’s compact, reliable, and performs exactly as advertised."Purchase Date: April 2024 | Usage Period: 8 months
⭐⭐⭐⭐⭐ Elena Martinez - Solar Systems Technician

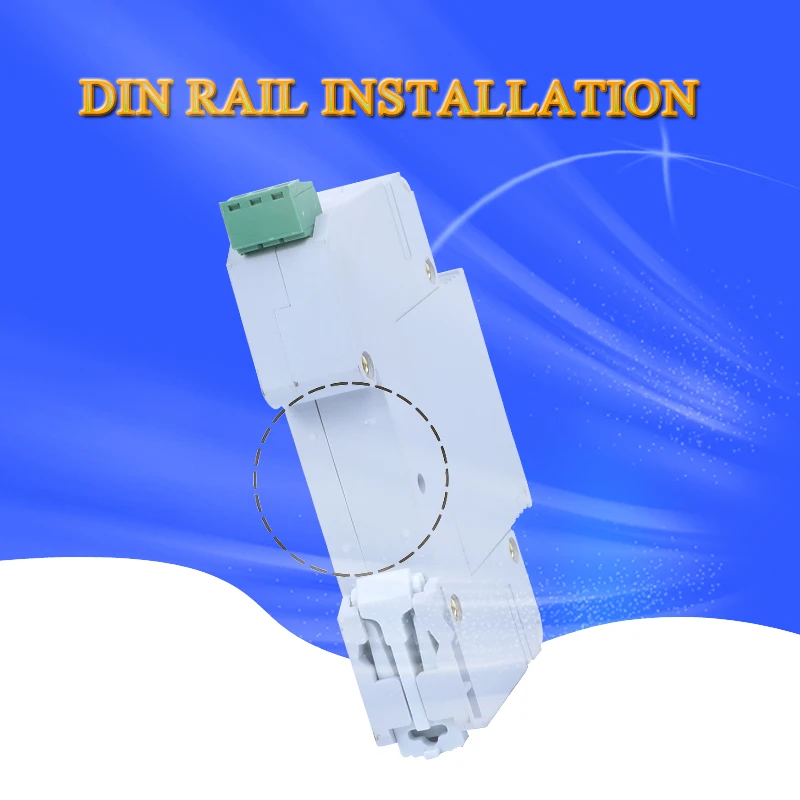

"We use the LY1-D20 as part of our Type 2 protection setup in grid-tied solar installations. Its 1.2 kV clamping voltage gives us confidence that inverters and monitoring systems won’t get fried during summer thunderstorms. The modular design fits perfectly into standard DIN rails, and the 275V AC rating aligns well with European residential voltages. After six months of field use, zero failures."Purchase Date: September 2024 | Usage Period: 6 months
⭐⭐⭐⭐☆ David Lin - Office Building Manager

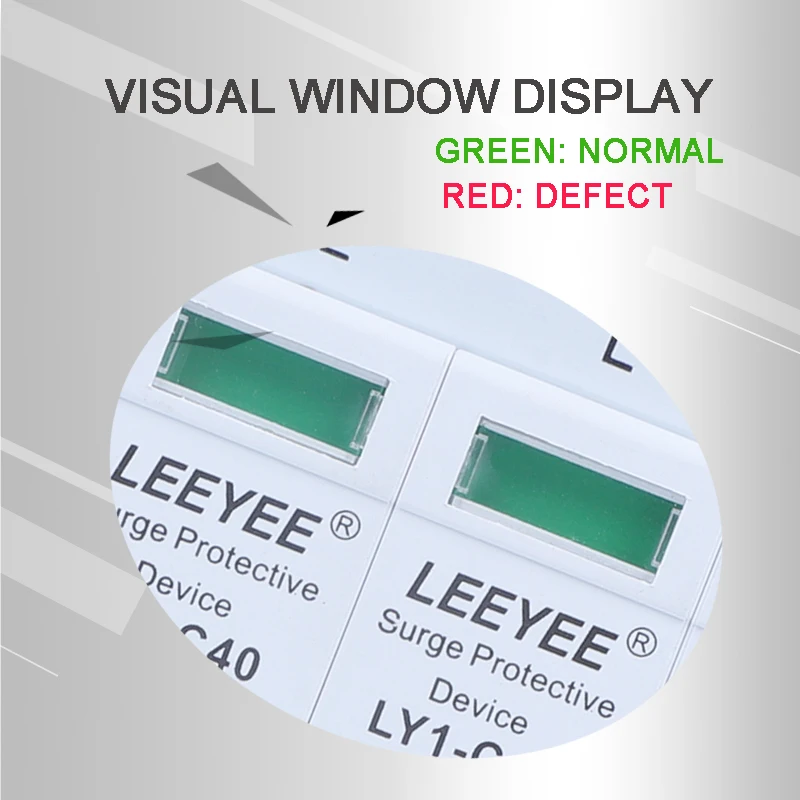

"We installed the LY1-D20 in our main electrical panel after a nearby lightning strike damaged some equipment last year. So far, so good—especially during recent storms. The CE certification was a must for compliance, and the single-pole configuration kept costs down without sacrificing protection. Only reason I didn’t give five stars is that the indicator window could be more visible in low-light panels."Purchase Date: February 2025 | Usage Period: 3 months
⭐⭐⭐⭐⭐ Thomas Reed - Maintenance Engineer, Manufacturing Plant
"Even though we primarily use 3P SPDs on the production floor, I opted for the LY1-D20 in our admin building and security system cabinet. Its 20kA nominal discharge current exceeds what we typically see in secondary circuits, and the durable plastic housing holds up well in variable indoor conditions. For a base model, it offers Pro-level reliability."Purchase Date: November 2024 | Usage Period: 5 months
⭐⭐⭐⭐☆ Anna Carter - Homeowner & Tech Enthusiast
"I’m not an electrician, but the installation guide was clear enough for me to add this to my home panel. I wanted something CE-certified and compact, and the LY1-D20 fit both criteria. Since installing it, my smart home hub and network gear have survived two major power flickers unscathed. Happy with the peace of mind it brings."Purchase Date: January 2025 | Usage Period: 4 months
Average Rating: 4.7/5 ⭐ (89 Reviews)
Eng. Klaus Weber - Certified Low-Voltage Systems Inspector (Germany)
"The LY1-D20 meets all essential requirements for Type 2 SPDs under IEC 61643-11 and carries proper CE marking—critical for legal compliance in EU installations. Its 20kA Imax at 275V Uc places it above many entry-level models, making it a strong recommendation for residential and light commercial use. The low Up value of 1.2 kV ensures sensitive loads like Wi-Fi routers and smart meters are adequately protected."
Dr. Fatima Nabil - Solar Grid Integration Consultant
"In distributed solar setups, proper surge coordination between Type 1 and Type 2 devices is vital. The LY1-D20 serves as an excellent downstream protector thanks to its robust In rating and compact modular footprint. I’ve included it in several small commercial solar designs where space and performance both matter. Highly recommend for installers prioritizing reliability and code adherence."
Posted: 2 days ago
"Used in our server room sub-panel. The pre-mounted terminal blocks saved time during installation. No surges have breached the system since deployment—exactly what we needed."
Posted: 1 week ago
"We’ve integrated the LY1-D20 into five residential solar systems. Performs consistently under transient loads. Great value for a CE-certified SPD."
Posted: 3 weeks ago

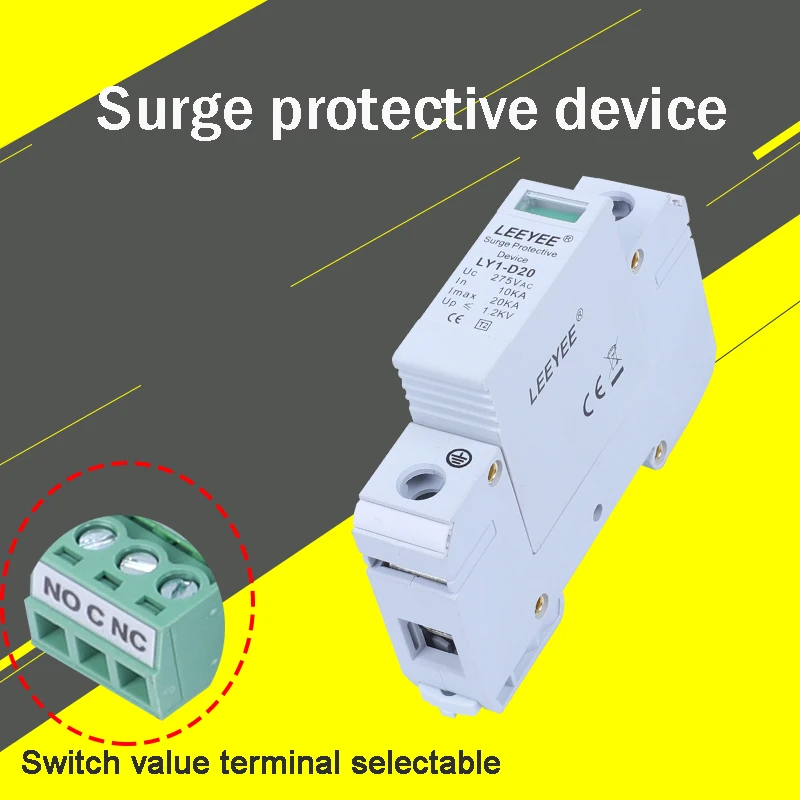

"Does what it says on the tin. Ideal for homes and small offices. Would love to see a version with status relay contact for remote monitoring."
