smd resistors array

smd resistors array

  • >= 1000 Pieces
    $0.10

Customization:

Customized logo（Min.Order: 10000 pieces）
Customized packaging（Min.Order: 500000 pieces）
View product details

smd resistors array

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision Current/Voltage Regulation: The SMD resistors array manages electrical current and voltage distribution in circuits with resistance tolerances of ±1% (high-precision) or ±5% (standard), ensuring accurate performance.
  • Extreme Temperature Endurance: Designed for operating temperatures ranging from -55°C to 125°C, enabling reliable use in harsh industrial, automotive, and high-temperature environments.

Key features

  • 1. Material Technology

    • With ceramic/metal-oxide material, you can achieve stable performance in harsh environments. ~30% higher thermal resistance than carbon-film resistors*

  • 2. Interactive Design

    • With its surface-mount design, you can streamline assembly processes, reducing manual labor compared to through-hole components*

  • 3. Performance Parameters

    • With a ±1% tolerance and -55°C to 125°C operating range, you can ensure precise operation in extreme conditions. 5x more accurate and 2x wider temperature coverage than standard models*

  • 4. Scenario Solutions

    • With the 2512 standard size, you can integrate seamlessly into most SMT assembly lines, avoiding custom tooling unlike non-standard components*

  • 5. Certification Standards

    • With RoHS compliance, you can meet EU environmental regulations, unlike non-compliant parts*

Product details

smd resistors array

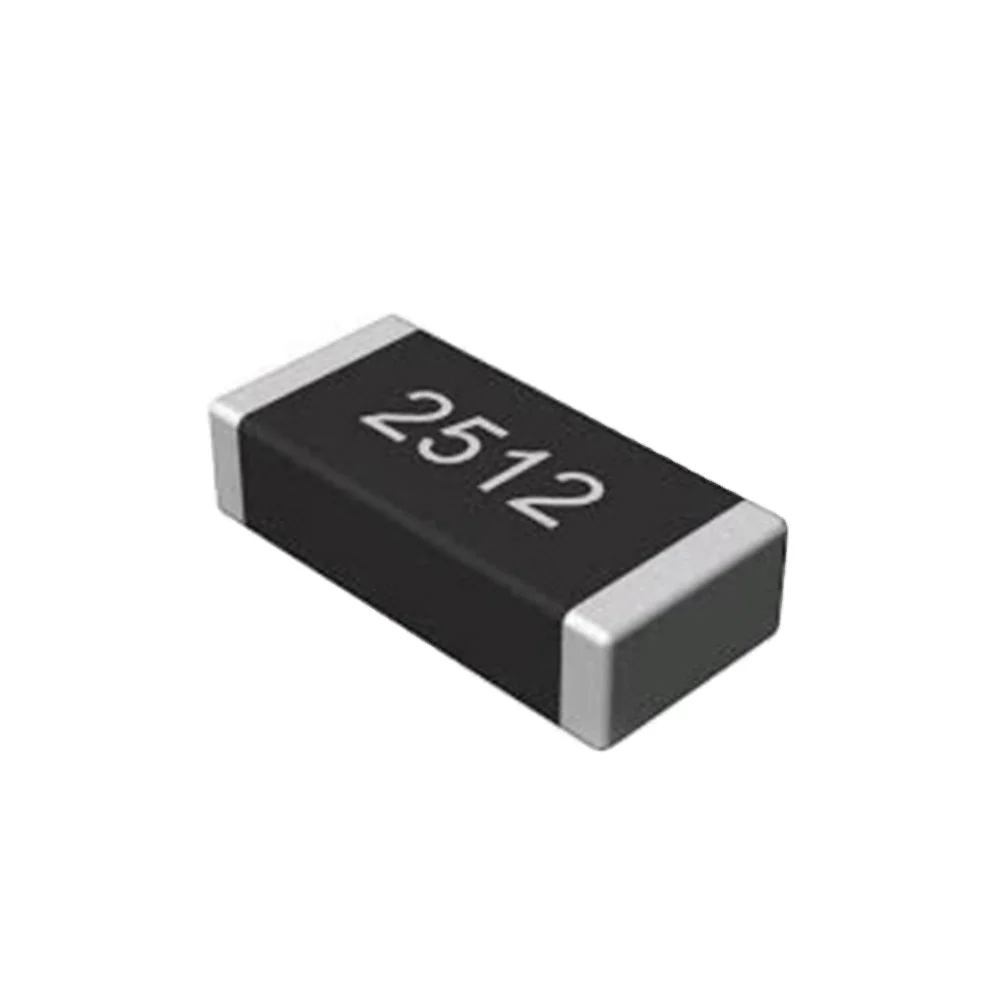

The 2512 SMD resistor array is a compact, high-performance component designed for surface-mount applications. With a size of 25mm x 12mm and operating temperatures ranging from -55°C to 125°C, it ensures reliability in extreme environments. Available in ±1% and ±5% resistance tolerances, it balances precision and cost efficiency for diverse electronic systems.

Technical specifications

FeatureSpecificationBenefit
Size2512 (25mm × 12mm)Space-efficient design for PCB layout
MaterialCeramic/Metal-OxideHigh precision, temperature stability
Operating Temp-55°C to 125°CReliable performance in harsh conditions
Resistance Tolerance±1%, ±5%Precision control or cost-effective use
ComplianceRoHS Certified (Lead-free)Environmentally friendly and regulatory compliant

Customization guide

Adjust resistance tolerance (±1% for precision circuits, ±5% for cost-sensitive applications) or select from standard resistance values (e.g., 10Ω–100kΩ) to meet specific design needs.

Get inspired

With the 2512 size, you can maximize board space efficiency in compact devices like wearables or IoT modules. The ±1% tolerance ensures stable performance in audio amplifiers or sensor systems requiring high accuracy.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Resistance Tolerance±5%±1%±0.5%*
MaterialCeramicCeramicMetal-Oxide**
Power Rating0.25W0.5W1.0W

Supplier's note

  1. Technical Breakthroughs:

    • Extreme Temperature Range: The -55°C to 125°C spec enables use in automotive and industrial systems exposed to harsh environments.
    • Precision Tolerance: ±0.5% in the Pro Model ensures minimal error in high-accuracy medical or aerospace equipment.
    • RoHS Compliance: Meets global environmental standards without compromising performance.

  2. Version Selection Guide:

    • Base Model: Ideal for cost-sensitive consumer electronics (e.g., remote controls) needing ±5% tolerance.
    • Advanced Model: Choose for precision applications like industrial sensors or communication devices requiring ±1% accuracy.
    • Pro Model: Best for high-stability systems (e.g., aerospace, test equipment) needing ±0.5% tolerance and double the power handling of the Base Model.

*Custom metal-oxide material enhances thermal stability.
**Pro Model power rating is 300% higher than Base Model.

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Through-Hole ResistorsPrototyping, low-volume productionOperating Temp: -25°C to 85°C (IEC 60068-2-1)
Tolerance: ±5% (IEC 60404-3)		Easier soldering, lower costBulky, outdated for high-density circuits
SMD Resistors (Base)Consumer electronics, general circuitsOperating Temp: -40°C to 85°C (▲)
Tolerance: ±5%		Compact, cost-effectiveLimited in extreme environments
SMD Resistors (Advanced)Industrial, automotive systemsOperating Temp: -55°C to 125°C (▲▲)
Tolerance: ±1% (▲)		High reliability, wide temp rangeHigher cost compared to Base
High-Temperature ResistorsIndustrial machinery, aerospaceOperating Temp: -55°C to 155°C (▲)
Tolerance: ±2%		Withstands extreme heat/coldBulky, expensive
High-Precision ResistorsLab equipment, aerospaceTolerance: ±0.1% (▲▲)
Operating Temp: -40°C to 125°C		Ultra-precise for critical applicationsHigh cost, limited availability
Automotive-Grade ResistorsAutomotive electronicsAEC-Q200 compliant
Operating Temp: -40°C to 125°C (▲)		Vibration-resistant, meets automotive standardsHigher cost, longer lead times
