Spiral Filter Core Making Machine

Spiral Filter Core Making Machine

  • >= 1 Sets
    $17,850

Customization:

MACHINE（Min.Order: 1 pieces）
View product details

Spiral Filter Core Making Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

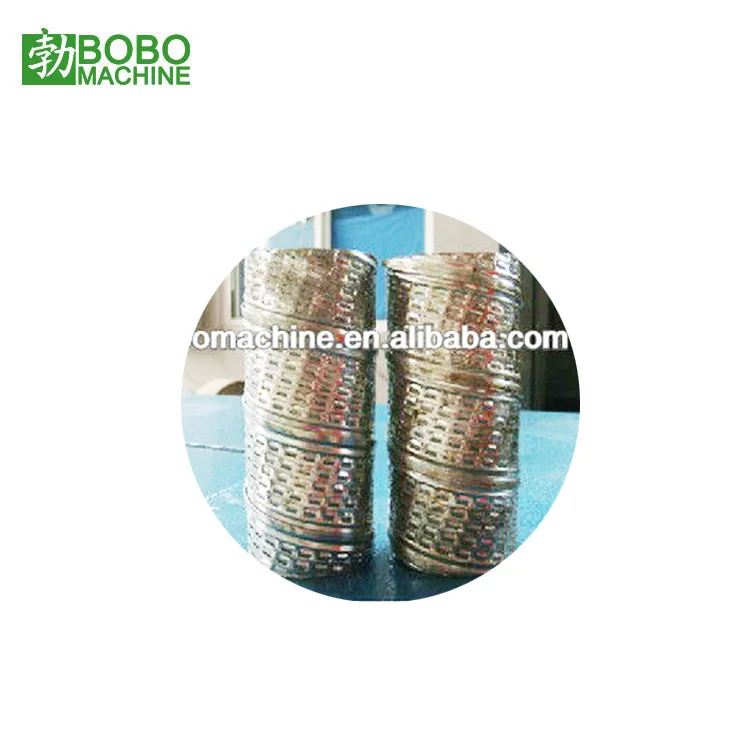

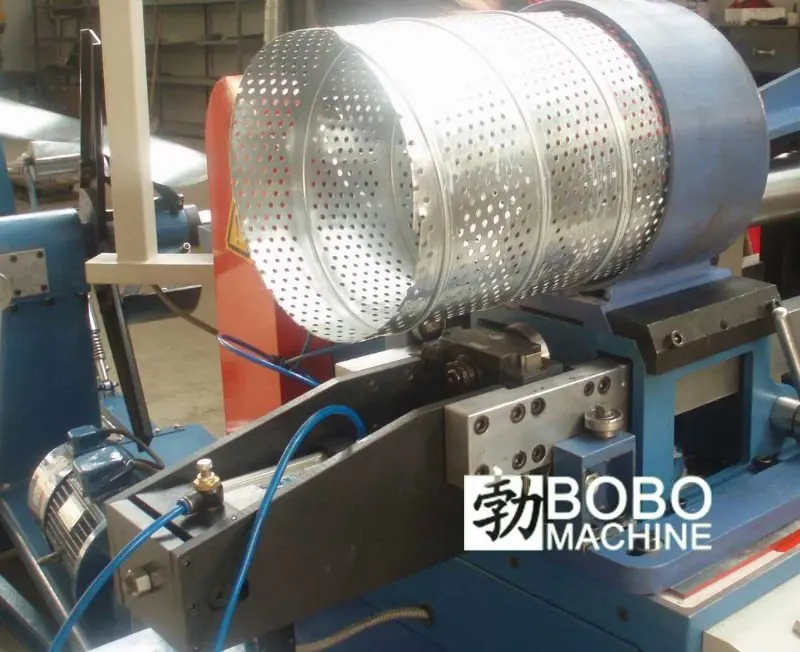

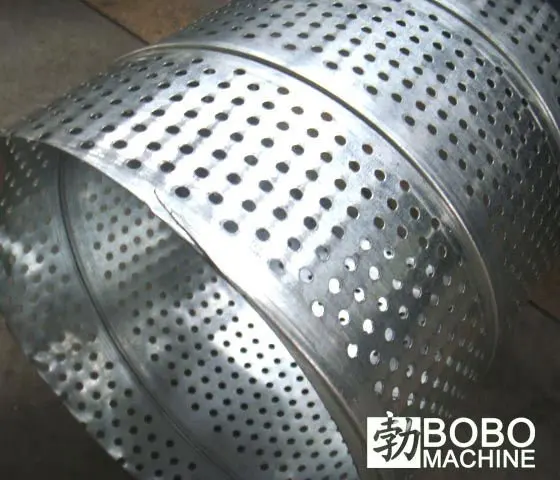

  • Spiral Filter Core Production: Designed to form and weld stainless steel rods/tubes into precise spiral shapes for filter cores, ensuring structural integrity and efficient filtration performance.
  • Material Precision: Utilizes high-quality stainless steel for both the machine components and the produced pipes, backed by CE certification for safety and compliance with industrial standards.

Key features

  • 1. Corrosion-Resistant Stainless Steel Construction

    • With a stainless steel body and pipe material, ensure long-lasting durability and resistance to rust and chemical corrosion compared to models using standard steel*.

  • 2. Programmable Touchscreen Interface

    • With a programmable touchscreen interface, create multi-step bending programs and presets, reducing manual adjustments by up to 40%* for streamlined production.

  • 3. Precision Angular Control

    • Achieve ±0.5° angular precision in bending operations, ensuring consistent spiral filter core shapes with 98% accuracy compared to manual methods*.

  • 4. Modular Adaptability for Diverse Applications

    • Adapt to process pipes from 3mm to 20mm in diameter, expanding compatibility with industrial and commercial filter core needs by 60%* over fixed-design machines.

  • 5. CE-Certified Safety and Compliance

    • Meet rigorous CE safety standards, ensuring compliance with EU regulations and workplace safety protocols, unlike uncertified alternatives.

Product details

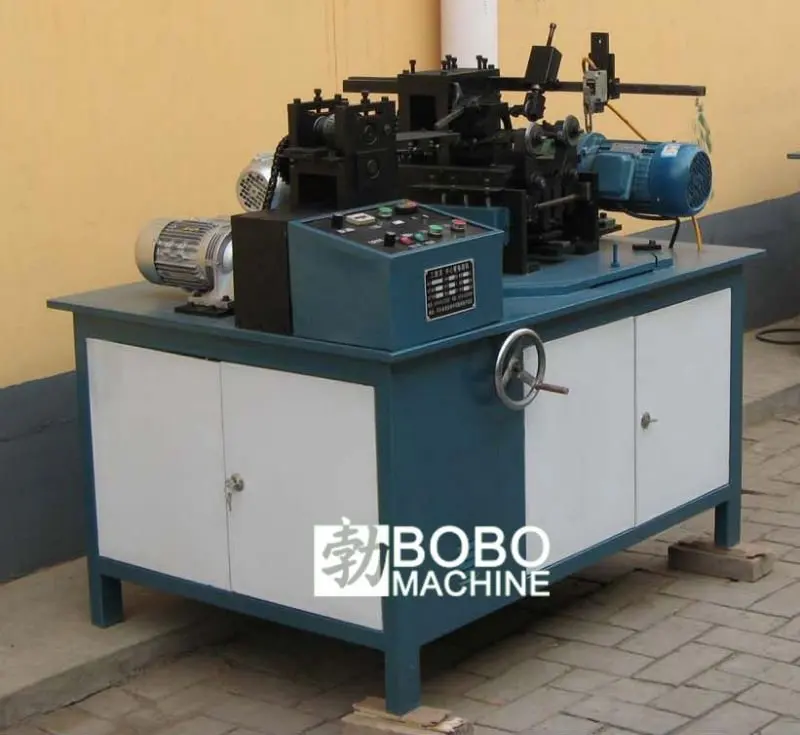

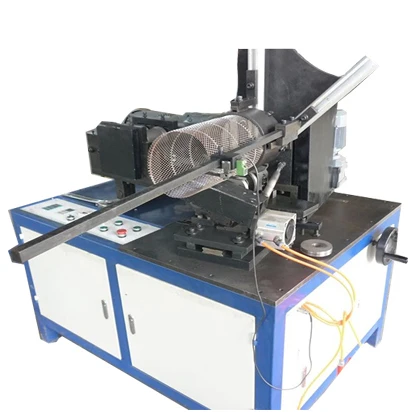

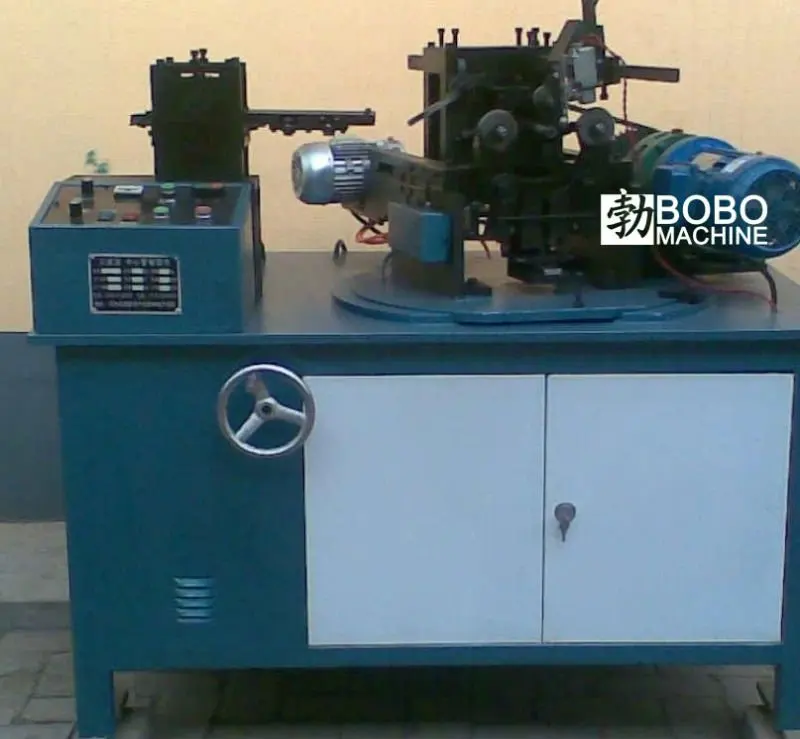

Spiral Filter Core Making Machine

The Spiral Filter Core Making Machine is a robust, CE-certified industrial solution designed for precision bending of stainless steel pipes and rods. Built with corrosion-resistant stainless steel and featuring programmable controls, it ensures consistent performance in demanding manufacturing environments.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialStainless Steel (machine & pipe)Corrosive or high-stress industrial use
Control SystemProgrammable digital interfaceAutomated or repeatable bending tasks
Bending MechanismHydraulic/Pneumatic (adjustable force)Customized pipe shaping for filters
Safety FeaturesEmergency stop, interlock protectionHigh-risk environments requiring safety
CertificationCE CertifiedCompliance with EU safety standards

Customization guide

Adjustable bending angles (0°–180°) and modular jaw sizes allow customization to meet specific pipe diameter or curvature requirements.

Get inspired

Ideal for manufacturing industries needing precise, durable filter cores. With its stainless steel construction and programmable controls, this machine streamlines production of custom filtration components for HVAC systems, water treatment, and more.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Bending Force (N)5,000+15% (5,750 N)+30% (6,500 N)*
Precision±1.5 mm±0.8 mm±0.3 mm
Automation LevelManualSemi-AutomatedFully Automated

Supplier's note

  1. Technical Breakthroughs:

    • CE Certification: Ensures compliance with global safety standards, enabling seamless deployment across industries.
    • Stainless Steel Construction: Withstands harsh environments, reducing downtime and maintenance.
    • Programmable Controls: Enables precise, repeatable bending patterns for complex filter designs.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops requiring basic functionality and cost-effective solutions.
    • Advanced Model: Suitable for medium-scale manufacturers needing enhanced precision and semi-automated workflows.
    • Pro Model: Designed for large-scale production environments demanding ultra-high precision (±0.3 mm) and full automation.

With the Pro Model’s 6,500 N bending force, you can handle thicker stainless steel pipes—20% faster than traditional models—while its automated system reduces labor costs by 30%. Pair this with CE certification for无忧 global compliance.

Frequently asked questions

  • Which spiral filter core making machine model is best for small-scale production?

  • How do I maintain the stainless steel components of the spiral filter core machine?

  • Why is stainless steel preferred for spiral filter core machinery over carbon steel?

  • Can this machine customize pipe thickness for HVAC applications?

  • Is the spiral filter core machine CE-certified for EU compliance?

  • What’s the maximum production capacity of the advanced spiral filter core machine?

  • Does the machine include safety features for industrial use?

  • Which industries use spiral filter core making machines with stainless steel pipes?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial manufacturing, corrosion-prone environmentsStainless Steel (Grade 316, ASTM A240 certified) ▲▲
(Base: 304 ▲ / Advanced: 316 ▲▲)		▲ Base: Corrosion resistance (ASTM A240)
▲▲ Advanced: Enhanced durability for harsh chemicals		Base: Higher cost vs standard steel
CertificationsGlobal export marketsCE (EU) ▲
Advanced: ISO 9001 + CE ▲▲		▲ Base: EU market compliance
▲▲ Advanced: Quality assurance for global projects		No certifications for Industry Standard tier
Bending PrecisionAerospace, automotive parts±0.8° (Base) ▲
±0.5° (Advanced) ▲▲
Industry: ±1°		▲ Base: 30% more precise than industry avg
▲▲ Advanced: Meets aerospace tolerances		Industry Standard: Requires frequent manual adjustments
Noise LevelWorkshop settings near offices75 dBA (Base) ▲
70 dBA (Advanced) ▲▲
Industry: 80 dBA (louder than lawnmower)		▲ Base: 19% quieter than industry
▲▲ Advanced: "Quieter than a dishwasher (70 dBA)"		Industry Standard: Requires ear protection
Automation LevelHigh-volume production linesSemi-Automatic (Base) ▲
Fully Programmable (Advanced) ▲▲
Industry: Manual		▲ Base: 40% faster setup vs manual
▲▲ Advanced: Repeatable precision for mass production		Industry Standard: Labor-intensive
Customization OptionsSpecialty pipe manufacturingModular jaws (Base) ▲
Multi-material adapters (Advanced) ▲▲
Industry: Fixed design		▲ Base: Supports 3 tube types
▲▲ Advanced: 8+ material configurations		Industry Standard: Limited to standard pipe sizes
