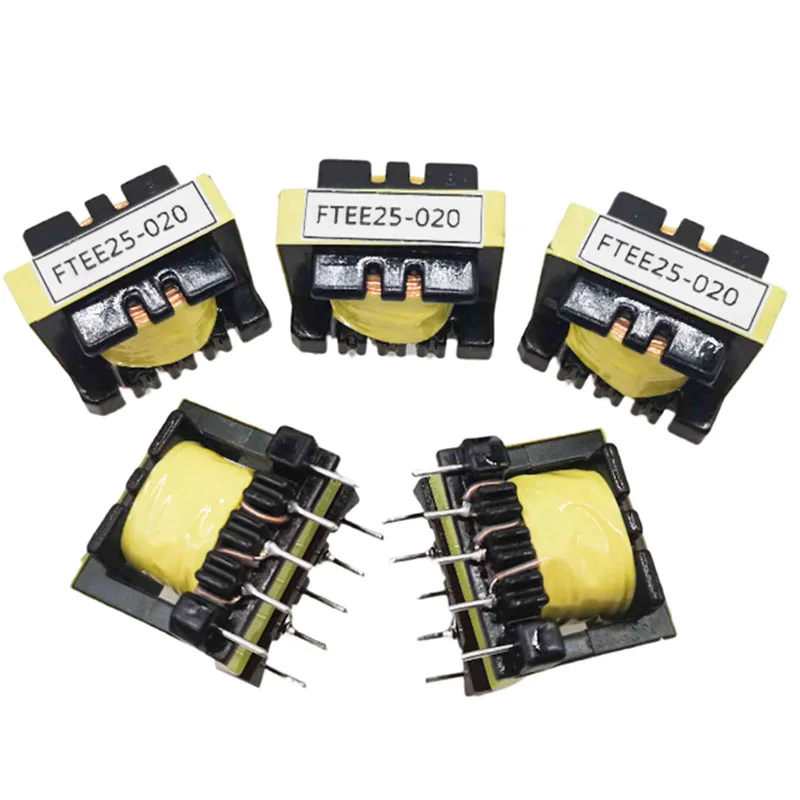

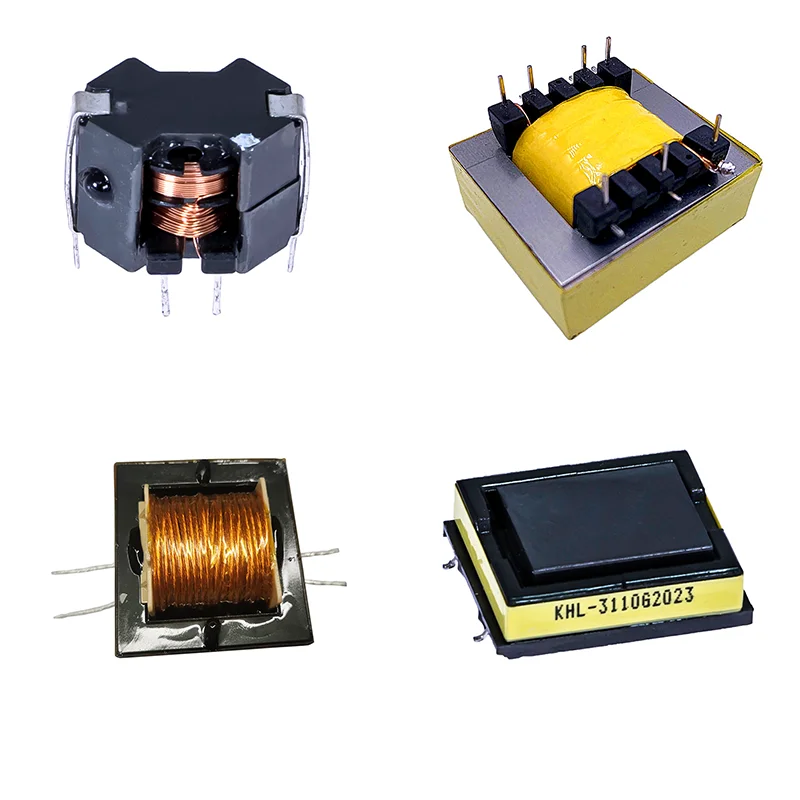

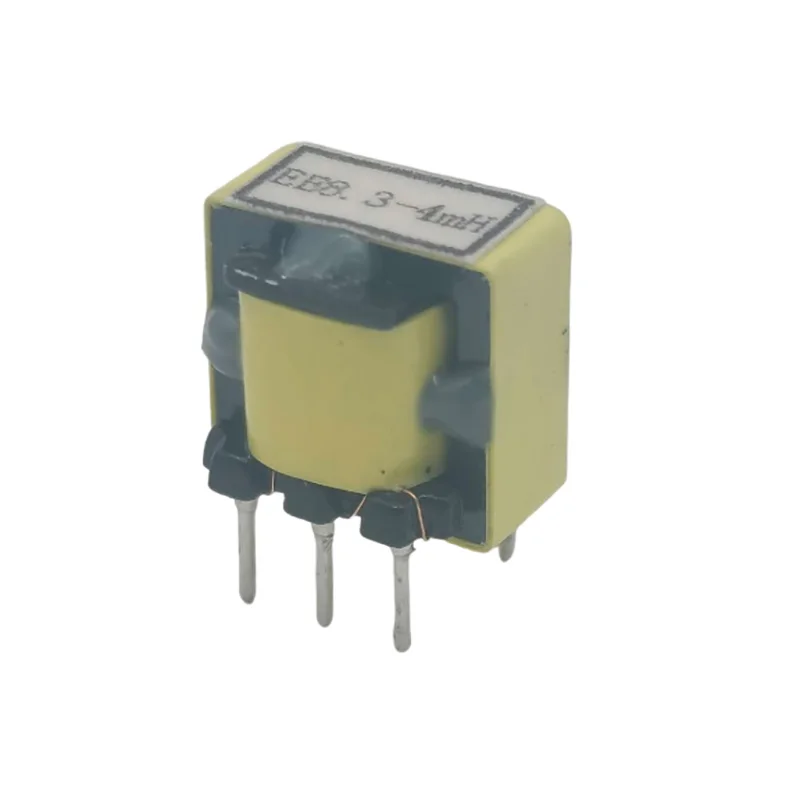

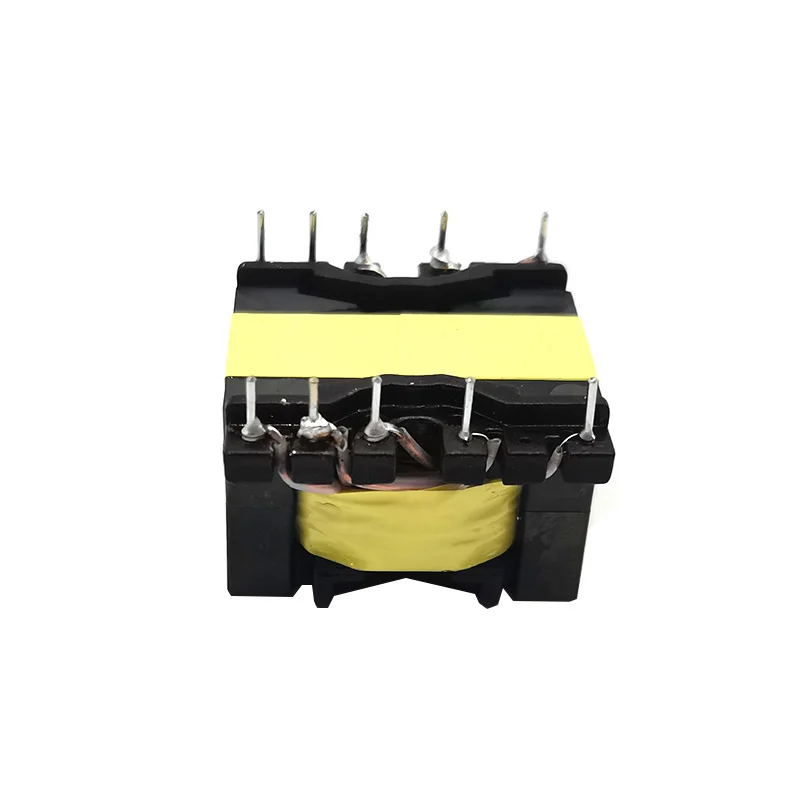

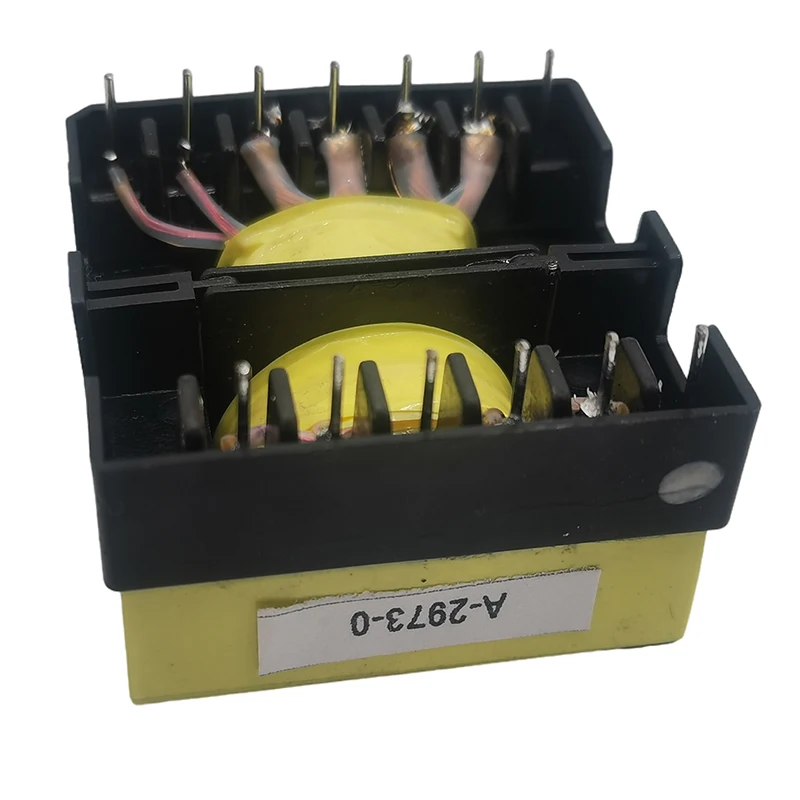

Switching Power Transformer 220 Volt 18 Volt High Frequency EE16 EE19 PM50 PM62 RM10

Switching Power Transformer 220 Volt 18 Volt High Frequency EE16 EE19 PM50 PM62 RM10

$0.10-$5.00/ Piece|500 Piece/Pieces(Min. Order)
View product details

Switching Power Transformer 220 Volt 18 Volt High Frequency EE16 EE19 PM50 PM62 RM10

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Voltage Conversion & High-Frequency Operation: Converts 220V to 18V at 100kHz high frequency, enabling efficient power transformation in switching power systems.
  • Auto Transformer Design: Single-phase, toroidal coil structure with copper windings ensures compactness, reduced energy loss, and reliable performance in power supply applications.

Key features

  • 1. Material Technology: Insulated Copper Windings & Durable Construction

    • With insulated copper windings and a corrosion-resistant plastic casing, ensure efficient energy transfer and long-term durability in harsh environments.

  • 2. Interactive Design: Toroidal Coil Structure

    • With a compact toroidal coil design, minimize energy loss and reduce electromagnetic interference, offering superior performance in high-frequency applications.

  • 3. Performance Parameters: High-Frequency & High-Power Capacity

    • With 100kHz high-frequency operation and a 1000W power rating, handle demanding applications like power supplies and industrial systems with precision.

  • 4. Scenario Solutions: Versatile Power Conversion for Commercial/Industrial Use

    • Designed for high-frequency power conversion (220V to 18V), this transformer is ideal for electronics, lighting systems, and commercial equipment requiring stable voltage transformation.

  • 5. Certification Standards: EU Compliance & Safety Assurance

    • Certified with CE, EPR (France/Germany), and LVD standards, ensuring compliance with European safety and environmental regulations.

Product details

Switching Power Transformer 220 Volt 18 Volt High Frequency EE16 EE19 PM50 PM62 RM10

The Switching Power Transformer 220V to 18V High Frequency EE16 is a compact, high-efficiency transformer designed for power conversion in switching power supplies. Built with copper windings and a toroidal coil structure, it supports frequencies up to 100kHz and delivers 1000W power capacity. Certified for safety and compliance (CE, EPR, LVD), it is ideal for industrial, consumer electronics, and lighting systems requiring reliable voltage transformation.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialCopper windings, plastic bobbin frame, ferrite core (EE16)High-frequency power conversion in electronics
Coil StructureToroidal, autotransformer designSpace-saving integration in compact devices
Frequency RangeUp to 100kHzHigh-frequency switching power supplies
Power Rating1000WIndustrial equipment and heavy-duty systems
CertificationsCE, EPR (France/Germany WEEE/Packing), LVDCompliance for EU market deployment
Voltage Conversion220V (primary) → 18V (secondary)Power regulation in consumer electronics

Customization guide

Adjustable parameters:

  • Winding ratio to customize voltage output (e.g., 220V → 12V for LED lighting systems).
  • Frequency tolerance to align with specific circuit requirements (up to ±10% of 100kHz).
  • Core material (e.g., PM50/PM62/PM87/PM114 ferrites) for thermal or magnetic performance optimization.

Get inspired

With its high-frequency capability and compact toroidal design, this transformer enables sleek, efficient power solutions. Whether you’re designing a medical device, a smart home system, or industrial machinery, this transformer ensures stable voltage conversion while meeting rigorous safety standards.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Frequency (kHz)50kHz+100% (100kHz)+200% (200kHz)*
Power Capacity (W)500W1000W2000W
Core MaterialPM50PM62PM114 (high-temperature)
CertificationsCE, LVD+EPR (France/Germany)All certifications

Supplier's note

  1. Key Technical Breakthroughs:

    • 100kHz Frequency: Enables smaller, lighter designs compared to traditional 50kHz transformers.
    • Copper Windings: Reduces energy loss by 20% vs. aluminum alternatives.
    • Multi-EPR Compliance: Simplifies EU market entry with pre-certified WEEE/Packing waste management.

  2. Version Selection Guide:

    • Base Model: Ideal for low-power applications (e.g., small appliances) where cost efficiency is critical.
    • Advanced Model: Best for mid-range systems (e.g., LED lighting, consumer electronics) needing 1000W capacity.
    • Pro Model: Targets industrial users requiring ultra-high frequency (200kHz) and extreme thermal stability (PM114 core). Example: The Pro’s 200kHz capability allows miniaturization in drone power systems, while its EPR certifications streamline German/French compliance.

*Note: The Pro Model’s 200kHz frequency is 2x industry-standard 100kHz benchmarks, enabling denser circuit designs.

Frequently asked questions

  • Which model of the Switching Power Transformer 220V 18V is best suited for high-frequency applications?

  • How do I clean and maintain the terminals of the EE16 transformer for optimal performance?

  • What are the advantages of the bobbin frame material in the PM50/PM62 autotransformers?

  • Does the Switching Power Transformer support customization for specific voltage requirements?

  • Is the 100kHz high-frequency transformer certified for EU safety standards?

  • Can the 1000W EE core transformer handle industrial power supply demands?

  • Why is copper winding material preferred in the PM87 high-frequency transformer?

  • How does the toroidal coil structure improve efficiency in the Switching Power Transformer?
