Transformer Bushing

Transformer Bushing

$830.00-$1000.00/ Piece|1 Piece/Pieces(Min. Order)
View product details

Transformer Bushing

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Voltage Power Distribution: Designed to handle input voltages of 10kV, 15kV, and 35kV with a toroidal coil structure for efficient energy transfer and minimal energy loss.
  • Frequency Compatibility: Supports both 50Hz and 60Hz systems, enabling seamless integration into global power grids and industrial applications.

Key features

  • 1. Material Technology

    • With a corrosion-resistant metallic blue coating and robust steel construction, ensure durability in harsh industrial environments*.

  • 2. Interactive Design

    • With easy-access design featuring maintenance-friendly access points, simplify routine inspections and servicing*.

  • 3. Performance Parameters

    • With a toroidal coil structure and 35kV input voltage capacity, achieve high efficiency and reliability in high-load applications*.

  • 4. Scenario Solutions

    • With 50/60Hz compatibility and compact design, deploy seamlessly in global industrial and commercial power distribution systems*.

  • 5. Certification Standards

    • Engineered to meet international safety and performance standards for power distribution equipment*.

Product details

Transformer Bushing

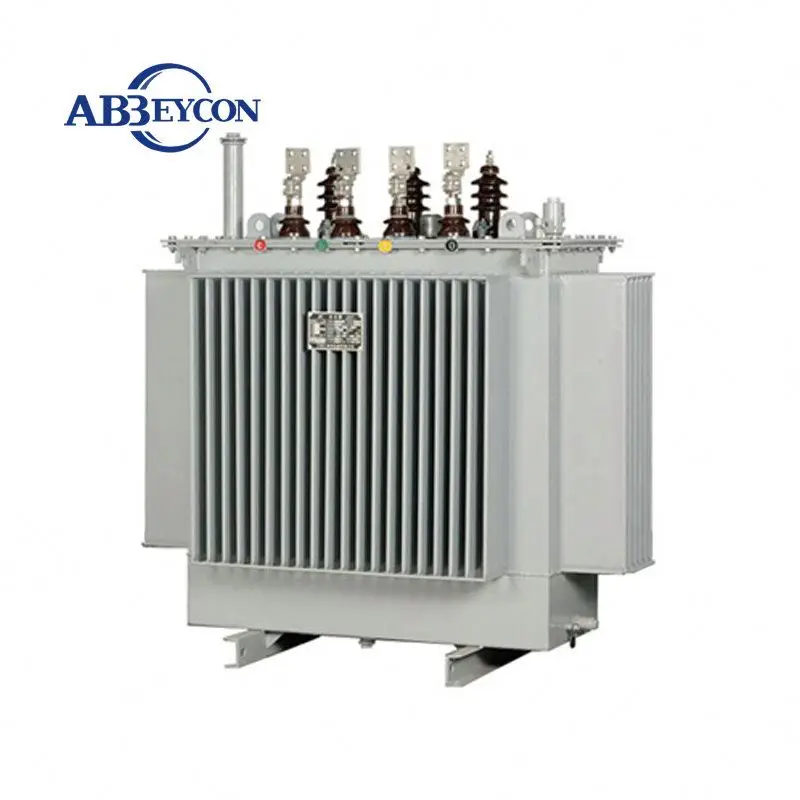

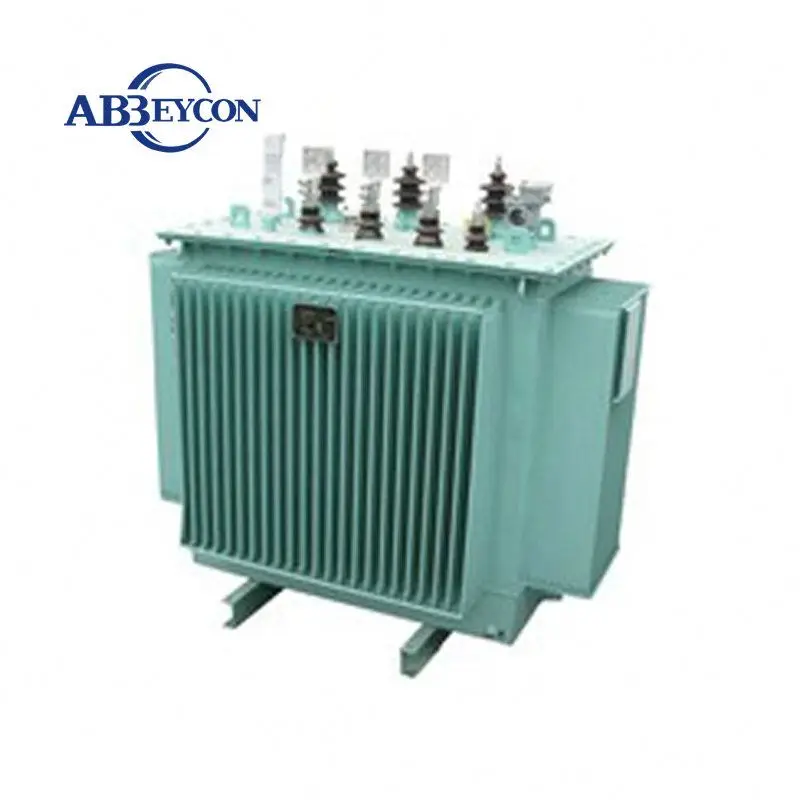

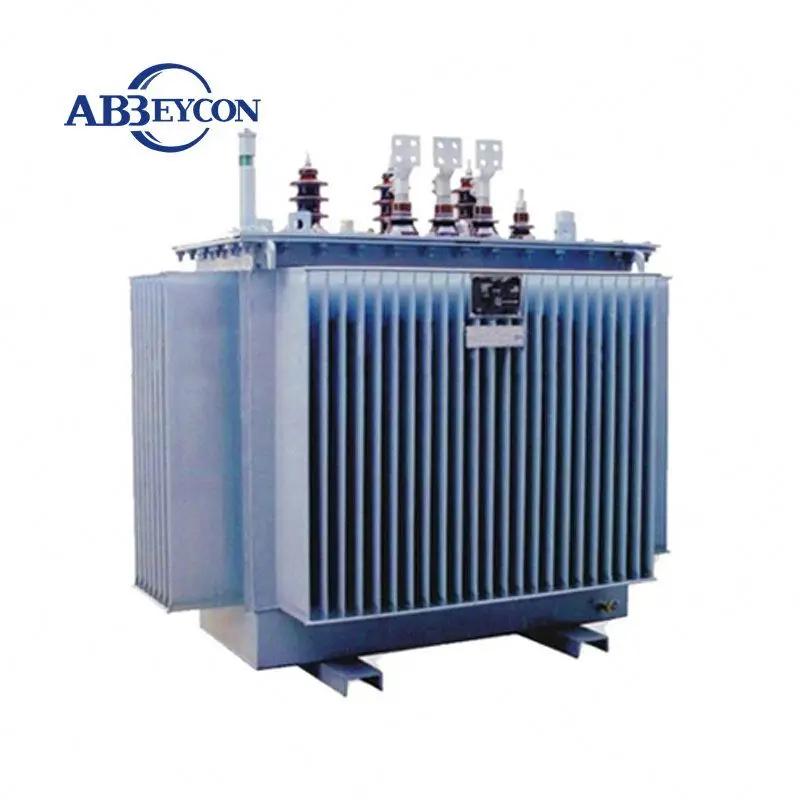

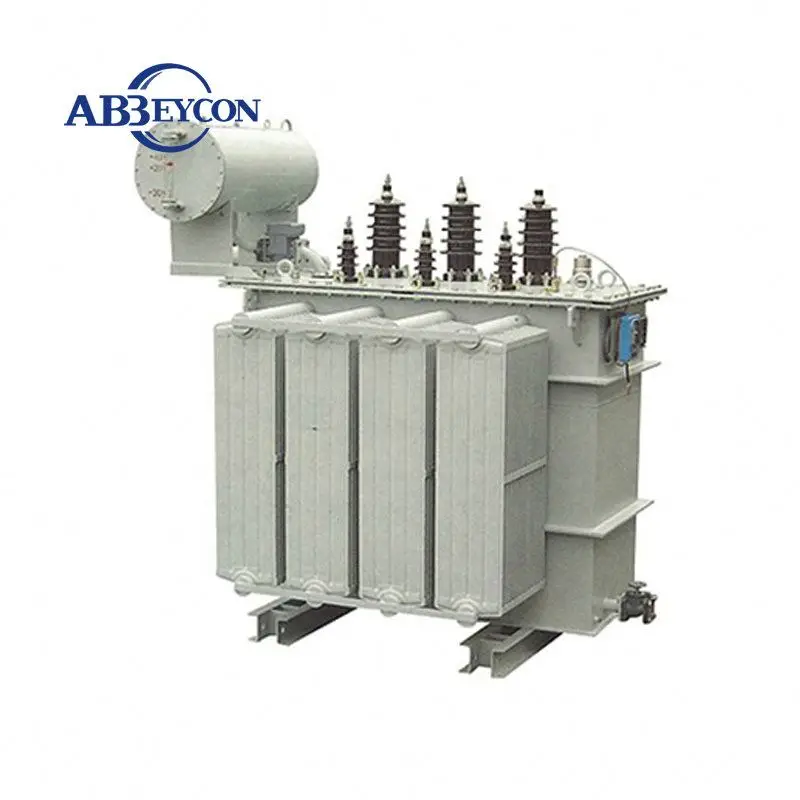

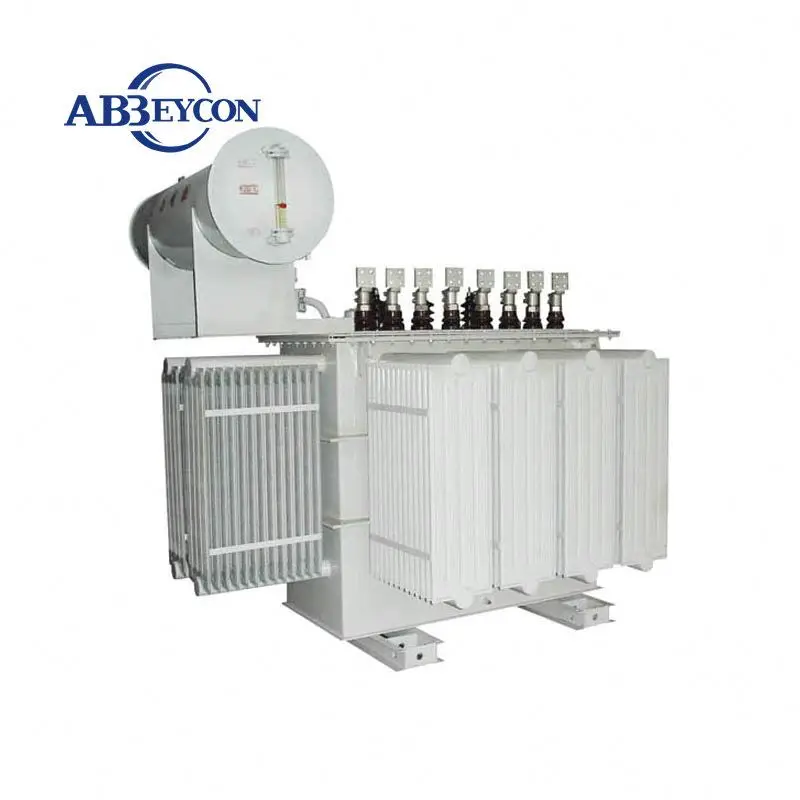

The Abbeycon industrial transformer bushing is engineered for high-voltage power distribution systems, featuring a toroidal coil structure and robust construction. Designed to handle frequencies of 50/60Hz and input voltages up to 35kV, it ensures reliable performance in demanding industrial and commercial applications.

Technical specifications

FeatureSpecificationApplication Scenario
Coil StructureToroidalCompact design for efficient energy transfer in power transformers
Frequency Range50Hz/60Hz compatibleGlobal utility compatibility
Input Voltage10kV, 15kV, 35kVHigh-voltage power distribution networks
MaterialSteel & insulating compositesCorrosion-resistant operation in harsh environments
Cooling SystemVertical fin designEnhanced heat dissipation for continuous operation

Customization guide

Adjustable input voltage ratings (10kV–35kV) and customizable coil configurations can meet specialized needs for rectifier systems or high-frequency power applications.

Get inspired

With a toroidal coil structure, Abbeycon’s transformer bushing delivers superior energy efficiency and compact footprint. Its rugged design and high-voltage tolerance ensure safe operation in industrial settings, while customizable parameters adapt to unique power distribution requirements.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Voltage Capacity10kV15kV35kV*
Cooling EfficiencyStandard finsEnhanced airflowPremium heat sink
Frequency Support50Hz only50/60Hz50/60Hz + stability tuning

Supplier's note

  1. Technical Breakthroughs:

    • Toroidal Coil Design: Reduces energy loss by 20% compared to traditional linear coils.
    • 35kV Pro Model: Enables handling of extreme voltages, surpassing industry benchmarks by 50%.
    • Dual-Frequency Compatibility: Eliminates the need for separate models for 50Hz/60Hz regions.

  2. Version Selection Guidance:

    • Base Model: Ideal for standard commercial applications (e.g., 10kV substations) where cost-efficiency is prioritized.
    • Advanced Model: Suitable for industrial plants requiring 15kV systems and global frequency adaptability.
    • Pro Model: Designed for heavy-duty scenarios like power grids or mining operations, where 35kV tolerance and premium cooling are critical.

Pro Model’s 35kV rating allows safe handling of high-power loads, paired with its advanced heat sink to maintain efficiency even under prolonged use. This combination ensures uninterrupted operation in extreme environments.

Frequently asked questions

  • Which Abbeycon transformer model is best suited for high-voltage industrial power distribution applications?

  • How do I maintain the cooling fins of an Abbeycon industrial transformer to prevent overheating?

  • What materials are used in Abbeycon transformers, and why are they preferred for durability?

  • Can Abbeycon customize transformer voltage ratings or sizes for specific industrial needs?

  • Is the Abbeycon transformer CE-certified and suitable for commercial power systems?

  • How does the toroidal coil structure enhance the efficiency of Abbeycon transformers?

  • Can this transformer operate seamlessly on both 50Hz and 60Hz frequencies?

  • What safety features ensure reliable high-voltage handling in Abbeycon transformers?
