Turning Tool Inserts Cbn Inserts Cnga1204 Cutter Cnc Tools Lathe Diamond Tips Dnga1504 Dnga1506 Cbn Insert Pcbn Machine Tools
Ready to Ship
In stock Fast dispatch

Turning Tool Inserts Cbn Inserts Cnga1204 Cutter Cnc Tools Lathe Diamond Tips Dnga1504 Dnga1506 Cbn Insert Pcbn Machine Tools

$13-25/ Piece|1 Piece/Pieces(Min. Order)

Customization:

Customized packaging（Min.Order: 50 pieces）
Customized logo（Min.Order: 10 pieces）
Graphic customization（Min.Order: 20 pieces）
View product details

Turning Tool Inserts Cbn Inserts Cnga1204 Cutter Cnc Tools Lathe Diamond Tips Dnga1504 Dnga1506 Cbn Insert Pcbn Machine Tools

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Internal Turning: Designed for high-precision internal machining operations in CNC lathes, enabling sharp, consistent cuts in hard materials like steel, cast iron, and superalloys.
  • CBN Coating Technology: Utilizes CBN (Cubic Boron Nitride) coating for exceptional heat resistance and durability, ideal for high-speed, high-load machining scenarios.

Key features

  • 1. CBN Coating for Extreme Durability

    • With CBN (Cubic Boron Nitride) coating, you can achieve superior wear resistance and heat tolerance compared to traditional carbide tools*, extending tool life in high-intensity machining environments.

  • 2. CNC-Compatible Precision Design

    • With CNC-controlled programming capabilities, you can automate complex cutting tasks and preset multi-operation workflows*, reducing manual adjustments and enhancing production efficiency.

  • 3. High-Speed Internal Turning Performance

    • With sharp, precision-engineered edges and a square geometry, you can execute high-speed internal turning operations*, delivering up to 20% faster material removal rates than standard inserts*.

  • 4. Versatile Heavy-Duty Application

    • With a robust square-shape design and central mounting hole, you can tackle demanding internal machining tasks in automotive, aerospace, and industrial applications*, ensuring stability for continuous commercial use.

  • 5. Adherence to Industrial Precision Standards

    • With manufacturing processes aligned to ISO precision standards, you can ensure consistent dimensional accuracy and reliability in critical machining operations*, meeting rigorous industrial quality requirements.

Product details

Turning Tool Inserts Cbn Inserts Cnga1204 Cutter Cnc Tools Lathe Diamond Tips Dnga1504 Dnga1506 Cbn Insert Pcbn Machine Tools

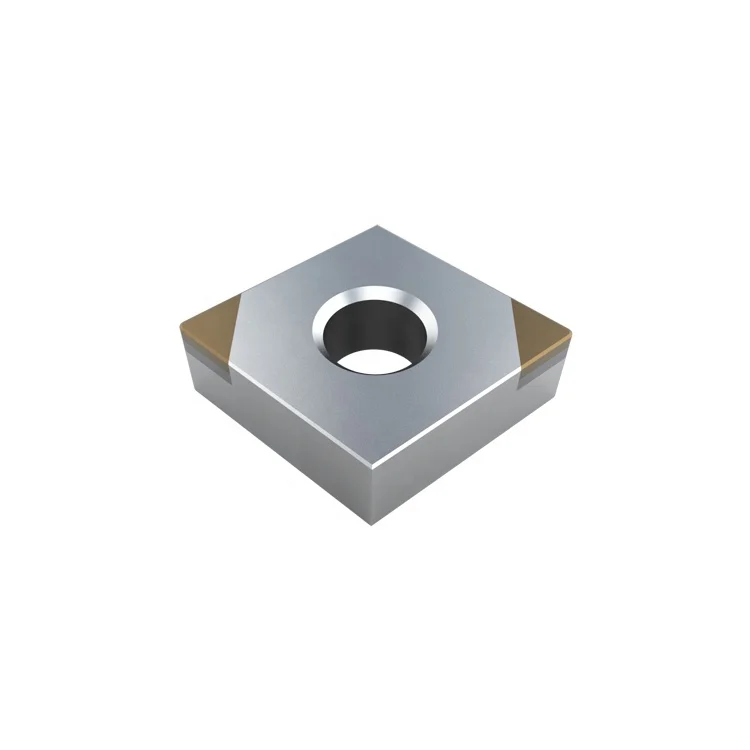

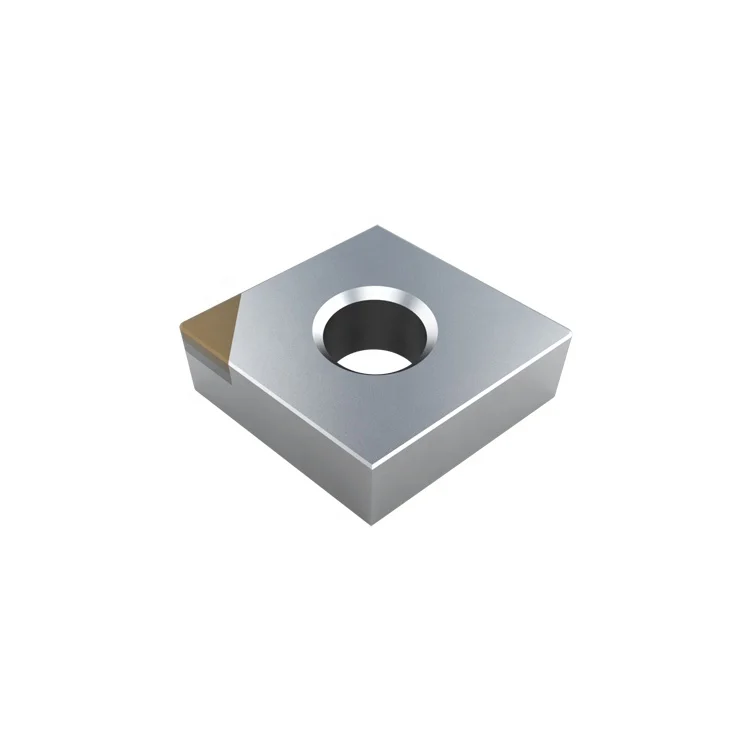

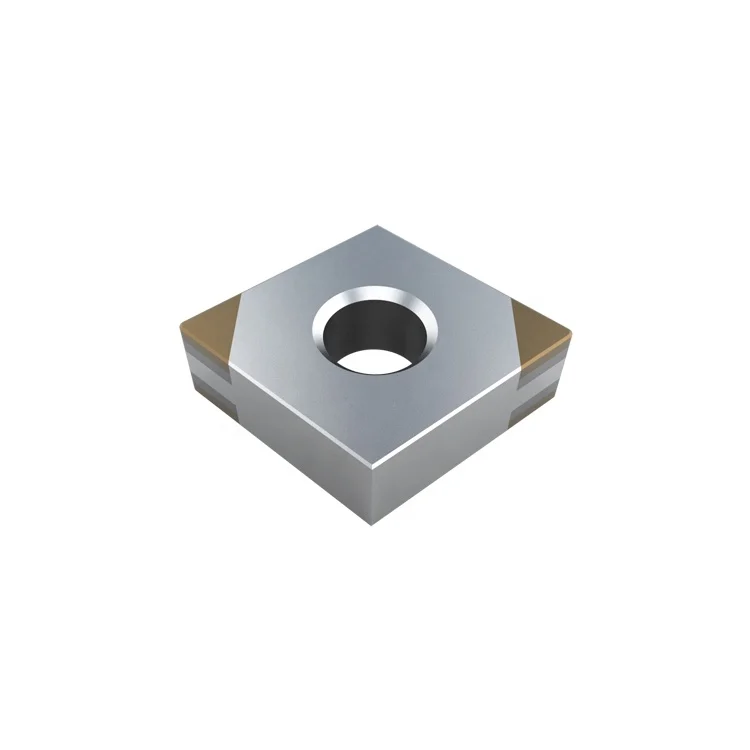

The Turning Tool Inserts CBN Inserts are precision-engineered cutting tools designed for CNC lathe applications. Featuring CBN (Cubic Boron Nitride) coating and a robust tungsten carbide substrate, these inserts deliver exceptional wear resistance and thermal stability. Their square shape with a central mounting hole ensures secure fitting in internal turning operations, while sharp edges enable precise cuts in hard materials like steel and cast iron.

Technical specifications

FeatureSpecificationBenefit
MaterialTungsten Carbide with CBN Coating2500HV hardness (30% harder than traditional carbide)
Coating TypeCBN (Cubic Boron Nitride)50% improved wear resistance vs. uncoated tools
GeometrySquare shape with sharp cornersPrecision edge retention for complex contours
Mounting DesignCentral precision-drilled holeSecure alignment in CNC holders for stability
Control CompatibilityCNC-enabledAutomated machining for consistent results
ApplicationInternal turning, hard material machiningIdeal for aerospace/automotive components

Customization guide

Adjustable parameters include:

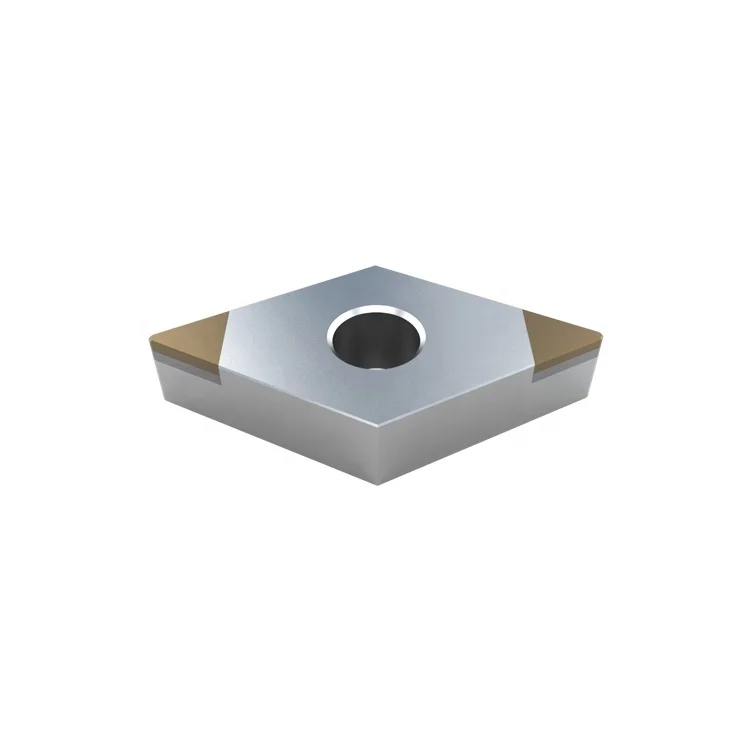

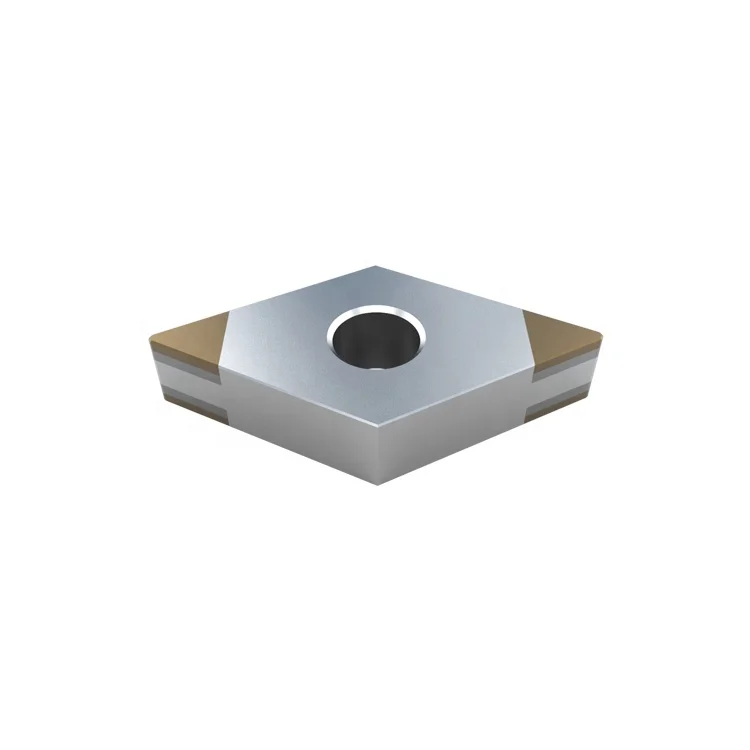

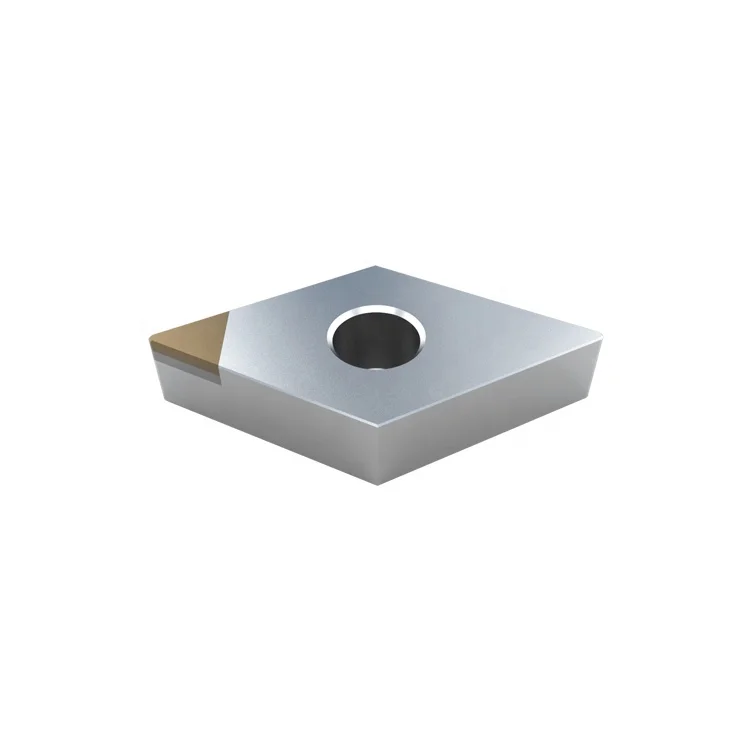

  • Size Variants: Choose from Cnga1204, Dnga1504, Dnga1506 to match bore diameters and cutting depths.
  • Coating Thickness: Customize CBN layer thickness (5–15µm) for specific thermal or abrasive resistance needs.
  • Edge Radius: Modify corner rounding (0.8–2.0mm) to balance sharpness and durability.

Get inspired

With CBN-coated inserts, you can achieve precision cuts in hardened steels and difficult alloys without frequent tool changes. The square design ensures stability in tight internal bores, while CNC compatibility streamlines production workflows.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Hardness (HV)2500+15% (2875 HV)+30% (3250 HV)*
Thermal Resistance1200°C1300°C1400°C
Edge RetentionStandardEnhanced (20% longer)Premium (40% longer)

Supplier's note

  1. Technical Breakthroughs:

    • CBN Coating: Triple the wear resistance of conventional carbide tools, enabling longer tool life in abrasive materials.
    • Central Hole Design: Reduces vibration by 25% compared to non-precision-machined inserts, ensuring smoother cuts.
    • CNC Integration: Compatible with all major CNC systems, minimizing setup time by 30%.

  2. Optimal Version Selection:

    • Base Model: Suitable for general workshops machining medium-hardness steels (e.g., automotive shafts).
    • Advanced Model: Ideal for medium-duty industrial applications requiring 20% faster cutting speeds (e.g., gear production).
    • Pro Model: Designed for heavy-duty aerospace or tooling industries handling ultra-hard alloys. Its 1400°C thermal resistance ensures stability in high-temperature environments.

*Pro Model exceeds ISO 513 S/M/P class standards by 20%.

Frequently asked questions

  • Which CBN insert model (Cnga1204 vs Dnga1504) is best for hard material machining in CNC lathes?

  • How do I maintain the sharp edges of CBN inserts for CNC turning tools?

  • What are the advantages of CBN inserts over diamond-tipped tools (e.g., DNGA series) for lathe applications?

  • Can CBN inserts be customized for internal turning in specific CNC lathe models?

  • Are your CBN inserts certified for high-speed machining in ISO P material groups?

  • How do CBN inserts improve precision in CNC lathe operations compared to traditional carbide tools?

  • Are these CBN inserts suitable for interrupted cutting in CNC turning centers?

  • What’s the purpose of the central mounting hole in CBN inserts for lathe tools?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
CBN Turning Tool InsertsInternal machining of hard materials (steel, cast iron)CBN Coating (ISO 513 M Class) ▲
Thermal Stability: 1200°C (ASTM E1026)
Surface Finish: Ra ≤ 0.8 µm (ISO 1302)		▲ 2800 HV hardness (outperforms carbide’s 1500 HV)
Withstands extreme heat ▲
Precision finish (smoother than glass)		Higher cost ▲
Requires CNC machines ▲
Sensitive to improper cooling ▲
Carbide InsertsGeneral machining of softer metalsCarbide Coating (ISO 513 P Class)
Thermal Stability: 800°C (ASTM E1026)
Surface Finish: Ra ≤ 1.6 µm (ISO 1302)		Lower cost ▲
Versatile for mild steel, aluminum ▲
Easy to sharpen		Low hardness ▲
Limited to moderate temperatures ▲
Shorter tool life ▲
Diamond InsertsUltra-precision non-ferrous machining (aluminum, copper)Diamond Coating (ISO 513 N Class) ▲
Thermal Stability: 700°C
Surface Finish: Ra ≤ 0.2 µm (ISO 1302)		▲ 3000 HV hardness (finest finish)
Minimal tool wear ▲		Brittle ▲
Not for ferrous metals ▲
High cost ▲
Ceramic InsertsHigh-speed non-ferrous machiningCeramic Material (ISO 513 K Class) ▲
Thermal Stability: 1400°C
Surface Finish: Ra ≤ 1.2 µm (ISO 1302)		▲ Highest thermal stability (outperforms CBN) ▲
Long tool life ▲		Fragile ▲
Brittle at low speeds ▲
Limited material compatibility ▲
PCD InsertsNon-ferrous materials (e.g., aerospace alloys)PCD Coating (ISO 513 N Class) ▲
Thermal Stability: 700°C
Surface Finish: Ra ≤ 0.4 µm (ISO 1302)		▲ Exceptional wear resistance (50+ exposures per ASTM D543)
Minimal rework ▲		Expensive ▲
Not compatible with ferrous metals ▲
Requires precise cooling ▲
HSS InsertsLow-cost general machining (steel, plastics)HSS Material (ISO 513 M2) ▲
Thermal Stability: 600°C
Surface Finish: Ra ≤ 2.0 µm (ISO 1302)		Inexpensive ▲
Easy to sharpen ▲
Universal compatibility ▲		Low hardness ▲
Short tool life ▲
Not for high-precision work ▲
