A c voltage regulator

Types of c voltage regulators

Appl 60hz phone c voltage regulator comes in different types. They include:

• Automatic Voltage Regulators (AVR)

  Automatic voltage regulators are designed to perform autonomously. This means that they adjust the voltage levels on their own based on real-time fluctuations of an electrical system's parameters. They are typically employed in systems experiencing constant load changes and where maintaining voltage stability is crucial. For instance, automatic regulators find extensive use in industrial or commercial electrical grids where output voltage constant is necessary to prevent equipment damage. By minimizing human intervention, automatic models enhance operational efficiency and maximize reliability in maintaining set voltage levels.

• Linear Voltage Regulators

  Linear regulators provide a smooth output voltage by dissipating excess input voltage as heat. Characterized by their low operational noise and capacity for delivering stable voltages, they suit sensitive equipment like medical devices and audio systems. However, their efficiency diminishes under high difference voltages, particularly when the input exceeds the desired output. Although linear c voltage regulators do not exhaust much energy as the switching types, the heat generated under heavy loads can be substantial.

• Switching Voltage Regulators

  Switching regulators operate by storing energy components, generally an inductor or capacitor, and releasing it to provide the required output voltage. Switching types have an advantage over linear regulators in terms of efficiency, primarily when the input voltage significantly exceeds the output. While switching regulators are less noise free compared to linear types, their efficiency makes them preferable for numerous applications, particularly in battery-powered devices where energy conservation is crucial.

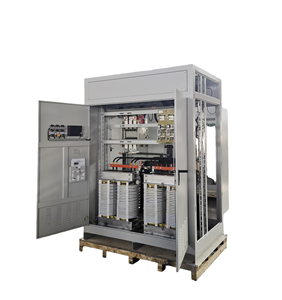

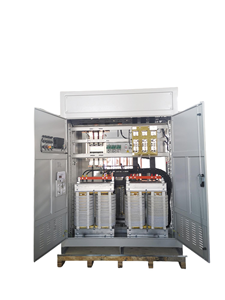

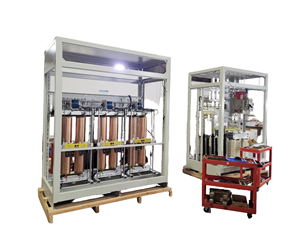

• Servo Voltage Regulators

  Servo voltage regulators work by correcting voltage levels using a feedback system. It operates the variable transformer to adjust the output voltage to the desired level as the system continuously monitors the output. These regulators are suitable for applications requiring tight voltage control amid significant input voltage variations. Their robust design and efficiency make them ideal for industrial machinery, telecommunications, and power equipment.

Industrial applications of a c voltage regulator

The c voltage stabilizer is used in several industrial applications. They include:

• Manufacturing Machinery

  Within manufacturing environments, production machinery frequently operates under tightly-controlled voltage requirements to sustain performance and longevity. A c voltage stabilizer preserves this optimal voltage range, averting potential harm caused by voltage irregularities, such as equipment damage or downtime. By ensuring stable output voltage, stabilizers enhance operational efficiencies and mitigate long-term maintenance costs. Thus, this results in significant savings for manufacturers and minimization of production interruptions while boosting overall efficiency and reliability.

• Industrial Heaters and Boilers

  Heaters and boilers are essential within industrial sectors for processes like heating, drying, and steam generation. Any variation in voltage affects performance outcomes and safety. A stabilizer keeps these systems running efficiently by giving constant voltage, improving energy efficiency and cutting down on the risk of overheating or underheating. These optimizations also promote significant energy savings and substantial reductions in maintenance. Regulating voltage protects the system and increases the cost-effectiveness of heating and steam generation processes.

• Computer Servers

  Stable voltage is critical to maintaining data integrity and system performance within server farms and data centers. A voltage stabilizer helps avoid voltage fluctuations that can cause server crashes, data loss, or even hardware damage. Protecting such expensive investments and ensuring their reliable operation makes stabilizers indispensable components in IT infrastructure. This protective role not only assures system reliability but also avoids costly downtime and frequent hardware replacements and enhancing the long-term viability of IT operations.

• Sensors and Monitoring Equipment

  Sensors and monitoring equipment are sensitive devices used to ensure process control and safety in numerous industrial applications. In this case, fluctuating voltage can cause erroneous readings or equipment malfunction. A c voltage stabilizer is vital for guaranteeing measurement accuracy and equipment reliability; it provides constant voltage to power these devices. Maintaining precision directly impacts operational safety and efficiency. Furthermore, preventing monitoring equipment failure helps avoid high replacement costs and downtime, leading to an overall reduction in operational costs.

Product specifications and features of a c voltage regulator

The automatic voltage stabilizer has specific features and specifications. These include:

Technical Specifications

• Input Voltage Range: The input voltage range varies by model but commonly spans ±10% of the rated voltage (e.g., for 240V, 216-264V)

• Output Voltage: Output voltage remains constant at the rated voltage, such as 220V, 240V, or 380V, according to the model and application.
• Capacity Range: The capacity range extends from several kVA for small enterprises to hundreds of kVA for large industries, depending on the model and usage.
• Frequency: Stabilizers popularly operate at 50Hz or 60Hz, in unison with the grid frequency of the regions, where they are primarily applied.

Key Features

• Automatic Regulation: The regulator adjusts voltage levels, thus providing an automatic stabilization feature.
• Output Error: This feature minimizes the output error, ensuring the voltage stays at the desired level.
• Phase Control: Phase control is instrumental in enhancing voltage regulation efficiency.
• Response Time: Response time usually remains below second; thus, enabling quick adjustment to voltage fluctuations.
• High Regulation: Regulation can be within a high range of ±1% to ±5%, depending on specific models and applications.

How to Install

• The site preparation should start with an evaluation that determines a suitable base for stabilizer placement and assesses possible electrical connections.

• Mounting: The stabilizer should be securely mounted on the base, ensuring its stability.
• Wiring: Users should connect the stabilizer to the input power source and the connected equipment using appropriately-sized wires.

• Grounding: Grounding the stabilizer is crucial to prevent electrical hazards and improve operation reliability.
• Testing: After installation, the system should be tested under normal operating conditions to evaluate performance.

Usage Instructions

• Check the power source daily before daily operation to ensure stable operation.
• Users should ensure voltage levels are within range and output is stable for optimal functionality.
• The stabilizer's LCD/LED should be checked to obtain operational status and potential error messages.

• Maintenance Manual: Users are enjoined to refer to the manufacturer's maintenance schedule for preventive checks and balances.

• Load Monitoring: It is advisable for users to monitor the connected load, which helps prevent overload conditions.

Maintenance & Repair

• Users must perform regular dust and grime removal to avoid internal components from being hindered by dust accumulation.
• Check wires and connections for signs of wear or rust; damaged connections lead to unstable output.
• Cooling System: Stabilizers should be examined for proper operation to prevent overheating.
• Software Updates: If necessary, upgrades should be performed to maintain improvements and additional functionality.
• Professional Repairs: Users are advised to consult professional technicians for internal repairs to preserve warranty validity.

Quality and safety considerations of a c voltage regulator

When buying a voltage stabilizer price there are some quality and safety considerations business owners need to consider. Here are some of them:

Quality Considerations

• Regulation Accuracy: This stabilizer concerns itself with how well the device maintains output voltage despite input fluctuations. High-end stabilizers control voltage with very small error margins, making them fit applications where even slight voltage changes can significantly impact processes.
• Response Time: Response time is a significant performance metric, denoting the duration the stabilizer takes to adjust output voltage after input fluctuation. Faster response times are crucial in environments with frequent voltage variations since they can maintain stable output as instantaneously as required.
• Component Quality: Manufacturers who use premium-quality materials ensure devices bear up to extensive use without failure. According to this, scrutinizing component quality, such as transformers, capacitors, and regulators, can directly impact the stability and efficiency one enjoys from a stabilizer.
• Heat Dissipation: Proficient heat dissipation within voltage stabilizers is critical, especially in high-load situations. Models feature remarkable heat dissipation capability, reducing overheating, increasing lifespan, and sustaining stable operations even under heavy-duty applications.
• Standby Power Consumption: This goes to indicate that a stabilizer consumes power even when not in use. Modern stabilizers come with an intelligent design that minimizes standby consumption, thus enabling energy efficiency and reducing operational costs over time.

Safety Considerations

• Overload Protection: Overload protection is a critical feature that automatically disconnects the device once load capacity is exceeded, preventing damage to both stabilizer and connected equipment. This feature is indispensable in industrial and commercial settings where load changes can sometimes not be frequently monitored.
• Child Locks: This prevents accidental adjustments or tampering with the settings by unauthorized personnel or children. This is crucial in environments where security and process integrity are paramount, as unauthorized changes in voltage settings can result in serious consequences.
• Moisture and Dust Resistance: Dust and moisture can severely impact voltage stabilizer performance, particularly in industrial settings with high particulate concentration or humidity levels. Stabilizers with adequate IP (Ingress Protection) ratings are designed to prevent such contaminants from entering the internal components, thereby safeguarding the device and improving reliability within challenging environments.
• Quality of Surge Protection: Surge protectors integrated with voltage stabilizers use quality surge protectors to eliminate sudden voltage increases, resulting in damage to sensitive electronic equipment. Surge protection commonly employs varistors or gas discharge tubes, which absorb excess energy and reduce output voltage.

Q&A

Q1. What is the primary role of a voltage regulator in electronic circuit systems?

The main role of a voltage regulator is to maintain a steady output voltage level despite fluctuations in input voltage or load conditions. Therefore, this ensures that sensitive electronic components can function properly within their required voltage range.

Q2. How does a switching voltage regulator differ from a linear voltage regulator?

Switching voltage regulators use storage elements like inductors to switch and efficiently convert voltages, particularly where currents are large and variable. On the other hand, linear regulators provide a simple, low-noise output using resistive components to drop excess voltage, but they are less efficient. This is especially true when input voltages significantly exceed output voltage.

Q3. What happens when the output voltage of a C voltage regulator deviates from the required range?

A voltage deviation results in performance issues or damage, resulting in data corruption, system instability, or hardware failure, particularly for sensitive components like CPUs, memory, and graphic cards.

Q4. Can stabilizers correct large voltage fluctuations, such as several hundred volts?

Stabilizers can correct extreme voltage fluctuations to some extent. However, such an enormous fluctuation will necessitate the incorporation of additional protective methods such as surge protectors, which may be integrated into other devices.

Q5. Are there any built-in protections found in stabilizers to enhance safety?

Modern stabilizers come with various protective features, which include overload protection, short-circuit protection, and thermal cutoff, which together help prevent malfunctioning and damage during abnormal operating conditions.
