Types of Boost Gauges

A boost gauge is an essential instrument for monitoring the amount of boost pressure generated by a supercharger or turbocharger in forced-induction engines. These gauges provide real-time data that helps drivers and tuners optimize engine performance while avoiding potentially damaging over-boost conditions.

Boost gauges are primarily divided into two main categories: analog and digital. Each type offers unique advantages depending on your vehicle setup, tuning goals, and personal preferences.

Analog Boost Gauge

Classic mechanical instruments that use a needle to indicate boost pressure levels on a circular dial. Analog gauges are valued for their simplicity and reliability.

Advantages
  • No power source required (mechanical operation)
  • Simple design with minimal failure points
  • Immediate visual feedback without lag
  • Classic aesthetic appeal
Limitations
  • Less precise readings than digital models
  • Potential for needle vibration at high RPM
  • Limited additional features
  • May require periodic calibration

Best for: Vintage cars, simple forced-induction setups, track vehicles where simplicity is key

Digital Boost Gauge

Modern electronic displays that show precise numerical values for boost pressure, often with additional monitoring and diagnostic capabilities.

Advantages
  • Highly accurate readings
  • Additional features like peak hold, data logging
  • Customizable display options
  • Can integrate with other vehicle systems
Limitations
  • Requires electrical connection
  • More complex electronics can fail
  • Higher cost than analog units
  • Learning curve for advanced features

Best for: Modern performance vehicles, tuning applications, drivers who want detailed information

Vacuum & Boost Gauge

This dual-function analog gauge measures both negative (vacuum) and positive (boost) pressures, providing comprehensive engine load information.

The standard range is typically -30 to 0 inches of mercury (inHg) for vacuum measurements and 0 to 20+ psi for boost pressure. This makes it ideal for monitoring both naturally aspirated and forced induction engine behavior under various operating conditions.

Key Benefits
  • Complete engine load picture
  • Helps diagnose intake issues
  • Useful for tuning cam timing
  • Shows throttle response characteristics
Considerations
  • More complex interpretation needed
  • Larger physical size required
  • May have reduced boost scale precision

Ideal For: Vehicles with variable engine loads, street/strip cars, tuners needing complete engine insight

Boost Pressure Only Gauge

This specialized analog gauge focuses exclusively on measuring positive boost pressure, making it perfect for dedicated forced-induction applications.

Typically featuring ranges from 0 to 30 psi or more, these gauges often include color-coded zones to quickly identify safe vs. critical boost levels. Some models incorporate warning lights or audible alerts for excessive boost conditions.

Key Benefits
  • Clear focus on boost pressure
  • Easy-to-read large-scale dials
  • Quick visual reference during driving
  • Often includes safety indicators
Considerations
  • Lacks vacuum measurement capability
  • Not suitable for naturally aspirated engines
  • May not provide full engine picture

Ideal For: Dedicated turbo/supercharged vehicles, drag racers, boost enthusiasts prioritizing quick reference

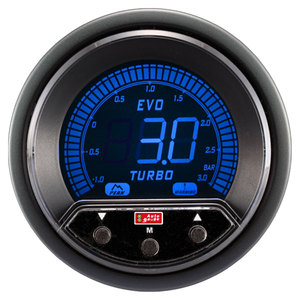

Electronic Boost Controller Gauge

Advanced digital unit combining boost measurement with active control capabilities for modern turbocharged applications.

This sophisticated device typically measures up to 50 psi of boost pressure while allowing users to set and maintain specific boost levels through its integrated electronic controller. The system automatically adjusts wastegate control to maintain the desired boost curve.

Key Features
  • Boost level setting and control
  • Real-time pressure monitoring
  • Color LCD display with customizable settings
  • Boost anomaly detection with alerts
Considerations
  • Complex setup and configuration
  • Higher cost than basic gauges
  • Requires proper installation
  • Dependent on stable power supply

Best Suited For: Tuned turbo applications, daily driven performance cars, drivers seeking precision control

OBD-II Data Logger Gauge

Modern digital solution that connects directly to the vehicle's OBD-II port for comprehensive engine data monitoring including boost pressure.

These intelligent devices read boost data directly from the ECU along with other critical parameters like RPM, coolant temperature, and vehicle speed. Many models feature built-in memory for storing performance data for later analysis and tuning purposes.

Key Features
  • ECU-level data accuracy
  • Multi-parameter monitoring capability
  • Data logging for performance analysis
  • Easy plug-and-play installation
Considerations
  • Vehicle compatibility limitations
  • Depends on ECU communication stability
  • May lack physical boost control functions
  • Software updates may be required

Best Suited For: Modern vehicles with OBD-II systems, street performance builds, DIY tuners

Type Measurement Range Accuracy Special Features Ideal Use Case
Analog Vacuum & Boost -30 inHg to +20 psi Moderate Visual engine load monitoring Street performance, engine diagnostics
Analog Boost Only 0 to 30+ psi Moderate Color-coded zones, simple interface Dedicated turbo/supercharged vehicles
Digital Electronic Controller 0 to 50 psi High Boost control, warnings, LCD display Race/tuned applications, precision tuning
OBD-II Digital Varies by vehicle Very High Data logging, multi-parameter display Modern vehicles, performance analysis

Expert Tip: When installing any boost gauge, ensure all hose connections are secure and properly routed away from heat sources. For digital units, consider integrating them with your vehicle's power system so they only activate when the car is running to preserve battery life.

Specifications and Maintenance of Boost Gauges

Understanding Boost Gauge Specifications

Boost gauges are critical tools for monitoring engine performance in turbocharged or supercharged vehicles. When selecting a boost gauge, it's important to consider several key specifications that affect functionality, durability, and accuracy:

Display Types

Boost gauges typically come with either analog or digital displays. Analog gauges feature a traditional dial and needle system, which many drivers prefer for its immediate visual feedback. Digital gauges offer numeric readouts that can be easier to interpret under varying lighting conditions.

Some advanced digital models also include backlighting options (like customizable LED colors), making them more readable at night or in low-light environments. The size of the display is another consideration—larger gauges may be easier to read but might not fit well in compact dashboards.

Measurement Range

Boost pressure is commonly measured in pounds per square inch (PSI) or bar units. Most standard boost gauges have a range of 0–30 PSI or 0–2 bar, which is suitable for typical performance applications. However, high-performance engines or modified vehicles may require gauges with extended ranges such as 0–60 PSI or higher.

Selecting the correct range ensures accurate readings without overloading the sensor. A gauge with too narrow a range may max out during high-boost scenarios, while one with an excessively wide range might lack precision at lower pressures.

Precision and Accuracy

The accuracy of a boost gauge is usually expressed as a percentage of full-scale deflection (FSD). For example, a gauge with ±2% accuracy on a 0–30 PSI scale means readings can deviate by up to 0.6 PSI. High-quality gauges often offer better than ±1% accuracy, which is crucial for tuning and performance monitoring.

Digital gauges generally provide more consistent readings compared to analog versions, especially when tracking rapid changes in boost pressure. Look for gauges with temperature compensation features to maintain accuracy across different operating conditions.

Resolution and Sensitivity

Resolution refers to the smallest detectable change in pressure that the gauge can display. Higher resolution allows for finer adjustments and more precise monitoring of boost behavior. Analog gauges rely on needle movement between tick marks, while digital units can show fractional increases down to 0.1 PSI increments.

Sensitivity is particularly important for performance enthusiasts who need to make real-time tuning decisions. Some digital gauges even offer programmable warning thresholds or data logging capabilities for advanced diagnostics.

Specification Typical Values Performance Considerations
Pressure Units PSI / Bar Choose based on regional preference and vehicle system standards
Operating Temperature -40°C to +100°C Ensure compatibility with extreme weather or track-day conditions
Material Construction ABS Plastic, Stainless Steel Durability against vibration, heat, and moisture
Power Requirements 12V DC Check wiring compatibility; some models include backup battery support

Effective Maintenance Practices

To ensure reliable performance and longevity from your boost gauge, regular maintenance is essential. Proper care helps maintain accuracy and prevents potential failures that could impact engine monitoring:

  • Secure Mounting: Always mount the boost gauge in a stable location where it won’t vibrate excessively or risk falling off due to loose fasteners. Vibration dampening mounts can help protect sensitive components from wear.
  • Cleaning Protocol: Use a soft microfiber cloth and mild cleaning solution to wipe the faceplate and casing regularly. Avoid harsh chemicals that might damage plastic or rubber seals. Dust buildup can obscure readings and potentially cause overheating in enclosed housings.
  • Electrical Connection Check: Inspect wiring connections periodically for signs of corrosion, fraying, or looseness. Secure all terminals properly and use dielectric grease on connectors to prevent oxidation, especially in humid environments.
  • Leak Detection: If the boost gauge starts showing erratic readings or no pressure at all, check for air leaks in the vacuum lines or faulty sensor connections. A compromised seal can lead to incorrect measurements and potential engine damage if undetected.
  • Calibration Schedule: Recalibrate the boost gauge every 6–12 months depending on usage frequency. Many digital gauges allow user calibration via menu settings, while analog models may require professional servicing to adjust internal mechanisms.
  • Important: Never ignore sudden drops or inconsistent readings on your boost gauge—they could indicate serious issues like turbocharger failure, intercooler leaks, or intake manifold problems. Diagnose and resolve these issues promptly to avoid costly repairs or engine damage.

    How to Choose Boost Gauge

    Selecting the right boost gauge is crucial for monitoring your vehicle’s turbocharger or supercharger performance. A well-chosen boost gauge ensures you have accurate and timely information about engine pressure levels, which helps in optimizing performance and preventing mechanical issues.

    Type of Boost Gauge

    Boost gauges come in two primary types: analog (mechanical) and digital. Each has its own set of advantages depending on your preferences and the type of vehicle you drive.

    • Analog Gauges: Use a needle to indicate pressure levels. They are classic, easy to read at a glance, and don’t require power.
    • Digital Gauges: Display readings digitally and often include additional features like peak hold, data logging, and customizable lighting.

    Best For: Enthusiasts who want advanced features may prefer digital; purists and vintage builds may lean toward analog.

    Read Range

    It's essential to choose a boost gauge that can accurately measure beyond your engine’s maximum expected boost pressure. This ensures longevity and prevents over-range damage.

    • Most gasoline engines operate between 5–20 psi
    • Diesel and high-performance engines can exceed 30 psi
    • Gauges are available in ranges like 0–30 psi, 0–50 psi, or combined vacuum/boost scales

    Pro Tip: Select a gauge with a range at least 20% higher than your max boost level for safety and accuracy.

    Quality and Reputation

    The reliability and accuracy of a boost gauge depend heavily on the brand and build quality. Investing in a reputable brand ensures consistent performance and longer service life.

    • Look for brands known for automotive instrumentation like AutoMeter, Defi, VDO, or AEM
    • Check user reviews and professional forums for real-world feedback
    • Consider whether the manufacturer offers calibration services or warranties

    Warning: Avoid unbranded or extremely low-cost gauges—they often fail quickly or provide inaccurate readings.

    Ease of Installation

    Installation complexity varies by gauge type and mounting location. Some can be installed in minutes, while others require more planning and tools.

    • Pod-mounted or dash-integrated gauges may require cutting or drilling
    • Clamp-on bezel mounts allow quick installation without permanent modification
    • Digital models might need wiring for backlighting or sensors

    DIY Tip: If you're not confident in your skills, consider plug-and-play kits or professional installation.

    Lighting

    Visibility during night driving is critical. Modern boost gauges offer various lighting options to match your car’s interior or personal preference.

    • Ideal gauges feature adjustable LED backlighting (white, blue, red, etc.)
    • Some models offer dimming capabilities to avoid glare at night
    • Analog gauges often use phosphorescent needles or glow-in-the-dark faces

    Design Note: Match the gauge lighting with your dashboard or other instruments for a cohesive look.

    Display Size and Design

    The size and layout of the boost gauge affect both aesthetics and usability. Choose based on your cockpit space and how frequently you’ll monitor boost levels.

    • 2-inch and 2-1/16-inch sizes fit standard pods and clusters
    • 3-3/8-inch and larger displays are ideal for dedicated dash panels
    • Ensure the gauge face isn't obstructed by steering wheel or windshield reflections

    Space-Saving Suggestion: Compact digital gauges with multi-function displays save space and reduce clutter.

    Budget Consideration: While it's tempting to go for the cheapest option, remember that a boost gauge is an investment in your vehicle’s performance and maintenance. Spend enough to ensure accuracy and durability—especially if you frequently push your engine near its limits.

    User Type Recommended Type Preferred Features Price Range
    Casual daily driver Analog Simple design, basic lighting $30–$80
    Weekend enthusiast Digital or hybrid Backlighting, peak hold $80–$150
    Performance tuner Digital with data logging Customizable settings, vacuum/boost combo $150–$300+
    Race or track use High-end digital or specialized analog Durable housing, wide range, ruggedized construction $300+

    DIY Replacement Guide for Boost Gauges

    Replacing a boost gauge is a simple and rewarding DIY project that can enhance your vehicle's performance monitoring capabilities. Whether you're upgrading to a more accurate model or replacing a faulty unit, this guide provides detailed instructions to help you complete the job confidently and safely.

    Safety Warning: Always disconnect the battery before working with electrical components to prevent short circuits or damage. Ensure the vehicle is turned off and cool before starting any work near vacuum lines to avoid burns from residual heat.

    Essential Tools and Materials

    Before beginning the replacement process, gather all necessary tools and materials. Having everything ready will streamline the installation and reduce the risk of losing small parts or damaging components during reassembly.

    Tool/Item Purpose Notes
    Screwdriver Set Removing trim panels and securing the new gauge Include both flathead and Phillips head screwdrivers
    Socket Wrench Loosening and tightening mounting bolts Select the correct size for your vehicle’s hardware
    Trim Removal Tool Safely removing interior panels without scratching surfaces A plastic tool helps avoid damaging dashboard plastics
    Electrical Tape Securing wires and insulating connections Use high-quality tape rated for automotive use
    Wire Connectors Making secure and safe electrical connections Choose connectors compatible with your wiring

    Step-by-Step Replacement Process

    1. Battery Disconnection
      • Turn off the car and locate the battery under the hood or in its designated compartment.
      • Disconnect the negative terminal first using a wrench to ensure safety while working on electrical components.
    2. Accessing the Boost Gauge
      • Using a trim removal tool, gently pry off the dashboard panel surrounding the existing boost gauge.
      • Take care not to apply excessive force, which could crack or break the plastic clips holding the trim in place.
    3. Removing the Old Gauge
      • With the panel removed, locate the bolts or screws securing the boost gauge to the dash.
      • Use a socket wrench or screwdriver to loosen and remove these fasteners.
      • Gently pull the old gauge forward to expose the backside where the wiring and vacuum hose are connected.
    4. Disconnecting Components
      • Carefully unplug the electrical harness connected to the back of the gauge.
      • Remove the vacuum hose by gently squeezing or twisting it to release it from the fitting.
      • If your new gauge uses different connection types, label each wire and connector for reference during installation.
    5. Installing the New Gauge
      • Transfer the vacuum hose and electrical connections to the corresponding ports on the new boost gauge.
      • If needed, splice wires using appropriate connectors and wrap them securely with electrical tape.
      • Insert the new gauge into the dash opening and align it properly.
      • Secure the gauge using the original bolts or screws, ensuring they are tightened but not over-torqued.
    6. Reassembling the Dashboard
      • Reinstall the trim panel by snapping it back into place carefully.
      • Ensure all clips engage properly and that the panel sits flush with the dashboard surface.
    7. Testing the Installation
      • Reconnect the vehicle’s battery, making sure the terminals are tight and free of corrosion.
      • Start the engine and observe the boost gauge to confirm it powers on and responds correctly.
      • Check for any unusual behavior, such as erratic readings or warning lights, and verify there are no vacuum leaks.

    Pro Tip: If your new boost gauge has LED backlighting or adjustable settings, take time to configure these features according to your preferences. Some models allow calibration through an app or onboard menu, offering enhanced functionality beyond basic pressure monitoring.

    Troubleshooting Common Issues After Installation

    If the boost gauge doesn't function correctly after installation, consider these common issues:

    • No Power: Check the fuse box and ensure all electrical connections are secure and properly seated.
    • Inaccurate Readings: Verify the vacuum line is connected tightly and not kinked or damaged. Calibrate if possible.
    • Fluctuating Needle: This may indicate a vacuum leak or poor grounding. Recheck all connections and ensure the gauge is grounded properly.

    Boost Gauge FAQs – Understanding the Benefits and Installation

    Q: Is a boost gauge really necessary?

    A: While a boost gauge may not be absolutely essential for basic vehicle operation, it is highly recommended for drivers with turbocharged or supercharged engines who want to maintain optimal performance and engine health. A boost gauge provides real-time feedback on the amount of pressurized air being delivered to the engine by the forced induction system.

    This information is crucial for identifying potential issues such as:

    • Leaks in the intake or boost hoses
    • Turbocharger or wastegate malfunctions
    • Improper boost pressure settings
    • Intercooler inefficiencies

    In addition to diagnostic benefits, a boost gauge is an invaluable tool during performance tuning, helping ensure that the engine operates within safe parameters while achieving desired power outputs.

    Q: Can I install a boost gauge myself?

    A: Yes, installing a boost gauge is often a DIY-friendly task, especially if you have some mechanical experience and the right tools. Most aftermarket boost gauge kits come with comprehensive instructions, mounting hardware, and tubing required for installation.

    The typical steps involved in a DIY installation include:

    1. Choosing a suitable mounting location (dashboard, A-pillar, or center console)
    2. Drilling a hole for the gauge (if not using a pod mount)
    3. Routing the vacuum/boost line from the intake manifold or intercooler piping
    4. Connecting the gauge securely and ensuring no leaks in the system

    If you're unfamiliar with your vehicle's intake system or feel unsure about creating vacuum leaks, it's best to seek help from a qualified mechanic to avoid performance or safety issues.

    Q: What is the difference between mechanical and electronic boost gauges?

    A: The primary distinction between mechanical and electronic boost gauges lies in their method of measuring and displaying boost pressure:

    • Mechanical Boost Gauges: These operate via a physical hose connected directly to a source of boost pressure (such as the intake manifold). The pressure moves a needle through mechanical means, like a Bourdon tube. They are generally simple, durable, and do not require a power source.
    • Electronic Boost Gauges: These use a digital sensor that reads pressure data and sends it to an onboard processor, which displays the result on an LCD or LED screen. Electronic gauges can offer additional features like:
      • Data logging capabilities
      • Customizable warning alerts
      • Integration with OBD-II or CAN bus systems
      • Digital readouts with higher precision

    While mechanical gauges are preferred by purists for their simplicity and reliability, electronic models provide more versatility and advanced monitoring options.

    Q: What is a dual port boost gauge?

    A: A dual-port boost gauge features two separate ports for connecting boost lines, allowing simultaneous measurement of pressure from two different points in the intake system. This is particularly useful in high-performance or modified vehicles where precise tuning and diagnostics are critical.

    Common applications for dual-port gauges include:

    • Monitoring both pre- and post-intercooler pressure to assess efficiency
    • Comparing pressure readings across different sections of a complex intake setup
    • Detecting inconsistencies in twin-turbo or sequential turbo systems

    These gauges help tuners identify pressure drops, airflow restrictions, or imbalances in dual-charging systems, enabling more accurate adjustments for maximum performance and reliability.

    Q: Can a boost gauge be installed on a naturally aspirated vehicle?

    A: Boost gauges are specifically designed to measure positive pressure (boost) generated by turbochargers or superchargers. Naturally aspirated engines do not produce boost pressure—they rely solely on atmospheric pressure to fill the combustion chamber with air. Therefore, installing a boost gauge on a naturally aspirated vehicle will not provide meaningful data, as the reading will remain at or near zero under all operating conditions.

    However, some multi-function gauges combine boost pressure monitoring with other metrics like vacuum levels, which can be useful even for naturally aspirated engines to monitor engine load and intake efficiency. In such cases, the gauge serves a broader purpose beyond just boost measurement.
