$31.00/ Piece
1 Piece(Min. Order)
$23.22/Piece (Shipping)
$65.00/ Piece
1 Piece(Min. Order)
GF-1 stainless steel bridge load cell 1.Our 40ton stainless steel bridge load cell adopts unique bridge structure,cup and steel ball mounted. 2.The 40ton stainless steel bridge load cell features self-resetting and centering,good side force resistance and shock resistance, moistureproof sealed, ideal for hostile environment. 3.Our quality 40ton stainless steel bridge load cell is exported to and installed in around 40 countries and get good reputation from customers against its high quality.
$58.00-$62.00/ Set
1 Set(Min. Order)
Rated Capacity 10/20/30/40/50/60T Accuracy Class C3 Rated Output 2.0 ± 0.002mv/v Non-linearity ± 0.02% F. S Creep ( 30min ) ± 0.02% F. S Input Impedance 700 ± 10 Ω Output Impedance 702 ± 2 Ω Operation Temperature -10~+40 °C Safe overload 150%F.
$46.00-$49.00/ Piece
1 Piece(Min. Order)
2. What is lead time9 If we have it in stock, we can ship it to you within about 3-5 working days. If we don’t have it in stock, the lead time will be 10-30 days. If we don’t make the shipment, you still can take back your money.
$49.50/ Piece
2 Pieces(Min. Order)

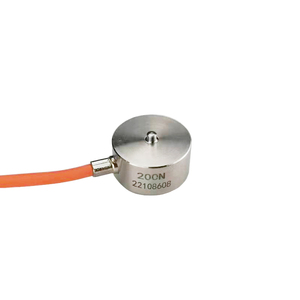

$11.65/Piece (Shipping)TAS606 and TAS606A TAS606 miniature button type load cell ◆Capacity ：5~500kg ◆Material: stainless steel ◆Defend grade: IP66 ◆Application: suitable for force control in poduction control, vibratory feeding equipmenand other electronic weighing or force measuring fields. ◆Dimension: diameter is 20mm, Hegith is 12mm TAS606A ◆Capacity ：5kg and 10kg ◆Material: stainless steel ◆Defend grade: IP66 ◆Application: suitable for force control in poduction control, vibratory feeding equipmenand other electronic weighing or force measuring fields. ◆Dimension: diameter 51mm, height is 20mm TAS611 and TAS601A TAS611 Flat top compression load cell ◆Capacity ：50kg~5Ton ◆Material: alloy steel ◆Defend grade: IP67 ◆Application: Suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields ◆Dimension: diameter 56mm.
$65.00-$87.00/ Piece
1 Piece(Min. Order)
$60.00-$65.00/ Piece
5 Pieces(Min. Order)
Cheap chinese high temperature loadcell cell 30t truck scale load cells compression and tension force sensor Item/Parameter C3 Unit Rated load (Emax) 10-60 t Maximum numbers of load cell verification Intervals 3000 d Minimum numbers of load cell verification Intervals 0.01 % of rated load Rated output 2.0±0.1% mV/V Combined error 0.015 ±% of rated output Temperature effect on sensitivity 0.0012 ±% of rated output/°C Temperature effect on zero balance 0.0008 ±% of rated output/°C Zero balance 1.0 ±% of rated output/ Input resistance 775±5 Ω (Ohms) Output resistance 702±2 Ω (Ohms) Insulation resistance ≥5000 MΩ(Mega-Ohms) Safe overload 150 % of rated capability Ultimate overload 300 % of rated capability Operating temperature range -20~+70 / -20~+160 C/F Recommend excitation 8~15 V(DC or AC) Maximum excitation 24 V(DC or AC) Material of elastomer Alloy steel,stainless steel Protection class IP67/IP68
- About products and suppliers:
Alibaba.com offers 7971 compression load cell products. About 66% % of these are force sensors & load cells, 3%% are other sensors, and 1%% are other sensors old.
A wide variety of compression load cell options are available to you, such as resistance sensor, capacitance sensor and optical sensor.You can also choose from pressure sensor, consumption sensor and position sensor compression load cell,As well as from standard, analog output, and multi function. And whether compression load cell is latch, special purpose, or {3}.
There are 6372 compression load cell suppliers, mainly located in Asia. , and
