Crown wheel and pinion gear

Types of crown wheel and pinion gear

The crown wheel and pinion gear is a crucial mechanical gear system commonly used in the automobile industry, particularly in the axle of cars, trucks, motorcycles, and other vehicles. The system is applied where a change of direction or transmission of power is required within a compact space.

Crown gear is also called a gear wheel, and it is often located at the top of the differential case. Its function is to allow the vehicle's wheels to turn. The crown gear has straight or angled teeth that mesh with the pinion gear's teeth, facilitating the turning motion.

The pinion gear is attached to the differential housing. This gear receives power from the drive shaft through a u-joint from the transmission. The size of the pinion gear affects torque and speed.

Generally, the crown wheel and pinion are classified based on the orientation of their axes:

• Hypoid gears: They are the most common type of crown wheel and pinion gear used in modern cars. In a hypoid gear, the pinion is mounted below the center line of the crown wheel. This allows the drive shaft to be positioned higher, making it suitable for vehicles with a higher ground clearance. One of the advantages of hypoid gears is that they allow smooth and quiet gear operations. However, hypoid gears are more complex and require higher manufacturing precision, making them more expensive.

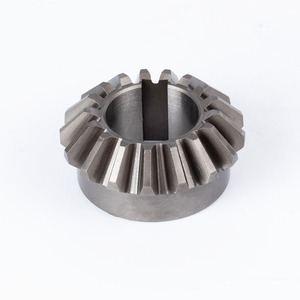

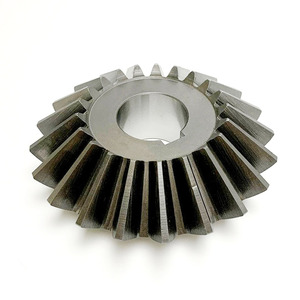

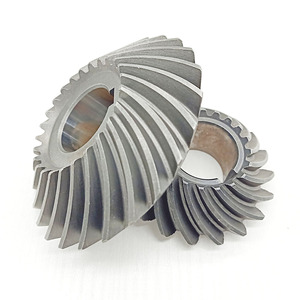

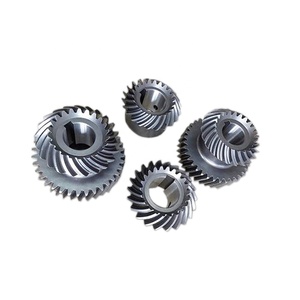

• Angular gears: In this type of gear, the pinion is placed parallel to the axis of the crown wheel. The angular contact of the gears results in a smooth surface that reduces wear and tear. Angular gears are further divided into spiral and straight teeth gears. Spiral bevel gears have teeth that resemble a spiral. They are stronger and produce less noise when in motion. On the other hand, straight bevel gears have teeth that are straight and run directly across the gear.

Specification and Maintenance of Crown Wheel and Pinion Gear

The specifications of Crown Wheel and Pinion Gears play a critical role in determining their performance and suitability for various applications. Here are some key specifications to consider:

• Material: Crown wheel and pinion gears are commonly made from high-strength steel alloys, such as carbon steel or alloy steel. These materials offer excellent wear resistance and durability, ensuring long-lasting performance even in demanding conditions.
• Gear Ratio: The gear ratio is a crucial specification that affects torque and speed characteristics. Crown wheel and pinion gears are available in various gear ratios, such as 3.0:1, 4.10:1, or 5.5:1. A higher gear ratio provides increased torque but reduces maximum speed, making it suitable for off-road or heavy-duty applications. In contrast, a lower gear ratio offers higher speed but requires more maintenance.
• Size and Diameter: Crown wheel and pinion gears come in different sizes and diameters to accommodate specific axle and differential designs. The diameter of the pinion gear is typically smaller than that of the crown gear, and both gears have precise measurements to ensure proper meshing and clearance.
• Tooth Design: Crown wheel and pinion gears feature different tooth designs, such as straight or helical teeth. Helical teeth offer smoother engagement and quieter operation, making them suitable for high-speed applications. On the other hand, straight teeth are simpler and more cost-effective, making them ideal for low-speed or heavy-duty applications.

Proper maintenance is essential to ensure the longevity and reliable performance of crown wheels and pinion gears. Here are some key maintenance tips:

• Lubrication: Crown wheels and pinion gears require regular lubrication with high-quality gear oil to reduce friction, wear, and heat generation. Follow the manufacturer's recommendations for the appropriate type and interval of gear oil changes. Additionally, ensure proper gear oil levels to maintain effective lubrication.
• Inspection: Regular inspection of crown wheels and pinion gears is crucial to identify wear, damage, or misalignment. Check for signs of pitting, scoring, or chip teeth, as these issues can affect gear performance and lead to catastrophic failure. Additionally, inspect the housing for leaks and address any issues promptly.
• Torque Specifications: When installing or maintaining crown wheels and pinion gears, adhere to the manufacturer's torque specifications for fasteners. Improperly torqued bolts can lead to gear misalignment and premature wear.
• Load Limits: Avoid exceeding the specified load limits of crown wheels and pinion gears. Overloading can cause gear slippage, tooth damage, and reduced gear lifespan. Consider the gear ratio and torque characteristics when selecting the gear for specific applications.

How to choose crown wheel and pinion gear

Crown and pinion gears are an essential part of vehicles' drive systems. The gears are responsible for converting the rotation of the driveshaft into the rotation of the wheels. Choosing the right crown wheel and pinion gear for a vehicle is paramount to ensuring the gear system functions optimally. Here are some tips for choosing the correct crown and pinion gear for a vehicle:

• Consider the gear ratio

  The gear ratio is the first thing to consider when choosing a crown and pinion gear. The gear ratio affects torque, fuel consumption, and the vehicle's top speed. A crown and gear with a lower ratio offers more torque, while a higher ratio offers less torque. Choose a gear ratio depending on the needs of the vehicle. For example, a vehicle needing more torque on the wheels, like an off-road vehicle, needs a crown and gear with a lower ratio. On the other hand, a sports car needs a higher ratio gear to improve its speed performance.

• Material and durability

  Crown and pinion gears are made from several materials. The gears are usually made with steel alloys, which offer high durability and strength. However, also consider the heat treatment and hardening of the gear. Select a pinion and gear set that can withstand the stress and load without easily wearing out.

• Size and clearance

  The crown and pinion gear come in various sizes. It is vital to ensure the selected gear sets fit perfectly into the differential housing. Also, check the mounting space and clearance to ensure there is no friction or clash with other components.

• Application and suitability

  Different crown and pinion gears are suitable for various applications. Some are suitable for off-road vehicles, while others are for on-road or racing vehicles. Select a crown wheel and pinion gear set suitable for the vehicle and its application. Also, consider the road conditions and the driving habits of the vehicle.

• Budget

  Crown and pinion gears are sold at various prices depending on the brand, material, and size. It is important to have a budget. However, do not compromise on quality by selecting a low-cost gear set. Remember, the crown and pinion gear are vital parts of the vehicle, so always select the best quality gear within the budget.

How to DIY and Replace Crown Wheel and Pinion Gear

It is important to maintain the crown wheel and pinion gear in good condition to ensure the smooth functioning of the vehicle's drivetrain. Replacing the gear requires knowledge of mechanical systems, a clean work environment, and basic hand tools. Here is a step-by-step guide on how to DIY and replace crown wheel and pinion gear.

Tools needed:

• Socket set
• Wrenches
• Torx drivers
• Gear oil
• New crown wheel and pinion gear
• Dial indicator
• Torque wrench
• Puller

Steps:

• 1. Prepare the vehicle: Crown wheel and pinion gear replacement requires working under the vehicle. Ensure the car is parked on a level surface. Use jack stands to lift the vehicle and chock the wheels to prevent movement.
• 2. Remove the wheels and wheel covers: Loosen the wheel nuts using a wrench. Remove the wheel covers and lift the car off the ground to access the differential.
• 3. Drain the gear oil from the differential: Use a socket set and ratchet to remove the drain plug and allow the oil to drain into a suitable container.
• 4. Disconnect the driveshaft: Remove the bolts connecting the driveshaft to the differential using a socket set and ratchet.
• 5. Remove the differential: Use a wrench to remove the bolts securing the differential to the vehicle's frame. Remove the differential from the vehicle.
• 6. Remove the crown wheel: Use a Torx driver to remove the bolts securing the crown wheel to the differential and remove the crown wheel.
• 7. Remove the old pinion gear: The old pinion gear is attached to the differential carrier with bolts. Remove the bolts and use a puller to remove the pinion gear from the carrier.
• 8. Install the new pinion gear: Mount the new pinion gear onto the differential carrier using a puller. Ensure the gear is properly aligned.
• 9. Install the new crown wheel: Attach the new crown wheel to the differential housing using a Torx driver and tighten the bolts to the manufacturer's specifications.
• 10. Reinstall the differential: Reinstall the differential onto the vehicle's frame and connect it to the driveshaft using the bolts. Refill the differential with gear oil to the recommended level.

Q&A

Q1: What are crown wheel and pinion gears used for?

A1: Crown wheels and pinion gears are generally used in vehicles to enable smooth and quiet operation when driving. These gears also allow the drive shafts to be installed parallel to the axles, thus enabling a more compact design of the vehicle.

Q2: How are crown and pinion gears calculated?

A2: The calculations are done by determining the ratio, which is the number of teeth on the pinion divided by the number of teeth on the crown gear. For example, a pinion with 10 teeth and a crown with 50 teeth gives a ratio of 10:50 or 1:5.

Q3: Can people use Crown gears and pinions in machines other than vehicles?

A3: Yes, crown gears and pinions can be used in various machines, such as in lathes, milling machines, and other workshop machines that require precise and reliable gear transmission.
