Encoder limit switches are vital in industrial automation, especially for precise control and positioning. They come in various types, each designed to suit specific operational needs. Understanding these types helps in selecting the right encoder limit switch for a particular application.
Linear encoder limit switches translate motion along a straight path. They are mainly used in applications that need positioning over a linear distance. Such applications include material handling and CNC machinery. These switches employ a scale or strip that moves with the machine component to provide accurate length measurement.

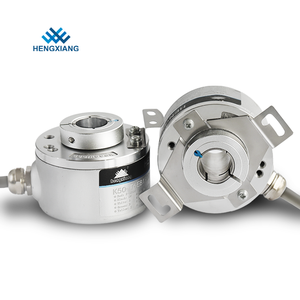

This type of switch tracks rotational movement. It does this by sending signals each time the encoder disc moves one increment. Rotary encoder limit switches are primarily used in robots and other machinery where precise rotational control is necessary. They provide accurate feedback on the angle of rotation.
Increments of an encoder are the smallest measurable changes in position it can detect. For a rotary encoder, it refers to the degrees of rotation. A linear encoder sees it as a millimeter of movement. The increment size significantly impacts accuracy. Smaller increments mean higher precision. Different applications require various increments depending on their demands.

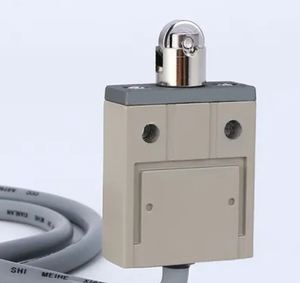

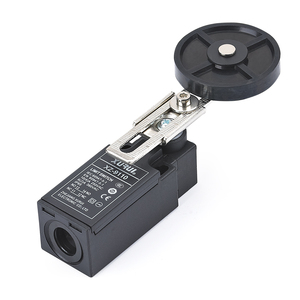

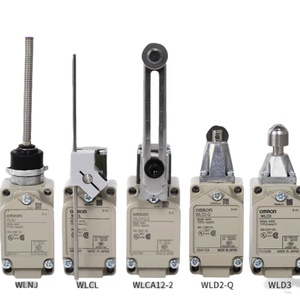

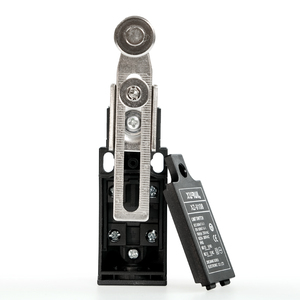

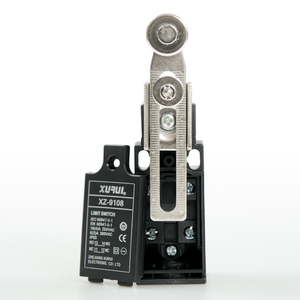

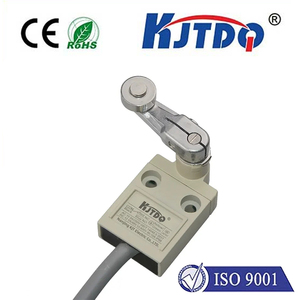

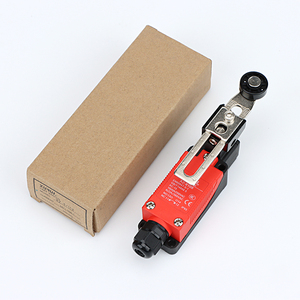

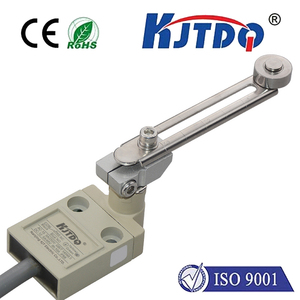

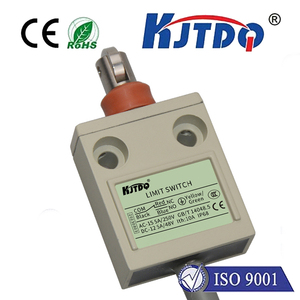

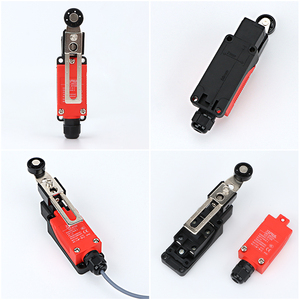

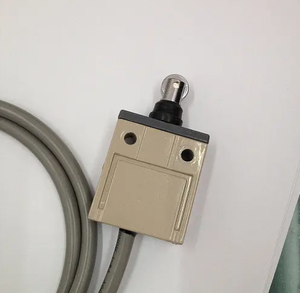

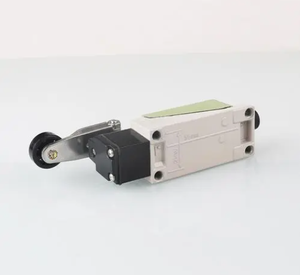

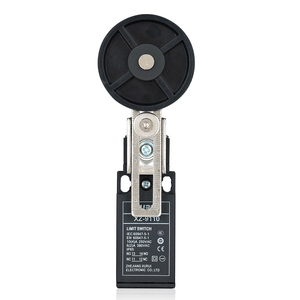

Mechanical encoder limit switches use electromechanical operations. They trigger on mechanical parts, like levers or rollers. Mechanical switches are normally seen in traditional setups. They can still be good choices when deciding on low-cost alternatives with acceptable precision. One challenge users face with them is wear and tear. Therefore, they need frequent maintenance.
Magnetic encoder limit switches use magnetic fields for position detection. Users appreciate them for their durability and high resistance to environmental factors such as dust, oil, and vibration. These switches are well-suited for industries with harsh operating conditions. Conventional sensors may fail to perform in such areas.
Durability is a key factor in choosing an encoder limit switch. This makes understanding the materials used in their construction vital. The materials not only affect the switch's lifespan but also how it performs in different environments.
Housing in encoder switches is commonly made of aluminum or high-impact plastics. Aluminum offers excellent strength. It protects internal components from external damage. Plastic housings are lightweight and more affordable. Users normally find them best for low-impact environments.
Waterproofing: For applications exposed to moisture, IP-rated (Ingress Protection) housings are a must. These ratings ensure the switch is protected from water and dust infiltration.
The durability of internal components like sensors and gears greatly impacts the switch's lifespan. Most high-end rotary limit switches use optical or magnetic sensors for precision. Optical sensors give heightened accuracy since they have no moving parts. It also reduces wear over time. Conversely, as stated earlier, mechanical encoders have a tendency to wear out.
Magnetic Sensors: They are renowned for their longevity. This is because they are resistant to conditions that could otherwise damage optical sensors. Such conditions include dust and vibration.
Gold-plated connectors are often used in these switches. It gives them enhanced durability and resistance to corrosion. This ensures reliable electrical connections over long periods. Furthermore, gold-plated connectors minimize signal loss. This leads to improved performance.
Many industrial limit switch encoders are designed to resist extreme temperatures and humidity. A lot of manufacturers normally coat internal components with epoxy or silicone. These coatings protect against moisture and chemical exposure.
Look for switches compliant with international durability standards. Examples include IP (Ingress Protection) and NEMA (National Electrical Manufacturers Association) ratings. These ensure that the switch can endure the wear and tear of industrial environments.
Encoder limit switches are widely used across various industries. Their precision and reliability make them indispensable in many commercial applications.
Automated systems rely on encoder limit switches. They use them for precise positioning and movement control. Whether in robotic arms or conveyor systems, these switches ensure the machines operate with the accuracy needed for efficient production.
Robots in all sectors depend on the switches for movement control. For example, they use rotary limit switches. The switches are particularly vital in tasks like assembly, welding, and painting. In these tasks, precision is the name of the game. The constant feedback allows for intricate operations while reducing the risk of overextending components.
CNC machines require precise positioning to ensure cutting tools accurately follow programmed paths. It is in such circumstances that encoder limit switches come to play. The switches offer high precision in position detection. This leads to better quality and minimizes material wastage during machining.
The switches play a pivotal role in providing accurate position feedback to ensure that systems operate smoothly and safely. Besides this, they help prevent over-travel or collisions. These errors can lead to equipment damage or product spoilage. In this space, users also appreciate magnetic encoder limit switches since they are durable. They also easily handle exposure to dust and debris.
These systems use encoder limit switches to precisely control elevator movement. They ensure accurate stopping at each floor. This enhances passenger safety and comfort while also ensuring reliable operation over long periods. Thus, reducing maintenance costs.
Printing presses and packaging machines rely on encoder limit switches for precise control of rollers, belts, and other moving parts. Accurate positioning ensures consistent material usage. This leads to improved product quality and reduced operational costs.
There are several key factors that one needs to consider. They will help select the right encoder limit switch for a specific application.
The switch's type is the first thing to look at. Is precision linear or rotary motion control required? Go for linear or rotary encoder limit switches. For applications where robustness is required, one should opt for magnetic encoder limit switches. These switches thrive in harsh industrial conditions.
Resolution goes hand in hand with accuracy when it comes to these switches. It refers to the smallest movement the switch can detect. A more resolute switch leads to greater precision in position detection. One has to factor in their specific needs. Are they seeking high precision for CNC machining or more general industrial automation? This will influence the resolution requirements.
If the switch will be in an environment with high levels of wear and tear, prioritizing durability is advisable. For instance, if the application entails heavy machinery, a switch with a robust housing and corrosion-resistant internal components is a must-have. Furthermore, switches with higher IP ratings provide added protection from dust and water.
Certain industries have extreme operating conditions. For these industries, selecting a limit switch that can withstand either heat or humidity is crucial. For such situations, waterproof and heat-resistant variants are specially designed to endure these elements. Additionally, gold-plated connectors further enhance the durability of the switches in these environments.
Some encoder limit switches feature plug-and-play designs. This makes installation a walk in the park. These designs also come with easy-to-follow mounting instructions. Their ease promotes a faster system setup. Further, many modern switches offer low maintenance requirements because of their resilient build and reliable internal components. This helps reduce long-term operational costs.
These switches act as position sensors. They provide precise feedback on the position of moving parts in machinery. In doing so, they ensure the machines operate precisely. In turn, this improves overall efficiency and accuracy.
Linear limit switches track straight movements. On the other hand, rotary limit switches handle circular movements. Which one to go for will all depend on the application one intends to put the switch to. After all, each switch is tailored for specific types of motion control.
The housing of these switches is commonly made from aluminum or high-impact plastics. As for the internal components, users can find them made from metal, optical devices, or magnetic components. The choice of material directly impacts the switch's durability, especially in industrial environments.
Waterproof and dustproof models are specifically designed to resist these harsh conditions. These models feature sealed housings and corrosion-resistant materials. This shields the internal components from moisture, dust, and other contaminants. Therefore, they guarantee reliable performance in an array of industrial settings.
Many modern encoder limit switches come with low maintenance requirements. This is particularly so for the magnetic and optical types. They have no moving parts or contacts to wear out. This quality gives them a long lifespan plus minimal upkeep. It allows for more focus on other important operations.
