About fanuc encoder connector

Types of Fanuc Encoder Connectors

Fanuc encoder connectors come in heterogeneous types, each one compatible with different encoder models.

These are the common kinds of encoder connectors, mostly used in Fanuc systems.

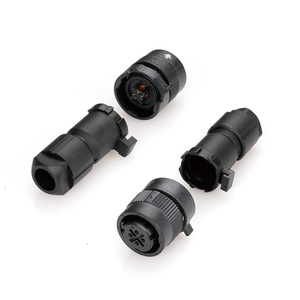

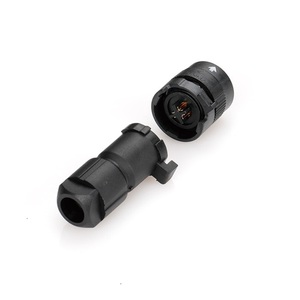

Circular Connectors

Circular connectors are the most common type of encoder connection. Their design includes several pin configurations that ensure a secure and correct connection with the corresponding encoder. They are also popular for their ability to bear difficult environments with their watertight seal.

8-Pin Connector

This connector is often used in older Fanuc encoders, for example, the A860-2006-0390. This connector has eight pins for signal transmission and positional feedback.

Multi-Pin Connectors

Multi-pin connectors have more than eight pins. They carry more complex information requirements for more advanced encoder applications. These connectors are usually seen in high-resolution or multi-turn encoders.

Hydraulic Socket Connectors

These are not only for electrical connections but also meant for encoders that require fluid power. They ensure a corporation between electrical feedback systems and hydraulic machinery.

Connector Cables

These cables are extra fitted for specific machines and encoders to ensure the right connection. They allow longer or more flexible connections between components without signal loss.

Industrial Applications of Fanuc Encoder Connectors

Fanuc connectors are crucial for the correct operation of industrial mechanism feedback systems. Here are the common applications where these connectors are key elements:

Robotics

In robotics, positional accuracy is crucial. Fanuc encoder connectors facilitate the communication of the motors with the feedback systems to maintain accuracy and develop robotic movements.

CNC Machining

In CNC machining, for accurate positioning and movement, Fanuc encoders work with CNC motors and drives to give precise feedback on the position. These connectors are of key importance in maintaining pressure during high-precision tasks such as cutting and milling.

Aerospace

Aerospace is an industry where high reliability and accuracy are needed. In this industry, Fanuc encoder connectors are used in navigation systems and control surfaces to ensure the correct position and orientation.

Renewable Energy

Wind turbines and other renewable energy systems demand accurate feedback systems for efficiency. In these systems, Fanuc connectors support the monitoring and management of the position and speed of the turbines.

Automotive Manufacturing

Fanuc connectors in automotive manufacturing create robotic arms, CNC machines, and other automata. These connectors' precision and reliability further enhance this manufacturing process.

Important Features of Fanuc Encoder Connector

Fanuc encoder connectors are built for durability, precision, and versatility.

Some of the most notable features of these connectors include:

Seal for Protection

Be it in dust or water, the environmental resistance of these connectors ensures that dirt or moisture does not affect the internal mechanisms, thus protecting them and enhancing their durability.

Material Quality

These connectors are manufactured with high-quality metal that guarantees not only effective signal transmission but also material hardness and corrosion, debarring the connectors from outside environmental effects.

Precision Engineering

Every Fanuc connector is engineered to ensure minimal tolerance levels to guarantee accuracy in signal transmission. This calibration is responsible for the smooth working of encoders and motors in the feedback loop.

Versatility

Fanuc connectors are produced for various encoders, which makes them versatile and easy to use with numerous equipment. This feature allows easy interchanging of components within various systems, which further eases maintenance.

Simple Installation

The design of these connectors permits easy installation and uninstallation, thus reducing operating time and enhancing workflow within industries.

What Makes Fanuc Encoders Durable

The durability of Fanuc encoders comes from the following factors:

Seal for Protection

The internal seals of these connectors shield the internal components of the encoder from dust, water, and other environmental elements that affect performance. This feature makes the encoders suitable for both indoor and outdoor applications.

Quality Materials

Fanuc encoders are made of high-grade materials such as stainless steel and aluminum. These materials move the encoders into harsh environments because they are rust-proof and resistant to bending or breaking.

Shock and Vibration Resistance

Heavy machinery can cause extreme vibrations and shocks; hence, the Fanuc encoders are designed to withstand these elements. Their robust construction ensures that the encoders do not lose their calibration or stop working during or after these instances.

Thermal Resistance

Extensive operational temperatures are common in many industrial settings. The thermal resistance of Fanuc encoder materials prevents internal component expansion. This way, functionality remains unaffected even in extreme conditions.

Industrial Testing

Fanuc encoders undergo vigorous testing for various industrial applications. These tests ensure that the encoders satisfy the durability, accuracy, and reliability standards that most industries need.

How to Choose Fanuc Encoder Connector

So, to choose the right Fanuc encoder connector, one must consider several factors.

These factors include:

Compatibility with Existing Systems

The most priority must be given to whether the connector is compatible with the present encoder and system. Check the connector specifications and descriptions to see if they correspond to the requirements of the current system.

Application Requirements

Look at the operational condition factors. Consider moisture, extreme temperatures, and voltage levels. Picking a connector designed precisely for these environmental conditions will guarantee its performance and durability.

Number of Pins

The pin number directly relates to the information requirements of the system. For ordinary operations, a connector with fewer pins is enough. However, if the application requires more detailed positional feedback, then go for multi-pin connectors.

Seal for Protection

The protection against moisture and dust will not be a consideration when choosing a connector with proper sealing for the environment. Opt for connectors with enhanced sealing, especially for outdoor or dusty environments.

Material and Build Quality

Select one that has internal and external components made of high-grade material. Things like stainless steel, aluminum, or high-quality plastics, which make the connector strong and durable, should be considered.

Ease of Installation

For the systems that frequently require maintenance, go for connectors that make the installation process easy. This feature will save time during the switching and servicing of components.

Q&A

Q1. What role do Fanuc encoder connectors play in industrial robotics?

Robotic arms need precise position feedback to operate effectively. Fanuc encoder connectors create a communication bridge between motors and encoders in industrial robotics, relaying positional data. Thus, allowing robots to perform intricate tasks with the accuracy required for fine-tuning and heavy assembly.

Q2. What impact does the pin number of an encoder connector have on its performance?

Pins carry the data or power the connector transmits. More pins then mean more detailed data transmission, while fewer pins are good for ordinary needs. This makes the pin number an important consideration for choosing a connector, given the complexity of the application.

Q3. Are Fanuc connectors weatherproof?

The connectors are designed with enhanced sealing. This sealing protects internal components from moisture and dust. Thus making the connectors suitable for indoor and outdoor applications.

Q4. How frequently should the encoder connectors be inspected?

Environmental aspects and machine workload determine this frequency. It should be visually inspected every couple of months in outdoor settings with harsh climates. Under lighter conditions, once or twice a year is enough.ortech running cabling

Q5. Can these connectors work in extreme-temperature conditions?

Yes, as long as the components and systems are also designed to withstand these temperatures. The build materials of the connector are resistant to thermal expansion and contraction, maintaining a stable connection even under heat or cold extremes.
