Types of Function Connecting Rods
A function connecting rod is a critical component in internal combustion engines that serves as the mechanical link between the piston and the crankshaft. By converting the piston's linear motion into rotational movement, connecting rods play a vital role in transforming fuel energy into usable mechanical power. The design and material selection of these rods directly affect engine performance, efficiency, and longevity.
This guide explores the primary types of function connecting rods currently used in automotive and industrial applications:
Steel Connecting Rods
Forged or machined steel rods remain the industry standard due to their exceptional strength and reliability. These rods are engineered to withstand extreme pressures and temperatures while maintaining dimensional stability over time.
Advantages
- Excellent fatigue resistance
- High tensile strength (typically 900-1200 MPa)
- Cost-effective for mass production
- Proven reliability in OEM applications
- Good wear resistance under normal operating conditions
Limitations
- Heavier than alternative materials
- Prone to corrosion without proper coating
- More machining required during manufacturing
Best for: Standard production vehicles, commercial trucks, heavy machinery
Titanium Connecting Rods
Advanced titanium alloy rods offer remarkable strength-to-weight ratios, making them ideal for high-performance applications where weight reduction significantly impacts overall performance.
Advantages
- Exceptional strength-to-weight ratio (better than any metal)
- Natural vibration damping characteristics
- Corrosion-resistant even in harsh environments
- Can operate at elevated temperatures (up to 600°C)
- Long service life with proper maintenance
Limitations
- Significantly higher cost (5-10x steel)
- Requires specialized machining techniques
- Potential galling issues if improperly installed
Best for: Racing engines, aerospace applications, premium motorcycles
Aluminum Connecting Rods
Lightweight aluminum rods provide significant weight savings while maintaining adequate strength for specific high-RPM applications where reciprocating mass reduction is crucial.
Advantages
- Up to 60% lighter than steel equivalents
- Excellent thermal conductivity
- Good machinability reduces production costs
- Effective vibration absorption
- Easy to inspect for cracks using dye penetrant methods
Limitations
- Limited fatigue strength compared to other metals
- Not suitable for sustained high-load applications
- Shorter service life requiring periodic replacement
Best for: Drag racing engines, nitro-powered RC cars, short-duration performance applications
Cast Iron Connecting Rods
Traditional cast iron rods were widely used in older engine designs, offering reliable performance for non-high-performance applications where cost-effectiveness was prioritized.
Advantages
- Low production cost
- Good compressive strength
- Natural vibration dampening properties
- Excellent wear resistance in properly lubricated systems
Limitations
- Brittle nature limits shock load capacity
- Heavier than modern alternatives
- Poor fatigue resistance under cyclic loading
Best for: Vintage vehicles, stationary engines, low-speed industrial equipment
Composite Connecting Rods
Innovative composite materials are emerging in niche high-tech applications, combining lightweight construction with tailored mechanical properties through advanced fiber reinforcement techniques.
Advantages
- Unmatched weight savings (up to 70% vs. steel)
- Corrosion-proof construction
- Design flexibility for optimized stress distribution
- Reduced inertia forces at high RPM
- Improved NVH (Noise, Vibration, Harshness) characteristics
Limitations
- Extremely high manufacturing costs
- Specialized repair/replacement requirements
- Temperature limitations depending on matrix material
Best for: Formula 1 prototypes, hybrid powertrains, experimental aircraft
| Type | Weight (vs. Steel) | Strength | Durability | Typical Cost Range |
|---|---|---|---|---|
| Steel | 100% | Excellent | Very Good | $ - $$ |
| Titanium | 60% | Excellent | Good | $$$$ - $$$$$ |
| Aluminum | 40% | Fair | Moderate | $$ - $$$ |
| Cast Iron | 110% | Moderate | Moderate | $ |
| Composite | 30% | Good | Moderate | $$$$$ |
Expert Tip: When upgrading connecting rods in modified engines, always ensure proper balancing of rotating assemblies to avoid dangerous vibrations. For titanium rods, use anti-galling paste during installation to prevent thread damage.
Specifications and Maintenance of Function Connecting Rods
Key Specifications to Consider
Function connecting rods are critical components in an engine's internal combustion process. Choosing the right type involves understanding their specifications to ensure compatibility, performance, and longevity:
Material Composition
Function connecting rods are typically manufactured from titanium, aluminum alloy, or steel, each offering unique characteristics that influence performance and cost.
Titanium is known for its exceptional strength-to-weight ratio and corrosion resistance, making it a popular choice for high-performance racing applications where weight reduction is crucial. However, titanium comes at a premium price and requires specialized manufacturing techniques.
Steel rods, on the other hand, provide excellent durability and are more affordable than titanium. They are commonly used in standard street vehicles due to their robustness and reliability under typical driving conditions.
Aluminum alloys strike a balance between weight savings and affordability. These rods are lighter than steel but not as strong, often found in engines designed for moderate performance gains.
Dimensions and Sizing

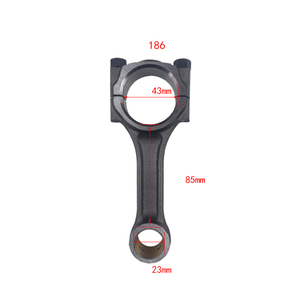

The length of a function connecting rod is measured from the center of the piston pin hole (small end) to the center of the crankshaft journal (big end). Accurate sizing is essential for proper engine geometry and performance.
A rod that is too long can cause interference with other engine components and alter compression ratios, while a rod that is too short may compromise mechanical integrity and lead to increased stress on the crankshaft and piston assembly.
Manufacturers specify precise tolerances for rod length based on engine design parameters such as stroke, deck height, and piston compression height. Deviating from these specifications can result in engine damage or reduced efficiency.
Big End and Small End Diameters
The big end connects to the crankshaft via a bearing, while the small end attaches to the piston pin. Both ends must be precisely machined to match the corresponding components.
The big end diameter determines the size of the bearing and how securely it wraps around the crankshaft journal. An incorrect fit can lead to oil starvation, excessive wear, or catastrophic failure under load.
Similarly, the small end diameter must align perfectly with the piston pin to ensure smooth articulation without binding or play. Improper fitment can result in uneven loading and premature fatigue cracking.
Weight and Balance
Lightweight connecting rods improve engine responsiveness by reducing reciprocating mass, allowing faster revving and higher horsepower output. However, weight reduction must not come at the expense of structural integrity.
Unbalanced rods create harmonic vibrations that can damage bearings, crankshafts, and other rotating components over time. Precision balancing ensures even distribution of mass across all rods in the set, promoting smoother operation and extended engine life.
Performance engines often undergo dynamic balancing procedures where rods are matched within tight tolerances (typically +/- 2-5 grams) to minimize imbalance effects at high RPMs.
| Specification | Typical Range | Impact on Performance |
|---|---|---|
| Material Type | Titanium, Steel, Aluminum Alloy | Determines strength, weight, and cost; titanium offers best performance but highest cost |
| Rod Length | Varies by engine application | Affects compression ratio, rod ratio, and overall engine dynamics |
| Big End Diameter | Depends on crankshaft journal size | Influences bearing surface area and load capacity |
| Small End Diameter | Matches piston pin dimensions | Critical for proper articulation and load transfer |
| Weight Tolerance | ±2–5 grams per rod | Balancing ensures smooth operation and reduces wear |
Design Shape Options
Function connecting rods are available in two primary cross-sectional shapes: I-beam and H-beam. Each shape has distinct advantages depending on the intended use of the engine.
I-beam rods are characterized by their "I"-shaped profile, which provides good torsional stiffness and efficient weight distribution. These rods are widely used in standard and mildly modified engines due to their cost-effectiveness and proven reliability.

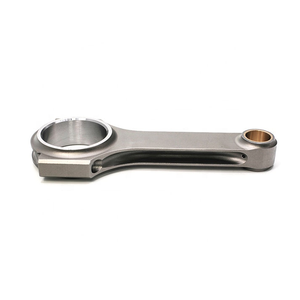

H-beam rods feature a flat cross-section resembling the letter "H," offering greater rigidity and improved strength in high-load situations. They are preferred for high-performance and forced-induction applications where additional structural support is necessary to withstand increased cylinder pressures.
While H-beam rods tend to be heavier than I-beams, they offer superior resistance to bending forces, making them ideal for turbocharged, supercharged, or nitrous oxide-assisted engines.
Maintenance Best Practices
Proper maintenance of function connecting rods is vital to preserving engine health and ensuring long-term reliability. Follow these guidelines to keep your rods performing optimally:
Important: When replacing one function connecting rod, it’s advisable to inspect and replace all rods in the set to maintain uniformity and balance. Mixing old and new rods can create imbalances that negatively affect engine performance and longevity.
How to Choose Function Connecting Rods
Selecting the right function connecting rods is crucial for engine performance, reliability, and longevity. The choice depends on several interrelated factors that determine how well the rod will perform under specific operating conditions.
Material Selection
The material used in manufacturing connecting rods significantly affects their strength, weight, and durability. Each material has distinct advantages depending on the application:
- Steel rods: Known for high tensile strength and fatigue resistance, making them ideal for heavy-duty engines and high-horsepower applications
- Aluminum rods: Offer excellent weight savings with good shock absorption properties, commonly used in stock engines and street performance builds
- Titanium rods: Combine exceptional strength-to-weight ratio with corrosion resistance (though at a premium cost), often found in racing and aerospace applications
- Forged vs. cast: Forged rods offer superior strength but higher cost compared to cast alternatives
Technical note: Material choice should align with expected cylinder pressure and engine RPM range
Rod Length Considerations
The length of a connecting rod impacts multiple aspects of engine performance including piston motion dynamics, combustion efficiency, and mechanical advantage:
- Longer rods reduce side loading on cylinder walls and improve power delivery smoothness
- Shorter rods allow for compact packaging and can increase high-RPM performance potential
- Length affects the rod ratio (rod length divided by crankshaft stroke), with optimal ratios between 1.5:1 and 1.8:1
- Racing engines often use longer rods for improved mechanical efficiency
Performance tip: Changing rod length requires recalculating piston compression height and deck clearance
End Diameter Specifications
Proper sizing of both big and small end diameters is critical for proper engine operation and component longevity:
- Big end diameter must match crankshaft journal size with appropriate bearing clearance (typically 0.001-0.002 inches per inch of journal diameter)
- Small end diameter needs precise fit with piston pin while allowing for thermal expansion
- Bearing surface area affects oil film retention and load distribution
- High-performance applications may require oversized journals for increased strength
Measurement advice: Always verify dimensions with micrometers and check for taper or out-of-round conditions
Strength Requirements
Connecting rod strength must be carefully matched to engine output and operating conditions:
- Compressive strength handles combustion forces during power stroke
- Tensile strength resists inertial forces during valve events
- Yield strength determines resistance to permanent deformation
- Fatigue strength is crucial for long-term reliability under cyclic loading
Critical factor: Safety factor should be at least 1.5x expected loads in performance applications
Weight Optimization Tip: When selecting connecting rods, aim for the lightest option that still meets your strength requirements. Reducing reciprocating mass by just 10% can yield measurable gains in engine responsiveness and fuel efficiency without compromising reliability when done correctly.
| Application Type | Recommended Material | Typical Weight Range | Strength Rating |
|---|---|---|---|
| Stock passenger car | Cast aluminum | 450-600g | Moderate |
| Street performance | Forged steel | 600-750g | High |
| Drag racing | Chrome moly steel | 650-800g | Very high |
| Nitro-powered | Titanium alloy | 350-500g | Extreme |
Selection Strategy: Begin by determining your engine's intended use and maximum horsepower goals. This will guide material selection and design choices. Then calculate dimensional requirements based on your crankshaft and piston specifications. Finally, validate your choice by cross-referencing manufacturer specifications against your calculated load requirements to ensure adequate safety margins are maintained.
How to DIY and Replace Function Connecting Rods
Replacing a connecting rod is a complex mechanical procedure that requires advanced technical knowledge, precision tools, and a deep understanding of engine mechanics. While it's not typically recommended for beginner DIYers due to the risk of engine damage or personal injury, experienced mechanics with proper equipment may perform this task in a workshop setting.
Critical Warning: Connecting rod replacement involves complete engine disassembly. Improper installation can lead to catastrophic engine failure, including damaged pistons, crankshaft misalignment, or hydrolock. Always consult factory service manuals and consider professional assistance unless you have extensive mechanical experience.
Professional Mechanic Procedure Overview
- Battery Disconnection
The first step in any engine-related repair is disconnecting the vehicle battery to eliminate the risk of electrical shorts or accidental starts. The negative terminal should always be disconnected first, followed by the positive if necessary.
- Use insulated wrenches to prevent sparking
- Secure terminals away from battery posts
- Store battery in a safe location during repairs
- Fluid Drainage Preparation
Before removing the engine, all fluids must be properly drained to prevent contamination and ensure clean workspace conditions. This includes:
- Engine oil (drain from oil pan and filter)
- Coolant (from radiator drain valve)
- Transmission fluid (if engine and transmission are connected as a unit)
Use appropriate containment vessels and follow local environmental regulations for disposal or recycling.
- Engine Removal Process
Proper engine removal requires specialized equipment and careful planning:
- Loosen all engine mounts using torque wrenches
- Disconnect exhaust system, intake manifold, and cooling lines
- Label and secure all wiring harnesses
- Use an engine hoist with rated capacity matching your engine weight
Ensure the hoist sling is properly positioned and balanced before lifting the engine clear of the bay.
- Engine Disassembly
With the engine on a stable workbench, begin systematic disassembly following manufacturer specifications:
- Remove cylinder head(s) and timing components
- Drain residual oil from internal passages
- Take off oil pan and inspect for metal debris
- Mark piston positions relative to cylinders
- Rotate crankshaft to bottom dead center position
This phase requires precision measurement tools like micrometers and dial indicators.
- Old Connecting Rod Removal
Accessing the connecting rods requires specific steps:
- Remove connecting rod caps in sequence
- Push pistons upward to extract rods from cylinder bores
- Inspect crankshaft journals for wear patterns
- Document rod bearing condition and clearance measurements
If rods are seized, use plastic mallets rather than steel hammers to avoid damaging crankshaft surfaces.
- New Connecting Rod Installation
Installing new rods demands meticulous attention to detail:
- Lubricate crankshaft journals and bearing surfaces thoroughly
- Install rod bearings with proper orientation and alignment
- Torque rod bolts to exact manufacturer specifications
- Check rod side clearance with feeler gauges
- Verify piston-to-rod alignment matches original configuration
Always replace rod bolts with new ones unless specifically stated otherwise by the manufacturer.
- Engine Reassembly Protocol
Reassembly must follow strict procedures in reverse order:
- Install oil pan with new gasket and sealant
- Replace spark plugs with correct heat range
- Reinstall cylinder head with new head gasket
- Refill all fluids with specified types and viscosities
- Reconnect all systems following reference labels
Use new seals and gaskets throughout the reassembly process.
- Final Engine Testing
After reinstallation in the vehicle, perform these critical checks:
- Manual crankshaft rotation test for binding
- Prime oil system before initial startup
- Monitor oil pressure immediately after start
- Listen for abnormal noises or vibrations
- Check for fluid leaks at all connection points
Conduct a progressive break-in period according to manufacturer recommendations.
| Repair Phase | Specialized Tools Required | Potential Risks | Estimated Timeframe |
|---|---|---|---|
| Preparation | Service manual, labeling kit, drain containers | Improper fluid disposal, missing documentation | 1-2 hours |
| Engine Removal | Engine hoist, support stand, specialty sockets | Structural damage, personal injury | 2-4 hours |
| Disassembly | Micrometer set, torque wrench, cam locking tool | Component misplacement, journal damage | 3-6 hours |
| Rod Replacement | Bearing spreader, plastigauge, rod bolt stretch gauge | Incorrect torque, improper alignment | 2-4 hours |
| Reassembly & Testing | Gasket scraper, vacuum tester, oil pressure gauge | Leakage, premature wear, overheating | 3-5 hours |
Expert Recommendation: Before replacing connecting rods, always perform a complete engine analysis including compression testing, leak-down testing, and oil analysis. Consider upgrading to forged connecting rods if modifying engine performance beyond stock specifications.
Connecting Rods: Materials, Maintenance & Compatibility
Function connecting rods are typically manufactured from three primary materials: steel, aluminum, and titanium — each offering unique performance characteristics suited to different applications.
- Steel Connecting Rods: Known for their exceptional strength and durability, steel rods are ideal for high-load environments such as heavy machinery and industrial engines. They can withstand extreme stress and pressure without deforming or failing, making them a popular choice for long-term reliability.
- Aluminum Connecting Rods: These rods are lightweight, which significantly reduces reciprocating mass within the engine. This makes them particularly suitable for portable equipment and high-revving engines where weight savings improve efficiency and performance. However, they may wear out faster than steel under continuous heavy loads.
- Titanium Connecting Rods: Combining high tensile strength with excellent corrosion resistance, titanium rods offer a superior strength-to-weight ratio. While more expensive, they are often used in high-performance and aerospace applications where both durability and reduced weight are critical.
The selection of material should consider factors like engine type, operating conditions, and expected lifespan to ensure optimal performance and cost-effectiveness.
Proper maintenance of connecting rods is crucial for ensuring engine longevity and preventing catastrophic failures. Here are some essential practices:
- Regular Inspection: Conduct periodic visual inspections to identify signs of wear, cracks, bending, or surface fatigue. Use precision tools to measure rod alignment and thickness if possible.
- Replacement Protocol: Replace any connecting rods that show visible damage or excessive wear. Delaying replacement can lead to increased engine damage, costly repairs, and even complete engine failure.
- Cleaning: Keep rods clean by removing carbon buildup, oil residue, and debris using appropriate degreasers and soft brushes. Clean rods allow for easier inspection and reduce the risk of contamination in other engine components.
- Bolt and Fastener Check: Ensure all bolts, nuts, and fasteners are tightened to the manufacturer's specified torque values. Loose fasteners can cause misalignment, vibration, and eventual disconnection during operation.
In addition, always follow the manufacturer’s service intervals and use OEM or high-quality aftermarket parts when replacing rods or related components.
No, function connecting rods are not universal and must be specifically matched to the engine’s design specifications. Each engine has precise requirements regarding:
- Size and Dimensions: The length, diameter, and overall geometry of the rod must align with the engine block and crankshaft configuration.
- Type of Engine: High-performance, diesel, or racing engines often require rods made from specialized alloys or composites to endure higher pressures and temperatures.
- Configuration: Inline, V-shaped, or flat engines each have different mechanical layouts that dictate rod shape and mounting angles.
Using an incompatible connecting rod can result in improper piston travel, poor compression, increased wear on bearings, and potentially severe engine damage. Always verify compatibility with your specific engine model before installation.
The warranty period for function connecting rods varies depending on the manufacturer, product line, and application. Typically, warranties range between 6 months to 12 months from the date of purchase. Several factors influence the duration and terms of the warranty:
- Manufacturer Policies: Reputable brands often provide longer warranties for rods used in industrial or automotive applications, reflecting confidence in product quality.
- Usage Conditions: Rods used in harsh environments (e.g., off-road vehicles or marine engines) may have shorter warranties due to increased exposure to stress and corrosion.
- Maintenance Practices: Proper care and adherence to maintenance schedules can preserve warranty coverage. Neglecting recommended upkeep may void the warranty.
After the warranty period expires, any damages or malfunctions will need to be addressed at the owner's expense. It is advisable to keep records of installation dates and maintenance activities for warranty claims.
