About gpm flow meter

Types of GPM Flow Meter

The GPM flow meter comes in various types for businesses to consider. Each offers its unique benefits.

  • Positive Displacement Flow Meters

    These instruments measure fluid by stopping and starting the movement of the fluid. They have gears or rotors that turn as the liquid flows. An advantage is high accuracy, even with small amounts of liquid. However, they are not ideal for highly viscous liquids. They also require more maintenance than other types. This is because their moving parts wear down over time.

  • Turbine Meters

    Turbine meters work by using a rotor. This rotor spins as fluid passes through it. The faster the fluid, the faster the rotor spins. This helps measure the flow rate. A key benefit is that turbine meters can handle both clean and dirty liquids. They also provide quick and accurate readings. On the downside, they are not effective with highly viscous liquids. In addition, fluctuations in pressure can impact measurement.

  • Ultrasonic Meters

    These meters use sound waves to measure flow. They send a pair of waves through the pipe. One wave travels with the fluid, while the other stays still. By analyzing this, operators can tell the flow rate. The main benefit of ultrasonic meters is that they are non-intrusive. They work well for large pipe systems, too. Unfortunately, they do come at a higher initial cost. They also require regular calibration to ensure measurements stay accurate.

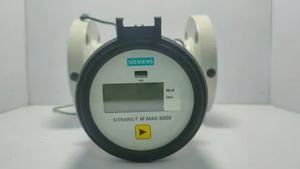

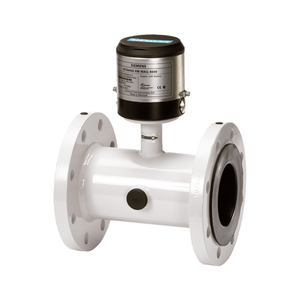

  • Electromagnetic Meters

    The GPM flow meter uses magnets and coils to work. It drives electricity through a fluid; any changes in the electric current show the flow rate. These meters can handle any liquid that conducts electricity. They also provide accurate readings for large-scale industries. Their downside is that they do not work with non-conductive fluids. In addition, the cost of installing these meters is high.

Industry Applications of GPM Flow Meter

The GPM flow meter has wide uses in various industries. Each relies on these meters to measure flow accurately.

  • Agriculture

    Farmers need the GPM flow meter to manage their irrigation systems well. It lets them measure how much water their crops receive. This prevents both under and over watering. The meter also helps in tracking fertilizers and other liquids. This ensures they are applied in the right amounts. This leads to healthier plants and higher crop yields.

  • Food and Beverage

    The food and beverage industry relies on the gpm meter to measure liquid ingredients like water, juice, and oils. It ensures accurate ingredient mixing, leading to consistent product quality. In brewing, the meter measures yeast and wort flow to ensure proper fermentation. In quality control, it tracks liquid movement during processes like bottling. This guarantees the right product amounts in each package.

  • Oil and Gas

    The oil and gas industry uses these flow meters to monitor petroleum and gas movement through pipes. They ensure complete measurement of resources. This boosts operational efficiency. In pipeline transportation, they measure the quantity of oil or gas shipped. This helps prevent leaks and pipeline bursting, too. They also track gas flow in refineries. This enables the quick detection of anomalies. GPM meters also perform flow assurance in high-pressure environments.

  • Pharmaceuticals

    In the pharma industry, accuracy is key and any GPM flow meter ensures this as it works with liquids like water and solvents. It measures active ingredients in drug mixes, helping maintain correct dosage. This ensures patient safety. It is also used in packaging to measure liquids in bottles or vials. This ensures proper medication supply. The meter helps in quality control by tracking liquid input consistency. This prevents production issues.

  • HVAC Systems

    HVAC systems use the GPM flow meter to check water in heating and cooling systems. It monitors flow rates through coils in air conditioning systems. This guarantees the right cooling power. In chilled water systems, it balances flow to ensure even temperature. In boilers, it measures steam and water flow for efficiency. This helps prevent system overloads or failures.

Product Specifications and Features of GPM Flow Meter

The GPM flow meter comes with many features and specs that are vital for flow measurement.

Technical Specifications

  • Measurement Range: The GPM flow meter works well in a range of 0.1 to 50 GPM. It also handles higher flow rates if needed.
  • Accuracy: Most meters have an accuracy of ±1% to ensure reliable readings.
  • Pressure Rating: The meters work well even under high pressure; up to 300 PSI.
  • Temperature Range: The ideal temperature range for the meter is -4°F to 176°F.
  • Materials: Most GPM meters use durable stainless steel or brass for long-term use.

Key Features

  • Digital Display: Many GPM flow meters have digital displays. These show real-time flow rates, total volume, and more.
  • High Precision: The meters provide accurate measurements, even with small flow rates. This ensures consistent results.
  • Easy Installation: Most models have standard pipe sizes, making them easy to install in any system.
  • Low Maintenance: The GPM flow meter requires little maintenance. This allows users to save on upkeep costs.
  • Battery Operated: Many models run on batteries for easy use in remote locations.

How to Install

Follow these steps for correct installation of the GPM flow meter operating manual:

  • Turn off the whole system and drain the pipes. This prevents spills during installation.
  • Check the flow meter size and ensure it matches the pipe size.
  • Install the meter in the right flow direction. Most meters have arrows that show the correct way.
  • Secure the meter using clamps or fittings. Make sure it is tightly fixed.
  • Turn the system back on and check for leaks around the meter.
  • Once there are no leaks, check the flow meter. Ensure it gives accurate flow readings.

How to Use

Following these simple steps will help users enjoy the benefits of this important tool.

  • Ensure the system has enough fluid before using the flow meter.
  • Switch on the digital display to start working.
  • Check the settings to make sure the units are correct.
  • Start the fluid flow and watch the meter for readings.
  • Take note of the flow rate and total volume as needed.

Maintenance and Repair

Regular care keeps the GPM flow meter working well. It also ensures accurate readings for a long time. Maintenance steps include:

  • Check for dirt or debris on the outside. Clean the meter with a soft cloth as needed.
  • Look for wear on seals or gaskets regularly. Replace parts showing signs of damage.
  • Make sure the wires and connections are secure at all times.
  • Run water through the meter to clean it. Do this every month for outdoor users.
  • Check the digital screen settings often. Reset the flow meter if it shows any errors.
  • Watch for leaks near the flow meter.

Quality and Safety Considerations of GPM Flow Meter

Businesses must check quality and safety when using the GPM flow meter. It ensures they get correct measurements and prevent hazards.

  • Quality Checks

    They include implementing quality checks on materials, which affect accuracy. Manufacturers use strong materials like stainless steel. They are better at handling pressure and heat. Regular calibration makes sure the flow meter gives consistent readings. This helps avoid mistakes during work. Using advanced tech like sensors helps track tiny changes in flow. This gives more precise results, further boosting quality checks.

  • Correct Installation and Maintenance

    Proper installation ensures the GPM flow meter works well, as earlier stated. Users must follow the right steps to avoid damages. Monthly checks and cleaning prevent buildup from stopping the meter. All hoses and connections should be examined for wear. Any damaged parts should be fixed right away. This stops leaks from harming nearby workers or equipment. Keeping the flow meter working smoothly lowers risks.

  • Safe Operating Conditions

    Users will operate the GPM flow meter in safe working conditions. They also monitor pressure and temperature levels. High pressure or extreme heat can harm the device and cause risks. Knowing the limits of the flow meter will help avoid these dangers. Regular training for staff ensures they follow proper actions when using the meter. This helps avoid accidents and damage.

  • Choosing Reliable Manufacturers

    Only a few trusted manufacturers can produce GPM flow meters that meet vital safety standards like ISO. Big companies choose these makers to lower risks in their work. They only buy meters from brands with strong test results. Doing this gives them strong, accurate tools. Picking the right maker reduces the chance of harm and errors.

Q&A

Q1: Which liquids can the GPM flow meter work with?

A1: They can use the GPM flow meter with any liquid that has low viscosity. This includes water, oils, and liquids with a water-like thickness. They commonly use it to track chemical solutions in farms, factories, and labs. The flow meter works best on fluids that are not too thick or solid. It enables smooth flowing through the meter for accurate readings.

Q2: How can users install the GPM flow meter?

A2: To install the GPM flow meter, users should cut the pipe and insert the meter. They should ensure the flow matches the arrow on the meter. They use adhesive or screws to secure the meter. After that, they put the pipe back and turn on the system to check for leaks. They will check the flow meter after ensuring no leaks to ensure it gives accurate readings.

Q3: Which factors should users consider when buying GPM flow meters?

A3: There are many factors users should consider. First, they must think about the kind of liquid they will use the meter on. Then they should look at the temperature and pressure this liquid will be. They also consider the size of the pipe where they will put the meter. Lastly, they choose a model that can give them the readings they need in either gallons or liters.

Q4: Is the GPM flow meter able to handle high pressures?

A4: Most GPM flow meters handle normal pressure well and are ideal for jobs like monitoring water or diesel fuel. However, just like any tool, it is vital to choose the right flow meter for the job. If the job involves high pressure, users have to ensure they select a flow meter designed for that purpose.

Q5: How can users maintain the GPM flow meter?

A5: Users should regularly clean the meter to keep it working well. They should check it often, looking for worn wires or damaged parts. They will then replace anything that is broken. To ensure good performance, they may need to reset the meter now and then. If it does not work properly after doing this, the flow meter may need a professional check-up.
