HDMI signal over RG6 cable can carry high-definition video and audio signals over long distances using coaxial cable. RG6 cables are commonly used in satellite and cable TV systems, making them a good choice for transmitting HDMI signals. This article will explore sections on types, features and specifications, usage scenarios, and much more.
There are two types of HDMI signals used over RG6 coaxial cables. They include:
Standard HDMI
The standard HDMI has a resolution of up to 1080p and is commonly used for HD TVs, monitors, and projectors. The HDMI over coax cable method provides a cost-effective solution for transmitting these signals across long distances, eliminating the need for expensive equipment. With RG6, users can achieve seamless transmission of HD content in professional environments, such as conference rooms or classrooms.
Ultra HD/4K HDMI
The Ultra HD or 4K HDMI over RG6 is suitable for environments where higher resolution transmission is necessary. It can handle 4K resolution at 30Hz or even 60Hz with appropriate signal boosters or amplifiers. This type is ideal for users in retail spaces, digital signage, or any venue where high-resolution visual displays are required.
The main function of HDMI signals over RG6 cable is to transmit high-definition video and audio over long distances. Compared to other HD transmission methods, this method is more cost-effective due to the widespread use of RG6 coaxial cables. It makes it ideal for conference rooms, classrooms, and digital signage in businesses.
HDMI signals over RG6 cables can extend transmissions up to 50 feet or 15 meters for 4K resolution and up to 150 feet for 1080p resolution. Further distances can be achieved with signal boosters or amplifiers. This distance is sufficient for users who need long-distance transmission in large spaces.
HDMI over RG6 can be used in businesses and homes. They are commonly used in commercial spaces for digital signage, broadcast, and media presentations. In residential space, they transmit signals from one device to another, such as cable or satellite boxes, Blu-ray players, and other video sources.
One of the major merits of HDMI over RG6 for businesses is that it avoids the expensive infrastructure changes that might be required. Coax cables are thicker and more expensive than using ordinary HDMI cables. Also, coax cables are easier to use at the workplace or in large homes where video sources are far from displays.
To install this setup successfully, things like an HDMI cable, an HDMI splitter, an HDMI to coaxial converter, HDMI extenders, an HDMI amplifier, and grounding blocks may be needed.
Invalid or damaged cables will need to be repaired, and proper placement will be needed for the RG6 cables. HDMI connectors and RJ45 connectors should be placed properly. In case of improper placement or failure to repair the cables, amplified signals will not reach the destination.
To install this setup successfully, follow these steps:
Run the RG6 coaxial cable
Run the coaxial cable from the source location (cable box, satellite, etc.) to the display location (TV, projector, etc.). Ensure the cable is securely mounted and without sharp bends or obstructions.
Attach the HDMI Converter
The HDMI to coaxial cable converter will be attached at the source end. Connect the HDMI output from the source device to the HDMI input of the converter, then connect the output to the coaxial cable.
Connect to the display

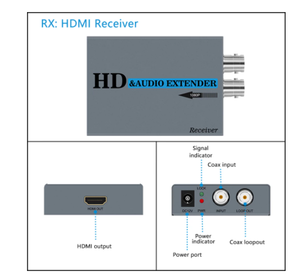

At the display end, connect an HDMI to coaxial receiver (extender) to the coaxial cable. This will allow the HD HDMI signal to be displayed on the monitor or TV.
Power and configure
If there are any powered devices, plug them in and then configure them according to the manufacturer's description. Check the source and display devices to ensure they are set to the correct output or input.
Testing
Finally, test the complete setup. Play a video or any content on the source device and check if the process works fine. If the picture or audio is missing, adjustment will be needed a few times.
The first place to start while performing maintenance and repairs on the HDMI to RCA converter is the power supply. The equipment will need to be unplugged from the power source for at least one hour. After doing this, clean the converter using a dry and soft cloth. Avoid using too wet or belicose cloths. Do not install or place the converter in a wet environment. Ensure plastic or metallic dust is always removed from around the converter. Regularly check for damage to the HDMI ports, as this will hinder the performance of the converter. If the ports are damaged, they should be repaired or replaced by an expert.
Regularly check the HDMI kit for signs of wear and tear or damage. Look for any visible puncture, cuts, or bends in the cable. Avoid running the cable through areas where it might get continuously pinched or squished. Ensure the connectors are securely plugged on both ends. Loose connections cause signal loss. Occasionally, unplug and clean the connectors to prevent dust or dirt from causing a poor connection.
The best maintenance method is using an HDMI signal generator or test pattern display. These tools are used frequently to verify the system is working properly. If there are any problems with the system, those tools should be used to identify specific issues.
One common problem is poor picture or audio. Check to see if there are loose connections or whether the coaxial cable is damaged. Signal noise or interference can also be an issue. Ensure the HDMI RCA converter is well-grounded and avoid running the coaxial cable alongside other electrical wires. If the signal is weak or there are no weak signals, consider using a coaxial cable amplifier or signal booster. These devices are useful in boosting weak signals.
For instance, if the business requires digital signage, they should go for the Non-compressed HDMI signal that is best for high-quality video. If working with other types of displays, the HD over RG6 Cable will work efficiently, as it is better suited for long-distance transmission. If the business uses 4K display, a signal booster or an HDMI amplifier will be needed.
In case they are up to 50 feet apart and they have 4K resolution, a signal booster or an HDMI amplifier will be needed. If they are 150 feet apart and they have 1080p resolution, they can do just the coaxial Rg6 cable. Maintain high-quality signal transmission by using the least distance possible between the source and the display.
HDMI signals over RG6 can carry HD resolutions of up to 1080p and Ultra HD/4K HDMI, which are suitable for businesses that require modern display resolutions. 4K at 30Hz or 1080p allows this device to display high-quality images, making it suitable for a diverse range of businesses.
When placing an order from a supplier on Alibaba.com, get affordable wholesale prices, especially for bulk orders. Ensure stock availability since HD transmitters and coaxial cables are often in high demand. Apart from HDMI extenders or transmitters, consider other accessories like HDMI splitters, signal boosters, or amplifiers for extra functionality.
It can cover a maximum distance of 150 feet for 1080p resolution and 50 feet for 4K using the coaxial cable without a booster.
Yes, it can handle 4K resolution at 30Hz, although this requires additional hardware like signal boosters or HDMI amplifiers.
They are ideal for conference rooms, classrooms, digital signage, broadcast environments, and other locations where long-distance transmission is needed.
The major benefit is that it avoids costly infrastructure changes.
Yes, it is commonly used in residential settings for cable or satellite TV transmission and home theater applications.
