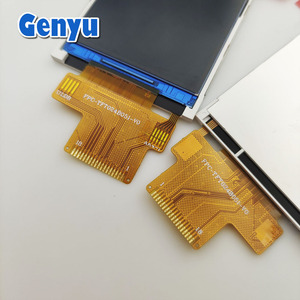

LCD display flexible printed circuit boards (FPCs) are a crucial part of the construction of many current LCD displays, particularly those that have flexibility properties. In this case, FPCs act as transmission lines for the various component signals, enabling good communication throughout the circuit. The following are the main types of LCD display FPCs:
Single-Sided LCD Display FPC
The basic setup of a single-sided LCD display FPC contains features such as a flexible substrate with circuitry on one side. These are quite popular in items with simple connections due to their straightforward design. Typical apps are in cases where component density is relatively low, such as in portable flatten televisions and handheld diagnostic devices, so that people can have the gadget's lightweight design and portability without sacrificing display performance.
Double-Sided LCD Display FPC
Compared to single-sided FPCs, the double-sided ones have circuitry on both sides. This allows for more dense component placement and more complex connections. They are particularly useful where there is a need for more than one flexible circuit to be stacked or bent over a short radius. These are typically used in smartphones and camera displays, where space is quite limited, and performance needs are maximum.
Multi-Layer LCD Display FPC
A multi-layer LCD display FPC comprises several layers of flex circuits bonded together to produce complex electrical pathways while saving quite a significant space. As opposed to single and double-sided FPCs, multi-layer FPCs allow for complicated interconnections among the various circuit components with the result that they are typically used in advanced products. Find these in medical equipment, aerospace gadgets, and high-end consumer electronics, where reliability is paramount and usually goes hand in hand with performance.
Rigid-Flex LCD Display FPC
A flexible and rigid combination circuit, Rigid-flex FPC, contains both flex and rigid PCB segments. These types of FPCs offer the most flexibility and configurability because they can bend around parts of a system while providing a sturdy base for others. This configuration is, however, useful in devices where space is limited, but one still needs a robust connection, such as in laptop computers and other military-grade gadgets.
Flexible printed circuits for LCDs have found wide use across industries for the performance and versatility they add. The following industrial applications are considered rather common:
Consumer Electronics
In consumer electronics, FPCs are commonly used in gadgets like the smartphone, tablet, and flat-screen television. These enhancements to the display will enable the devices to be more easily integrated, sometimes even in small spaces, and will provide more robust connections. For instance, FPCs make it possible for touch screens and LCDs to work harmoniously in these gadgets, enhancing their interactivity.
Healthcare Devices
The medical devices vary from non-invasive monitoring equipment to imaging machines such as ultrasound, all of which employ LCD display FPCs for vital connections, flexible and dependable ones, during the procedure. These FPCs are integral to the graphics and touch controls, which allows smooth user interaction with vital monitoring tools, surgical robots, and medical imaging systems, all of which need accuracy and quick response.
Industrial Equipment
LCD display FPCs are widely utilized in industrial automation systems, including robots and control panels. In this case, FPCs withstand the rigorous industrial environment while ensuring the machinery displays the vital information needed. The importance of these flexible circuits in industrial devices is that they can easily be integrated into complex machinery, increasing operation efficiency and reducing downtime due to connection failures.
Automotive Systems
The automotive industry has seen a jump in application over the past several years, with vehicles using more complex displays and infotainment systems. FPCs are fitted into dashboard displays, rear-view cameras, and sensor interfaces, increasing slim designs and durability. This integration has enabled better driver and passenger interaction and enabled vehicles to harness state-of-the-art display technology that enhances safety and usability.
Aerospace and Defense
LCD display FPCs are especially critical in the aerospace and defense industries, where reliability and weight are often key performance factors. In cockpit displays, satellite systems, and flight instruments, FPCs perform well and keep the systems lightweight. There is no doubt that robust FPCs are crucial for mission-critical applications where failure will never be an option.
Flexibility and Thinning
The main feature of LCD display FPCs is that they are flexible and thin, which enables them to fit into small nooks and crannies, and bend, as desired, without breaking. This flexibility has made them desirable where space is critical, especially in smartphones and medical gadgets, where form factors are very important.
High Density
Flexible circuits have high-density interconnections, which means they can accommodate many circuit elements. That makes them ideal for advanced gadgets having complicated systems, such as high-end computing equipment and consumer electronics.
Durability
LCD display FPCs are manufactured from materials such as polyimide, which have excellent heat and chemical resistance. That ensures they endure rigors of daily wear, especially in industrial and automotive settings, without becoming ineffective at their task.
Lightweight
Flexible circuits, notwithstanding their strength, are way lighter than conventional PCBs. In systems where every gram counts, such as in aerospace gadgets, their lightweight nature contributes to performance and ease of use.
Versatile Design
LCD display FPCs come in a variety of designs, depending on the items that need them. They can be single-sided, double-sided, or multi-layered and can be Rigid-flex. That versatility makes them applicable across industries and for a range of products, including consumer electronics to space equipment.
Proper installation of an LCD display FPC is very critical for performance. It must also be properly interfaced with the LCD backlight and touchscreen for it to work well. Here is a basic installation procedure:
Preparation
During installation, the workspace has to be clean and all tools and materials prepared in readiness. The LCD and FPC must be gently yielded, while the connector areas must also be cleansed so that good contact is established.
Alignment
The next step is to ensure the FPC corresponds properly with the LCD connector. The flexible circuit will have to be aligned to correctly socket it without the application of too much force.
Embedding
Carefully lower the FPC into the connector to establish a firm connection. Do not apply excessive force and use the alignment guide to act as a buffer.
Securing
After the FPC is correctly positioned within the connector, it has to be secured in place, normally through a clasp that is part of the connector design. This process ensures a stable connection that is not prone to dislodging.
Testing
After the set-up is complete, the next activity is to conduct a test. The device must be powered on in order to check if the display is working correctly. In the case of failure, check the connections and ensure the LCD and FPC are in good order before repeating the process.
Another important aspect of ensuring decent performance over time is maintenance. Just like any other equipment, FPCs are exposed to wear and tear as they age, and sometimes they require repair. Here are key maintenance tips:
Regular Inspection
Careful examination is advised to note any cracking, peeling, or damage in the circuit. For instance, in industrial settings, the devices would also need daily inspections so as to identify potential issues before they became a problem.
Environmental Control
Flexible circuits can be adversely affected by temperature changes, humidity, and even exposure to chemicals. Maintaining proper environmental conditions will prevent such degradation, particularly in industrial settings where the atmosphere may often be extreme.
Gentle Handling
Great care should be observed when handling devices with FPCs since these circuits are flexible yet fragile. This is why in repair scenarios great lengths should be taken not to bend or stretch the circuit in unplanned directions.
Repair Methods
In the event that FPCs develop faults, then these faults can be fixed using either conductive adhesive or special soldering techniques. This is done particularly for small circuits where the damage is contained.
Replacement
Severe damage or age wear demands the need for replacement, which involves pulling out the faulty FPC and fitting a new one. It is convenient that certain devices are designed with easily replaceable FPCs, making maintenance work fast and less involved.
Material Quality
The material that makes up the LCD display FPC should be of good quality as it directly relates to the circuit's performance and longevity. This is because circuits are commonly manufactured from polyimide, which should have excellent heat and chemical resistance. These materials should stand up to the demands of any environment, especially in industries where they are exposed to extreme temperatures or hazardous substances.
Connection Integrity
Another factor is connection integrity, where the FPC must be perfectly connected to the LCD and other components to maintain a good display. Poor connections produce issues such as display flickering or failing, and thus great care must be exercised during installation in order to ensure proper alignment and secure the FPC in place.
Environmental Resistance
In environments with high moisture or dust levels, they may have a detrimental effect on the circuit over time. To mitigate this, it is advised that proper sealing or protective coating is applied to safeguard the FPC from environmental hazards. This is particularly true in industries where equipment is operated outdoors or in conditions of extreme heat and cold.
Flex Fatigue Testing
Flexible circuits undergo repeated bending every so often, which leads to flex fatigue at some point. The standard FPCs undergo tests on flex fatigue to ascertain that they withstand multiple bends without developing cracks or losing conductivity. This is particularly critical in products such as wearables and medical gadgets, where the flex circuit will potentially be bent many times a day.
Compliance with Standards
LCD display FPCs should abide by the electronic equipment safety and performance standards. These are basically designed to eliminate or mitigate risks such as short circuits or signal interference, ensuring that the device operates effectively and remains safe and secure to operate in.
A1: FPC refers to flexible printed circuits, and these circuits are flexible interconnections that can easily be incorporated into compact spaces or given a bend. It is this flexibility that makes them suitable for LCDs fitted into gadgets with complex designs, such as smartphones and tablets.
A2: Polyimide works well due to its flexibility and heat resistance properties, which make it ideal for many applications.
A3: The advantages of this design are space savings, lightweight, and higher performance. FPCs fit neatly into modern electronic gadgetry, resulting in designs that are slimmer and easier to handle while boosting overall performance.
A4: One must maintain proper environmental conditions, handle equipment carefully, and do regular inspections to avoid exposure to extreme temperatures or hazardous chemicals.
A5: Based on the severity of the damage, repairs may be attempted using conductive adhesive, or FPC may be replaced altogether if it is beyond repair.
