Liquid diaphragm

Types of liquid diaphragm pump

Liquid diaphragm pumps are also called pneumatic diaphragm pumps, are positive displacement pumps. They can move both thick slurries and abrasive liquid from one place to another through the use of a diaphragm. A diaphragm is a flexible membrane that does the work of moving the fluid which is supplied with compressed air through an air chamber. There are different types of diaphragm pumps suited for different types of liquid that will be discussed in this section:

Mechanical Liquid Diaphragm Pump

Mechanical liquid diaphragm pumps are the oldest type available today. They consist of a motor that turns a crank shaft that creates an oscillating motion. This oscillating motion is transferred to the diaphragm that moves the liquid from one compartment to another. This kind of pump is usually used for low-flow applications and stable liquid transfer. It is not suitable for corrosive liquid transfer.

Hydraulic Liquid Diaphragm Pump

The hydraulic diaphragm pump is also called a liquid diaphragm pump. It consists of a hydraulic fluid that is used to move the diaphragm. It is not as common because it requires external hydraulic liquid sources. The use of a hydraulic pump is less expensive to run compared to other pumps. It supports high pressures and is usually used for high-end applications. The pump can transfer toxic liquid and be used in the oil and gas industry.

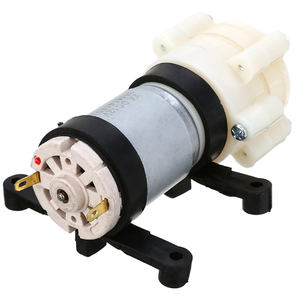

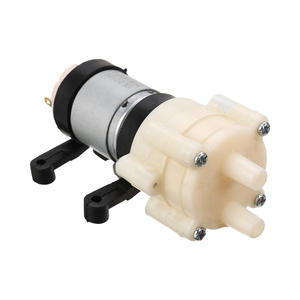

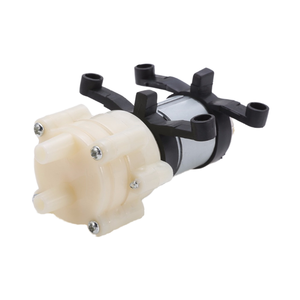

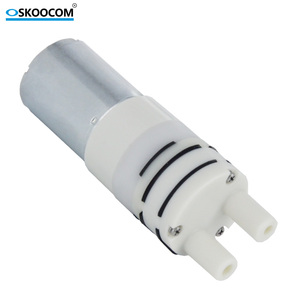

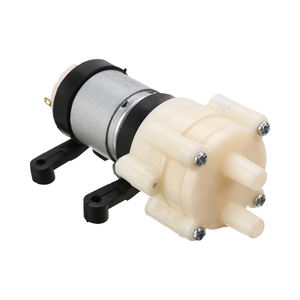

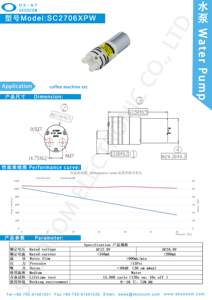

Electronic Diaphragm Pump

Electronic diaphragm pumps are used for low-flow applications. Their small size makes them suitable for medical devices and lab equipment. They won’t be seen in heavy industry. The disadvantages of this pump are that they cannot handle high pressures and are prone to failure.

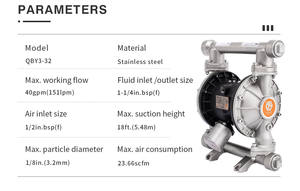

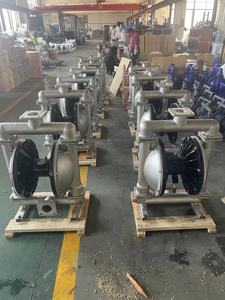

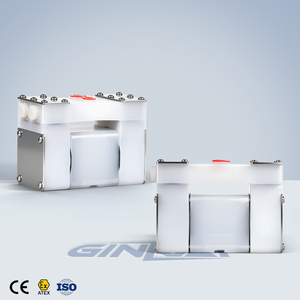

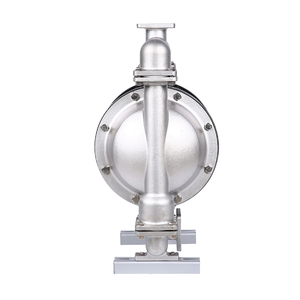

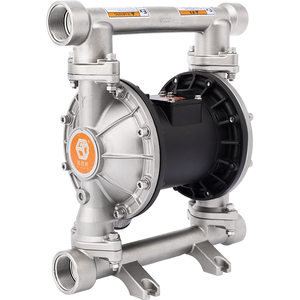

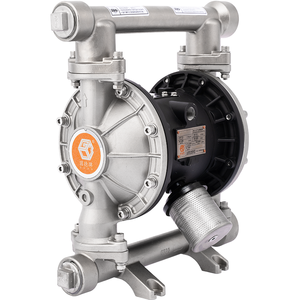

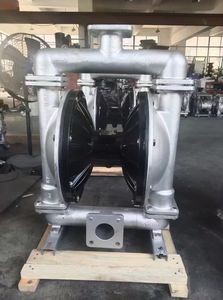

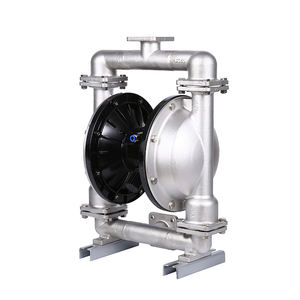

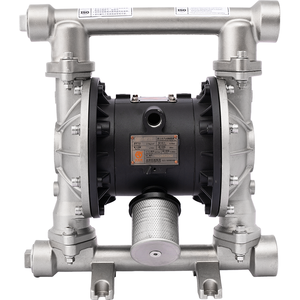

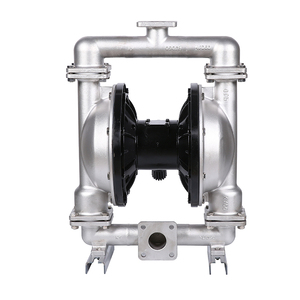

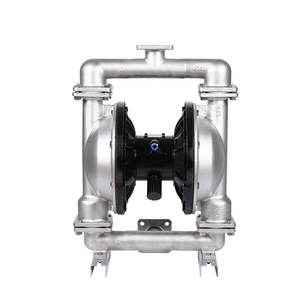

Air-Operated Double Diaphragm Pump (AODD)

AODD pumps consist of two diaphragms which operate in an alternating manner. It is one of the most popular liquid diaphragm pumps because it can handle various liquids including thick slurries and abrasive fluid. It is good for heavy-duty applications like mining and chemical processing.

Industrial Applications of liquid diaphragm pump

Chemicals

Diaphragm pumps are useful in chemical processing because they can handle corrosive fluids. The materials used to make the pump are often more resilient to withstand chemicals. They are used to transfer, mix, and move chemicals around.

Pharmaceuticals

Diaphragm pumps are used in the Pharmaceutical industry because it gives a sanitary transfer. The pumps have no seals which means no contamination will occur in the liquid. This makes them ideal for drug, vaccine, and fermentation liquid transfer.

Food and Beverage

The food and beverage industry requires pumps that can transfer liquid without contamination. Liquid diaphragm pumps are used in this industry to move beer, wine, juices, and other liquid without altering their composition.

Water and Wastewater Treatment

Liquid diaphragm pumps are common in the water treatment industry. They are used to transfer water and wastewater, move sludge, and remove contaminants from the water. Their ability to handle abrasive and viscous fluid makes them well suited for this application.

Mining

The mining industry relies on diaphragm pumps to keep moving thick slurries and suspensions. They are used to transfer minerals, slurry, and other liquid found in mines.

Product Specifications and Features of liquid diaphragm pump

The parts of a liquid diaphragm pump are designed with different materials to perform various functions. Below are features and specifications of the pumps:

• Diaphragm Materials: Diaphragm materials are made from rubber, Teflon, and polyethylene. Each type of material offers different levels of flexibility, durability, and chemical resistance. These materials are suitable for pumping different types of liquids.
• Air Valve: The air valve is responsible for alternately filling and emptying the diaphragms. It controls the pump's flow rate and efficiency.
• Check Valve: The check valve prevents the liquid being pumped from flowing backward. It ensures the pump maintains a prime, which is crucial for proper operation.
• Liquid chamber: This is the part of the pump that holds the liquid being transferred. It is designed to handle the pressure exerted by the diaphragm.
• Diaphragm pumps: There are different types of diaphragm pumps based on their diaphragm materials. Some of them are metallic, composite, plastic, and rubber diaphragm pumps.
• Inlet and outlet ports: These ports connect the pump to the piping system. They are designed to handle the pressure of the liquid being pumped.

Quality and Safety Considerations

This is how to know a high-quality liquid diaphragm pumps and also the safety tips when using these pumps:

Regular Maintenance

Regular maintenance is required to maintain the integrity of the pump. Check for wear and tear on the diaphragm and other parts. Replace any worn-out parts immediately to prevent further damage to the pump.

Proper Installation

Before installation ensure that all the components of the pump are in good condition. Use the right type of liquid and the right diaphragm pump for it. Installing the pump properly ensures that it operates safely and efficiently.

Routine Inspections

Regular inspections help to identify any potential issues before they become serious problems. Check for leaks, unusual noises, or decreased performance. Inspect the pump for any damaged parts. Implementing this helps to prevent accidents and ensure that the pump continues to operate smoothly.

Use of Protective Gear

Using protective gear such as gloves, goggles, and masks can protect the operator from injury. This can prevent exposure to harmful chemicals that might be in the liquid the pump is transferring. Always have the protective gear on before operating the pump.

Monitor Pressure Levels

Always monitor the pump's pressure levels to avoid explosions. Diaphragm pumps are designed to operate within a specific pressure range. If the pressure exceeds the range, the pump will fail.

Follow Manufacturer Guidelines

Always follow the manufacturer's guidelines to ensure proper usage and maintenance. The guidelines provide valuable information on the specifications, maintenance schedules, and safety measures.

How to Choose the liquid diaphragm pump

Where the pump will be used

Knowing the application of the pump will help narrow the options. Will the pump be used in industries or for simple tasks like irrigation? Understanding the environment will determine its structure and functionality.

Energy Efficiency

Choose pumps that meet energy efficiency standards. An energy-efficient pump will reduce operational costs and minimize its environmental impact.

Flow Rate and Pressure Requirements

Consider the flow rate and pressure requirements of the application. Pumps can handle different flow rates and pressures so select one that matches the application.

Maintenance Requirements

Some pumps require more frequent maintenance than others. Choose a pump with a maintenance requirement that is convenient for the user.

Budget

Of course, the budget will influence the type of pump that is selected. While some pumps are more expensive, they will be more durable so they will be a better long-term investment. Consider both the initial costs and the long-term operating costs.

Q&A

Q. What are the common materials used to make liquid diaphragm pumps?

A. The materials used to make liquid diaphragm pumps include cast iron, stainless steel, plastic, brass, and aluminum. Cast iron is strong and heat resistant. It is used for heavy-duty industries. Stainless steel is corrosion resistant so it is suitable for food and chemical industries where corrosive liquid is transferred. Plastic is cheap and light but not as strong. It is used for low-duty applications. Although not as common, brass and aluminum are also used.

Q. Are there any differences between hydraulic liquid diaphragm pumps and mechanical ones?

A. The main difference is that while the hydraulic pump uses hydraulic liquid to move the diaphragm, the mechanical pump uses a crankshaft. The hydraulic pump is more efficient than the mechanical pump, but the latter is cheaper and easier to maintain.

Q. Why are AODD pumps popular?

A. Air-operated double diaphragm pumps are popular because they are versatile. They are commonly used in industries like mining and chemicals because they are good for heavy-duty jobs. They can even handle difficult liquids like slurries and ones with toxins in them.

Q. How can users prolong the life of the liquid diaphragm pump?

A. Proper maintenance can prolong the pump's life. Checking the pump regularly and fixing small problems helps. Also, following the manufacturer's care instructions keeps it running well for longer.
