Membrane hollow fiber

Types of Hollow Fiber Membranes

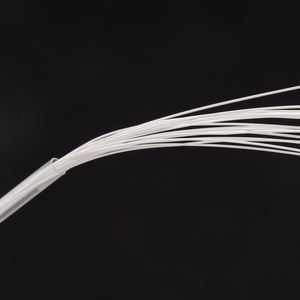

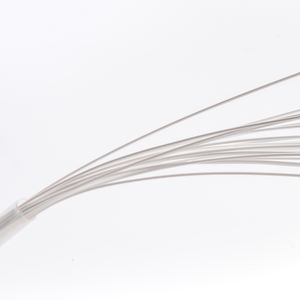

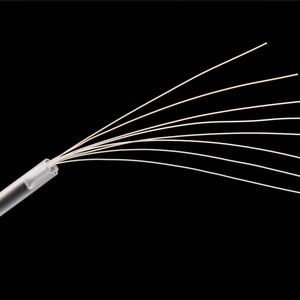

A hollow fiber membrane is a tubular fiber. Hollow fiber membrane technology is based on the utilization of very small hollow fibers to form a membrane. Hollow fiber membranes have an inner diameter of up to 4,000 um. They are composed of high polymer material. These fibers act as filtration units, separating unwanted particles from fluids. Each type of hollow fiber membrane serves a specific purpose, ranging from water treatment to medical applications.

• Microporous Hollow Fiber Membranes: Microporous membranes have pore sizes ranging from 0.1 to 1 microns. They are commonly used in water treatment applications. The fibers allow water to pass while retaining bacteria and larger particles. These membranes improve water quality by producing potable drinking water. Moreover, Microporous hollow fiber membranes are also used in the beer and beverage industries.
• Ultraporous Hollow Fiber Membranes: Ultraporous membranes have smaller pores (smaller than 0.1 microns) and are used for pathogen removal. The fibers allow only water and dissolved substances to pass, retaining viruses, bacteria, and protozoa. Ultraporous hollow fiber membranes are typically applied in the manufacture of dialysis devices for medical applications. They can also be used in the purification of drinking water and industrial liquids.
• Liquid Lipid Permeable Hollow Fiber Membranes: These selectivity fibers transmit particular liquids while blocking others. They are utilized in chemical production and process separation. Moreover, such membranes can be used in the domain of biotechnology. They are employed in the continuous extraction or isolation of specific valuable products from complex biological matrices, such as fermentation broths or animal cell cultures. Additionally, hollow fiber membranes can be utilized in the concentration of bioactive compounds, such as enzymes or antibodies, from diluted streams, improving process efficiency and product recovery.

Specification and Maintenance of Hollow Fiber Membranes

The specifications of hollow fiber membranes depend on their types.

• Dimension

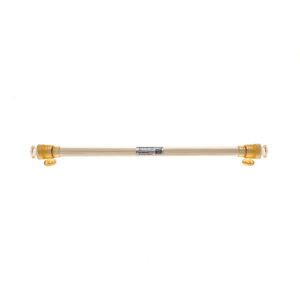

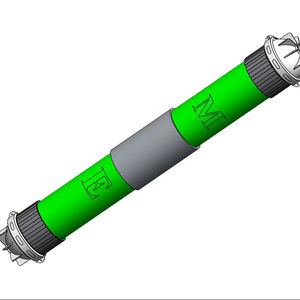

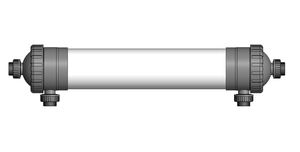

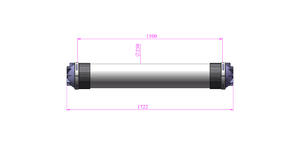

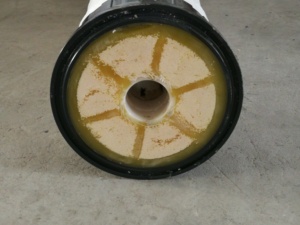

  The diameter of hollow fiber membrane fibers really varies from 0.5 to 5.0 mm. The fibers are bundled together to form a membrane module with a length of 1 to 3 m and a module diameter of 10 to 100 mm. In module form, the membrane module is the functional unit of the gas separation system

• Flux

  The flux of hollow fiber membranes varies depending on the fiber material and the used solution. For peritoneal dialysis, the recommended urea dialysis coefficient is muc 40-90 (ml/h) dialyzer. For extracorporeal dialysis, the Kt/V should be greater than 140.

• Separation factor

  The separation factor of hollow fiber membranes indicates the ability of the membrane to selectively transmit certain gases, such as oxygen over nitrogen. It differs depending on the membrane material. For instance, cellulose acetate membranes exhibit an O2/N2 separation factor range of 2 to 5, while polymeric composite membranes can achieve higher separation factors, typically between 5 and 20.

• Pressure tolerance

  Due to the fiber's own characteristics and the bundle's packing form, the pressure ratio on both sides of the hollow fiber membrane is obviously up to 5. Under normal operating conditions and appropriate membrane module handling, the pressure limit is 1.5 times the minimum test pressure.

Hollow fiber membrane filters require proper maintenance to ensure optimal performance and longevity. Here are some general maintenance tips for such filters:

• Regular Backwashing:

  Backwashing is the process of reversing the flow of water through the filter to remove trapped debris and contaminants. Regular backwashing helps prevent clogging and maintains good water flow.

• Clean the membrane:

  It is important to clean the hollow fiber membrane filter regularly. The cleaning procedure depends on the type of filter and membrane material. Follow manufacturer guidelines and use appropriate cleaning agents.

• Avoid Harsh Chemicals:

  Avoid using harsh chemicals or abrasive cleaning agents that can damage the membrane. Stick to mild soaps or detergents recommended for filter cleaning.

• Prevent Biofouling:

  Biofouling occurs when microorganisms grow on the membrane surface, reducing performance. To prevent biofouling, keep the filter dry when not in use and avoid exposure to stagnant water.

• Regular Inspections:

  Inspect the hollow fiber membrane filter regularly for signs of damage, tears, or leaks. Check the filter's operation, flow rate, and water quality. Address any issues promptly to maintain filter effectiveness.

Applications of membrane hollow fibers

Membrane hollow fibers are popular filtration technologies in various industries due to their versatility and effectiveness. Here are some key applications.

• Water and wastewater treatment: Membrane hollow fiber are commonly used in water and wastewater treatment. They can filter out microorganisms like bacteria, viruses, and parasites from raw water sources, making the water safe for drinking. In wastewater treatment, the membranes can separate suspended solids, organic matter, and contaminants, improving the quality of the treated effluent.
• Food and beverage industry: Membrane hollow fibers find applications in food and beverage production processes. They can be used for quality control, purification, and concentration of products. For example, in the beer industry, the membranes can filter out unwanted microorganisms without affecting the beer's flavor or quality. In the dairy industry, they can separate lactose and fats for cheese and yogurt production.
• Pharmaceuticals and biotechnology: Membrane hollow fiber play a crucial role in the pharmaceuticals and biotechnology industries. They are used for drug formulation, purification of active pharmaceutical ingredients (APIs), and clarification of fermentation broths. Hollow fiber membranes also enable the concentration and desalination of valuable biological products and help improve the purity and quality of pharmaceuticals.
• Hospital and clinical applications: Membrane hollow fibers are also used in hospital and clinical settings. One of the main uses is in blood dialysis. In this application, membranes with different pore sizes are used. For instance, synthetic hollow fiber membranes with ultra-fine pores might be used for hemodialysis, allowing waste products and excess water to pass through while retaining blood cells and proteins.
• Industrial processes: Membrane hollow fibers are used in various industrial processes for separation and purification. They can separate valuable products from impurities in chemical manufacturing. In textile manufacturing, membranes can remove dyes and contaminants from process streams. They are also used in the concentration of valuable materials in food production, chemical processing, and environmental remediation.
• Gas separation: Hollow fiber membranes can be used for gas separation. They can separate gases like oxygen, nitrogen, carbon dioxide, and hydrogen in petrochemical and power industries. Gas separation membranes improve process efficiency and reduce environmental impact by extracting specific gases from mixtures.

How to choose membrane hollow fibers

• Permeability to gases or vapors:

  The fiber membranes' permeability to specific gases or vapors is one of the first important qualities business buyers should consider. Different fiber membranes have been developed to allow certain gases (e.g., O2, CO2, N2) to pass through while restricting the passage of others. Buyers should choose hollow fiber membranes whose permeability matches their intended use.

• Separation factor:

  An important characteristic of hollow fiber membranes is the separation factor, which indicates the membrane's ability to discriminate between different gas molecules. Buyers should select membranes with a separation factor that meets their process requirements to ensure efficient gas separation and extraction.

• Operating pressure and temperature range:

  The operational pressure and temperature ranges of the hollow fiber membranes should be within the operating conditions of the buyers' processes. If the membrane needs to operate at elevated pressures or temperatures, buyers should choose membranes specifically designed for these harsh environments. This ensures the stability and durability of the membrane in demanding applications.

• Compatibility with feed gas:

  The feed gas' composition and impurities are compatible with the hollow fiber membranes. Some fiber membranes may be sensitive to certain impurities (e.g., particulate matter, moisture, toxic compounds) that could damage or degrade the membrane. Buyers should select membranes that are compatible with their feed gas to avoid operational problems and maintain membrane performance.

• Cost-effectiveness:

  Cost is always an important consideration when choosing a membrane. Buyers need to evaluate the performance, quality, and durability of the hollow fiber membrane, as well as its long-term operating costs (e.g., maintenance, energy consumption) to ensure its economic efficiency in the application.

• Supplier's technical support:

  Technical support from the membrane supplier is an essential factor to consider. Buyers should look for suppliers offering comprehensive technical assistance, including membrane selection, system design, installation guidance, troubleshooting, and maintenance services. Good supplier support ensures that buyers can promptly address potential issues and optimize membrane performance.

Q&A

Q: How do hollow fiber membranes work?

A: In general, Hollow fiber membrane filtration operates through a few steps. First, the feed solution is pumped into a fiber module where it contacts filament fibers. Then, the target substances are trapped inside the fiber wall through pores, while permeate passes across the fiber wall and collects inside the lumen.

Q: What are hollow fiber membranes used for?

A: Hollow fiber membrane technology is widely used in the filtration industry. Hollow fiber membrane filters have critical applications in water treatment, biotechnology, pharmaceuticals, and the food and beverage industry. Depending on the target substances and application, different types of hollow fiber membranes can be used.

Q: What are the advantages of hollow fiber membranes?

A: Hollow fiber membrane filters provide several advantages, such as high surface area-to-volume ratios, compactness, and efficient mass transfer. It also offers excellent separation performance, making them suitable for various filtering needs. Besides, the installation procedure of hollow fiber membranes is simple, and the maintenance requirements are low.

Q: What are the trends in the hollow fiber membrane market?

A: Recent developments in hollow fiber membrane technology have led to the commercial availability of novel membranes with improved selectivity, higher permeate fluxes, and greater resistance to chemical agents. Besides, the global shift towards sustainable practices has spurred research into biomimetic hollow fiber membranes that replicate natural processes.
