Nip roller

Types of Nip Rollers

Nip rollers, sometimes called nip roll coating systems or nip roll precision coating systems, come in various materials to suit different settings. Each type of nip roller is designed for a particular application, depending on the material being used, the coating needed, and the die configuration.

Typical materials for nip rollers include:

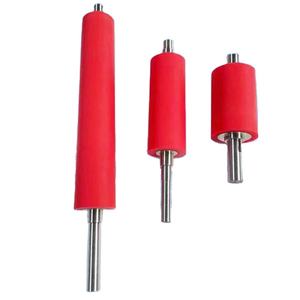

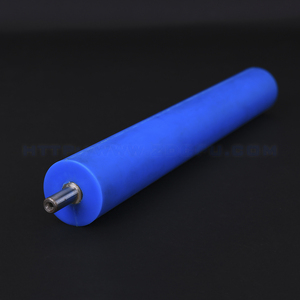

• Rubber Nip Rollers

  Rubber nip rollers are one of the most widely used types due to their flexibility and durability. They provide good traction and are suitable for applying a wide range of viscosities, including thick and heavy coatings. Depending on the type of coating, rubber rollers can be manufactured in a variety of hardness levels. Softer rubber rollers are suitable for uniform applications, while harder rollers are better for applying heavy pressure to flat stock.

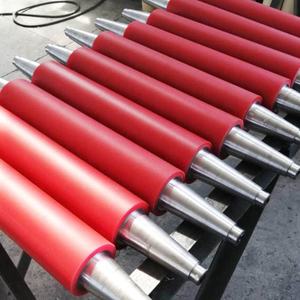

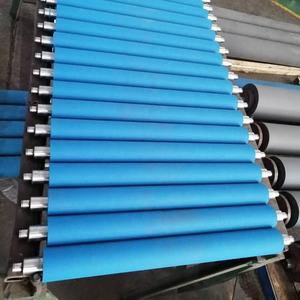

• Polyurethane Nip Rollers

  Polyurethane rollers are more wear-resistant than rubber and, therefore, suitable for long-term coating operations. They have excellent chemical resistance and do not degrade as quickly as rubber when exposed to solvents and other harsh chemicals. They are also available in different hardness levels to suit specific applications.

• Metal Nip Rollers

  Nip rollers are usually constructed from stainless steel and are mainly used for precise applications where a very thin coating is required. They are highly durable and resistant to wear, so they are ideal for high-volume production. However, metal rollers do not provide the same level of compression adjustment as rubber or polyurethane rollers.

• Elastomeric Nip Rollers

  Elastomeric rollers combine the properties of rubber and metal. These rollers are suitable for applications that require excellent grip and long-lasting durability. They have superior chemical resistance compared to rubber but are typically more expensive. These rollers are suited for specialized coating processes in the electronics or medical industries.

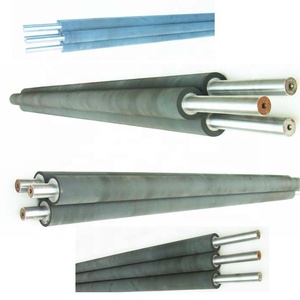

• Composite Nip Rollers

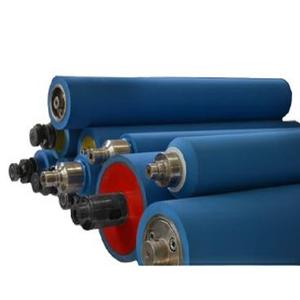

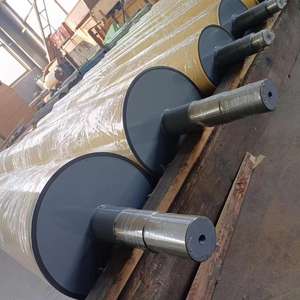

  Composite rollers are constructed from a combination of materials, usually a metal core with a rubber or polyurethane outer layer. They offer a balance between the durability of metal and the flexibility of rubber. Composite rollers are suitable for applications requiring both precision and uniform coating thickness.

Features of Nip Rollers

Nip rollers are a crucial part of the nip roll coating system. Some features buyers should consider when buying nip rollers are:

• Material Composition

  Nip rollers can be made of rubber, polyurethane, metal, or composite materials. Each of these materials has its distinct beneficial qualities, such as flexibility, durability, chemical resistance, and possible applications.

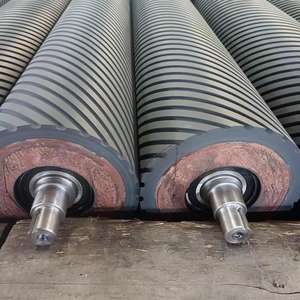

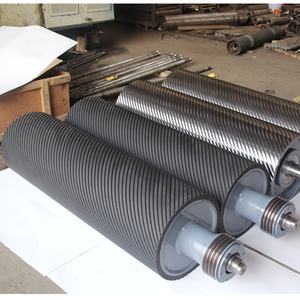

• Surface Texturing

  The texture on the surface of nip rollers can be engraved, etched, or grooved. This helps to control the amount of coating picked up and transferred. Texturing is also important when dealing with thick or heavy coatings, as it helps prevent them from being over-applied.

• Hardness Range

  In coating processes, there is a need to use rollers of different hardness levels, usually measured in Shore A. Soft rollers are good for smooth and thin coatings, while hard rollers excel in applying pressure and heavy coatings. The right hardness depends on the viscosity of the coating fluid and the type of substrate used.

• Surface Finish

  The finish on a nip roller's surface influences its ability to transfer coatings smoothly. A polished finish, for instance, minimizes the amount of material left on the roller after contact with the substrate. Conversely, a rougher finish increases the amount of coating transferred. Therefore, the choice between a polished or rough surface depends on the nature of the coating material and the substrate.

• Shaft Design

  Shafts are important because they determine how rollers are mounted and driven within the nip roll coating system. Key shaft designs include plain shafts, threaded shafts, and keyed shafts, which enable various roller adjustments in foram and torque transfer, respectively. Maintaining proper alignment and torque is very important for consistent coating applications.

Commercial Uses of Nip Rollers

Nip rollers are used widely in many industries for different purposes. Some common uses of nip rollers in commercial settings include:

• Printing Industry

  Coating rollers are mostly employed in the printing industry to uniformly apply inks, paints, and other types of coatings onto various substrates. Nip rollers are especially useful for offset lithographic printing, where they help transfer ink from the plate to the substrate. The rollers give an even coating with minimal wastage.

• Textile Industry

  In textile manufacturing, nip rollers apply dyes and chemicals to fabrics. The rollers ensure that the dyes are uniformly penetrative and give the fabrics their desired colors. Moreover, they help control the amount of chemical solution applied, which then affects the final fabric texture and appearance.

• Plastics and Polymer Coating

  Nip rollers are used for coating plastic materials with paints, finishes, or protective coatings. In this industry, they are used to apply coatings to plastic films, which are then used in packaging and other applications. That way, the rollers help enhance the mechanical properties and increase the durability of the film.

• Electronics and Circuit Boards

  Nip rollers are used to apply conductive pastes and adhesives to circuit boards in the electronics industry. They ensure precision in the amount of paste applied, which is important for electrical connectivity in these boards. Coating rollers are also used to apply protective coatings to finished circuit boards. This helps to ensure even coating and reduces static and moisture damage.

• Wood Coatings and Laminates

  Nip rollers are used to apply varnishes, stains, and other types of finishes to wooden surfaces in the wood industry. The rollers help in the even application of these finishes to give wooden products enhanced aesthetics and protection. Additionally, in laminated wooden products, nip rollers apply adhesives uniformly to ensure durability and quality of laminate finishes.

• Metal Coatings

  Nip rollers apply primer, paint, and other types of protective coatings to metal surfaces in the metal industry. These rollers are used in processes like electroplating, where metals are coated with chemicals to enhance them. They also help in the even application of these coatings, which improves the quality of protection and corrosion resistance.

• Packaging Industry

  Nip rollers apply inks and coatings to paper and plastic materials used in packaging in the packaging industry. Coating rollers ensure that the rollers evenly apply printing onto these materials to obtain desirable graphical displays. They also apply protective coatings that enhance the strength and safety of these packages during shipment and handling.

How to Choose Nip Rollers

To select the right nip rollers, buyers need to consider several factors. The following are some of these factors:

• Substrate Material

  The type of material used for the substrate will affect the choice of nip rollers. Buyers should consider the kind of products they will use. For example, textiles need softer surfaces, while metals require harder materials. Know the substrate used in your processes, then select rollers that will ensure effective performance.

• Coating Type

  Different coatings have different requirements. For example, electronics coatings need precise application, while wood stains can be thicker. So, choose rollers that will suit the coatings to be applied. Buyers should also remember that hybrid coatings can need more than one type of roller.

• Viscosity

  Viscosity measures how thick or runny a liquid is. It influences which rollers are suitable in a process. Thin coatings need smooth rollers, while thick ones can handle textured ones. So, choose rollers that will match the coating's viscosity. This will help to achieve even applications and prevent blurring.

• Customization

  Buyers can customize nip rollers to suit their needs. For instance, they can adjust the shaft type to match their equipment. They can also vary the roller's hardness or the surface texture to achieve distinct coating effects. So, consider customization as an option when planning to execute specialized applications or unique substrates.

• Cleanliness

  Coating rollers can become dirty over time. Debris on the rollers can affect their application performance. Some materials are easier to clean than others. For example, metal rollers have a more straightforward cleaning process than rubber ones. So, consider how much cleaning is needed when selecting rollers.

• Durability

  How long nip rollers last will influence their material and maintenance costs. In general, metal rollers are the most durable. Then come polyurethane rollers. Rubber rollers are the least durable but are often cheaper. So, weigh the costs and durability of the rollers based on the substrate and coating type.

• Texture

  The finish on coat rollers influences how much coating they transfer. Glossy rollers leave less product than matte ones. Moreover, textured surfaces hold more material than smooth ones. Therefore, select rollers with a surface finish that will best suit your coating applications.

Q&A

Can buyers use nip rollers outside coating applications?

Yes, buyers can use nip rollers outside coating applications. However, their prime use is in coating processes. That is because they are designed for uniform application. Low-pressure rollers can assist in product handling and transportation. But rollers are not ideal alone for tasks like cleaning or drying. Other industrial tools are more suited.

Which coatings are the most common to use with nip rollers?

The most common coatings used with nip rollers include printer ink, which manufacturers apply to paper and plastic during packaging and printing. They also use varnish and stain to finish wood products in woodworking businesses. Additionally, they use liquid adhesives in laminate flooring to apply a plastic finish. Other coatings include paint, electroplating solution, polymer coating, protective wax, and release agents.

What are the signs that it is time to replace nip rollers?

One of the most obvious signs that it is time to replace nip rollers is when they become worn or damaged. Buildup on rollers can cause inconsistencies over time. If the debris is stubborn to clean, it can also warp the surface. This leads to decreased performance. On the other hand, small cracks in the texture can cause transfer problems. Coating rollers sometimes emit a distinct sound when they are damaged. So, pay attention to that sound as a sign to replace rollers.

How can buyers keep nip rollers in good condition?

The first thing to do after every use of nip rollers is to clean them thoroughly. This will remove coating residues and debris. Users should apply a suitable cleaning solution to eliminate even the most stubborn residues. Never let residue dry on the rollers. Dried residue can warp and damage the rollers. They should also be covered during equipment downtime.

Which industries benefit most from using nip rollers?

The printing industry relies heavily on nip rollers to apply ink evenly across substrates. The textile industry uses them to achieve uniform dye application. The packaging industry depends on nip rollers for consistent coating and inking on various packaging materials. Electronics manufacturers use them for applying adhesives and conductive pastes to circuit boards. They also use them in quality control processes. In the woodworking industry, nip rollers are useful for finishing processes like veneering.
