About operator panel siemens simatic hmi

Types of Operator Panel Siemens Simatic HMI

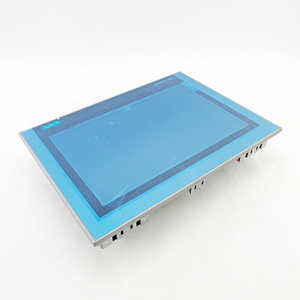

SIMATIC HMI TP

This is a multi-touch-screen human machine interface with 7.0 to 15.0 inches of display sizes. It features a SIMATIC S7/PLCSIM connection and an open interface for third-party applications. Its 200 CD/m² screen brightness makes it ideal for any control room. It is IP654 rated, allowing it to withstand harsh industrial environments.

SIMATIC HMI KP

This is a key-operated interface that enables effective parameterization with a device connection over the RS232 or RS485 interface. The KP is a compact 6.2-inch interface designed for panel mounting. It also features a durable key operation, ensuring reliable user interaction. The robust design is particularly suited to demanding environments like factories.

SIMATIC HMI Comfort Panels

These are available in both multi-touch and single-touch versions of up to 15.0 inches. They are compact and powerful operator panels with an IP65 protection rating that ensures their durability against water and dust. They support up to 12 SIMATIC S7 connections and feature a PROFINET/Ethernet interface. Comfort panels are well-suited for a variety of industrial environments.

SIMATIC HMI WinCC Unified

This offers a web-based solution for flexible and future-proof visualizations. It FEATURES a unified runtime for all devices and a scalable solution that supports various projects. There are no specific hardware requirements as this is software-based for efficient operation. Unified is ideal for modern industries that demand versatility.

Materials & Durability of Operator Panel Siemens Simatic HMI

Housing Materials

The panels are made of a premium polymer material that is impact and scratch-resistant to ensure extended durability. The anti-glare surface coating also helps protect the screen from damage, dust accumulation, and visible fingerprints. The rugged, heat-resistant design allows the operator panels to withstand temperatures of about 60 degrees Celsius.

Shock and Vibration Resistance

The Siemens panels adhere to a standard of shock and vibrations. This is according to international standards like EN 60068-2. This ensures reliable performance even in very dynamic production environments. Robust mounting options also help ensure the panel is securely installed and can withstand significant shocks without compromising its functionality.

Sealing and IP Ratings

Many Siemens operador panels have an IP65 rating, which means they are dust-tight and water-resistant. This protects the internal components from debris and water, ensuring longevity in wet and dusty environments. Proper sealing plays a key role in keeping the internal components functional while preventing the need for constant maintenance or replacement during long-term use.

Temperature Resistance

Siemens operator panels can resist extreme temperatures ranging from -20 to 60° C. This is due to the advanced design that maintains functionality in very low or high temperatures. This means the devices can work and remain in good shape in extreme climates outside or in industrial settings. There is also heat dissipation, which keeps the panels from overheating during prolonged use.

Commercial Value of Operator Panel Siemens Simatic HMI

Increased Efficiency

With these Human Machine Interfaces, plants can automate most of their processes and control the operations seamlessly. This ease of control leads to great efficiency, allowing processes to be done faster with more accuracy and less chance of making mistakes. This automation and easy management will also contribute to the overall efficiency of the business.

Maintenance and Upkeep Savings

Their robust design makes these operator panels very durable, even in harsh working environments. Their durability will allow businesses to save on frequently replacing or repairing equipment. Additionally, the panels can monitor systems and send alerts about needed maintenance, which can avoid costly downtime and long work interruptions.

Scalability and Flexibility

These operator panels can connect to other equipment and systems, allowing their use in a variety of applications and process. This makes it very easy for businesses to scale up or adjust their operations in various ways as needed. This flexibility helps companies to vary or even expand their processes without needing to invest in completely new systems.

Enhanced Safety

The operator panels have a lot of safety features that can help reduce accidents and injuries at work. Some of these features include emergency stops and alarms that can help eliminate risky situations. When employees feel safe, they can work easily and with no distractions, leading to increased productivity and fewer work-related incidents.

How To Choose Operator Panel Siemens Simatic HMI

Communication Options

The right panel should have all the communication protocols needed for easy connection to other devices. For example, PROFINET and RS485 for seamless integration with the Simatic range and other Siemens equipment. Selecting one with the proper communication capabilities will ensure the HMI connects and works well with existing industrial networks.

Industry Application

The choice of an operator panel primarily depends on the industry of application. For example, IP65-rated panels resistant to water and dust are best for outdoor and factory spaces. Manufacturing plants require these panels to withstand pressure, as they usually deal with heavy machinery and loads.

Software Capabilities

Web-based platforms like the new Siemens SIMATIC HMI WinCC Unified, which offers flexible and scalable solutions for all industries. User configuration is also very important since flexible design tools make them easier to develop tailored interfaces for unique applications.

Durability Requirements

The operating environment will determine the required durability features of the operator panel. For example, panels used in outdoor or extreme-temperature environments should have robust IP ratings and be heat/water-resistant. Also, those used in workplaces that undergo frequent shocks or vibrations should have sturdy housing and good firmness.

Q&A

Q1: What is the role of the Siemens Simatic HMI in industries?

A1: The Simatic HMI allows for smooth interaction between the operators and the machines so the processes can be monitored and controlled easily. They also have great visualizing and operating functions to monitor industrial automation systems and enhance process efficiency.

Q2: Does the Siemens HMI Panel connect to the PLC?

A2: Yes, the Siemens Simatic HMI panels work with all the new Simatic PLCs using PROFINET and other communication protocols. This allows seamless data transfer and easy alignment between them for effective systems integration.

Q3: Are these operator panels waterproof?

A3: Many Siemens HMI panels have an IP rating of 65, which means they are at least somewhat waterproof and dustproof. This rating signifies the panels are likely to be sealed appropriately against water and dust, adding to their durability and Hense, suitability for industrial application.

Q4: What maintenance do these operator panels require?

A4: There is no maintenance needed for the panels at the operating stage. However, to keep them running, the environment they are in should be cleaned and monitored for any signs of wear and tear. Regularly checking for system updates and software support is also important for optimal performance.

Q5: Can these panels withstand extreme temperatures?

A5: These operator panels can work in temperatures ranging from -20 to 60 degrees Celsius. This means they will work even in extremely hot or cold conditions, keeping the inside components well-protected and functioning as they should.
