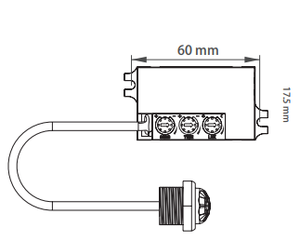

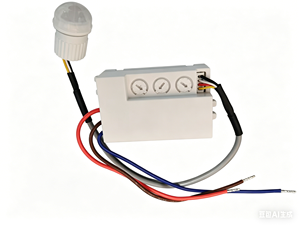

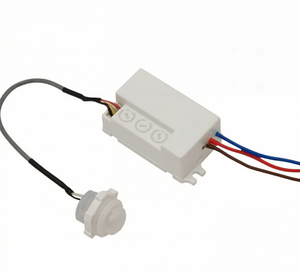

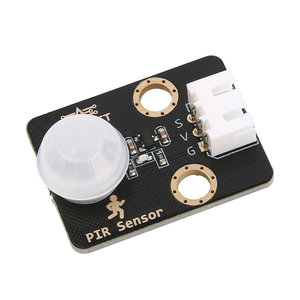

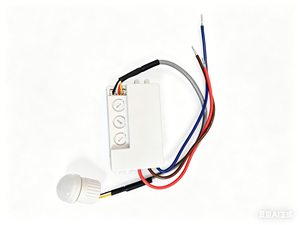

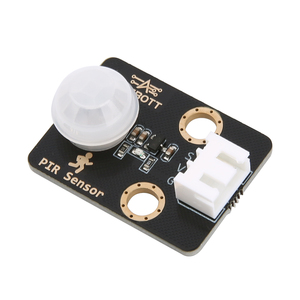

The passive infrared (PIR) sensor is an electronic component that detects motion by sensing the change in infrared (IR) radiation within its field of view. It is called "passive" because it does not emit any energy; rather, it detects the energy emitted by people and objects in its environment.
The PIR sensor uses two or more pyroelectric sensor elements in a unique design called a "pyroelectric crystal lens." The lens focuses IR radiation onto these elements, creating a voltage difference that varies when an object, such as a human, moves across the lens. This voltage difference activates the sensor's output, which is commonly used in applications like security systems, lighting control, and energy-saving devices.
Following are the different types of PIR sensors:
PIR sensors are basic components of analog circuits. With the help of operational amplifiers (OP-AMP), comparators, and voltage converters, an analog PIR sensor detects motion using the voltage produced by the temperature difference. When a subject moves in the detection zone, the voltage change causes the operational amplifier to output a high logic signal, which triggers an action.
Like analog PIRs, digital PIRs also use pyroelectric elements to sense temperature variations. The only difference is that digital PIRs use ADCs to convert captured temperature signals into digital signals. These are processed by microcontrollers or DSP chips. Thus, Digital PIR Sensors have higher detection accuracy than Analog PIR Sensors.
Tilted lens PIR sensors have one or more convex or cylindrical lense tilted with respect to the sensor. This configuration allows the sensor to detect motion over a wider area. The tilted lens focuses an IR radiation pattern onto the pyroelectric elements, creating a strong signal whenever an object, like a human, crosses the detection zone.
The Optical Fresnel Lens PIR sensor is a compact and highly sensitive motion detection device. It consists of a pyroelectric sensor element and an optical Fresnel lens designed to focus IR radiation onto the sensor element. When an object emits IR radiation, such as a human body, the lens creates a distinctive IR radiation pattern on the sensor element.
This pattern generates a voltage difference between the two pyroelectric elements. The voltage difference is then transformed into an electrical signal that can be used to trigger an output function, such as turning on an alarm or activating lighting. Optical Fresnel Lens PIR sensors are frequently employed in security systems, automatic lighting control, and energy-saving applications because of their high sensitivity and precise motion detection capability.
PIR sensors are widely used in security systems because they effectively detect and differentiate human movement from the background environment. When IR radiation detected by the sensor constantly changes, it signifies an intruder has crossed the detection zone. This capability makes them ideal for outdoor and indoor applications, ensuring homes and businesses are consistently monitored.
In agriculture, PIR sensors monitor environmental parameters. They process thermal IR signals to detect motion, determine temperature changes in crops, and understand better how they respond to heat, light, and other environmental conditions. PIR can also help study animal behaviors, enable farmers to enhance crop yields, ensure food security and sustainability, and improve overall agricultural productivity.
In environmental monitoring, PIR sensors help detect heat emitted from wildlife, making it easier for people to study animals without getting close. They can also be used in weather and climate monitoring by detecting changes in temperature patterns to help track climate changes, predict shifts in weather patterns, and assess the impact of climate change on ecosystems.

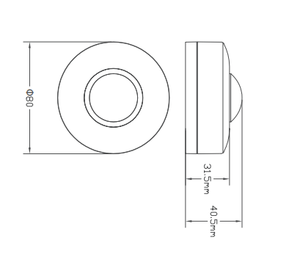

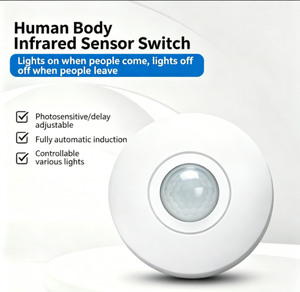

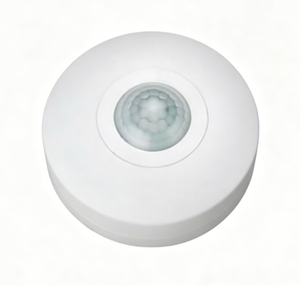

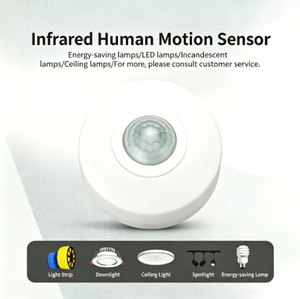

One of the most common applications for PIR sensors is in automatic lighting systems. PIR sensors turn on lights in areas such as offices, restrooms, and hallways when they detect human presence. This automation enhances energy efficiency by ensuring lights operate only when occupied and extending bulb life through reduced usage.
PIR sensors accurately measure the number of occupants in a room and their average body heat. Smart heating, ventilation, and air conditioning (HVAC) systems use PIR sensors to detect people and adjust temperatures by blowing more or less warm air in their direction while saving energy. This accurate detection helps improve comfort and efficiency without wasting energy, making them vital for modern smart HVAC systems.
The detection range of PIR sensors varies depending on the application. For security cameras, the range should preferably be around 30 feet from a few yards to moderate distances. For outdoor flood lights, around 30 feet to 40 feet is required because outdoor sensor flood lights sometimes need to detect motion at a further distance.
For smart thermostats, detection range is a low priority feature, so temperature detection accuracy comes over the range, typically within a few feet because the thermostat is placed indoors. In occupancy-based lighting control, the detection range is typically 20 feet to 30 feet in office settings where people are seated and working at short distances. For HVAC control, it's generally a few feet as long-range detection isn't necessary.
The Field of View (FoV) of PIR sensors varies for different applications. In security applications, the FoV should preferably be wide, around 90 to 120 degrees, to scan large areas. For outdoor lighting, FoV is typically 150 degrees to cover a wide area of detection. In temperature-based applications like smart thermostats, FoV is narrow since the focus is on detecting temperature in a specific zone, generally around 30 degrees.
The FoV in occupancy-based lighting control is usually around 90 degrees to ensure adequate coverage in typical room environments. These FoV angles are often adjusted using lenses or reflectors depending on the specific requirements of each application.
The common output types of PIR sensors are:
Alarm Output
Many PIR sensors are used in security systems and other safety-related applications; when motion is detected, the sensor sends an alarm signal through this output.
Digital Output

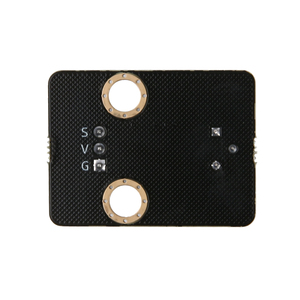

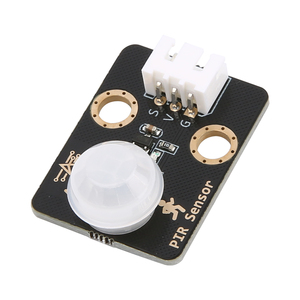

Digital PIR sensors have two states, high and low. They send a digital signal (high or low voltage) to indicate whether motion is detected.
Analog Output
Some advanced PIR sensors have an analog output that sends a voltage proportional to the level of IR radiation detected. This output can be used for applications that require more sensitivity and fine detection, like precise occupancy monitoring.
The sensitivity setting on a PIR sensor adjusts how responsive it is to detected motion or changes in IR radiation within its field of view. Higher sensitivity settings are more easily triggered by subtle movements or temperature variations. In contrast, lower sensitivity settings require more pronounced movement or a more significant temperature difference. PIR sensors come with either an adjustable sensitivity setting or a fixed one, depending on the intended application environment, such as security monitoring areas where minor movements should be detected or in quiet locations where only significant movements are of concern.
When choosing a PIR sensor, it's important to consider the needs of its intended use. Factors such as whether continuous monitoring will be required and how accurately the sensor will need to detect motion should all be factored in. Different applications require different levels of sensitivity, coverage area, and environmental resilience from a sensor – security systems may need a wide detection range with high sensitivity, whereas energy-saving lighting controls may only need basic functionality within indoor environments.
Detection range and coverage area are important when choosing PIR sensors. The detection range is the maximum distance at which the sensor can detect motion, while coverage area is the total space size the sensor can monitor. Depending on the use case requirements, the ideal detection range and coverage area will vary. For instance, a security camera should have a range of at least 30 feet, while an indoor lighting control application will be fine with a few feet.
The installation location impacts the choice of a PIR sensor because environmental factors, such as temperature, humidity, and outdoor lighting conditions, can greatly affect the sensor's performance. For outdoor use, PIR sensors must be weatherproof and temperature-resistant to maintain reliable operation in variable weather conditions. For applications in direct sunlight or near heat sources, choose a sensor with extra immunity to false triggers. For indoor use, standard models are sufficient, and no additional sensor features are needed.
Consideration should be given to how the chosen PIR sensor will integrate with existing systems. It must be compatible with current security systems, lighting controls, or building automation frameworks. Ensuring the same can easily communicate and be managed within one centralized platform is crucial. Selecting a sensor that is easy to incorporate into current technologies helps reduce system complexity, makes installation easier, and ensures optimal performance.
Several factors affect the price of PIR sensors, including the type of application (simple indoor vs. complex outdoor), detection range and coverage area (greater areas require more complex sensors), sensitivity and accuracy (more sensitive or customizable sensors are more expensive), environmental resilience (weatherproof or extreme condition sensors cost more), wiring or connectivity options (hardwired or wireless can increase costs), and brand reputation (well-known manufacturers charge more owing to reliability).
Yes, PIR sensors can be used outdoors as long as they are designed for outdoor applications and have features like weatherproof housing and enhanced resistance to environmental factors like rain, snow, and extreme temperatures. Outdoor PIR sensors typically also have a stronger detection range to monitor larger, open outdoor spaces.
PIR sensors require a small amount of maintenance to ensure consistent and optimal performance. Regular maintenance includes cleaning the sensor lens to remove dust, insects, or debris that may obstruct it and checking the sensor for proper alignment, particularly after strong weather conditions. Sensors should also be tested periodically to ensure they are still functioning correctly.
While PIR sensors are designed to detect body heat, significant temperature fluctuations can make it difficult for the sensor to register the difference between the environment and the object. In cases of very high or low temperatures, PIR sensors may require extended warmth or cooling to properly sense motion—specialized outdoor sensors typically include features that mitigate this effect.
Using various methods—adding a secondary sensor, configuring sensitivity settings, using a lens mask or adjusting the field of view, installing the sensor at an appropriate height and angle, and ensuring proper environmental shielding—can reduce false positives in security applications.
