Types of Reversing Aid Systems
A reversing aid system is an essential safety feature in modern vehicles designed to enhance driver awareness and reduce the risk of accidents while backing up. These systems use a combination of sensors, cameras, and alerts to detect obstacles and provide real-time feedback. Understanding the different types of reversing aids can help drivers choose the best solution for their specific needs.
Reversing Cameras
Also known as backup cameras, these devices provide a live video feed of the area behind the vehicle on a dashboard-mounted display or integrated infotainment screen.
Advantages
- Visual representation of rear obstacles
- Improves spatial awareness
- Often includes dynamic parking guidelines
- Available as OEM or aftermarket kits
Limitations
- Camera visibility affected by weather/dirt
- Requires clear display visibility
- May need calibration after installation
Best for: Families with young children, urban drivers, frequent parallel parkers
Park Assist Systems
Advanced driver assistance systems that automate parking maneuvers through sensor input and steering control.
Advantages
- Automates complex parking procedures
- Combines multiple sensor technologies
- Works for parallel, perpendicular, and angled parking
- Reduces stress in tight spaces
Limitations
- Higher cost compared to basic systems
- Requires driver monitoring
- Performance varies between manufacturers
Best for: New drivers, those with limited parking experience, luxury vehicle owners
Reversing Sensors
Ultrasonic-based detection systems that emit audible beeps to indicate proximity to obstacles when reversing.
Advantages
- Effective in low-visibility conditions
- Simple interface with audio feedback
- Can be installed front/rear
- Relatively affordable
Limitations
- Limited range (typically 1.5-2 meters)
- No visual confirmation of obstacle type
- Can be affected by environmental noise
Best for: Urban commuters, older vehicles without camera systems, budget-conscious buyers
Cross Traffic Alert
Systems that warn drivers about approaching vehicles from either side when reversing out of parking spaces or driveways.
Advantages
- Prevents accidents at blind intersections
- Uses radar technology for accurate detection
- Works in conjunction with other systems
- Vital for families with driveway access
Limitations
- May not detect small objects or pedestrians
- More effective at slow speeds
- Typically only available on premium models
Best for: Parents with young children, suburban drivers, those with restricted visibility
Blind Spot Monitoring
Originally designed for lane changes, this technology has been adapted to assist with reversing by detecting vehicles approaching from behind.
Advantages
- Provides additional safety during reversing
- Multi-functional system
- Integrates with existing safety features
- Especially useful for large vehicles
Limitations
- Primary function is for lane changes
- Not specifically optimized for reversing
- Higher-end feature typically
Best for: SUV and truck owners, highway drivers, those who frequently change lanes
Dynamic Guidelines
An advanced feature of some reversing cameras that displays predictive path indicators based on steering wheel position.
Advantages
- Shows predicted vehicle trajectory
- Helps visualize turning radius
- Extremely useful in tight spaces
- Enhances overall maneuverability
Limitations
- Dependent on accurate calibration
- Only works with compatible cameras
- May confuse inexperienced users initially
Best for: Delivery drivers, commercial vehicle operators, anyone needing precise maneuvering
| Type | Obstacle Detection | User Interface | Additional Features | Recommended For |
|---|---|---|---|---|
| Reversing Camera | Visual identification | Video display with guidelines | Detection range up to 15 feet | General all-around use |
| Park Assist | Combined sensor data | Steering automation + visual/audio cues | Automatic parking maneuvers | Challenging parking situations |
| Reversing Sensor | Proximity-based detection | Audible beeps + visual indicators | Front/rear installation options | Low-cost entry-level option |
| Cross Traffic Alert | Lateral movement detection | Visual + audible warnings | Approaching vehicle detection | Restricted visibility environments |
| Blind Spot Monitoring | Rearward vehicle detection | Visual indicators + alerts | Multifunctional system | Large vehicles and highway driving |
| Dynamic Guidelines | Path prediction visualization | Interactive display overlays | Steering-linked guidance system | Precise maneuvering requirements |
Expert Tip: For maximum safety, consider combining multiple reversing aid technologies. A system featuring both a reversing camera with dynamic guidelines and cross traffic alert provides comprehensive rear visibility and obstacle detection capabilities.
Specifications and Maintenance of Reversing Aids
Key Specifications to Consider When Choosing a Reversing Aid
Reversing aids are essential safety devices that help drivers detect obstacles while backing up. Understanding their specifications ensures you select the right system for your vehicle and driving conditions.
Sensor Count
The number of sensors in a reversing aid system affects coverage area and detection accuracy. Most systems offer between 4 to 8 sensors:
- 4-sensor systems: Ideal for compact cars with limited rear space.
- 6-sensor systems: Provide better coverage for mid-sized vehicles.
- 8-sensor systems: Recommended for larger vehicles like SUVs and trucks for comprehensive obstacle detection.
Detection Range
Detection range refers to how far behind the vehicle the sensors can identify objects. Typical ranges include:
- 1.5 meters: Suitable for urban driving where tight parking is common.
- 2.0–2.5 meters: Preferred for larger vehicles or frequent highway use, offering greater clearance awareness.
A wider range provides more reaction time but may also be more sensitive to non-threatening objects.
Operating Frequency
Operating frequency determines how the sensors communicate without interference. Common frequencies include:
- 40 kHz: Standard for basic ultrasonic systems.
- 70–100 kHz: Higher frequencies used in advanced systems to minimize signal overlap and improve accuracy.
Selecting the correct frequency ensures compatibility with other electronic systems in your vehicle.
Display Type
How the reversing aid communicates obstacle information varies by system:
- LED Displays: Simple visual indicators showing proximity levels (e.g., green, yellow, red).
- LCD Screens: Often integrated into backup cameras, providing detailed visuals and distance readouts.
- Voice Alerts: Audible notifications that warn of obstacles through voice prompts or beeps.
Combination systems (e.g., LED + voice) provide redundant feedback for safer operation.
Power Supply
Most reversing aids operate on a standard automotive electrical system:
- 12V DC: Universally compatible with nearly all modern vehicles.
Ensure proper wiring and fuse protection during installation to prevent power surges or voltage drops.
Waterproof Rating
Since reversing sensors are often mounted externally, waterproofing is crucial:
- IP67: Dust-tight and protected against temporary water immersion (up to 1 meter for 30 minutes).
- IP68: Offers superior protection, suitable for off-road or high-exposure environments.
Higher ratings ensure durability in harsh weather conditions and car washes.
| Specification | Importance | Selection Tips |
|---|---|---|
| Sensor Quantity | High | Choose based on vehicle size and typical parking scenarios. |
| Detection Range | High | Opt for longer range if frequently navigating large spaces or towing. |
| Operating Frequency | Medium | Check for potential conflicts with other onboard electronics. |
| Display Type | High | Match to driver preference—visual vs. audible alerts. |
| Waterproof Rating | High | Always choose IP67 or higher for outdoor exposure. |
Essential Maintenance Practices for Reversing Aids
To ensure long-term reliability and optimal performance of reversing aids, regular maintenance is necessary. Here's a detailed guide:
Important: Always address issues as soon as they appear. Delayed maintenance can result in reduced functionality or complete system failure, potentially compromising safety when reversing.
How to Choose Reversing Aids
Selecting the right reversing aid for your vehicle involves more than just picking a model off the shelf. It requires understanding legal requirements, compatibility with different vehicles, feature sets, and installation practicality. Whether you're purchasing for personal use or resale, making an informed decision ensures safety, compliance, and customer satisfaction.
Compliance with Safety Standards
One of the most crucial considerations when selecting reversing aids is ensuring they meet regional safety standards and certifications. In many countries, including those within the European Union and the UK, products must carry the CE marking to be legally sold and used. This mark indicates that the product complies with essential health, safety, and environmental protection standards.
- CE certification ensures compliance with EU directives
- Products should be tested and verified by accredited bodies
- Non-certified products may violate local laws and pose safety risks
Key consideration: Always verify CE or other applicable certifications before purchase or resale
Versatility Across Vehicle Types
Reversing aids come in various forms suited for different types of vehicles. Understanding which type works best for specific vehicle categories helps ensure optimal functionality and user satisfaction.
- Parking sensors are ideal for compact cars and sedans
- Cameras with monitors suit larger vehicles like SUVs, trucks, and buses
- Multifunctional systems (camera + sensor combo) offer versatility for mixed-use scenarios
Market insight: Consider offering multiple options to cater to diverse customer needs
Feature Set and Environmental Suitability
Different reversing aids come with varying features that enhance usability under specific conditions. Choosing the right set of features can significantly improve driver experience and safety.
- Sensors with LCD displays provide visual distance indicators
- Audio-only sensors are simpler and often more affordable
- Cameras with night vision are essential for low-light environments
- Weatherproof models perform better in harsh outdoor conditions
Buying tip: Assess typical usage environments when selecting features
Installation Practicality and Cost
The complexity of installation varies significantly between reversing aid types and directly affects total cost of ownership. Some systems require professional installation, while others can be DIY-friendly.
- Parking sensors typically require drilling into bumpers
- Cameras may need wiring through the vehicle's interior
- Wireless systems reduce installation complexity but may have signal interference issues
- Plug-and-play models offer the easiest setup
Cost-saving advice: Factor in installation costs when comparing product prices
Selection Advice: For first-time buyers or general resale purposes, consider mid-range models that balance functionality and ease of installation. These often provide the best value proposition across different customer segments. Prioritize models with clear documentation and support resources to simplify troubleshooting and maintenance.
| Aid Type | Best For | Installation Complexity | Typical Price Range |
|---|---|---|---|
| Parking Sensors (Beep) | Compact cars, budget users | Moderate (requires drilling) | $30 - $100 |
| Parking Sensors (LCD Display) | Drivers wanting visual feedback | Moderate to High | $80 - $200 |
| Reverse Cameras | Large vehicles, visibility challenges | High (wiring required) | $100 - $300 |
| Camera & Sensor Combo | Maximized safety and awareness | Very High | $200 - $500+ |
| Wireless Systems | Rentals, temporary installations | Low to Moderate | $150 - $400 |
DIY Installation and Replacement Guide for Reversing Aids
Installing or replacing a reversing aid in your vehicle is an accessible project for most DIYers, especially when following structured steps and using the right tools. Reversing aids—whether they're sensors, cameras, or audio systems—are essential safety devices that help prevent accidents during reverse maneuvers. This guide will walk you through the process from start to finish, ensuring a safe and effective installation.
Safety Warning: Always disconnect the battery before working with electrical components. Ensure the vehicle is securely parked on a flat surface with the handbrake engaged. Avoid working under the hood if the engine is hot.
Understanding Reversing Aid Types
Before diving into installation, it's helpful to understand the different types of reversing aids available:
- Ultrasonic Parking Sensors: Emit audible beeps that increase frequency as you approach obstacles.
- Backup Cameras: Provide a live video feed showing what’s behind the vehicle, often integrated with displays in the rearview mirror or dashboard.
- Combined Systems: Include both visual and auditory alerts, offering maximum situational awareness.
Step-by-Step Installation Process
- Selecting the Right Location
- Choose a mounting position where the reversing aid has an unobstructed view of the area behind the vehicle.
- For sensors, ideal locations are typically near the license plate or evenly spaced across the bumper.
- Cameras should be mounted high (e.g., on the license plate frame or center high-mount stop lamp area) for a wide field of view.
- Avoid placing sensors or cameras near exhaust outlets or moving parts.
- Mounting Brackets and Hardware
- Use a drill to create holes for sensor brackets or camera mounts, taking care not to damage any internal wiring or structural components.
- Secure brackets using weatherproof screws or adhesive mounts designed for automotive use.
- Double-check alignment to ensure sensors face directly backward and aren't tilted at an angle.
- Routing Wires Safely
- Run wires from the reversing aid through the vehicle’s interior to the power source (typically the reverse light circuit).
- Use rubber grommets or protective sleeves when passing wires through panels to prevent chafing or pinching.
- Keep wire runs as short as possible and secure them with zip ties to avoid interference with pedals or other moving parts.
- Label wires at both ends for easy identification later.
- Mounting the Display Unit (if applicable)

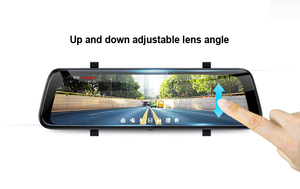

- Install the display screen where it’s clearly visible from the driver’s seat but doesn’t block the windshield or instrument cluster.
- Common mounting spots include the dashboard, overhead console, or integrated into existing infotainment systems.
- Use double-sided tape, Velcro strips, or screws depending on the model and location preference.

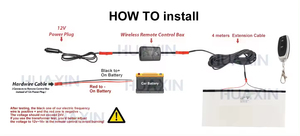

- Making Electrical Connections
- Connect the system’s power wire to the reverse light circuit so the reversing aid activates automatically when the vehicle shifts into reverse.
- Use crimp connectors or soldered joints with heat shrink tubing to ensure secure, moisture-resistant connections.
- Ground the system properly to avoid interference or malfunction.
- Consult the manufacturer’s wiring diagram carefully before making any final connections.
- Testing and Calibration
- Reconnect the battery and test the system by shifting into reverse.
- Check for proper activation, clear visuals (for cameras), and accurate distance readings (for sensors).
- Adjust sensor sensitivity or camera angles as needed to eliminate false warnings or blind spots.
- Ensure audio alerts are audible over normal cabin noise levels without being overly loud.
| Installation Phase | Critical Tasks | Common Mistakes | Tools Required |
|---|---|---|---|
| Planning | Choosing optimal mounting positions, reviewing wiring paths | Poor positioning causing obstructed views or signal interference | Ruler, level, marker |
| Mounting | Drilling holes, securing brackets | Over-tightening screws, drilling in incorrect locations | Drill, screwdriver set, protective gloves |
| Wiring | Routing and connecting wires | Pinched wires, incorrect polarity, poor grounding | Wire strippers, crimpers, multimeter |
| Testing | System calibration and functionality checks | Incomplete testing leading to missed issues | Helper to observe from outside vehicle, test drive space |
DIY Tip: If your vehicle already has pre-wired harnesses for factory-installed reversing systems, check compatibility with your new device before cutting or splicing any wires. This can save time and reduce the risk of electrical issues.
Troubleshooting Common Issues
If your reversing aid isn't functioning correctly after installation, consider these common fixes:
- No Power: Check fuses, ground connection, and reverse light circuit voltage.
- Intermittent Signals: Inspect all wire connections for corrosion or looseness.
- Camera Image Quality: Clean the lens and ensure it's not exposed to direct sunlight or rain.
- Sensor False Alarms: Adjust sensitivity settings or reposition sensors away from reflective surfaces like chrome trim.
Pro Tip: Consider installing a relay switch between the reverse lights and the reversing aid if your system draws significant current. This helps protect your vehicle’s lighting circuit from overload.
By following this detailed guide, even beginners can successfully install or replace a reversing aid system. Remember to always consult the specific instructions provided by the manufacturer of your reversing aid kit, as some models may have unique requirements or features.
Frequently Asked Questions About Reversing Aids
Reversing aids vary in their performance under different lighting conditions. Parking sensors, which use ultrasonic technology, are generally unaffected by darkness since they rely on sound waves rather than visual input. However, camera-based systems depend on visibility and may experience reduced effectiveness in low-light environments.
To enhance the performance of camera systems during nighttime or in poorly lit areas:
- Ensure your vehicle has functional reversing lights to illuminate the rear area
- Opt for reversing cameras with night vision or infrared capabilities
- Consider models with wide dynamic range (WDR) imaging for improved clarity in varying light conditions
Modern reversing aid technologies continue to improve, offering better visibility and safety even after sunset.
Most reversing aids can be retrofitted to a wide range of vehicles, making them versatile safety upgrades. The installation feasibility depends on several factors:
- Vehicle type: Passenger cars, trucks, SUVs, and even commercial vehicles can typically accommodate reversing aids
- System type: Simple parking sensors are easier to install compared to integrated camera systems that require display integration
- Electrical system compatibility: Most modern vehicles have electrical systems that support reversing aid installations
- Physical space: Sufficient room must be available for sensor placement and camera mounting
While most installations are possible, some older vehicles without reverse gear detection wiring might require additional components. It's always recommended to consult with a professional installer or check manufacturer specifications before purchasing a reversing aid system.
Yes, there are numerous do-it-yourself (DIY) reversing aid solutions available on the market, particularly for parking sensors and backup camera systems. These kits are designed to be user-friendly and typically include:
- Wireless or wired sensors/camera units
- All necessary mounting hardware
- Detailed step-by-step installation instructions
- Required wiring harnesses and connectors
- Display unit (for camera systems)
When choosing a DIY kit, consider:
- Compatibility with your specific vehicle model
- Whether your vehicle already has a screen (enabling wireless systems)
- The complexity level indicated by the manufacturer
- Customer reviews regarding ease of installation
Basic tools and moderate mechanical knowledge are usually sufficient for successful installation, though more complex systems may benefit from professional assistance.
If you notice issues with your reversing aid system, follow this troubleshooting approach:
- Initial diagnosis: Check if the issue occurs consistently or intermittently
- Visual inspection: Look for physical damage to sensors or camera lenses
- Connection check: Ensure all wiring connections are secure and free from corrosion
- Power verification: Confirm the system is receiving proper power, especially when the vehicle is in reverse gear
- Cleaning: Clean sensors and camera lenses thoroughly, as dirt or ice can significantly affect performance
If basic troubleshooting doesn't resolve the issue, it's advisable to take your vehicle to a qualified mechanic or electronics specialist. They can perform advanced diagnostics using specialized equipment to identify problems such as:
- Faulty sensors requiring replacement
- Internal circuitry issues within the control module
- Interference problems affecting wireless systems
- Software glitches requiring system resets or updates
Regular maintenance and prompt attention to any malfunction signs can help ensure your reversing aid system continues to operate reliably and safely.
