About sata cable

Types of SATA Cable

Various types of SATA cables exist depending on the generation of the protocol or purpose of the cable. Each cable has unique features that provide flexibility, connectivity, or performance in the system.

  • SATA II Cable

    It is also referred to as the SATA 3 Gb/s cable. SAS cable generation 2 provides a data transfer speed of about 3Gb/s. the Data Transfer speed can be affected by other factors, such as signal quality and cable length. SATA II cables have features known as transmission signal and enhanced cable length that help improve the transmission speed. It is used in storage devices such as hard disks and solid-state drives.

  • SATA III Cable

    The SATA III cable, also known as the SATA 6 Gb/s cable, provides high data transfer speeds. The cables are excellent for achieving higher bandwidths. The generation 3 of the SAP protocol has transmission speeds of about 6 Gb/s. The SATA III cable has superior bandwidth compared to the previous version. It has features like reduced jitter and optimized insertion loss that enhance signal quality. The technology used in this cable allows it to operate at maximum speeds without errors, thus making it suitable for high-performance computing environments.

  • SATA 3.1 (SATA Express)

    SATA 3.1 is also known as SATA Express. It is an interface technology that combines SATA and PCIe. It aims to provide users with an alternative high-speed storage interface. The cable uses PCIe for data transfer, which provides about 10Gb/s transfer speed. It also provides an alternative interconnect system that connects solid state drives with PCIe expansion slots.

  • SATA III 6 Gb/s Cables

    These cables are also referred to as SATA II cables; they support data transfer speed of about 6Gb/s. Their performance is better than that of previous cables supporting 3Gb/s. They can connect to any device, whether the device supports higher speeds or not. The cables have superior transmission fidelity, thus making them secure for high-speed transmission.

  • Angled SATA Cables

    These cables are used to save space in tight computer cases. They have a 90 degrees or 180 degrees bend at either end. The bend allows the cable to fit nicely in a compact space without damaging the cable or surrounding components. They are also suitable for improving airflow in the system since they reduce cable clutter.

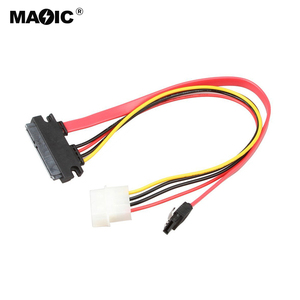

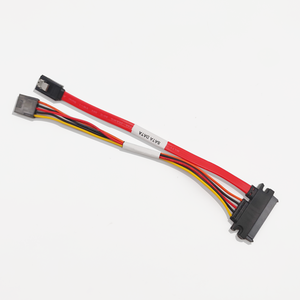

  • SATA Power Cables (SATA Power Cords)

    The cables connect SATA devices to the power supply units (PSU). They ensure that hard drives, SSDs, and other storage devices receive adequate power to function. A typical SATA power cable has 15-pin power connector while SATA 1.5 and 3.0 have 7-pin connector for data. The 15-pin connector provides power to the drive for smooth operation.

Functions and Features

  • Data Transfer:

    The primary purpose of a SATA cable is to transfer data between a storage device and a computer. One end connects to the hard drive, SSD, or optical drive, while the other connects to the motherboard. SATA cables transfer data faster than older technologies like PATA. They are essential for building a high-performance computer to operate various applications requiring a lot of data.

  • RAID Configurations:

    To enhance capabilities such as increased storage space, improved performance, or redundancy for data protection, RAID systems combine many hard drives into one unit. All RAID setups need SATA cables to connect the RAID controller cards and the individual drives, whether using hard disks or solid-state drives. Some RAID configurations require more than one SATA cable per drive to support hot-swapping or signal integrity.

  • Hot Swapping:

    A SATA cable allows hot swapping, meaning drives can be added or removed without turning off the system. This is very practical for servers and industrial systems that need constant uptime. For hot swapping to work best, users need to use SATA drives with proper hot-swap enclosures and RAID controllers. The cable's connectors ensure the drive is securely connected before the data transfer starts and can be removed while in use.

  • Power Supply:

    SATA power cables supply electricity to SATA drives. A computer's power supply unit (PSU) provides power through these cables. SATA power connectors have 15 pins to supply the necessary voltages for hard drives and SSDs. The cable's L-shaped connector prevents users from mistakenly connecting it to older drives that require a different power plug. Without power, SATA cables can't transmit signals, and drives can't function.

  • Power Management:

    The SATA interface supports advanced power management features that help reduce energy consumption. These features include control over drive spin-up speed and the ability to initiate low-power states during inactivity. SATA Cables can transmit signals necessary for these power management features to work. That optimizes the balance between performance and efficiency for computers and servers.

  • Connector Type:

    SATA cables have sleek, narrow connectors compared to older standards like PATA. Their L-shaped connectors stop users from making mistakes when connecting drives and motherboards. The cable needs good connectivity to transfer data fast, so it holds tightly to the connectors. SATA also has a locking connector option that secures the connection and blocks any signal loss for critical applications.

Scenarios

Parallel SATA cables can be used in many different industries and applications. Some common usage scenarios include:

  • Data Centers

    To reduce congestion and improve system performance, data centers use SATA cables to connect different storage devices such as hard disks and solid-state drives.

  • Surveillance Systems

    The surveillance industry uses the SATA interface to store video data. Surveillance cameras can connect to storage systems through SATA cables to save time-stamped video footage for future reference.

  • Digital Signage

    Digital displays that store content on internal drives commonly use SATA storage solutions. Product advertisements, menu displays, or information boards can be connected to high-capacity storage through SATA cables to store multimedia content. This allows businesses to showcase dynamic digital content.

  • Consumer Electronics

    In consumer electronics like gaming consoles, PCs, and laptops, SATA cables connect storage devices to motherboards for data transfer. A reliable SATA interface is critical for saving/loading games, files, and applications.

  • Personal Computing

    Most personal computers use SATA cables to connect hard drives. This is an important link for data transfer between components during computing tasks like operating system boot-up, file opening, or program installation.

How to Choose SATA Cable

  • Consider the data transfer speed: The data transfer speed or cable Sree depends on the version. For instance, SATA III can transfer data to a maximum of 6.0 Gbps, while SATA I and II can only do 1.5 Gbps and 3.0Gbps, respectively. This is the reason why older versions are used for non-demanding jobs. They are also preferred to save costs. However, for jobs that require high speeds, SATA III is the best choice, especially for solid-state drives (SSDs).
  • Think about the length: Length is a very important factor to consider when choosing a SATA cable. Generally, the standard length for most SATA cables is about 1 meter, but they come in various lengths ranging from 0.3 meters (1foot) to 2 meters (6.5 feet). The 1-meter length is considered ideal for connecting storage devices and motherboards that are found in horizontal computer cases. However, when working with vertical cases like rack-mounted servers, shorter cables are best. On the other hand, longer cables work best for cases with extensive internal layouts or those needing external connections.
  • Check for cable certification: When choosing a SATA cable, it is very important to check for cable certification. This is because certified cables have been tested under various conditions, ensuring buyers of their efficiency and reliability. The certified cables are known to meet the standards set by the SATA-IO (SATA International Organization), which is the organization responsible for developing and promoting SATA technologies. Apart from this, certified cables are usually compatible with various devices like hosts and SATA connectors.
  • Consider cable construction: Construction barely refers to anything more than the materials used to make the cable, like its shielding and connectors. However, these two factors greatly influence the durability and performance of the cable. Also, cables with better construction are less prone to errors.
  • Choose the right connector type: Choose the right connector type for the job. The right connector ensures compatibility between devices and reliable data transfer. Most SATA devices come with standard SATA connectors, but some may require additional connectors like eSATA or SATA power connectors.

SATA cable Q&A

Q1: Can someone use any SATA cable for their device?

A1: No, one must use a SATA cable that is compatible with their device. SATA cables are specifically designed to connect SATA devices, such as hard drives and solid-state drives, to the motherboard or interface of a computer. They are tailored for SATA interfaces and cannot be used interchangeably with other types of cables.

Q2: Do longer SATA cables impact performance?

A2: Yes, longer cables can affect signal quality. It's best to keep lengths under six feet for reliable performance.

Q3: Can someone use SATA cables with any generation devices?

A3: Yes, different generations of SATA cables are compatible with each other, but there may be performance penalties. For example, a SATA III cable used with a SATA II device will still work, but the data transfer speed may be limited to SATA II levels.

Q4: Should one arm their SATA cables in their PC for airflow?

A4: Yes, it is good to arrange cables for better airflow and cooling. Using cable ties or Velcro straps can help keep them organized.
