Scaffolding

Types of Scaffolding

Scaffolding is a temporary framework that supports a building, structure, or project while it is being constructed. Scaffolding is used in construction projects to help workers reach high places safely. Scaffolding comes in different types, such as:

• Supported Scaffolding

  Supported scaffolding is the most common type used in construction. It consists of a few horizontal beams called 'ledgers' that are attached to vertical poles or posts known as 'uprights' or 'standards.' The ledgers and uprights form a rectangular frame. It's then filled with other parts like cross braces for stability, putlogs for support, and guardrails to keep workers safe. This type of scaffolding is used when the structure can support scaffold beams, such as building and repairing walls.

• Suspended Scaffolding

  Suspended scaffolding is a different type of scaffold. Instead of being supported from the ground, it hangs from the roof or top of the structure. Workers use platforms lifted and lowered by pulleys and motors to get in and out of the suspended scaffolding. This type is beneficial for tasks on taller buildings where ground support isn't possible, like painting or window cleaning.

• Single Scaffolding

  Single scaffolding is a type of supported scaffolding used primarily for wall construction. It consists of ledgers and uprights set up parallel to the wall. Cross braces help make the single scaffolding stay erect. The wall is then constructed using single scaffolding and putlog holes. Single scaffolding is pretty straightforward since it only needs to support one side—the side facing the wall being built.

• Double Scaffolding

  Double scaffolding is used when working on stone or brick walls. Instead of just one row of scaffold poles, it has two rows placed further away from the wall. This makes double scaffolding more stable since the wall itself can't support the poles like a wooden wall could. The extra set of poles helps double scaffolding stand up straight without falling over.

• Steel Scaffolding

  Steel scaffolding is a type of double scaffolding. As the name suggests, all its parts are made from steel instead of wood. Like double scaffolding, it has two rows of metal poles that make steel scaffolding sturdy and stable. Steel scaffolding can support a lot of weight because steel is a strong material. This steel scaffolding is beneficial for taller or more extensive projects since it can handle the demands.

Function and Feature of Scaffolding 4

• Support and Load-Bearing Capacity

  Each type of scaffolding is designed to support a certain amount of weight, including the workers, materials, and equipment. Supported scaffolds are load-bearing structures that rest on the ground or permanent structures. The weight is distributed across multiple points to ensure stability and safety.

• Height and Access

  Scaffolds provide temporary platforms at elevated heights so construction workers can access all parts of the building or structure they are working on. They enable safe access to high areas that would otherwise be difficult or dangerous to reach. This is particularly important for large-scale projects involving tall structures.

• Adjustability and Customization

  Scaffolds can be adjusted and customized for different projects, heights, and building shapes. Components like beams, braces, and platforms are configured in various ways to meet specific requirements. This flexibility makes scaffolding suitable for a wide range of construction needs.

• Material and Platform Composition

  Scaffold materials must be strong and stable, with aluminum and steel being the most popular choices. Workers stand on platforms made of wood, metal, or composite materials that must support their weight and tools. The platform material must be durable and weather-resistant.

• Safety Features

  Safety is a top priority for scaffolds. They include features like guardrails, toe boards, and safety harness attachment points to protect workers from falls. Scaffolds are built to prevent accidents and are inspected regularly to ensure they remain safe workspaces.

• Mobility and Stability

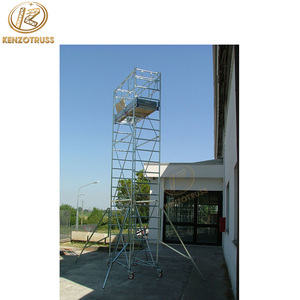

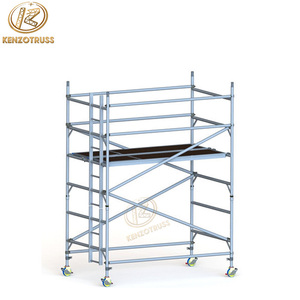

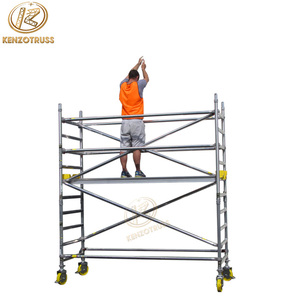

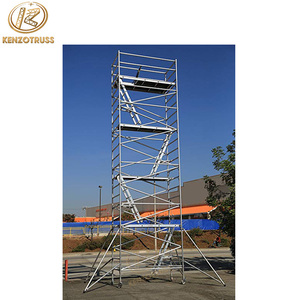

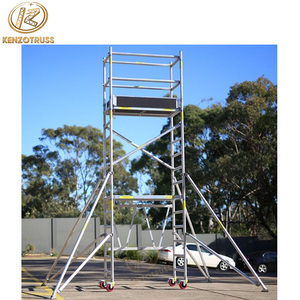

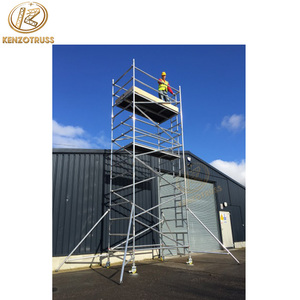

  Some scaffolds, like rolling scaffolds, can move around construction sites on wheels. Stability is crucial, so scaffolds have features like outriggers and base plates to keep them steady, especially on uneven ground. Mobile scaffolding is easy to move while still being stable and safe.

• Material Strength and Weather Resistance

  The materials used for scaffolds must be strong enough to support workers and tools without bending or breaking. Scaffolds are exposed to the elements, so their materials must be weather-resistant to withstand wind, rain, and sun.

Scenarios of Scaffolding 4

Scaffolding has many applications across different industries and sectors. Some of the common usage scenarios include:

• Construction and Building Projects

  Scaffolding is widely used in the construction industry to provide temporary platforms and access for workers during the erection of structures. It enables safe and efficient construction of high-rise buildings, bridges, tunnels and infrastructure projects.

• Maintenance and Renovation

  Scaffolds allow access to all building areas for maintenance and repair tasks in ongoing building maintenance, refurbishment and renovation projects. This includes tasks like repainting, window replacement and facade maintenance.

• Industrial Facilities

  In industrial settings such as power plants, factories and refineries, scaffolding provides access for installation, inspection, and maintenance of equipment, pipelines and structures. This is particularly useful in large-scale operations where access is challenging.

• Plant Turnarounds

  During planned shutdowns or turnarounds in industrial facilities, scaffolding is extensively used to enable workers to access various components for inspection, cleaning and repairs. This ensures safe and efficient completion of turnaround activities.

• Shipbuilding and Maritime Operations

  In shipyards, scaffolds provide access for construction, repairs and maintenance of vessels at different stages of the shipbuilding process. This includes access to hulls, interiors and installation of equipment. Additionally, in maritime operations, scaffolds are used for maintenance and repair tasks on ships while docked at ports.

• Utilities and Energy Sector

  In the utilities and energy sector, scaffolding is used to access tall structures such as chimneys, cooling towers and wind turbine components for construction, maintenance and inspection. This ensures the safety of workers in performing tasks at heights.

• Event and Stage Setup

  In the event management and entertainment industry, scaffolds are used to create elevated platforms for lighting, sound systems and stage components. This ensures the safety and stability of temporary structures in concerts, exhibitions and parades.

• Oil and Gas Operations

  In oil and gas facilities, scaffolding provides access to pipelines, storage tanks and drilling rigs for inspection, maintenance and construction activities. This is particularly important in remote and challenging environments.

• Access Solutions

  Scaffolds are used as access solutions in various industries, including telecommunications, HVAC and commercial construction. They provide safe and stable platforms for workers to perform tasks at different heights and locations.

How to choose scaffolding 4

Consider these factors when buying or renting a type of construction scaffolding.

• Project Requirements

  The type of project determines the most suitable scaffolding system. It needs to be assessed whether the project involves working on a small-scale, low-rise building or a large-scale, high-rise structure.

  Projects with complex designs and high-rise buildings require scaffolding systems that offer flexibility and enhanced stability, such as the modular or ring lock scaffolding systems.

• Load Capacity

  Consider the weight that each type of scaffolding can carry. This includes the workers who will be using the scaffolding, materials and equipment. Higher load capacity scaffolds are safer for high-weight projects.

• Materials

  Types of construction scaffolding are made of either aluminum or steel. Aluminum is lightweight and rust-resistant, making it ideal for projects that require mobility. Steel is stronger and more durable, thus suitable for projects that require a permanent scaffolding structure.

• Scaffolding Height

  Consider the height of the construction project. For high-rise projects, choose a scaffolding system that is adjustable and stable. For low-rise projects, single or double scaffolds are ideal.

• Regulatory Standards

  There are regulations and safety standards that govern the use of construction scaffolds. These include the Occupational Safety and Health Administration (OSHA) and American National Standards Institute (ANSI). Always ensure that the chosen scaffolding system complies with these standards to promote the safety of all stakeholders.

• Ease of Assembly and Disassembly

  Another important factor to consider when choosing scaffolding is how easy it is to assemble and disassemble. Some types of scaffolds, such as the prefabricated scaffolds, are easy to assemble and disassemble than others. This is an important consideration for short-term projects.

Scaffolding_4 Q & A

Q1: Are there any training requirements for using scaffolds safely?

A1: Yes, OSHA requires that employees who will be using scaffolds be trained by a qualified person. The training should cover the general requirements for scaffolds, recognizing hazards, proper use, and safety procedures. It should also include information on the specific type of scaffold that will be used on the job site.

Q2: What is the maximum height for a scaffold?

A2: There is no maximum height for scaffolds. However, OSHA has requirements for scaffolds over a certain height. For example, OSHA requires the use of a scaffold personal fall arrest system when the scaffold platform is 10 feet above lower levels.

Q3: What are the most common types of scaffolding?

A3: The most common types of scaffolds are: 1) Frame scaffolds, 2) Rolling or mobile scaffolds, 3) Tube and coupler scaffolds, 4) Cantilever scaffolds, 5) Single and double scaffolds.

Q4: Who can erect and dismantle scaffolds?

A4: Only trained and authorized personnel should erect and dismantle scaffolds. Scaffold builders must be trained to understand the requirements for building safe scaffolds. They should also be familiar with the manufacturer’s instructions.

Q5: What are the requirements for a safe scaffold?

A5: Some of the requirements include: 1) Having a safe and stable base, 2) Using high-quality materials and components, 3) Being erected according to manufacturer’s instructions, 4) Having proper fall protection, 5) Being inspected regularly by qualified personnel.

Popularity Trends

The keyword 'scaffolding' has shown a significant upward trend in web search volume over the past year, with an average monthly web search volume of 165,000. This represents a 22% increase both in the three-month and one-year analysis. Notably, there were fluctuations within the year, with peaks in April and October 2024, reaching 201,000 web searches, and a noticeable dip in January 2024 to 135,000 web searches.

Analyzing the monthly data in detail, the web search volume for 'scaffolding' remained steady at 165,000 from November 2023 to March 2024, except for the January drop. The resurgence in April and stability through the rest of the year suggests seasonal influences and specific events driving interest. The peaks in April and October could be linked to construction industry cycles, where new projects are initiated or existing ones are expanded, thus increasing the demand for scaffolding.

The trends indicate that while the demand for scaffolding is generally stable, there are specific times of the year when this demand spikes. This pattern could be influenced by factors such as weather conditions favorable for construction, economic factors like increased building projects, or regulatory changes affecting the construction industry. Understanding these patterns helps businesses and stakeholders in the industry prepare and plan their resources efficiently.
