Sds drill bits

Types of SDS Drill Bits

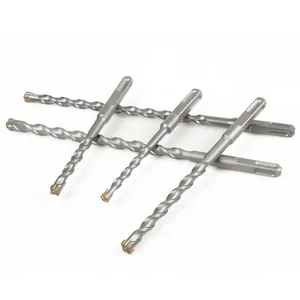

• SDS Plus Drill Bits

  Electric percussion drills and small to medium rotary hammers use SDS plus drill bits. The SDS-plus chuck can accommodate 2-flute bit shanks that are 10 mm in diameter with 4 mm deep grooves. The bits are primarily used to drill into concrete, stone, and masonry. They are smaller and more flexible than SDS Max bits and are ideal for lighter tasks, such as drilling holes for anchors or larger screws. In terms of size, SDS plus drill bits have a diameter ranging from 5 to 16 mm and a drilling depth of about 500 to 1,000 mm, depending on the bit type and application.

• SDS Max Drill Bits

  SDS Max drill bits are for use with heavy-duty rotary hammers. Such hammers require more power to penetrate hard concrete or stone types. The SDS Max chuck fits 14 mm shanks with 6 mm deep grooves. These bits were supposed to tackle more serious and denser jobs than SDS Plus. They can also be used for drilling and larger diameter applications. SDS Max bits are for drilling in reinforced concrete, large masonry blocks, and natural stone. The biggest convenience of SDS Max bits is that they can be used in demolition work with proper care.

• SDS Regular Drill Bits

  Standard SDS drill bits, also called regular SDS bits, are used with pneumatic percussion drills and older rotary hammers. These types of bits have an 18 mm diameter shaft and 8 mm grooves deep. They are usually pretty dated now, yet they can still be used occasionally in certain jobs where people have older equipment. SDS bits can be used in several applications and differing materials, from light to heavy ones. The specific type of drill bit and drill used for the job will always have compatibility with the chosen drill and suitability to the material to be drilled.

• SDS Chisels

  These chisels are drill accessories meant for demolition work. They are used to remove concrete, bricks, or masonry in a controlled way. SDS chisels come in a variety of shapes depending on the job, from flat chisels for large-scale surface stripping or grooving work to pointed chisels meant for narrow channel work or debris removal from targeted areas. For users wishing to perform demolition work instead of drilling, SDS chisels are sold both individually and in complementary sets with SDS drill bits.

Industrial Applications of SDS Drill Bits

• Construction

  In the construction sector, SDS drill bit sets are widely used to set foundations, build superstructures and install essential services. They are integral to placing reinforcements, erecting scaffolding, and installing electrical and plumbing systems. Their ability to drill into hard materials means they are essential for creating anchor points, installing fixings, and other drilling tasks needed in structural work.

• Mining

  Drill bits are used greatly in mining operations to create tunnels, shafts, and other underground structures in the extraction of minerals and ores. The tough nature of the bits suits them to the drilling required for blasting, and they help create the necessary drilling patterns for controlled explosions. Their durability means they can stand up to the abrasive materials being drilled.

• Oil and Gas Industry

  In the oil and gas industry, SDS drill bits for concrete are critical for drilling boreholes to locate and extract petroleum and natural gas reserves. They are used to drill exploration wells, which is how companies discover deposits. They also help to drill production wells to extract resources. The bits can withstand the high pressures and temperatures found deep underground.

• Masonry Work

  It is during masonry work that SDS drill bits have to work when installing anchors and fasteners in concrete or brick walls. They help electricians or heating engineers drill into walls to install wiring, pipes, and other mechanical systems. The ability to drill precisely and efficiently means they are key for both construction and maintenance work.

• Demolition

  These bits are used in demolition jobs. They are key to controlling the breakdown of structures, as they can be used to drill into walls, floors, and ceilings in a managed way to weaken them prior to physical demolition. This allows safety and precision in the demolition sequence.

• Geotechnical Engineering

  In geotechnical engineering, SDS drill bits are applied for soil sampling and drilling test boreholes to assess the geological conditions in a given area. This work is done ahead of construction so that building engineers know the ground they are placing their works into. The information gained through drilling helps determine the appropriate foundations, predict how moisture affects the soil, and assess landslide risks. SDS bits make it possible to gather this vital information while drilling through varied and tough geological layers.

Product Specifications and Features of SDS Drill Bits

Technical Specifications

• Materials These drill bits are made from alloys of steel or tungsten carbide.
• Durability They come with a hammer action that gives them great durability.
• Conical Cutters SDS chisels come with conical cutters that make them efficient in their operation.
• Wear Resistance Some types of SDS drill bits are supplied with wear resistance.
• Bit Extenders When deep drilling is required, there are bit extenders for long bits.
• Bit Holders Fixing is ensured with a bit holder.

How to Install

• Operating Drill in Hammer Mode The operator should run a test on the drill to ascertain it works well. An electric drill should be used in a hammer.
• Increasing Hammer Power The hammer power should be increased so that it comfortably punches through the wall or surface.
• Using a Hard Surface The operator should be positioned on a hard surface for drilling.
• Marking Drilling Points For accuracy, the operator should mark drilling points.
• Drilling Using Drills The operator should press lightly and drill using light pressure.
• Precision For precision, the operator should maintain a straight angle when operating the drill.
• Completing Drilling The operator should complete drilling when the drill goes through the wall.

Maintenance and Repair

• Cleaning Regularly After each use, the bit should be cleaned with a wire brush or compressed air to remove debris, dust, and other materials.
• Inspection The SDS bit should be regularly inspected for signs of wear and tear. This could be cracks, dull edges, or chipped teeth.
• Sharpening The grooved or fluted sections should be lightly sharpened using a small metal file to reduce overheating.
• Lubrication A lubricant appropriate for drill bits or cutting tools should be applied to the bits to reduce friction.
• Proper Storage The bit should be kept in a dry, clean container or area away from excessive moisture and humidity.
• Repairing Chisels and bits that are chipped or cracked should be taken to a professional for repair.
• Replacement Drills that have sustained serious damage or have been used for too long should be replaced.

Quality and Safety Considerations for SDS Drill Bits

How to Tell Quality Drill Bits from Inferior Ones

• Material

  Good quality drill bits are made from premium steel and carbide alloys. Carbide tipped or fully carbide bits are the hardest and retain sharpness longer. Bits made from inferior materials will dull quickly and can't withstand hard concrete.

• Haft

  Honeycombs and flutes are deep and wide. The haft should also be designed with sloped sides and milled not glued on. SDS Max and Plus bits have characteristic grooves that lock securely into chucks. Poor-quality bits may have shallow, narrow flutes that clog and overheat.

• Completeness and Precision

  Great quality SDS drill bits have completely symmetrical conical cutters and precisely machined tips. Any flats, irregularities, or misalignments will cause wobbling, poor drilling, and premature wear. Cutter braze bond integrity is also important to check for wear.

• Finishing

  Look for bits that have been corrosion-resistant coated, heat treated, and surface hardened to an even depth. Be on the lookout for rough spots, rust, and signs of inadequate polishing. Poor-quality bits are weaker, dull faster, and may fracture under stress.

Safety Precautions When Using SDS Drill Bits

• Never Go Without a Guard

  Operating without the guard protects flying debris, but users are at risk. They should always wear safety glasses, hearing protection, gloves, and a mask to shield against dust and potential injury. They should ensure the guard is working well before commencing work.

• Fixing the Material

  The material should always be secured using a clamp or vice. When holding it in hand, the material may move around while drilling, leading to possible injury. Besides, the drill may kick back leading to injury.

• Checking for Wires or Pipes

  There are chances of live wires or gas faults in walls. Before drilling, always use a wire detector to check for pipes or electrical wiring. If a drill hits a wire, the consequences could be fatal.

• Avoid Overheating

  Overheating could lead to the drill bit breaking, and excessive pressure could cause the bit to shatter and send shards flying. Users should take breaks to avoid overheating and let the bit cool off from constant drilling.

• Correct Use

  These drill bits have been specially designed for hammer drills. SDS drill bits are only used on rotary hammers. Using the wrong drill bits leads to breakage and flying pieces. Always use specific bits intended for this type of equipment.

• Inspecting the Bit

  Before commencing work, users should take a close look at the drill bit. They should check for cracks, chips, or signs of wear and tear. If one is found, never use a damaged SDS drill bit. Operating with a damaged bit is risky because it can easily shatter and harm the operator.

Q&A

Q. What is the difference between an SDS drill bit and a regular drill bit?

SDS drill bits are designed for rotary hammers and hammer drills that use an SDS chuck system, allowing for a better grip, reduced bit rotation, and increased durability. Regular drill bits are for standard drills that don't have a hammer function, meaning they can't easily penetrate hard materials like concrete or masonry. Regular drill bits are for softer materials, while SDS bits are for tougher jobs.

Q. Can SDS drill bits be used in a regular drill?

No. SDS drill bits cannot be used on regular drills. They are only used on drills with SDS chucks. Where possible, adapters allow SDS bits to be used with non-SDS drills, but this is not recommended. For the best use, SDS bits should be combined with rotary hammers or drills designed specifically for them.

Q. How do you choose the right SDS drill bit for a job?

When choosing an SDS drill bit, consider the material to be drilled and the depth and diameter of the hole required. The drill bit should be of tungsten carbide for concrete, masonry, or natural stone. The bit's diameter should be large enough to accommodate larger anchors or dowels. The required depth ensures that the hole is drilled in its entirety without the need to switch bits partway through. A quality SDS drill bit should also be abrasion-resistant for increased toughness and endurance.

Q. Are there special maintenance requirements for SDS drill bits?

For regular maintenance, these drill bits should occasionally be cleaned with a wire brush or compressed air to remove concrete dust, debris, and other materials. After each use, they should be inspected for wear and damage. They should also be lubricated occasionally, especially during extended use, to reduce friction and prevent overheating. Users should ensure they are sharp before each use and replace bits that are excessively worn or damaged.

Q. Are there different types of SDS drill bits?

There are SDS plus bits for small and medium rotary hammers, SDS max bits for heavy-duty applications, and chisels for demolition work. Each type is designed for different hammer power levels and hole diameters, ensuring there is an SDS bit suited to every drilling task from light to very heavy industrial work.
