Types of Spark Plug Coil Tester
A spark plug coil tester is an essential diagnostic tool for evaluating the performance and integrity of ignition coils in a vehicle's engine. These devices help ensure reliable engine starts and smooth operation by identifying faulty or degraded ignition coils before they cause significant issues. Choosing the right type of tester depends on your technical needs, vehicle compatibility, and whether you're working in a professional garage or performing DIY maintenance.
Handheld Digital Ignition Coil Tester
This advanced portable device features a digital interface that provides real-time, precise measurements of ignition coil voltage output and resistance. It often includes backlit screens and intuitive controls for easy interpretation of results even in low-light conditions.
Advantages
- Highly accurate readings with digital precision
- User-friendly interface with clear displays
- Portable and convenient for mobile use
- Ideal for diagnosing intermittent faults
Limitations
- Higher cost compared to analog versions
- Requires battery power or charging
- Potential for electronic failure if dropped
Best for: Professional mechanics, detailed diagnostics, modern vehicles with complex ignition systems

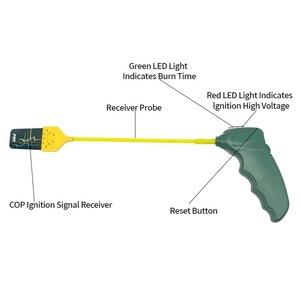

Coil-On-Plug Tester
Specifically designed for engines using Coil-on-Plug (COP) technology where each spark plug has its dedicated ignition coil. This tester checks individual coil performance and ensures proper synchronization across all cylinders.
Advantages
- Perfect for COP-equipped engines
- Identifies specific cylinder misfires
- Helps maintain balanced engine performance
- Compact design fits tight engine compartments
Limitations
- Limited use for older distributor-based systems
- May require multiple adapters
- Specialized function reduces general-purpose utility
Best for: Modern vehicles with COP ignition systems, pinpointing cylinder-specific issues
Universal Ignition Coil Tester
This versatile tool works across various makes and models of vehicles. It typically comes with multiple adapter tips and settings to accommodate different ignition system configurations, making it ideal for multi-vehicle households or general repair shops.
Advantages
- Broad compatibility with many vehicle types
- Cost-effective solution for varied use
- Often includes comprehensive adapter kits
- Easy to store and transport
Limitations
- May not offer specialized testing features
- Setup can be time-consuming between uses
- Potential for less precise readings on niche applications
Best for: Multi-vehicle owners, general automotive repair, budget-conscious users
Analog Ignition Coil Tester
This traditional mechanical-electrical device uses needle gauges and simple circuitry to indicate basic coil functionality. While lacking the sophistication of digital tools, it remains popular for straightforward go/no-go assessments.
Advantages
- Simple mechanical design with fewer failure points
- No batteries required for basic operation
- Very durable construction
- Low cost entry-level option
Limitations
- Limited diagnostic detail
- Subjective interpretation of gauge readings
- Inadequate for diagnosing subtle electrical issues
Best for: Basic troubleshooting, vintage car maintenance, quick field checks
Compression and Spark Tester
This dual-function diagnostic tool simultaneously evaluates both the ignition system's spark quality and the engine's compression levels. By combining these two critical engine functions into one test, it helps technicians identify whether problems stem from the ignition system or internal engine components.
Advantages
- Comprehensive engine health assessment
- Identifies root causes more efficiently
- Reduces need for multiple separate tests
- Helps prevent unnecessary part replacements
Limitations
- More complex operation requiring interpretation skills
- Higher learning curve for novice users
- Potentially higher cost due to multifunctionality
Best for: Comprehensive diagnostics, troubleshooting difficult starting issues, professional workshops
| Type | Degree of Precision | Versatility | Complexity | Typical Use Case |
|---|---|---|---|---|
| Handheld Digital | High | Moderate | High | Professional diagnostics, modern vehicles |
| Coil-On-Plug | High | Low | Moderate | Modern COP engines, cylinder-specific issues |
| Universal | Moderate | Excellent | Moderate | Multi-vehicle households, general repairs |
| Analog | Low | Good | Low | Basic diagnostics, vintage cars |
| Compression & Spark | High | Good | High | Comprehensive engine analysis, professional use |
Expert Tip: When testing ignition coils, always ensure the engine is off and the key is removed from the ignition to avoid potential damage to the tester or vehicle electronics. For digital testers, follow the manufacturer's instructions carefully regarding connection order and polarity.
Specifications and Maintenance of Spark Plug Coil Tester
Key Specifications to Consider
A spark plug coil tester is an essential diagnostic tool used to evaluate the performance of ignition coils and spark plugs in internal combustion engines. Understanding its specifications ensures accurate testing and reliable results.
Voltage Output
The voltage output determines how much electrical potential the tester can generate to simulate real-world conditions for the spark plug. This typically ranges from 10,000 to 50,000 volts. Higher voltage output enables the device to mimic high-load engine conditions, ensuring that the spark plug can ignite under stress.
Selecting a tester with sufficient voltage output helps diagnose issues like weak or inconsistent sparks that may not be detectable at lower voltages.
Current Output
The current output measures the flow of electricity through the system during testing, usually ranging from 0.1 to 0.5 amps. A higher current allows for better simulation of actual engine operation, where consistent current flow is crucial for complete fuel combustion.
Testers with adjustable current settings offer more precise diagnostics, especially when evaluating ignition systems under various operating conditions.
Frequency
The frequency setting refers to how often the tester generates a spark, measured in hertz (Hz), typically between 1 and 100 Hz. This simulates the firing rate of the engine’s cylinders.
A higher frequency setting tests the ignition system's ability to perform under rapid-fire conditions, which is particularly useful when diagnosing misfires or intermittent faults in high-performance or high-RPM engines.
Spark Duration
Spark duration indicates how long each spark lasts during testing, generally ranging from 1 to 10 milliseconds. Longer durations allow for more thorough testing of the spark plug's ability to maintain a stable arc under load.
This specification is vital for assessing the plug's performance in cold-start conditions or during extended idling, where prolonged sparking is necessary for proper combustion.
Operating Temperature Range
Some advanced testers include temperature controls or sensors that simulate real-world thermal conditions experienced by spark plugs. This range can vary from 100°C to 1000°C depending on the model.
Testing under simulated hot or cold conditions helps identify performance degradation due to heat buildup or cold-start inefficiencies, providing a more comprehensive evaluation of ignition system reliability.
Adjustable Voltage Control
Many modern spark plug coil testers feature adjustable voltage outputs, allowing users to test across a range from 10,000V to 50,000V. This flexibility enables precise diagnostics tailored to specific vehicle models or suspected fault conditions.
For example, lowering the voltage can help isolate problems related to low-voltage conditions, such as poor battery health or faulty alternators affecting ignition performance.
| Specification | Typical Range | Diagnostic Relevance |
|---|---|---|
| Voltage Output | 10,000 - 50,000 V | Tests spark plug strength and insulation integrity |
| Current Output | 0.1 - 0.5 A | Measures consistent energy delivery for complete combustion |
| Frequency | 1 - 100 Hz | Simulates engine RPM for dynamic testing |
| Spark Duration | 1 - 10 ms | Evaluates sustained spark performance under load |
| Temperature Simulation | 100 - 1000 °C | Recreates extreme thermal conditions for reliability testing |
| Adjustable Voltage | Yes/No | Allows for scenario-specific diagnostics |
System Compatibility
Modern vehicles use various ignition systems including conventional distributors, distributorless ignition systems (DIS), and coil-on-plug (COP) setups. A versatile spark plug coil tester should clearly specify compatibility with these different systems.
Choosing a tester with broad compatibility ensures it can be used across multiple vehicle platforms, making it a valuable tool for both professional technicians and DIY enthusiasts working on diverse automotive makes and models.
Essential Maintenance Practices
To ensure accurate readings and prolong the lifespan of your spark plug coil tester, regular maintenance is crucial. Proper care prevents false readings and costly repairs while maintaining safety standards during use.
Important: Always follow the manufacturer's instructions when operating or maintaining your spark plug coil tester. Never attempt to disassemble or repair the unit unless specifically authorized by the manufacturer or qualified service personnel.
How to Choose a Spark Plug Coil Tester
Selecting the right spark plug coil tester is crucial for accurate diagnostics and efficient maintenance of your vehicle's ignition system. A quality tester helps identify faulty coils quickly, preventing misfires, poor fuel economy, and potential engine damage. Here are the key factors to consider when choosing a coil tester:
Coil Voltage Compatibility
The voltage rating of the ignition coil must align with the capabilities of the coil tester. Using an incompatible tester can lead to inaccurate readings or even damage the coil or testing device.
- Standard automotive systems typically operate at 12V
- Some performance or high-end vehicles may use higher voltage systems
- Ensure the tester specifies compatibility with your vehicle’s voltage range
Pro Tip: Always verify the voltage specifications in your vehicle manual before purchasing a tester.
Ignition System Configuration
Vehicles come with various ignition system designs, which affect the type of coil tester needed. Understanding your vehicle's setup ensures you select the correct tool.
- Coil-on-Plug (COP): Individual coils for each cylinder
- Distributor-based systems: Older vehicles with single or dual coils
- Wasted Spark Systems: Coils firing two cylinders simultaneously
Important: Some testers are designed specifically for COP systems, while others work best on older distributor-style setups.
Coil Condition Assessment
Before using a tester, visually inspect the ignition coils for signs of wear or contamination. The physical condition of the coil affects test results and determines whether replacement is necessary.
- Look for cracks, oil leaks, or moisture around the coil housing
- Check for carbon tracking or burn marks on the boot or connector
- Clean dirty coils before testing to ensure accurate readings
- Replace any coils showing significant corrosion or structural damage
Note: A functional tester cannot compensate for severely damaged hardware—always inspect first.
Vehicle-Specific Compatibility
Not all coil testers work universally across makes and models. Ensure the tester you choose supports your specific vehicle type for reliable diagnostics.
- Some testers are designed exclusively for domestic brands like Ford or GM
- Others support import models including Toyota, Honda, and BMW
- Multibrand testers offer broader compatibility but may lack specialized features
Recommendation: Cross-reference the tester’s compatibility list with your vehicle’s make, model, and year.
User-Friendliness and Features
A well-designed coil tester should be easy to operate, especially for DIY users or technicians working under time constraints.
- Clear digital displays or LED indicators improve readability
- Auto-detection features simplify the testing process
- Overload protection safeguards both the user and equipment
- Portable, compact design enhances usability in tight engine compartments
Key Feature: Look for models with audible alerts or visual cues that clearly indicate faults.
Budget Considerations and Value
Coil testers vary widely in price based on features, build quality, and brand reputation. Setting a realistic budget helps narrow down options without sacrificing functionality.
- Entry-level testers: Basic functionality for occasional use
- Mid-range testers: Enhanced accuracy and durability for regular diagnostics
- Premium models: Advanced diagnostics, extended warranties, and multi-system support
Long-Term View: Investing in a durable, accurate tester often pays off through improved efficiency and fewer replacements.
Expert Advice: When in doubt about compatibility or ease of use, opt for a mid-range multibrand tester with clear instructions and basic diagnostic features. It offers a balanced approach between affordability and reliability for most users.
| Use Case | Recommended Tester Type | Key Features | Price Range |
|---|---|---|---|
| DIY Home Use | Basic analog or LED tester | Simple interface, portability | $20–$50 |
| Garage Technician | Digital multibrand tester | Auto-detect, OLED screen | $80–$150 |
| Performance Tuning | High-precision programmable tester | Voltage profiling, logging capability | $200–$400 |
| Fleet Maintenance | Industrial-grade tester | Durability, wide compatibility | $400+ |
DIY Guide to Replacing Spark Plug Coils
Replacing spark plug coils is a straightforward maintenance task that can significantly improve your vehicle's performance and fuel efficiency. Faulty ignition coils can cause misfires, rough idling, and poor acceleration. This guide provides a detailed walkthrough of the process to help you confidently replace your spark plug coils at home with basic tools.
Safety Warning: Always disconnect the battery before working on electrical components. Allow the engine to cool completely before starting to avoid burns or injuries.
Understanding Spark Plug Coils
Spark plug coils are essential parts of your car’s ignition system. They convert the battery’s low voltage (12 volts) into the high voltage (thousands of volts) needed to create an electric spark in the spark plugs. This spark ignites the fuel-air mixture in the engine cylinders. Over time, coils can wear out due to heat, vibration, or electrical overload.
Pro Tip: Before replacing the coils, consider testing them with a multimeter to confirm they are faulty. However, if your check engine light indicates coil-related trouble codes (like P0300–P0306), replacement may be necessary without further testing.
Step-by-Step Replacement Process
- Turn Off the Car
Ensure the vehicle is parked on a level surface and turned off. Engage the parking brake for added safety. Wait for the engine to cool down to prevent any risk of burns during the process.
- Disconnect the Battery
To prevent accidental short circuits and ensure safe handling, locate the negative terminal of the battery and use a wrench to loosen and remove the cable. Keep it away from the terminal until reinstallation is complete.
- Remove the Old Spark Plug Coils
- Locate the spark plug coils—these are typically mounted directly above each spark plug on top of the engine.
- Carefully unplug the electrical connector by pressing the tab and pulling straight up.
- Use a socket wrench or screwdriver to remove the bolts securing the coil to the engine.
- Gently pull the coil upward to remove it from the spark plug. If it feels stuck, twist slightly while pulling to release it.
Note: Take photos or label connectors as you remove them to make reassembly easier.
- Install the New Spark Plug Coils
- Take the new coil and ensure it matches the old one exactly in shape, size, and connection type.
- Align it over the spark plug and press it down firmly until it clicks into place.
- Secure the coil using the original mounting bolts and tighten them evenly but do not overtighten.
- Reconnect the wiring harness securely, making sure it clicks into place.
Tip: Apply a small amount of dielectric grease inside the boot of the coil before installation to improve conductivity and reduce corrosion over time.
- Reconnect the Battery
Once all coils have been replaced, reconnect the negative battery cable and tighten it securely. Double-check that all connections are tight and there are no loose tools near the engine bay.
- Start the Car and Test
Start the engine and listen for smooth operation. There should be no misfires, hesitation, or unusual noises. If the check engine light was previously on, it may reset after a few driving cycles. If issues persist, double-check connections or consult a mechanic.
| Phase | Key Actions | Common Mistakes | Tools Required |
|---|---|---|---|
| Preparation | Turning off the car, cooling the engine, gathering tools | Rushing the process without waiting for the engine to cool | Socket set, wrench, gloves, safety glasses |
| Disconnection | Removing connectors and bolts carefully | Forgetting to label connectors or dropping screws | Trim tool, marker, magnetic tray for screws |
| Installation | Installing new coils properly, applying dielectric grease | Using incorrect torque or mismatched coils | New OEM or high-quality aftermarket coils, dielectric grease |
| Testing | Reconnecting battery and starting the engine | Not checking for error codes post-installation | OBD-II scanner (optional), owner’s manual |
Maintenance Tip: While replacing the coils, take the opportunity to inspect your spark plugs. If they appear worn or fouled, consider replacing them at the same time to maximize engine performance.
Conclusion
Replacing spark plug coils is a cost-effective way to maintain your vehicle’s performance and reliability. With this step-by-step guide, even novice DIYers can tackle the job successfully. Remember to work safely, follow manufacturer instructions, and test thoroughly after completion. Regular maintenance like this helps extend the life of your engine and keeps your car running smoothly for years to come.
Spark Plug and Ignition Coil Testing FAQ
A1: Using a spark plug coil tester is a simple but critical process for diagnosing ignition system issues. Begin by ensuring the engine is turned off and the key removed from the ignition to avoid accidental starts. Locate the ignition coil or coils – on modern vehicles, each cylinder may have its own coil pack.
- Disconnect the coil connector: Carefully unplug the electrical connector from the ignition coil.
- Attach the tester: Connect the spark plug coil tester according to the manufacturer’s instructions. Typically, this involves connecting the alligator clip to a good ground point (like the vehicle chassis) and placing the probe end where the spark would normally occur.
- Crank the engine: While observing safety precautions, crank the engine without starting it. The tester should light up or produce a visible spark if the coil is functioning properly.
- Interpret results: A bright blue spark indicates a healthy coil. A weak yellow/orange spark or no spark at all suggests a faulty coil that needs replacement.
Always consult your vehicle's service manual for specific testing procedures and safety recommendations before performing any diagnostics.
A2: Yes, there are alternative methods to test a spark plug without specialized tools, though they come with risks and limitations. One common method involves removing the spark plug from the cylinder head and reconnecting it to the ignition coil while grounding the metal body of the plug against the engine block. Then, crank the engine and observe if a spark jumps across the electrode gap.
However, this method poses several potential issues:
- Risk of electric shock due to high voltage
- Potential damage to the ignition system if not done correctly
- Inaccurate readings due to environmental interference
- Safety hazards from rotating engine components
For reliable, safe, and repeatable results, it's highly recommended to use a dedicated spark plug coil tester or multimeter. These tools provide more accurate diagnostics without exposing you to dangerous voltages or risking damage to sensitive electronics.
A3: Spark plug coil testing should be integrated into both scheduled maintenance routines and troubleshooting protocols. Here's a recommended testing schedule:
- Every 30,000 to 50,000 miles: As part of comprehensive ignition system inspection
- During tune-ups: Especially when replacing spark plugs
- When experiencing performance issues: Including misfires, rough idling, hard starts, or decreased fuel economy
- After major electrical work: Such as alternator or ECU replacement
- Before emissions testing: To ensure optimal combustion efficiency
Modern vehicles with COP (Coil-On-Plug) systems may require more frequent inspections due to their exposure to heat and vibration. Regular testing helps prevent unexpected breakdowns and maintains peak engine performance.
A4: Recognizing the symptoms of a failing ignition coil can help prevent more serious engine damage. Key indicators include:
| Symptom | Description | Possible Consequences |
|---|---|---|
| Engine Misfires | Irregular combustion causing hesitation or jerking during acceleration | Increased emissions, catalytic converter damage |
| Rough Idle | Uneven engine vibrations when stationary | Excessive wear on engine mounts and components |
| Hard Starting | Difficulty starting the engine, especially in cold conditions | Battery drain, starter motor strain |
| Check Engine Light | Illuminated warning light with stored diagnostic trouble codes | Limited engine power ("limp mode") activation |
| Fuel Odor | Smell of raw gasoline from exhaust due to incomplete combustion | Environmental pollution, wasted fuel |
| Poor Fuel Economy | Noticeable increase in fuel consumption | Higher operating costs over time |
If multiple symptoms appear simultaneously, immediate diagnosis is recommended to prevent secondary damage to oxygen sensors, catalytic converters, or engine components.
