About tft lcd touch panel display with 45 pin

Types Of TFT LCD Touch Screen Display With 45 Pins

Depending on the requirement, there are various types of TFT LCD touch panels available. They possess various characteristics, including screen size, color capability, resolution, and touch technology. All these features make them suitable for a particular application.

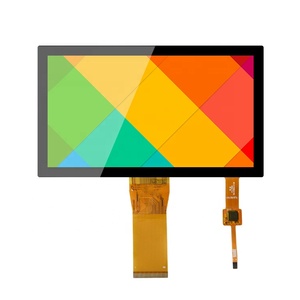

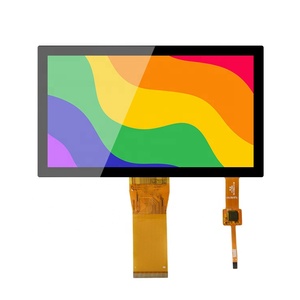

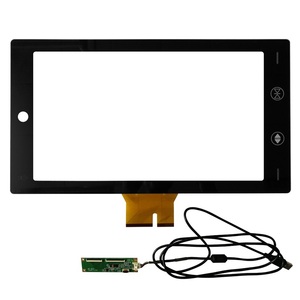

Capacitive Touch Panel

A capacitive touchscreen TFT LCD display is made of glass and is very durable. It is highly responsive compared to other types. Due to its high sensitivity and support for multi-touch gestures, it is commonly used in smartphones, tablets, and other portable devices.

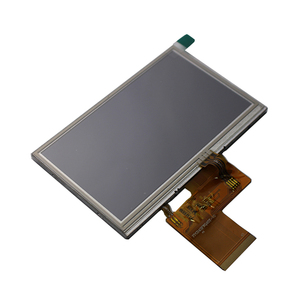

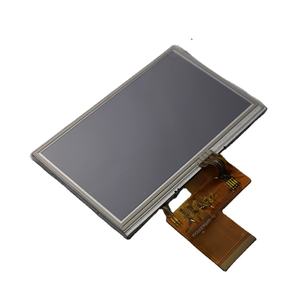

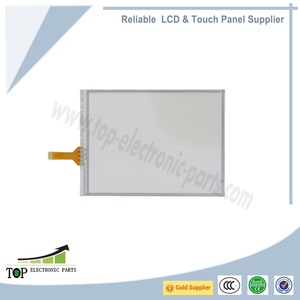

Resistive Touch Panel

A resistive touch panel is constructed of two layers of conductive material. When pressure is applied, the two layers touch each other, completing the circuit. It is less costly than a capacitive screen and less sensitive. This screen supports a single touch and is compatible with styluses, gloves, and bare hands. It is often used in industrial applications and devices in healthcare and manufacturing.

In-cell Touch Technology

In-cell touch technology integrates the touch sensors directly into the LCD layers. It improves the display's thinness and lightness. This technology is used in high-end smartphones and tablets where less form factor and high display quality are necessary.

Edge- Bonded Touch Panel

An edge-bonded touch panel has a durable bonding between the touch glass and the LCD, which supports greater robustness. It is ideal for devices needing additional durability, such as outdoor displays and industrial monitors.

Active Digitizer

Active digitizers work with special pens that have a coil inside, which interacts with the screen's embedded grid. This type of touch panel is known for its precision and is widely used in graphic tablets and professional drawing devices.

Specifications And Features Of TFT LCD Touch Screen Display With 45 Pins

When sourcing a product, one needs to pay close attention to its specifications and features. For example, an LCD's resolution can tremendously affect the image's clarity, while its response time can influence interactivity. Below are some of the common specifications and features of TFT LCD touch screen displays with 45 pins.

  • Screen Size: These panels come in various dimensions. The most common sizes are 3.5 inches to 15 inches diagonally, though larger and smaller variants are available. The screen size greatly impacts the application. For example, small screens are suitable for compact devices. On the other hand, large screens suit industrial and commercial environments.
  • Resolution: Resolution refers to the number of pixels on the screen. Thus, it determines the sharpness of the images and text displayed on the panel. Common resolutions for these touch panels include 480 x 320, 800 x 480, and 1920 x 1080. Higher resolutions mean more detailed displays, which are suitable for applications requiring clear graphics.
  • Interface: The 45 pins in the TFT LCDs are for connecting the touch panel and the display to the controller boards. This LCD touch panel is usually compatible with various microcontrollers and single-board computers by supporting different interfaces, such as HDMI, MIPI, and parallel interfaces.
  • Brightness: The brightness level of the touchscreen is measured in nits. A higher brightness level is suitable for devices used in well-lit conditions or outdoors, where visibility may be hard. For example, most 45-pin TFT LCDs have 300 to 700 nits.
  • Response Time: The screen response time shows how fast the screen can change from one image to another. It is evaluated by the time it takes for a single pixel to switch from active to inactive (on/off). Lower response times give better performance when watching videos or playing games. Thus, it is ideal for applications with a lot of motion.
  • Viewing Angle: The viewing angle indicates the screen's clarity from different angles. Thus, a good viewing angle means that users can see the screen well from various positions. Wide viewing angles are critical for collaborative applications or those where multiple users will gather around the screen.

Commercial Uses Of TFT LCD Touch Screen Display With 45 Pins

The TFT LCD monitor with 45 pin touchscreens are known for their high resolution, touch sensitivity, and quick response time, making them beneficial for commercial use. Below are some common applications.

Smartphones and Tablets

Smartphones and tablets are the most common application areas suited for these touch screens. Due to their compact design and high interactivity, they enable intuitive navigation, enhancing user experience in mobile computing.

Industrial Control Panels

In manufacturing and other industrial areas, the touch screen panels are used to monitor and control complex machinery and systems. Their durability and reliability make them fit for demanding industrial conditions.

Medical Devices

In medical equipment like diagnostic machines and patient monitoring systems, these touch panels offer clear data visualization and easy interaction. It makes operating critical equipment in healthcare environments easy.

Point-Of-Sale Systems

The displays are often employed in retail and hospitality to create interactive POS systems. This use enhances transaction speed and customer engagement with more intuitive interfaces.

Automotive Displays

These 45-pin touch displays are greatly employed in modern vehicles for infotainment systems, navigation, and instrument clusters. Their clarity and touch interactivity enhance the overall driving experience.

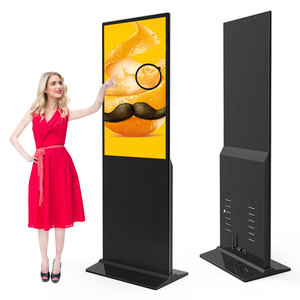

Digital Signage

They are also mounted in digital signage applications where businesses display advertisements, information, and interactive content. Their robustness and visual appeal attract users and effectively convey information.

Aerospace and Defense

These displays in defense and aerospace applications provide critical flight data, navigation, and control information. Reliability and performance under extreme conditions are vital for safety in military contexts. Therefore, only the most durable screens are used.

How To Choose The TFT LCD Touch Panel Display With 45 Pins

There are several factors to consider when sourcing touch screens in bulk. Below are some of those factors.

Compatibility

Different 45-pin TFT LCD touch panels have different degrees of circuit board compatibility. For example, some touch panels communicate via the parallel interface, while others use the MIPI interface. Others are adaptors, which modify the interfaces to make the screens compatible with various boards.

Applications

Different touch screens suit several applications. For instance, resistive touch panels work well in the industrial and commercial industries. It is because these environments frequently require knowledge with stylus or gloved hands. On the other hand, capacitive touch screens offer smooth multitouch experience. This feature makes them more suitable for consumer electronics like smartphones and tablets, which demand high responsiveness.

Durability

Apart from general features, one should also consider how well a touchscreen will last in different environments. Features like edge-bonding and in-cell touch help make the screens stronger and better, especially for outdoor or industrial uses.

Resolution and Size

In display technology, both resolution and screen size are critical. High resolutions provide clear, sharp images, while large screens offer more visual data. Therefore, it is important to choose a screen that meets the clarity and size needs of the end project. Also, consider the aspect ratio to ensure the screen fits appropriately in the designated space.

Brand Reputation

At times, the various specifications of a product may not guarantee quality. Therefore, one should also look at the manufacturer's reputation. Brands that have been producing these 45-pin displays for a long time and have positive reviews are likely to provide reliable products.

Q&A

Q1: How does a capacitive touch screen panel work?

A1: Capacitive touch screen panels detect electrical charges from the human body. They then provide a responsive and smooth user interface, ideal for modern smartphones and tablets.

Q2: What are the benefits of edge-bonded touch panels?

A2: The edge-bonded touch panels have a strong and sleek design. This feature makes them more durable and visually appealing for applications requiring a robust and stylish interface.

Q3: How does an in-cell touch panel work?

A3: In-cell touch panels incorporate touch sensing into the LCD layers, creating a slimmer and more lightweight display without sacrificing touch sensitivity. This feature makes them ideal for high-definition screens.

Q4: Are 45-pin displays suitable for gaming applications?

A4: Yes, the displays' high resolutions, quick response times, and touch interactivity make them suitable for an extensive range of gaming applications, enabling smooth and engaging game experiences.
