Load cells are widely used in weighing and the measurement of weight or force. They are a vital part of weight scales, which translate a physical force into an electrical signal.
Strain Gauge Load Cells - This type of load cell deformation is measured using strain gauge load cells. In practice, they are the most widely used load cells. Strain gauges are fixed on metal structures by bending or stretching. The resistance of the strain gauge changes when the structure changes. This is then translated to produce a variable electrical signal, which is indicative of the measured weight. Here, a temperature-correcting element is attached to maintain constant readings even with changing temperatures. This type of load cell is found in the majority of commercial scales and industrial weighing equipment.
Hydraulic Load Cells - Hydraulic load cells use a fluid-filled actuator instead of a strain gauge. They are typically more resilient than analog counterparts. These load cells weight pressure changes in a cylinder or a pressure-transmitting liquid's change in weight. The cells measure the weight applied to them. The greater the weight, the greater the pressure, and the greater the liquid's height in the cylinder will be. The results are then interpreted to obtain the weight. Rarely used include construction sites or stockpiles.
Compression Load Cells - These are specially designed to measure axial compressive forces. They are T-shaped structures or cylindrical in form. They are the same as the previous types of load cells in that they feature strain gauge technology embedded within them. Industrial weighing applications may be found not only in silos, hoppers but also in scales used for truck weighing in freight. They provide strong configurations, especially for installations that require little space horizontally but much space vertically.
Tension Load Cells - Tension load cells, otherwise called tension and compression load cells, measure through the tensile force. Such load cells will consist of a U form or an S form. They work well in contexts where forces along a line can be experienced, like hanging scales or in mechanical testing devices. Such load cells would integrate strain gauges for measuring deformation, just like the compression type does.
Canister Load Cells - Canister load cells, also known as bellows load cells or load pin cells, look like a cylindrical pressure can overshadow the design of the cell. The structure is designed to accommodate both compression and tension forces. Canister cells provide excellent stiffness and consistent performance in their measurements. We find these load cells in bulk material containers and heavy machinery used in industrial processes.
The choice of load cell is crucial to the accuracy and reliability of the weighing system, given the variety of load cells available to wholesalers.
Accuracy and Capacity - A specific application load cell should be selected based on loading capacity. The accuracy of the load cell can be determined by its weight range. Accuracy may be compromised if the load cell is rated too high for low loads or too low for high loads. The application requirements must be closely matched with the cell's rated capacity to ensure optimal performance. Use a strain gauge load cell for the best accuracy if you need greater precision.
Environment and Conditions - The environment in which the load cell functions must also be considered. Consider temperature, humidity, corrosive substances, or electromagnetic abnormalities in the environment. The seal level of the load cell helps withstand dust, moisture, or extreme temperatures. Examples of load cells may use weatherproof load cells or load cell isolating mounts for outdoor use. For hydraulic load cells, environmental stress will not damage them.
Output and Compatibility - Load cells differ in various output types, such as mV/V and 4-20mA. This means that such cells have to be compatible with the existing measurement electronics and data acquisition systems. Strain gauge load cells are complex and need more equipment to amplify and process the output. However, hydraulic load cells generate much simpler outputs that can be easily processed. The electrical output of the load cell must align with the user's system for consistent integration.
Form Factor - The load cells also differ in shape and form. Size can significantly affect ease of installation and use. Compression load cells are ideal for tight spaces in an industrial system. On the other hand, canister load cells will fit large spaces due to their size. The application environment must also consider this regarding feasible installation.
Cost and Application - The cost of the load cells can differ widely based on their types and features. Specialized applications such as off-road, high temperature, or explosion conditions will use a more expensive load cell designed for those applications. Routine commercial applications require economical load cells, such as strain gauge types. Choose load cells based on specific industry requirements.
Weighing and Filling in Industry - Industries like food, chemicals and pharmaceuticals use load cells in weighing systems to measure quantities of ingredients accurately. This brings consistency in product quality and reduced waste. They help industries control costs and ensure compliance with regulations associated with their industry by making sure the right amounts are used.
Management of Bulk Materials - Load cells do reside in silos and hoppers that are used for storing bulk materials in industrial settings. They help to monitor the levels of materials and thus provide crucial information for production planning. With the help of these load cells, businesses avoid shortages or overstocking and help maximize operational efficiency.

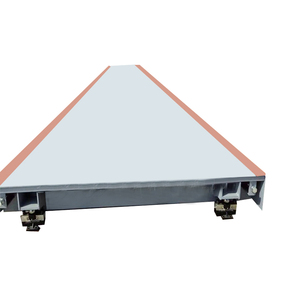

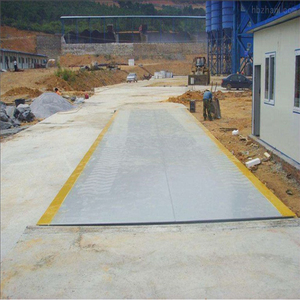

Vehicle and Asset Weighing - In logistics and transportation, truck scale load cells weigh incoming and outgoing trucks to ensure optimum weight limits are not exceeded. They are therefore involved in the prevention of dangerous overloading. These load cells also help companies save money by knowing the precise load a vehicle carries to optimize delivery routes. Cost savings come from preventing fines as well as improving resource use.
Equipment and Product Pricing - Load cells can be found in retail systems used for pricing items based on their weights. Grocery stores, for instance, employ load cells to price fruits and meats where weights matter. Quick and accurate prices create load cells, enhancing the customer service experience and increasing business revenues.
Machine Protection - Load cells also contribute positively to industrial machinery by preventing overloading of mechanical systems. They monitor forces in dynamic systems and provide inputs for control systems to avoid damage. This proactive protection boosts system reliability and thus leads to expensive repairs or downtime.
Precise specifications and routine maintenance make load cells work consistently in critical weighing applications.
Common specifications of load cells include rated capacity, output sensitivity, and operating temperature range. Key specifications of load cells include tensile strength (or) rated capacity, sensitivity output (mV/V) and operational temperature range. The rated capacity refers to the maximum weight the cell can measure without breaking. Output sensitivity indicates the electrical signal strength generated per unit of weight.
Other parameters include hysteresis and non-linearity. Hysteresis is the cell's ability to return to its original state after being overloaded. Non-linearity is the deviation from a linear relationship between output and input. This means that load cells feature compensation resistors that help eliminate changes caused by temperature. In addition to this, such temperature-correcting elements help maintain constant readings even when temperatures fluctuate. Install additional temperature-correcting elements on the load cells to maintain constant readings even with changing temperatures. Furthermore, overload protection designs like safety factors and mechanical stops prolong the life of load cells by preventing damage due to excessive weights. The overload protection may include features like mechanical stops or safety factors, which prolong the cell's life by protecting it against excessive weights.
Maintenance practices of load cells begin with routine checks for external damage. Physical impacts, moisture ingress or corrosion may affect the cell's performance. Daily inspection of electrical connections is important as loose wires may bring inconsistent signals. Wire harnesses should be checked for cracks, fraying or exposed conductors. Only clean, soft materials should be used to clean load cells.
Calibration must be done on a regular basis, and this is mostly after long use or after installation in new work environments beyond those normally experienced. Follow standard calibration procedures that employ known weights or reference standards. It is also necessary to regularly check for moisture ingress between the load cell and the mounting hardware. Water, dust or other contaminants in the surrounding environment can be sealed by the maintenance of proper sealing. This will, in fact, help prevent interference with the internal components. If the load cell has a hydraulic design, ensure there is a check for any leaks in hoses or fittings. The hydraulic system can also affect the accuracy of the cell.
Temperature changes may also affect load cell performance. Ensure proper installation in surroundings with extreme heat or cold exposure. Consider implementing a maintenance strategy that involves periodic verification of calibration and inspection during scheduled plant shutdowns.
A1: A strain gauge load cell works by measuring the strain on the cell body when external force or weight is applied. The internal structure bends or deforms as the weight changes. Fixed on this deformation are strain gauges. As mentioned earlier, these gauges are slender conductive wire pieces arranged in a gridwork pattern. Bending them changes their electrical resistance. Consequently, this resistance change is translated into a variable electrical signal by the load cell processing elements. This signal indicates the amount of weight measured.
A2: Temperature compensation in strain gauge load cells aims to avoid performance deviations due to temperature changes. A strain gauge's electrical resistance changes with temperature, even when no force is applied. It affects measurement accuracy. To counter this, temperature-correcting elements are fixed to the load cell in locations far from the strain gauges. They take on the temperature extremes while the strain gauges remain unaffected. This balance makes the strain gauge mimic behavior like exposure to temperature, thus enabling proper accuracy irrespective of the environmental condition.
A3: Hydraulic load cells also work by measuring pressure fluctuations in a fluid. Simply put, pressure is the weight. They tend to be strong and work under extreme conditions. One of the primary advantages of hydraulic load cells is that they are simple mechanically and relatively easy to install. They stand up readily to the elements. This makes them ideal for hostile environments, such as construction sites. Secondly, because they are pressure-based, they are less likely to develop as many errors as strain gauge-type load cells due to factors such as temperature.
A4: Calibration involves connecting a load cell to a measurement device and gradually applying known weights. Measuring the signals produced is important to record. This establishes a relationship between the weight and signal that requires correction. Corrections can result from factors like non-linearity, hysteresis or misalignment. The recorded data set is a polynomial function that describes how the output signal corresponds to input weight. Correction factors will be applied during operation to ensure measurements stay accurate.
