🔍 How to Find High-Quality Products?

This evaluation covers six verified suppliers based in China (Shenzhen, Dongguan, Hunan, Chongqing), all operating within the tungsten carbide cutting tools subcategory. All listed companies demonstrate compliance with standard industry practices, with at least three explicitly offering finished product inspection and customization services. While formal ISO/CE certification status is not directly stated in the dataset, the presence of structured quality assurance processes (e.g., ODM availability, minor/full customization, supplier assessment procedures) suggests mid-to-high-tier manufacturing standards typical of export-oriented Chinese factories serving global B2B markets.

📊 Supplier Comparison Summary

⚙️ How to Choose the Right Product?

📌 Product Parameter Comparison Table

Note: Hunan Speed and Chongqing Baiguan emphasize branded ZCC.CT-grade substrates, ideal for traceability and integration with existing tooling systems. Phipps and Ginley offer lower MOQs, making them suitable for trials. Chongqing Heqi specializes in challenging materials like stainless steel using PC9030/YBG205 grades.

📈 Performance Visualization & Interpretation

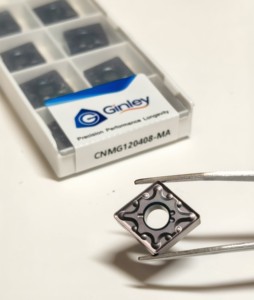

The radar chart compares two top performers: Zhuzhou Ginley excels in price competitiveness and response speed (rated 10/10), making it ideal for urgent procurement or small-batch testing. However, its material quality score is moderate due to generic grading. In contrast, Hunan Speed scores highest in customization (10) and material quality (9), suited for long-term contracts requiring strict specifications and durability. A short lead time with high MOQ (e.g., Hunan Speed’s 100-piece minimum) favors bulk buyers but may hinder agile prototyping. For stainless steel applications, Chongqing Heqi’s specialized inserts justify higher prices through extended tool life under abrasive conditions. Buyers must balance upfront cost against operational reliability and compatibility with existing CNC toolholders.

🧼 How to Use and Maintain?

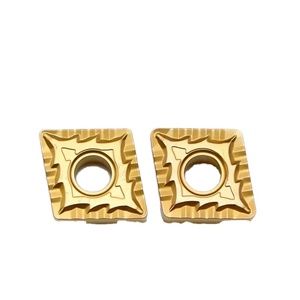

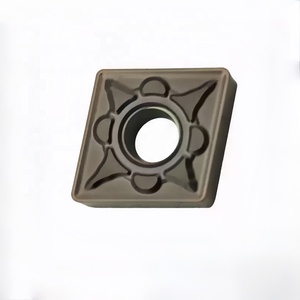

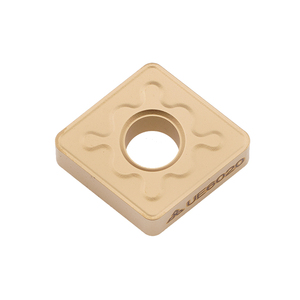

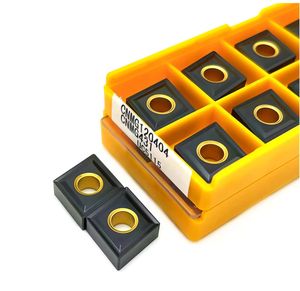

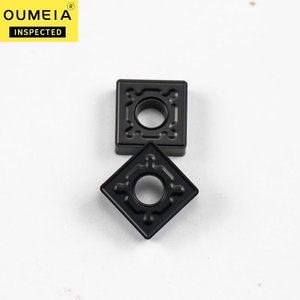

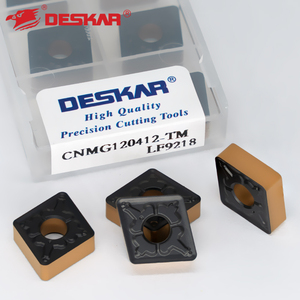

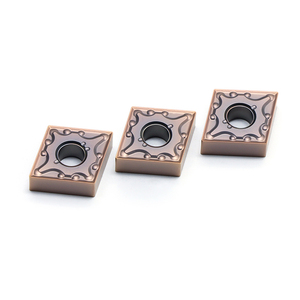

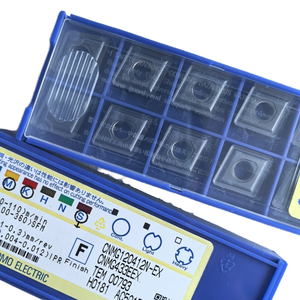

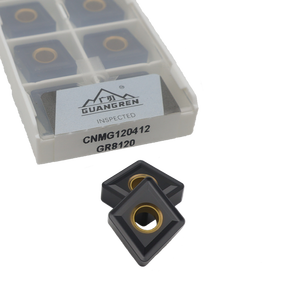

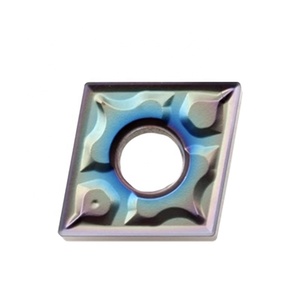

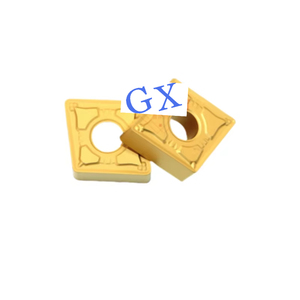

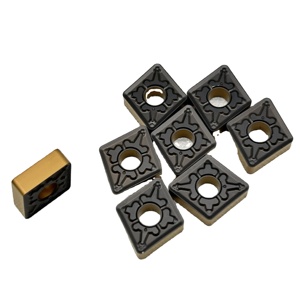

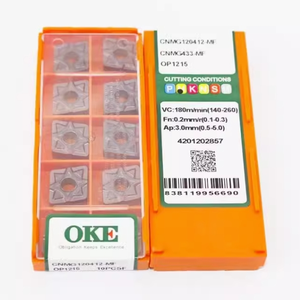

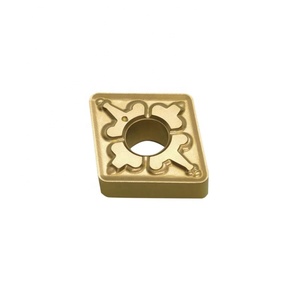

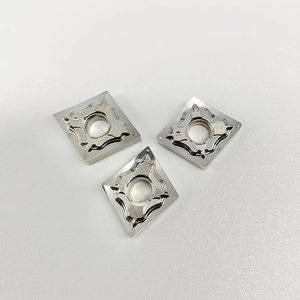

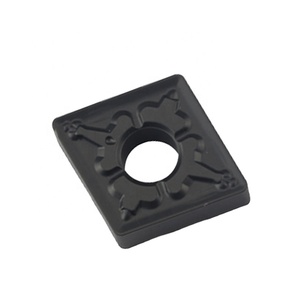

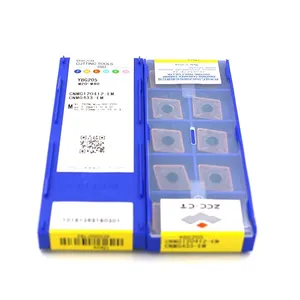

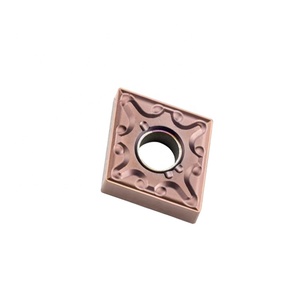

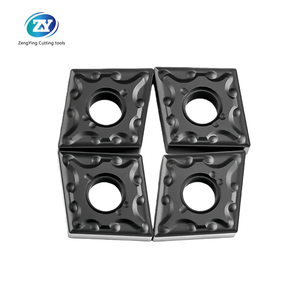

The CNMG120412 insert is designed for external turning operations on lathes, particularly effective for medium to heavy cuts on carbon steel, alloy steel, and stainless steel. Its 12.7 mm inscribed circle, 4.76 mm thickness, and 0° lead angle make it suitable for stable, continuous cutting rather than interrupted operations. Proper usage begins with selecting the correct holder (e.g., MTJNR/L type) that ensures secure clamping and optimal chip flow. Misalignment or loose clamping can cause chipping or premature wear.

In B2B industrial settings—such as automotive part manufacturing, aerospace component machining, or general mechanical repair shops—the CNMG120412 offers predictable tool life when operated within recommended parameters. For example, cutting speeds should range between 150–250 m/min for uncoated carbide and up to 350 m/min for coated variants (e.g., TiAlN). Feed rates typically fall between 0.1–0.3 mm/rev depending on depth of cut (1–4 mm). Exceeding these ranges leads to flank wear, cratering, or thermal cracking.

Seasonal variations affect coolant usage: during summer months or in hot environments, increased coolant concentration (8–10%) helps dissipate heat and prevent built-up edge (BUE). In winter, lower concentrations (5–7%) suffice and reduce misting. Regular inspection every 15–30 minutes during continuous operation allows early detection of wear patterns. Replace inserts when flank wear reaches 0.3 mm or visible cracks appear.

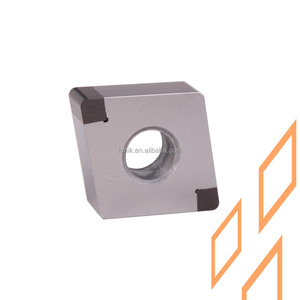

Maintenance involves post-use cleaning with a dry brush or compressed air to remove metal chips and coolant residue. Avoid water immersion unless immediately dried. Store inserts in sealed containers with desiccants to prevent oxidation. For regrinding, only certified facilities should handle coated inserts to avoid damaging the multi-layer coating. Upgrading to CVD-coated or ceramic-tipped versions extends life in high-temperature applications.

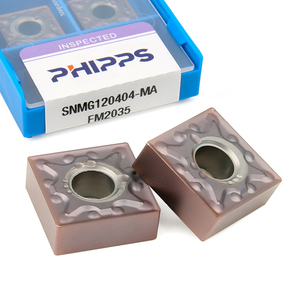

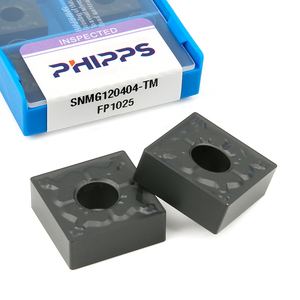

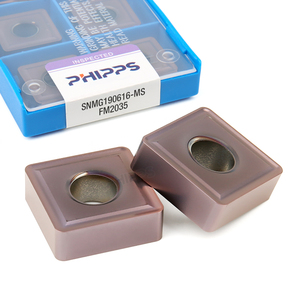

User feedback highlights that double-coated inserts (e.g., from Phipps or Hunan Speed) last 20–30% longer than single-coated equivalents under identical conditions. Factories report fewer tool changes and reduced downtime when using ZCCCT-branded substrates due to consistent geometry and hardness. End users also note smoother surface finishes when feed rates are optimized and rigid setups are maintained.

❓ FAQ

Are there platform guarantees for transaction security?

Yes, Alibaba.com offers Trade Assurance, which protects payments if products do not meet agreed specifications. Orders placed under this program are eligible for refunds or replacements.

What is the typical sample policy?

Most suppliers provide 1–5 free samples, with shipping costs borne by the buyer. Sample delivery usually takes 3–7 days via express courier.

Can I customize the insert grade or coating?

Yes, Hunan Speed and Chongqing Baiguan offer full customization including ODM services. Minimum order quantities apply (typically 1,000+ units).

How do I verify tool authenticity?

Look for laser-etched branding (e.g., ZCC CT, PHIPPS) and request material test reports. Reputable suppliers provide certificates upon request.
