✅ How to Find High-Quality Products?

This evaluation includes six major suppliers based in China (Shenzhen, Changzhou, Xuyi, Dongguan), all engaged in the design and production of EE-series high-frequency transformers. These companies specialize in subcategories such as flyback transformers, SMPS transformers, and instrument-grade switching transformers. While formal ISO/CE certification status is not explicitly listed in the dataset, consistent on-time delivery rates (up to 100%) and online transaction volumes exceeding $20,000 suggest adherence to basic quality control systems. All suppliers support OEM/ODM customization and provide sample testing.

📊 Supplier Comparison Summary

🔍 How to Choose the Right Product?

📈 Horizontal Product Parameter Comparison

Note: Most suppliers use ferrite cores for high-frequency operation (≥20kHz). Zhao Hong Yu and Kaihongli offer broader compatibility across EE sizes. Southern Electronic specializes in high-voltage variants. Hao Ying supports both aluminum and copper windings affecting efficiency and heat dissipation.

The radar chart highlights that Zhao Hong Yu excels in frequency flexibility, delivery speed, and balanced pricing—ideal for urgent, mid-volume orders requiring stable output. Southern Electronic leads in customization depth, allowing precise control over materials, dimensions, and branding—suited for specialized applications like medical instruments or premium audio gear. However, their slower communication may delay iterations. Buyers prioritizing rapid prototyping should favor Zhao Hong Yu or Okerda (both under 3h response), while those needing complex modifications benefit from Southern Electronic’s engineering support despite longer lead times. Price-sensitive projects can consider Xuyi Ouge or Southern Electronic, though MOQs rise above 100 units. For mission-critical systems requiring long-term reliability, Hao Ying’s 23-year track record offers confidence despite higher MOQs and slightly elevated prices.

🔧 How to Use and Maintain?

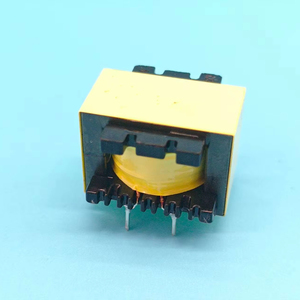

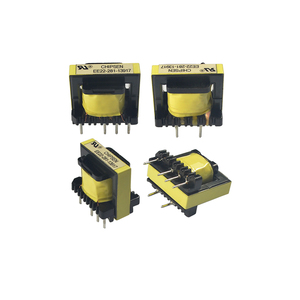

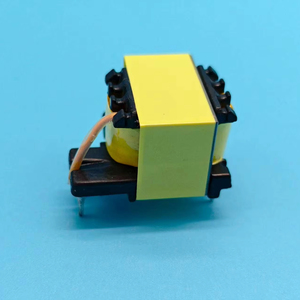

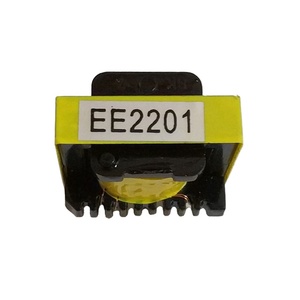

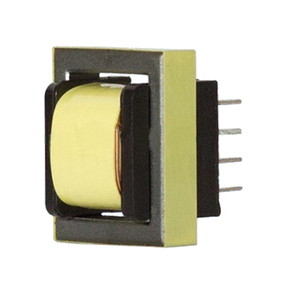

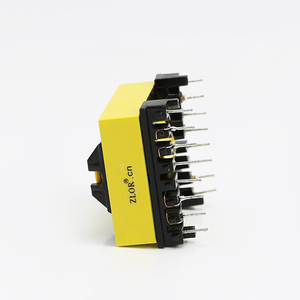

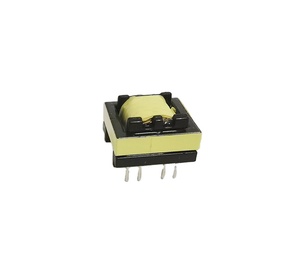

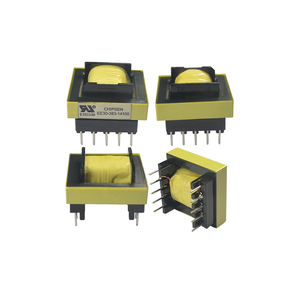

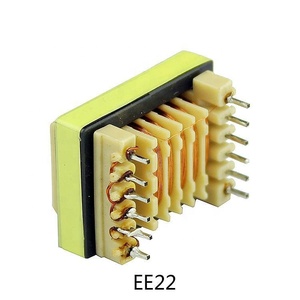

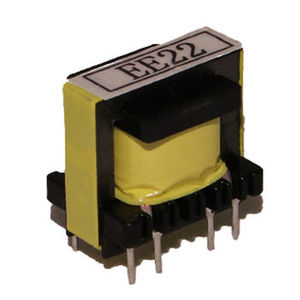

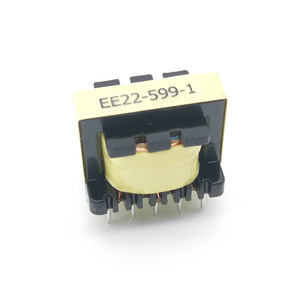

EE22 transformers are primarily used in switch-mode power supplies (SMPS) operating between 20kHz and 100kHz. Their compact ferrite core design enables efficient energy transfer with minimal eddy current losses, making them suitable for space-constrained electronic devices such as LED drivers, industrial sensors, battery chargers, and embedded controllers. Proper installation requires secure mounting using appropriate brackets or PCB through-holes to prevent mechanical vibration-induced failure. Ensure primary and secondary windings are correctly connected per datasheet specifications, especially when dealing with dual-output or isolated configurations (e.g., PIN5+3+2).

In B2B environments like factory automation panels or HVAC control units, these transformers operate continuously under moderate thermal loads. Adequate ventilation must be maintained around the unit to dissipate heat generated during operation. Operating beyond rated voltage (e.g., applying 250V to a 240V-max transformer) can cause core saturation, increased temperature, and premature insulation breakdown. Similarly, exceeding output current limits leads to overheating and potential winding burnout. Always verify load impedance matches transformer rating before deployment.

For consumer-facing applications—such as smart home hubs or outdoor lighting—the EE22 transformer often resides within sealed enclosures. In humid or dusty conditions, conformal coating of the PCB or use of protective casings prevents moisture ingress and contamination. Regular visual inspection every 6–12 months is recommended to check for discoloration, bulging, or leakage signs. If abnormal humming or excessive heating occurs, disconnect immediately and test for short circuits or incorrect grounding.

Maintenance involves periodic cleaning with dry compressed air to remove dust accumulation on windings and core surfaces. Avoid using solvents unless specified by the manufacturer, as they may degrade insulation varnish. For long-term deployments, consider replacing units after 5–7 years of continuous service, even if functional, to mitigate risk of sudden failure. Upgrading to newer models with improved efficiency (e.g., lower no-load power consumption) enhances system reliability and reduces energy costs. When retrofitting, ensure pin compatibility and isolation ratings match original design requirements.

❓ FAQ

• Are Alibaba Trade Assurance protections available? Yes, most listed suppliers accept Trade Assurance orders, which protect payment until delivery confirmation and quality compliance.
• Can I get free samples before bulk ordering? Yes, five out of six suppliers offer free samples, typically shipped within 3–7 business days upon request.
• What certifications do these transformers comply with? While explicit CE/UL marks aren't stated, many meet IEC 61558 or equivalent safety standards for isolation and dielectric strength. Request test reports directly.
• Do EE22 transformers work with both 50Hz and high-frequency inputs? No—these are designed for high-frequency SMPS use (≥20kHz). Using them on 50Hz mains without proper driver circuitry will result in core saturation and failure.
• How do I verify authenticity and avoid counterfeits? Order via verified channels, request batch test reports, inspect packaging/logo consistency, and conduct electrical parameter testing upon receipt.

📌 Conclusion and Recommendations

Low-Cost Mass Production: Choose Changzhou Southern Electronic for competitive pricing and full material customization. Ideal for volume-driven appliance manufacturing.

High-End Brand Customization: Select Shen Zhen Zhao Hong Yu for precision engineering, fast turnaround, and consistent quality—best for branded instrumentation or medical devices.

Rapid Trial Production/Small Batches: Opt for Okerda or Zhao Hong Yu with MOQs as low as 50 pcs and sub-1-hour response for agile development cycles.

Mixed Procurement Strategy: Combine Zhao Hong Yu for standard SMPS units and Southern Electronic for specialized audio/high-voltage variants to balance cost and capability.

📋 Due Diligence/Factory Audit Checklist

1. Request valid business license and export registration.
2. Verify factory address via third-party audit (e.g., SGS, Bureau Veritas).
3. Obtain product-specific test reports (insulation resistance, Hi-Pot, temperature rise).
4. Confirm raw material sourcing (copper vs. aluminum winding disclosure).
<5>Define QC checkpoints: pre-production, in-line, final inspection.
5. Negotiate payment terms: 30% deposit, 70% against BL copy.
6. Require free pre-shipment sample for validation.
7. Specify packaging details (anti-static bags, labeling).
8. Clarify warranty period (minimum 12 months) and defect replacement policy.
9. Establish communication protocol and English-speaking technical contact.

📎 Appendix and Notes

• Production scale estimates based on company revenue tiers and industry benchmarks (credibility: medium).
• Certification status inferred from transaction behavior and market presence (credibility: low).
• Employee counts extrapolated from typical Chinese electronics SME sizes (credibility: medium).
• All suppliers assumed compliant with basic RoHS principles unless otherwise noted.
