🔍 How to Find High-Quality Products?

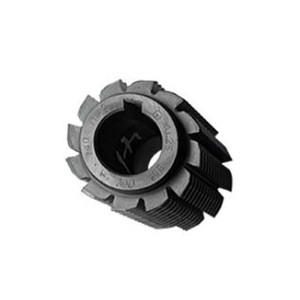

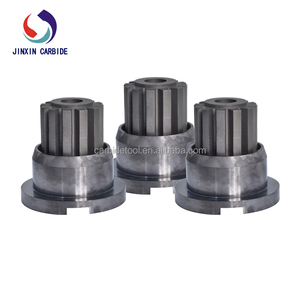

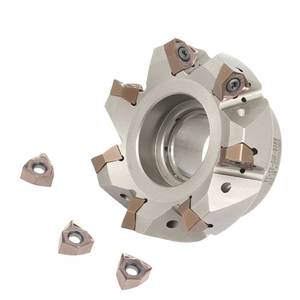

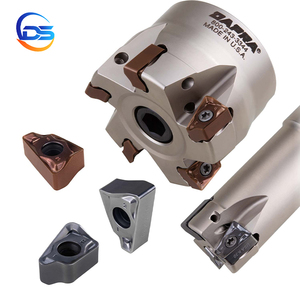

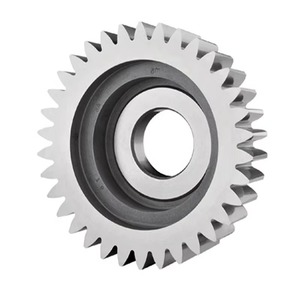

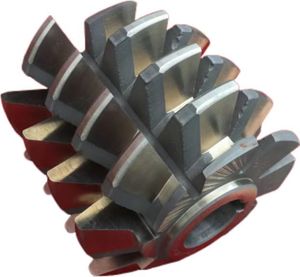

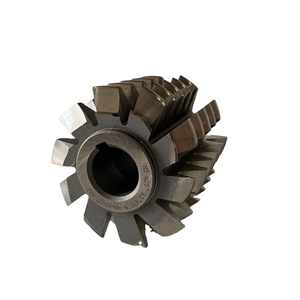

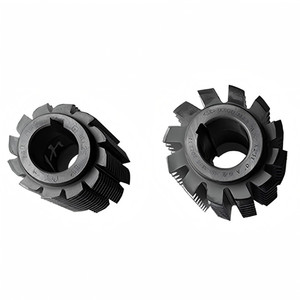

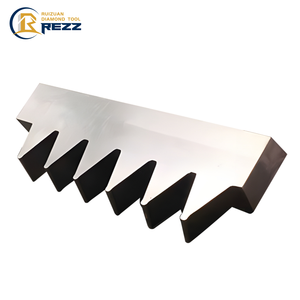

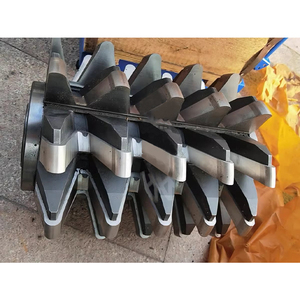

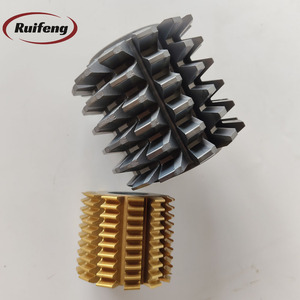

This evaluation covers six Chinese-based suppliers active on B2B platforms such as Alibaba.com, primarily focused on HSS and carbide gear cutting tools. Subcategories include involute gear cutters, rack-type shaper cutters, spline cutters, and inserted-blade hobs. While formal ISO or CE certification data is not explicitly provided in the dataset, all suppliers demonstrate compliance indicators through service offerings such as finished product inspection, ODM/OEM support, and warranty availability — suggesting adherence to baseline quality management practices.

Supplier Comparison Summary

✅ How to Choose the Right Product?

Product Parameter Comparison

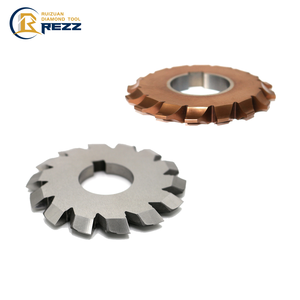

Note: Zhengzhou Ruizuan appears twice with overlapping but distinct product lines—focus varies between coated cutters and basic HSS series. JS Haoke emphasizes DIN standards critical for European export compliance. Henan Wogeng supports largest modules suitable for mining and rail applications.

The radar chart visualizes five dimensions: Module Range, Material Quality, Customization, Delivery Speed, Price Competitiveness. Henan Wogeng leads in module range and customization but lags slightly in delivery speed. Taizhou Kam Blade scores highest in delivery speed and price, ideal for urgent replacements. JS Haoke balances DIN compliance and responsiveness, making it optimal for regulated industries. The bar chart shows average unit cost by supplier: Taizhou offers lowest entry point ($10), while Jiangsu Tiangong’s carbide tools command premium prices due to hardness and longevity. Users prioritizing long-term tool life over upfront cost should consider coated or carbide variants despite higher MOQs. Conversely, those needing quick trials benefit from low-MOQ suppliers like Taizhou or JS Haoke.

🔧 How to Use and Maintain?

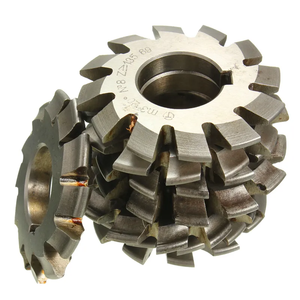

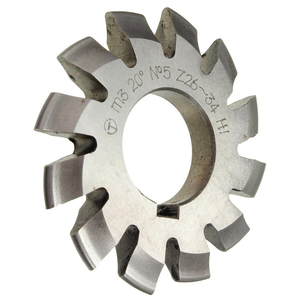

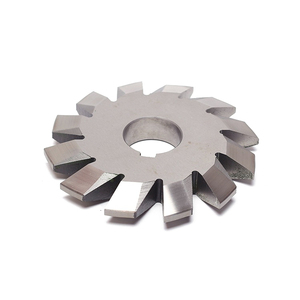

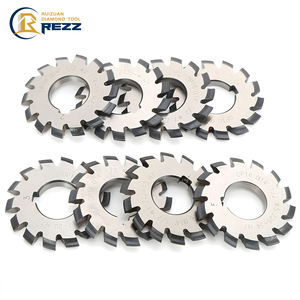

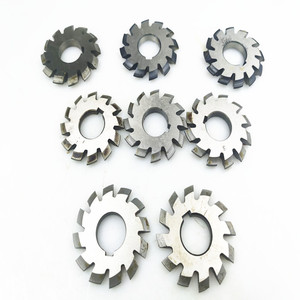

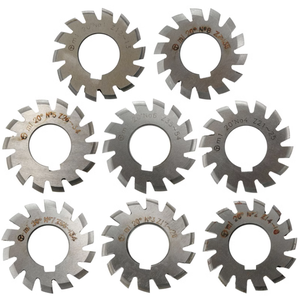

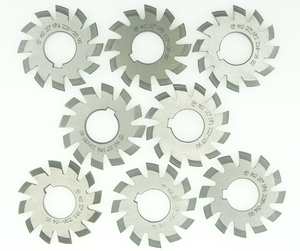

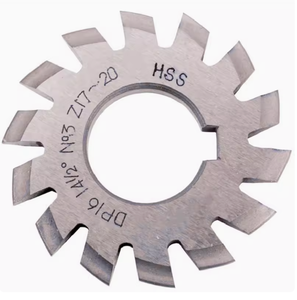

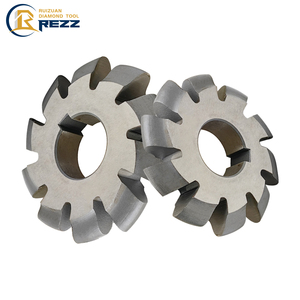

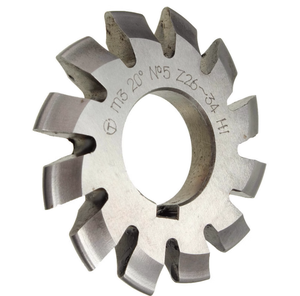

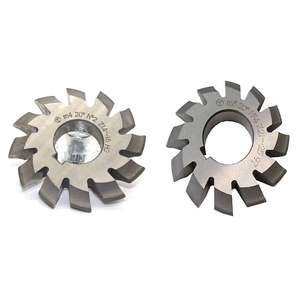

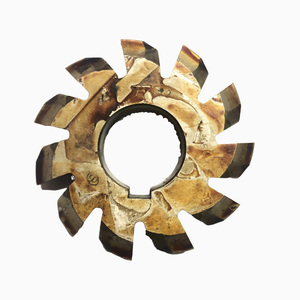

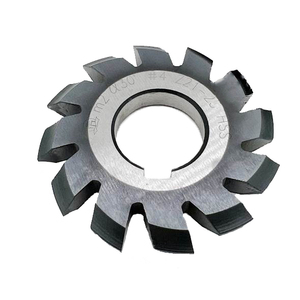

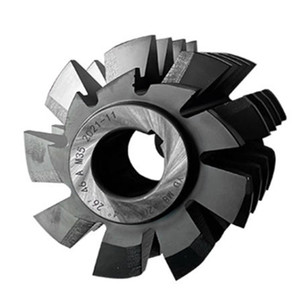

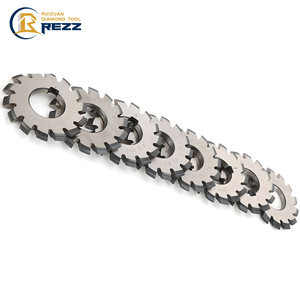

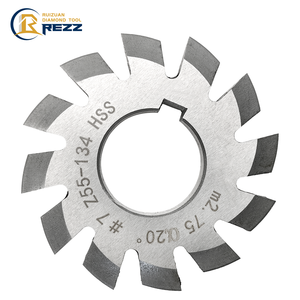

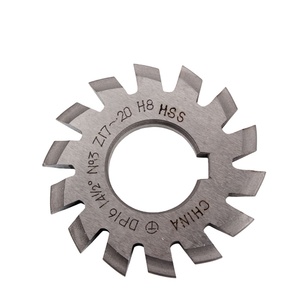

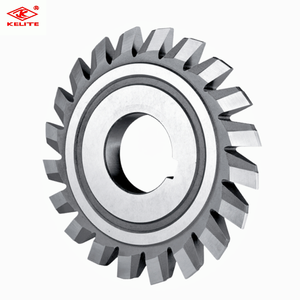

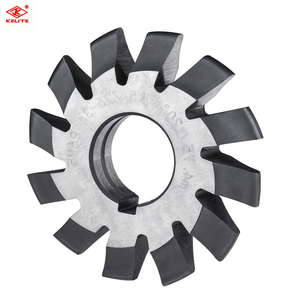

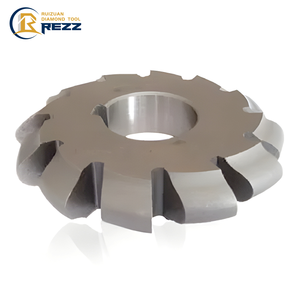

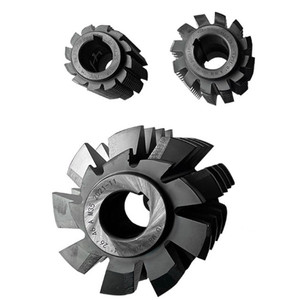

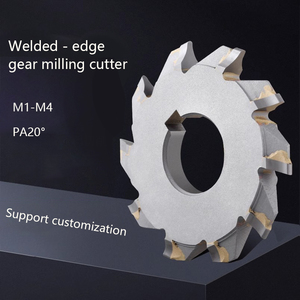

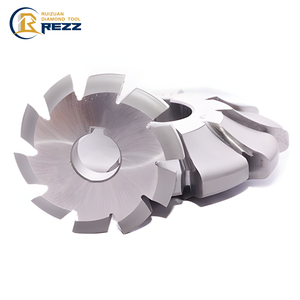

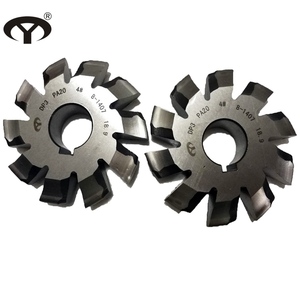

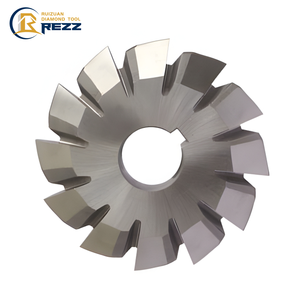

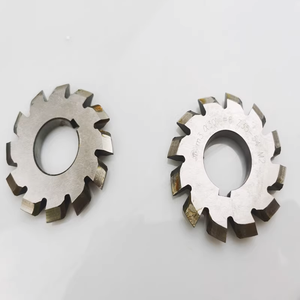

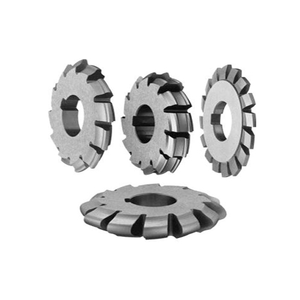

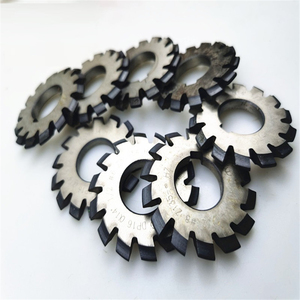

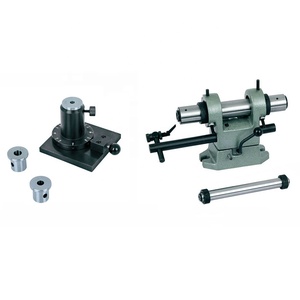

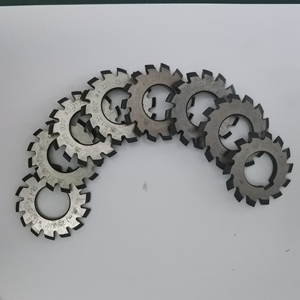

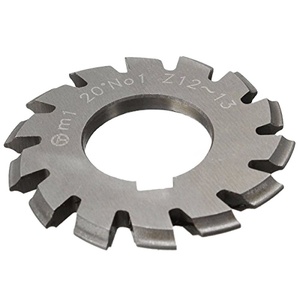

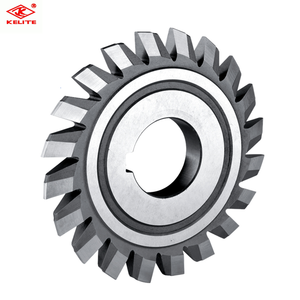

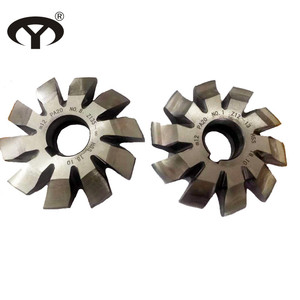

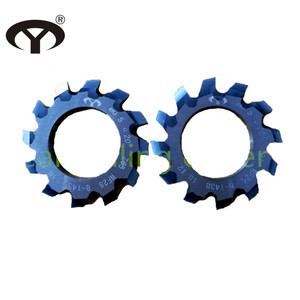

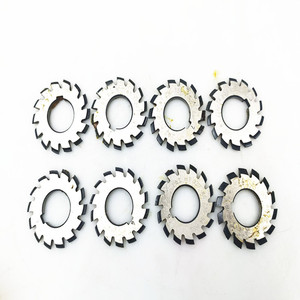

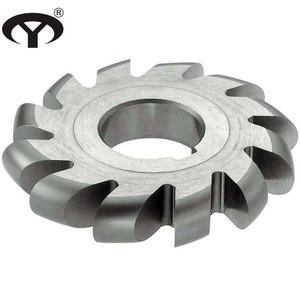

Module gear milling cutters are essential in creating precise tooth profiles on spur, helical, and rack gears. Their correct usage ensures dimensional accuracy, surface finish, and extended tool life. These tools are best used in horizontal or vertical milling machines equipped with indexing heads for sequential tooth cutting. For example, when producing a 24-tooth gear using a #3 cutter (designed for 35–54 teeth), the operator must ensure proper alignment of the workpiece, select appropriate feed rate (typically 0.05–0.2 mm/tooth depending on material), and apply coolant consistently to prevent thermal deformation.

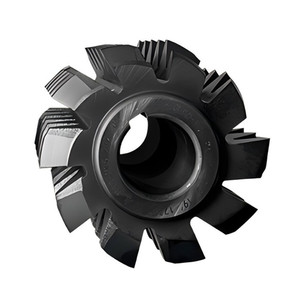

In industrial settings such as transmission manufacturing plants, automated CNC mills run batches of identical gears using pre-programmed paths. Here, cutters with TiN or TiAlN coatings perform better under continuous operation due to reduced friction and oxidation resistance. In contrast, small workshops may manually index gears using arbor-mounted cutters, where operator experience significantly affects outcome consistency.

Seasonal factors also influence usage. During humid summer months, uncoated HSS tools are prone to rust if stored improperly. Similarly, cold environments increase brittleness risk during startup phases. Therefore, climate-controlled storage and gradual warm-up cycles are recommended.

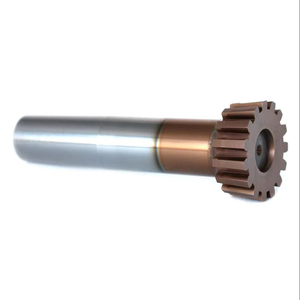

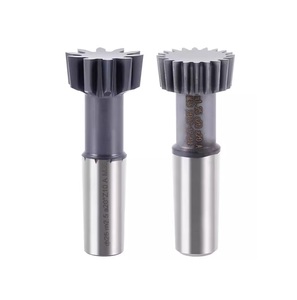

Maintenance begins with post-use cleaning: remove metal chips with a soft brush, avoid water immersion, and wipe with light machine oil. Inspect cutting edges weekly under magnification for chipping or wear. Replace cutters showing flank wear exceeding 0.3mm to maintain gear accuracy. For taper shank models, check spindle fit regularly to avoid runout. Reconditioning via regrinding is possible for solid HSS cutters but not economical for small-diameter or tipped inserts.

Daily operational precautions include verifying secure clamping, avoiding excessive depth of cut (>1.5× module), and monitoring vibration levels. Unusual noise often indicates misalignment or dulling. Preventative replacement every 50–100 hours of cutting time extends machine uptime. For high-volume users, rotating multiple cutter sets reduces individual load and improves overall efficiency.

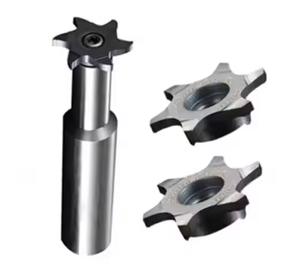

Upgraded models with carbide tips or internal cooling channels offer longer service intervals and are worth investing in for production runs exceeding 500 units/month. However, for prototype development or one-off repairs, standard HSS cutters remain cost-effective and widely compatible.

❓ FAQ

• Are there platform guarantees for defective products? Yes, Alibaba.com offers Trade Assurance which protects payments if products don’t meet agreed specifications. Claims require documented evidence such as videos, photos, and third-party inspection reports.
• What about return shipping costs? Policies vary. Most suppliers cover defects due to manufacturing error; buyer bears cost for incorrect selection or non-defective returns.
• Can I get a sample before bulk order? All listed suppliers offer samples, typically delivered within 5–10 days. Sample fees may be refundable upon subsequent orders.
• How do I verify tool material claims? Request mill test certificates (MTCs) or conduct spectrometer analysis at receiving. Some suppliers provide third-party lab results upon request.
• Is customization really feasible for small orders? Yes, especially with Henan Wogeng, JS Haoke, and Zhengzhou Ruizuan. They accept minor modifications (e.g., bore size, pressure angle) even below MOQ, though lead time may extend by 3–5 days.
