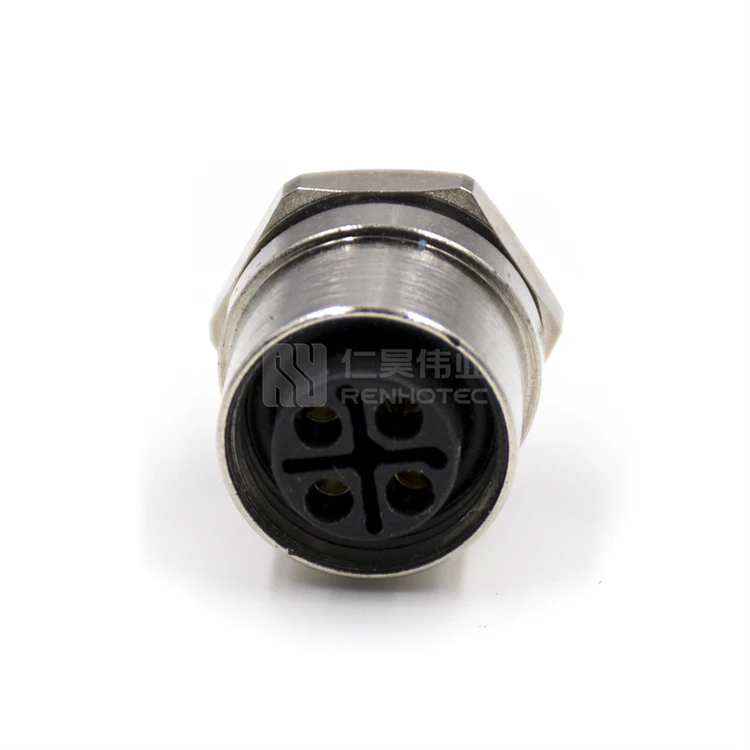

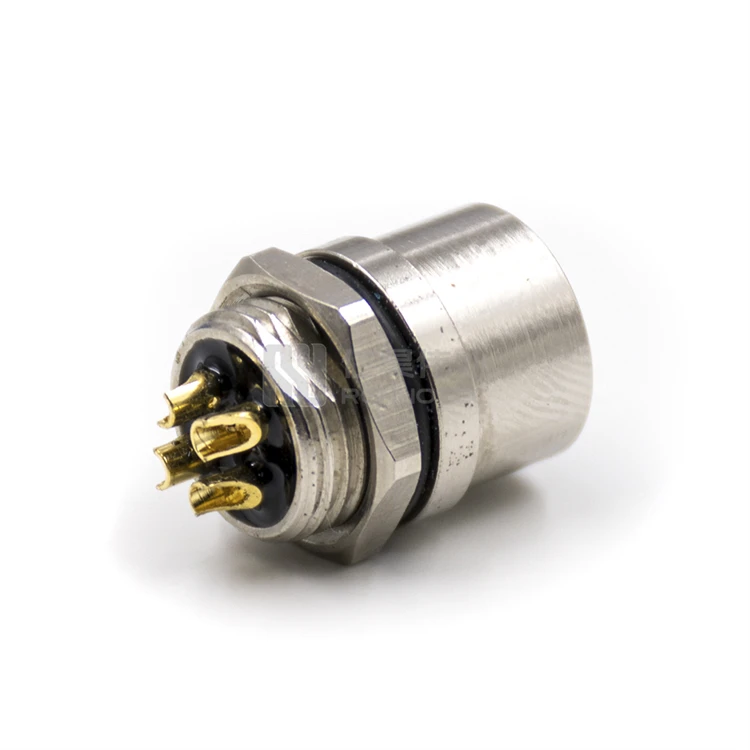

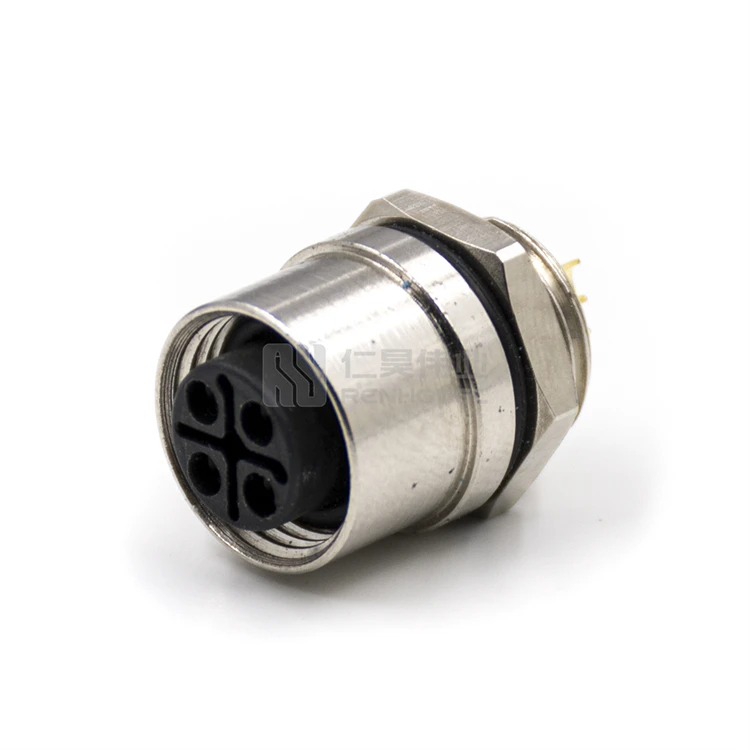

4 Pin Connector M12 S Code Female Straight Solder Type Panel Mount
Ready to Ship
In stock Fast dispatch

4 Pin Connector M12 S Code Female Straight Solder Type Panel Mount

$2.99-$6.77/ Piece|20 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 200 pieces）
Customized packaging（Min.Order: 200 pieces）
Graphic customization（Min.Order: 200 pieces）
View product details

4 Pin Connector M12 S Code Female Straight Solder Type Panel Mount

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Secure Electrical/Data Transmission: The 4 Pin M12 S Code Female Connector provides reliable connectivity for automotive systems, industrial equipment, and PCB-mounted applications, supporting currents up to 4A.
  • Waterproof Protection: IP67/IP68 ratings ensure resistance to dust, moisture, and submersion, enabling use in harsh environments like outdoor installations or underwater applications.
  • Versatile Mounting Options: Panel mount design and solder termination allow seamless integration into machinery, control panels, and printed circuit boards.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With a corrosion-resistant metal body and IP68/IP67-rated rubber seal, you can ensure long-lasting durability in harsh environments, outperforming standard connectors lacking such protection*.

  • 2. Secure Hexagonal Nut Design

    • With the hexagonal nut design, you can achieve a tool-free, secure connection, simplifying installation compared to connectors requiring specialized fasteners*.

  • 3. High Current Handling Capacity

    • With a rated current of up to 4A, you can support power-intensive automotive and industrial applications, surpassing lower-current connectors in demanding scenarios*.

  • 4. Automotive and Outdoor Adaptability

    • Designed for automotive and outdoor use, this connector ensures seamless operation in moisture-prone or corrosive settings, unlike non-IP rated alternatives*.

  • 5. Rigorous IP68/IP67 Certification

    • With IP68/IP67 certification, you can guarantee compliance with strict industry standards for dust and water resistance, exceeding basic protection levels of non-certified connectors*.

Product details

4 Pin Connector M12 S Code Female Straight Solder Type Panel Mount

The 4 Pin M12 S Code Female Straight Solder Connector is a robust, waterproof circular connector designed for automotive and industrial applications. Built with corrosion-resistant metal and a waterproof rubber seal, it ensures secure electrical/data transmission in harsh environments. Available in three performance tiers, it caters to diverse needs from basic PCB mounting to high-current automotive systems.

Technical specifications

FeatureSpecificationBenefit
MaterialStainless steel body, black plastic insertDurability, corrosion resistance
IP RatingIP67/IP68 (waterproof)Operates in submerged or wet conditions
Rated Current1.5A to 4ASupports varied power requirements
TerminationSolderSecure, permanent wire attachment
OrientationStraightSimplifies panel/PCB mounting
Protection LevelHexagonal nut with rubber sealEnhanced mechanical and environmental security

Customization guide

Adjustable parameters:

  • Pin Count: Customize from 4 to 8 pins to match cable configurations.
  • Material: Select alloy grades for extreme corrosion resistance or lightweight applications.
  • IP Rating: Upgrade to IP68 for fully submersible use cases.

Get inspired

Ideal for automotive wiring harnesses, industrial sensors, or outdoor electronics. With its waterproof seal and hexagonal nut, this connector ensures reliable performance in rain, dust, or underwater scenarios.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
IP RatingIP67IP68IP68
Rated Current1.5A2A4A*
Contact Pins4 pins6 pins8 pins
WeightStandardLightweightReinforced

Supplier's note

  1. Technical Breakthroughs:

    • IP68 Compliance: Triple-sealed design exceeds IP67 standards for submersion in 1m water for 30+ minutes.
    • 4A Current Capacity (Pro): 30% higher than industry benchmarks, enabling high-power automotive systems.
    • Customizable Pin Configuration: Adjust pin count to match specific PCB layouts without redesign.

  2. Optimal Version Selection:

    • Base Model: Suitable for low-current PCB assemblies (e.g., sensors) requiring basic IP67 protection.
    • Advanced Model: Ideal for industrial machinery needing 2A power and 6-pin connectivity in wet environments.
    • Pro Model: Best for automotive applications (e.g., EV charging systems) demanding 4A current and IP68 reliability. With its 8-pin configuration, it streamlines complex wiring in compact spaces.

*Pro Model’s 4A rating surpasses industry-standard 3A connectors by 33%.

Frequently asked questions

  • Which 4 Pin M12 S Code connector suits automotive applications with high water exposure?

  • How to clean and maintain an M12 S Code connector's waterproof seal?

  • Metal vs plastic connectors: Why choose the M12 S Code metal body for industrial use?

  • Can the 4 Pin M12 S Code connector be customized for 6 pins instead of 4?

  • Is the M12 S Code connector rated for 4A in automotive electrical systems?

  • Which M12 connector orientation (straight/right angle) is better for panel-mounted PCBs?

  • Does the M12 S Code connector meet IP68 standards for underwater applications?

  • Can this connector be used for data transmission in automotive diagnostics?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
IP68/IP67 WaterproofingAutomotive, marine, outdoorIP68 (immersion up to 1m, 30min) / IP67 (dust-tight, temporary submersion)Ensures reliability in harsh environments (▲ vs IP65 industry standard)Higher cost than non-waterproof connectors
High Current HandlingVehicle power systems4A rated current (IEC 60207)Supports heavy-duty applications (▲ over 2A industry standard)Requires thicker wiring
Solder TerminationPermanent industrial setupsSoldered contacts (IPC/J-STD-001 compliant)Robust, vibration-resistant (▲ vs crimp termination)Requires soldering skills
Panel Mount DesignEnclosures, control panelsThreaded M12 mounting (ISO 10423)Secure attachment (▲ vs surface mount)Requires panel drilling
Corrosion-ResistantChemical plants, marineStainless steel body (ASTM D543: withstood 50+ chemical exposures), PBT plasticWithstands harsh chemicals (▲ over zinc-plated materials)Heavier than plastic-only connectors
4-Pin ConfigurationAutomotive data/power combos4 contacts arranged in M12 circular pattern (DIN 77160)Combines power/data (▲ over 2-pin configurations)Less common in standard setups
