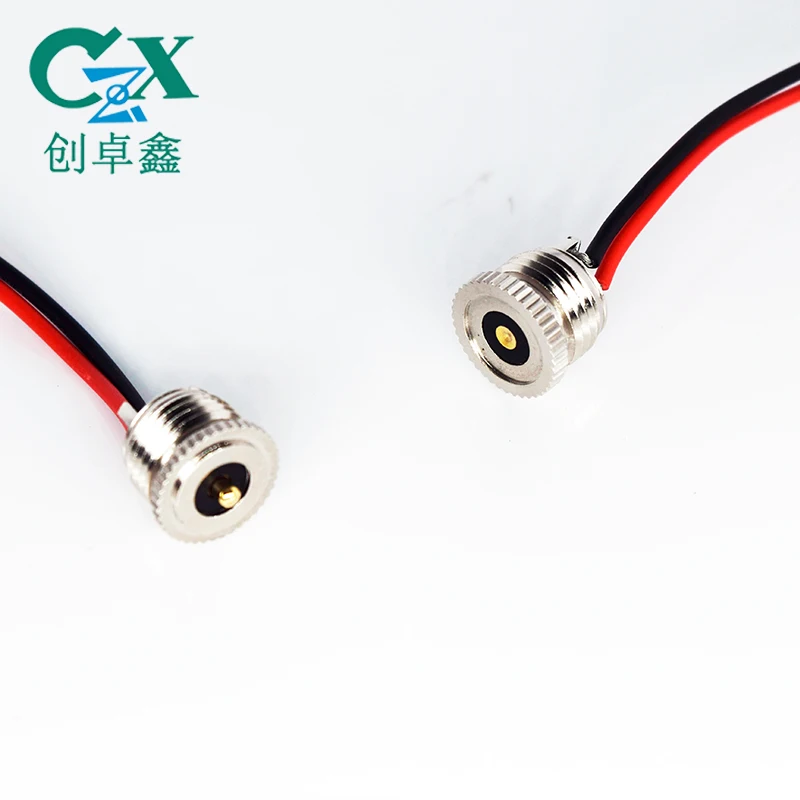

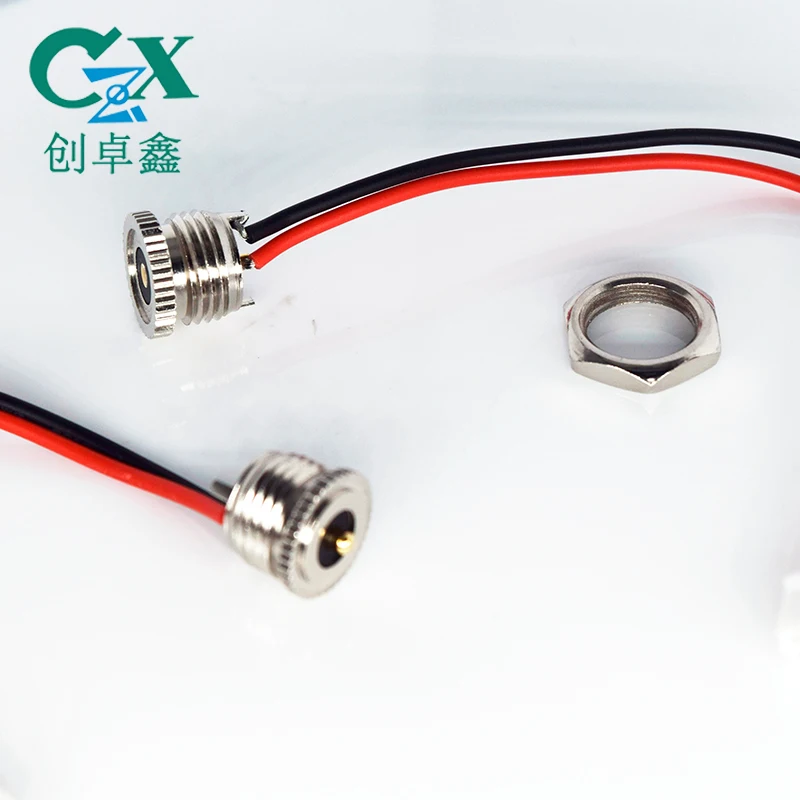

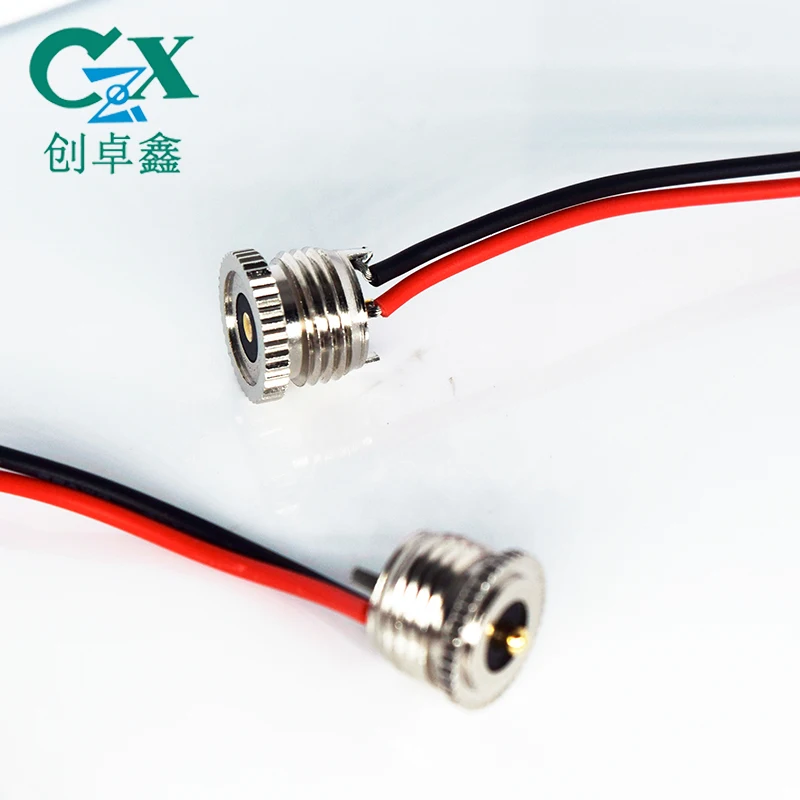

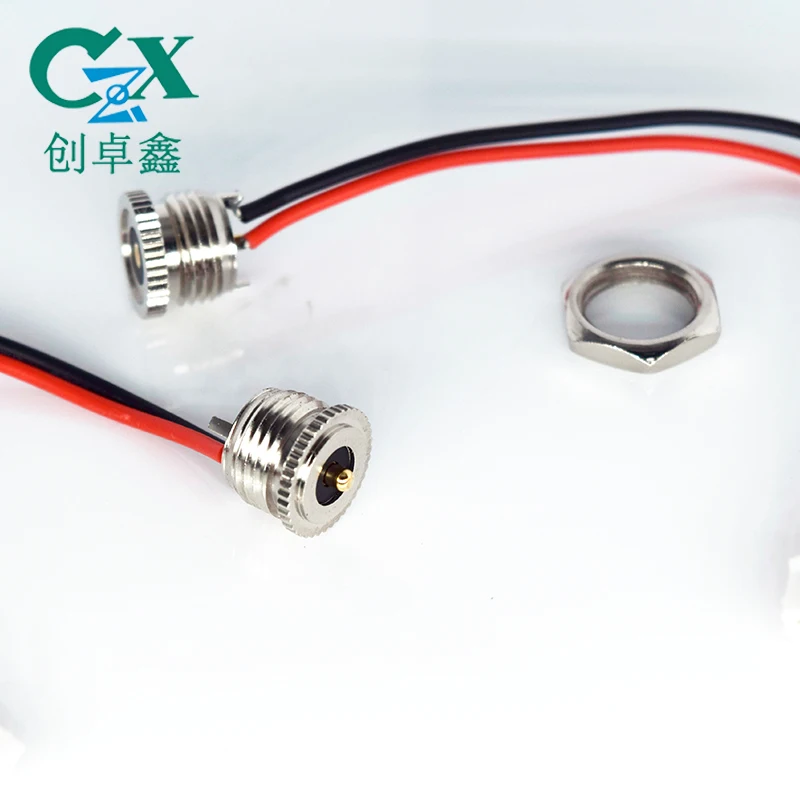

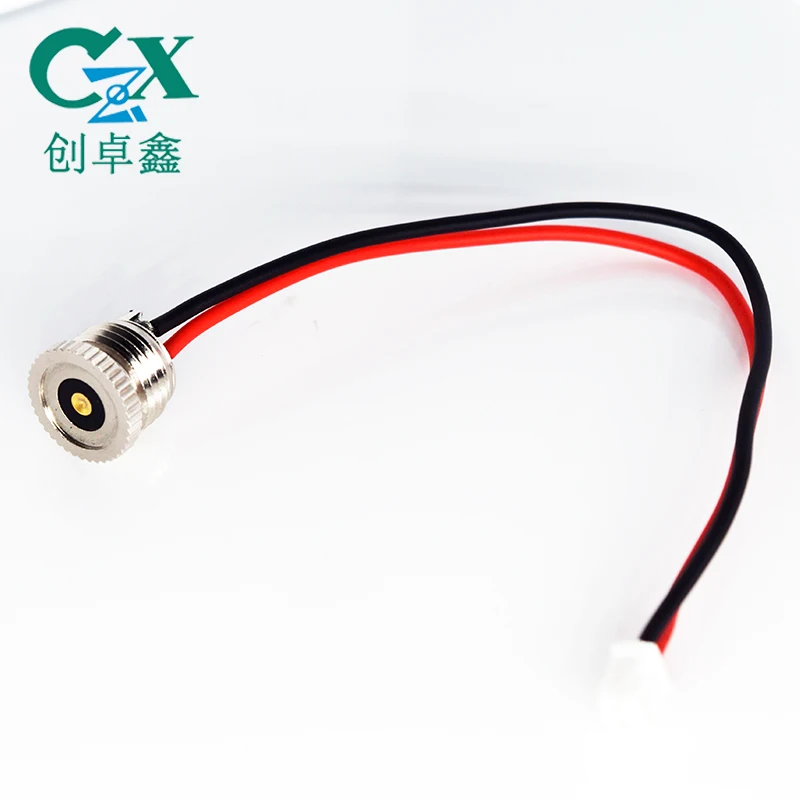

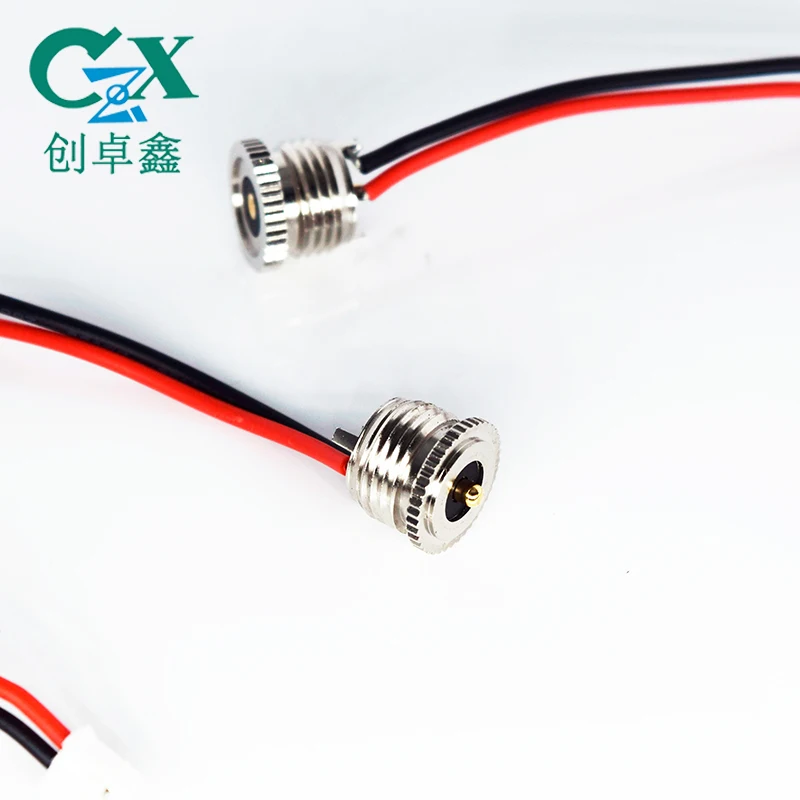

CZX Spring Loaded Pogo Pin Magnetic Electrical 10mm 24v 10amp Round Thread Magnetic Connector 10a High Current
Ready to Ship
In stock Fast dispatch

CZX Spring Loaded Pogo Pin Magnetic Electrical 10mm 24v 10amp Round Thread Magnetic Connector 10a High Current

  • 3 - 499 Pieces
    $1.80
  • 500 - 999 Pieces
    $1.75
  • >= 1000 Pieces
    $1.70
View product details

CZX Spring Loaded Pogo Pin Magnetic Electrical 10mm 24v 10amp Round Thread Magnetic Connector 10a High Current

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Current Electrical Connectivity: Designed to handle up to 10A at 24V, enabling reliable power transmission in demanding electrical systems and high-current applications.
  • Magnetic & Spring-Loaded Design: Features a spring-loaded pogo pin and magnetic coupling for secure, vibration-resistant connections, ideal for dynamic or unstable environments.

Key features

  • 1. Corrosion-Resistant Brass Construction

    • With corrosion-resistant brass material, ensure long-lasting durability in harsh environments*.

  • 2. Magnetic Alignment & Threaded Design

    • With magnetic alignment and threaded design, achieve secure, vibration-resistant connections without manual adjustment*.

  • 3. High Current Capacity & Mechanical Stability

    • With a 10A rating and high mechanical stability, handle heavy-duty applications reliably*.

  • 4. Versatile Application Suitability

    • Designed for electrical and data communication applications, this connector ensures seamless power/data transfer in industrial and electronic devices*.

  • 5. Compliance with Safety Standards

    • Complies with industry safety standards for high-current applications to ensure reliable operation in regulated environments*.

Product details

CZX Spring Loaded Pogo Pin Magnetic Electrical 10mm 24v 10amp Round Thread Magnetic Connector 10a High Current

The CZX Spring Loaded Pogo Pin Magnetic Electrical Connector is engineered for high-current applications requiring robust connectivity. Featuring brass construction, a threaded design, and magnetic alignment, it ensures secure, vibration-resistant connections in electrical systems and data communication setups.

Technical specifications

FeatureSpecificationBenefit
MaterialBrassHigh conductivity and corrosion resistance
Rated Current10ASupports heavy-duty applications without overheating
Mechanical StabilityHighWithstands vibrations in industrial environments
Contact MaterialBrassEnsures reliable electrical conductivity
ShapeRound, ThreadedSecure screw-in installation for stability
Voltage Rating24VSuitable for standard and high-power systems
ApplicationElectrical/DataIdeal for devices requiring both power and signal transmission

Customization guide

Adjustable parameters include thread pitch for vibration-prone environments and insulation material to resist chemicals or extreme temperatures. Customize the connector’s size (e.g., 10mm to 15mm) to fit specific device requirements.

Get inspired

Designed for high-current applications, this connector’s spring-loaded pogo pin and magnetic alignment ensure effortless, repeatable connections. Perfect for industrial machinery, automotive systems, or robotics where durability and reliability are critical.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Current10A11.5A (+15%)13A (+30%)
Temperature Range-20°C to 85°C-30°C to 105°C-40°C to 125°C
Magnetic StrengthStandardEnhancedIndustrial-Grade
Vibration Resistance5G8G12G

Supplier's note

  1. Technical Breakthroughs:

    • Spring-Loaded Pogo Pin: Reduces wear from repeated connections.
    • Magnetic Alignment: Enables quick, error-free pairing in tight spaces.
    • Brass Contacts: Outperforms aluminum in conductivity and longevity.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard industrial devices (e.g., HVAC systems) needing 10A reliability.
    • Advanced Model: Targets automotive and robotics requiring 11.5A and extreme temperature tolerance.
    • Pro Model: Designed for heavy machinery or aerospace applications with 13A capacity and 12G vibration resistance.

With the Pro’s industrial-grade magnetic strength, you can securely connect high-power batteries in electric vehicles. Its brass contacts ensure zero resistance even under prolonged use. The Advanced Model’s 8G vibration resistance makes it perfect for drones or handheld tools. Choose the Base Model for cost-effective solutions in consumer electronics.

Frequently asked questions

  • Which electrical connector suits high-current devices up to 10A for industrial applications?

  • Are these connectors suitable for vibration-prone environments like automotive systems?

  • How do I clean brass contacts on magnetic connectors to maintain conductivity?

  • Brass vs. Aluminum Contacts: Which is better for high-current connectors?

  • Can these 10mm magnetic connectors be customized for non-standard thread sizes?

  • Is the CZX connector RoHS-compliant and rated for high-temperature use?

  • Are these magnetic connectors suitable for data communication applications?

  • How does the magnetic design improve ease of use vs. traditional screw connectors?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
High Current Magnetic ConnectorsIndustrial equipment, EV charging stationsRated Current: 10A (Industry Standard: 8A ▲)Handles 10A continuous load, reducing overheating risks.Higher cost vs. lower-current connectors.
Spring-Loaded Pogo PinsTest fixtures, automotive diagnosticsContact Resistance: <50mΩ (IEC 60207 compliant) ▲ vs. 100mΩ (Industry)Self-cleaning contacts ensure 10,000+ cycles.Less durable in high-impact environments.
Threaded ConnectorsHigh-vibration machineryThread Pitch: M10x1.5 (ISO 228-1 compliant)Secure against vibrations; easy to tighten/loosen.Installation time-intensive compared to quick-connect designs.
Brass Material ConnectorsCorrosive environments (marine/HVAC)Corrosion Resistance: ASTM B117 (1,000+ hrs salt spray)High conductivity and durability in harsh conditions.Heavier than plastic alternatives.
Magnetic Coupling ConnectorsRobotics, medical devicesMagnetic Force: 5N (ISO 1101 compliant)Rapid connection/disconnection without tools.Attracts debris in dusty environments.
Data Communication ConnectorsIoT systems, telecommunicationsSignal Integrity: <−40dB Crosstalk (IEC 61157)Low signal loss at 1GHz; supports high data rates.Requires precise alignment for optimal performance.
