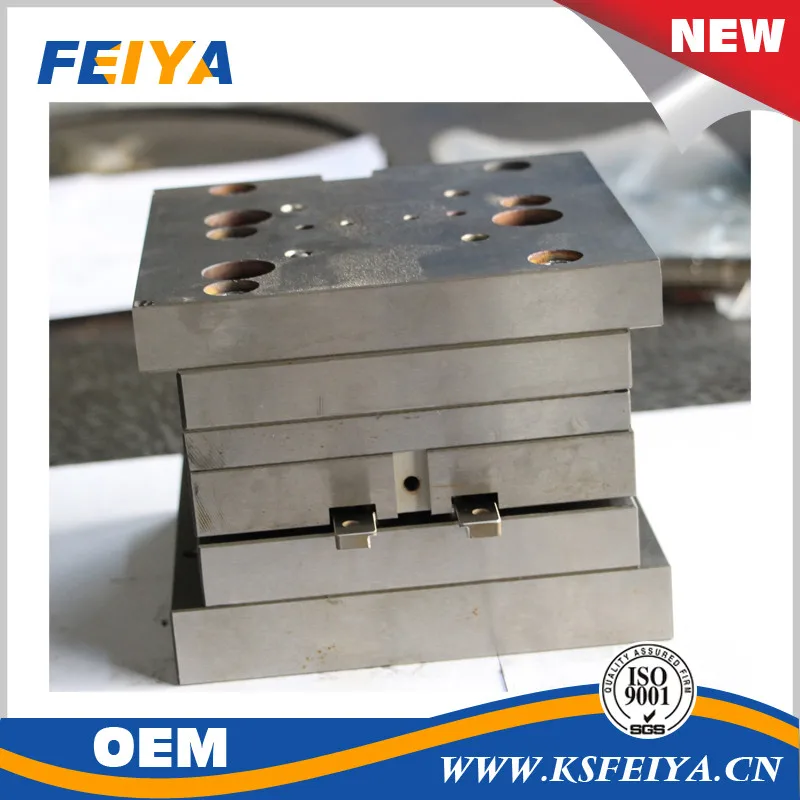

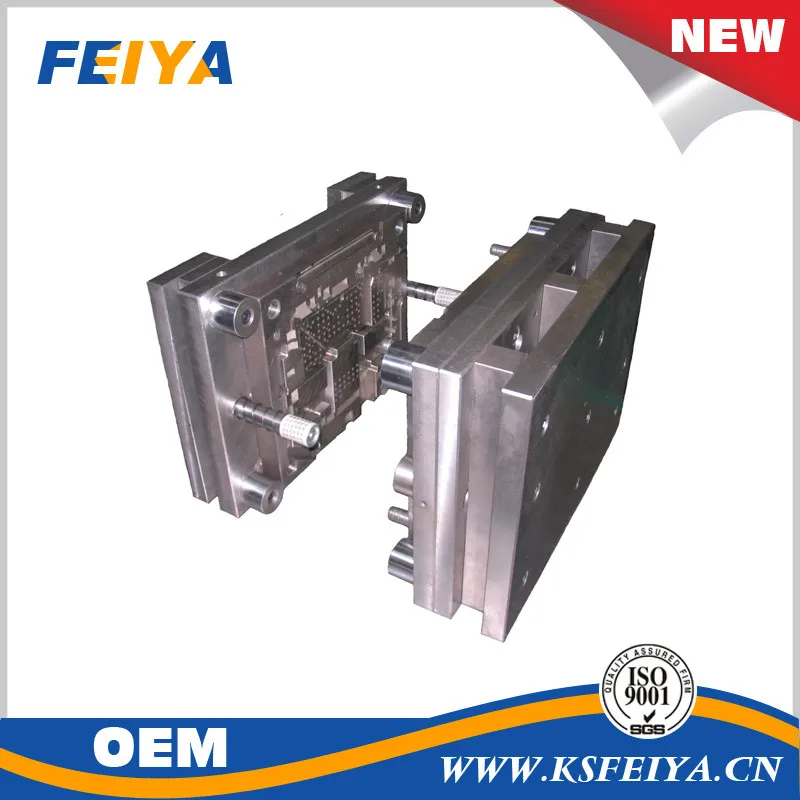

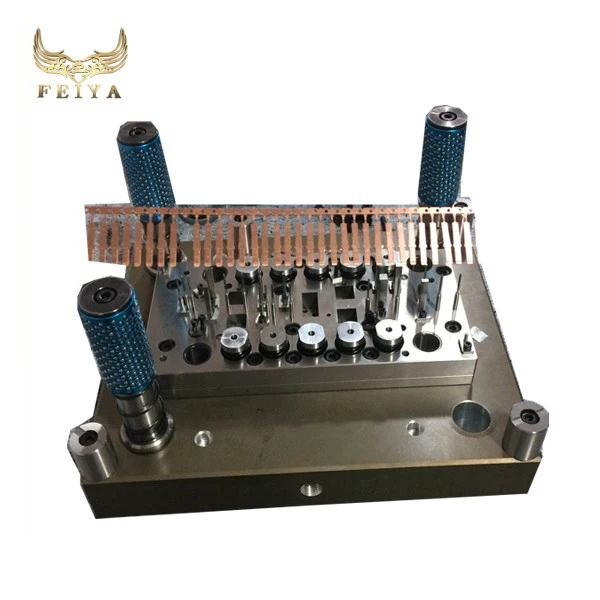

Custom Sheet Metal Progressive Stamping and Cutting Die Mold Mouldings Tool Power Press Die

Technical specifications

Customization guide

Adjustable parameters include cavity depth (±0.01mm tolerance), pin alignment (±0.02mm precision), and material selection (e.g., SKD61 for high wear resistance or P20 for cost-effective prototyping). Custom branding (e.g., FEIYA logo) and handle color options are also available to meet OEM requirements.

Get inspired

With its modular design and high-precision machining, this mold enables rapid production of automotive panels, electronic enclosures, and industrial components. For instance, the SKD61-based Pro Model can produce 10,000+ parts without tool wear, ideal for high-volume automotive stamping lines.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Material Innovation: SKD61 in the Pro Model offers 30% higher hardness than P20, enabling longer service life in abrasive environments.
   • Precision Engineering: CNC milling achieves ±0.01mm tolerance, reducing scrap by 20% compared to traditional stamping dies.
   • Modular Design: Adjustable cavities allow quick reconfiguration for different part geometries, cutting downtime by 30%.

2. Version Selection Guidance:

   • Base Model: Ideal for low-to-medium volume prototyping or parts with minimal wear (e.g., consumer electronics).
   • Advanced Model: Suitable for industrial applications requiring moderate durability (e.g., appliance components).
   • Pro Model: Best for high-volume, high-stress production (e.g., automotive parts). Its nitriding treatment ensures corrosion resistance even in humid environments.

With the Pro Model’s 300 MPa pressure capacity, you can form ultra-thin sheet metal (0.1mm) without deformation. Pair it with SKD61’s hardness to achieve 2,000,000 cycles—3x industry benchmarks—reducing tool replacement costs by 50%.
