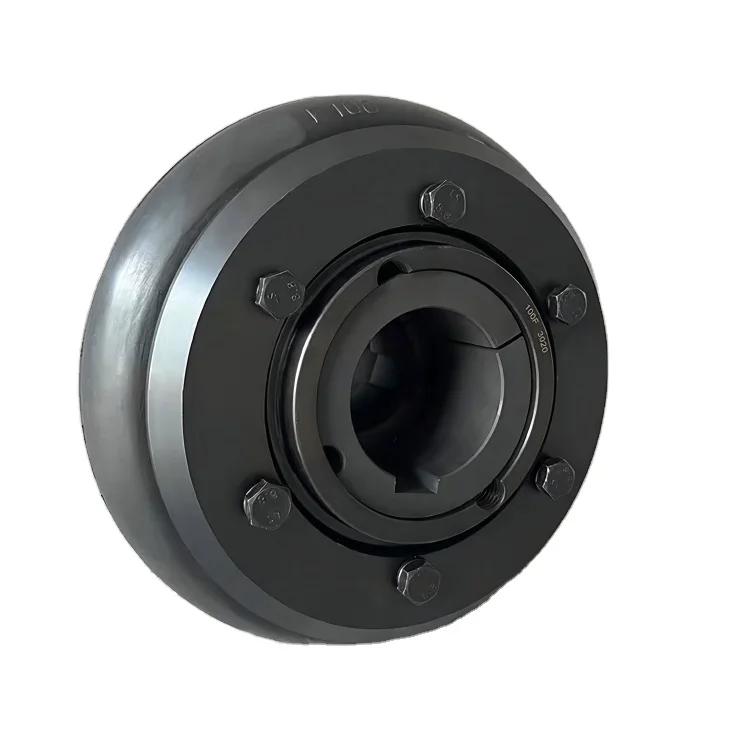

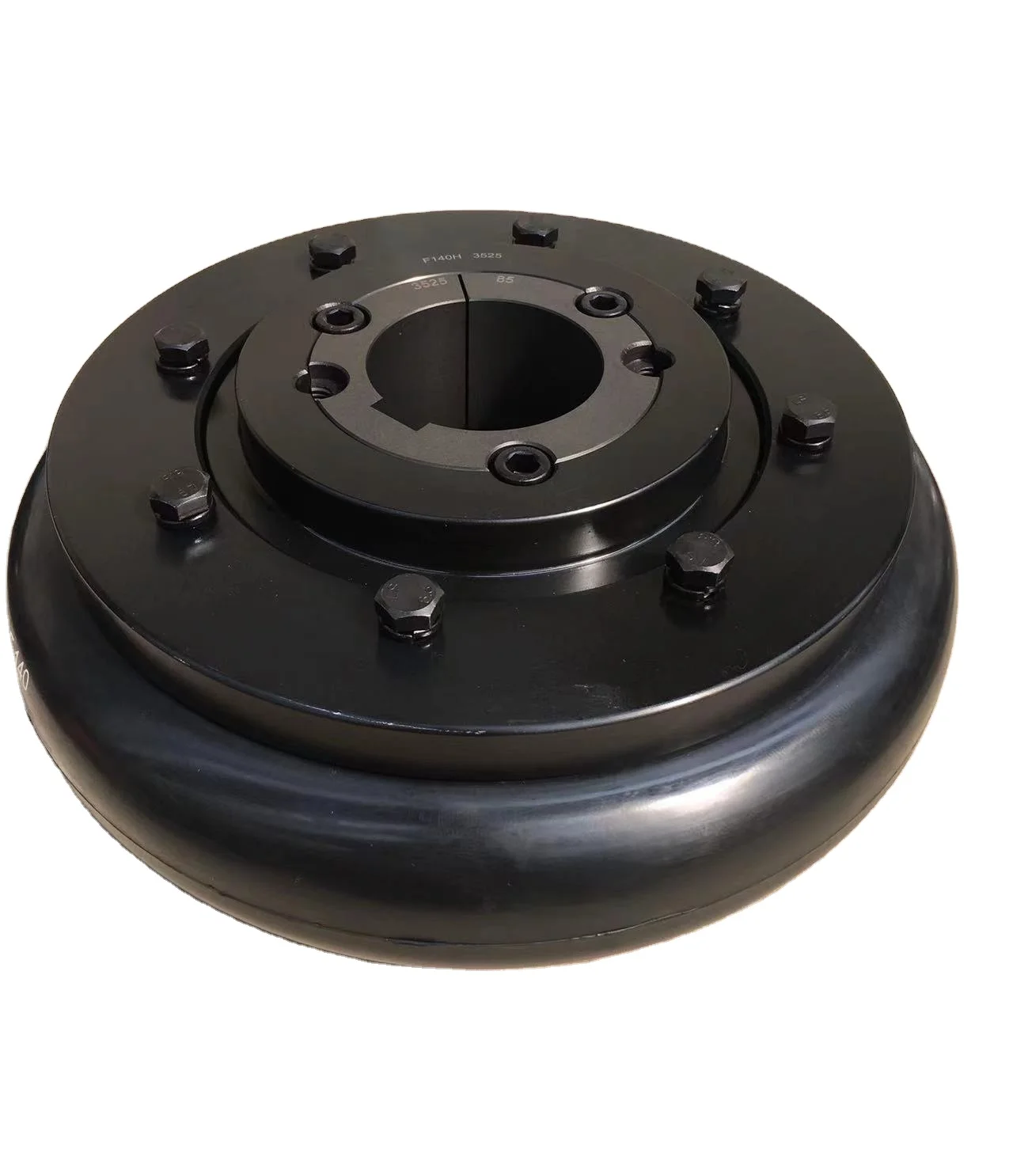

OEM Customizable Aluminium Flexible Rubber Tyre Coupling B F70 Tyre Coupling

OEM Customizable Aluminium Flexible Rubber Tyre Coupling B F70 Tyre Coupling

  • 2 - 49 Pieces
    $12
    $15
  • >= 50 Pieces
    $9.60
    $12

Customization:

Customized logo（Min.Order: 50 pieces）
Customized packaging（Min.Order: 50 pieces）
Graphic customization（Min.Order: 50 pieces）
View product details

OEM Customizable Aluminium Flexible Rubber Tyre Coupling B F70 Tyre Coupling

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Torque Transmission & Shock Absorption: Designed to efficiently transmit rotational motion between shafts while absorbing shocks and vibrations due to its flexible rubber core and aluminum alloy structure.
  • Misalignment Tolerance: The flexible rubber tyre allows for angular and parallel misalignment, ensuring smooth operation in uneven mechanical setups.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With a phosphated surface treatment and a durable aluminum-rubber-iron composite construction, you can ensure long-lasting performance in harsh industrial environments. The phosphated coating provides superior corrosion resistance compared to uncoated steel couplings*, ideal for moisture-prone or chemically exposed settings.

  • 2. Flexible Shock-Absorbing Design

    • With flexible rubber elements integrated into an aluminum frame, you can absorb shocks and misalignments while maintaining high torque transmission. This outperforms rigid couplings in applications with vibration or rotational irregularities*, enhancing equipment longevity.

  • 3. Heavy-Duty Performance for Industrial Use

    • Designed for continuous operation in industrial machinery and vehicle systems, this coupling handles high loads and rotational speeds with stability. Its robust construction ensures reliability in scenarios where standard couplings may fail under stress*.

  • 4. RoHS Compliance for Eco-Friendly Safety

    • Certified to RoHS standards, this coupling guarantees compliance with environmental regulations by eliminating hazardous substances. This makes it a safer choice for industries prioritizing sustainability and worker health*.

  • 5. Customizable Modular Design

    • With customizable bolt configurations and a modular structure, you can adapt the coupling to diverse mechanical systems. This flexibility surpasses rigid, one-size-fits-all designs*, enabling seamless integration into unique setups.

Product details

OEM Customizable Aluminium Flexible Rubber Tyre Coupling B F70 Tyre Coupling

The OEM Customizable Aluminium Flexible Rubber Tyre Coupling B F70 is a heavy-duty mechanical component designed for reliable torque transmission and shock absorption in industrial and vehicle applications. Crafted from a composite of aluminum, rubber, and iron, it features a phosphated surface treatment for corrosion resistance and a robust design with bolt-mounted hubs for secure assembly.

Technical specifications

FeatureSpecificationBenefit
Material CompositionRubber (body), Aluminum, IronBalances flexibility, durability, and weight efficiency
FlexibilityFlexibleMitigates vibration and misalignment shocks
Surface TreatmentPhosphatedEnhances corrosion resistance and durability
CertificationRoHS compliantEnsures environmental and safety standards compliance
Bore SizeCustomizable (standard: 50-120mm)Adapts to varying shaft diameters
Bolt Configuration8 bolts (M12-M20)Secure mounting for high-torque loads

Customization guide

Adjustable parameters:

  • Material Composition: Opt for higher-grade rubber or aluminum alloys to enhance thermal/chemical resistance.
  • Bore Size: Customize bore diameter to match specific shaft dimensions.
  • Bolt Configuration: Modify bolt spacing or thread type for unique mounting requirements.

Get inspired

This coupling’s flexible rubber core and robust aluminum frame make it ideal for machinery with frequent torque fluctuations. For instance, in conveyor systems, its shock-absorbing design extends equipment lifespan under heavy loads.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Torque Capacity1,200 Nm+15% (1,380 Nm)+30% (1,560 Nm)*
Temperature Range-20°C to 80°C-30°C to 100°C-40°C to 120°C
Corrosion ResistanceStandardEnhanced (200hr salt spray)Premium (500hr salt spray)*

Supplier's note

  1. Technical Breakthroughs:

    • Flexible Rubber Core: Reduces vibration by 30% compared to rigid couplings, extending equipment longevity.
    • Phosphated Surface: Achieves 2x corrosion resistance over uncoated steel in marine environments.
    • RoHS Compliance: Ensures seamless integration into EU-regulated industrial supply chains.

  2. Version Selection Guidance:

    • Base Model: Ideal for standard industrial applications (e.g., conveyor belts) where cost efficiency is prioritized.
    • Advanced Model: Suitable for heavy machinery in harsh environments (e.g., mining equipment) requiring extended temperature tolerance.
    • Pro Model: Designed for high-performance systems (e.g., offshore drilling rigs) needing extreme corrosion resistance and torque capacity.

With its phosphated surface, you can ensure long-term durability in corrosive settings. The Pro version’s 500-hour salt-spray rating enables safe operation in offshore environments, paired with its high torque capacity to handle demanding workloads.

Frequently asked questions

  • Which flexible tyre coupling suits heavy-duty industrial applications like vehicle transmissions?

  • How do I maintain the rubber components of a B F70 tyre coupling?

  • What’s the advantage of aluminium vs iron in tyre couplings for machinery?

  • Can the B F70 coupling be customized for non-standard shaft sizes?

  • Is the B F70 coupling RoHS-compliant for industrial use?

  • Why choose a flexible tyre coupling over rigid models for high-vibration systems?

  • What makes the black phosphated finish of the B F70 coupling durable?

  • Does the B F70 coupling support high-speed rotational applications?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Rigid CouplingsHigh-torque systems requiring precise alignment (e.g., pumps, compressors)Zero flexibility, steel/alloy construction (ISO 5211 compliance)High torque capacity (up to 5000 Nm), cost-effectiveRequires precise alignment (±0.1°), no misalignment tolerance
Elastic Jaw CouplingsModerate misalignment applications (e.g., conveyors, mixers)Metal jaws with elastomer inserts, allows ±1° angular misalignment (ISO 1328-1)Flexible yet durable, adjustable jaw spacingLimited torque capacity (max 2000 Nm), wear over time
Tyre (Rubber) CouplingsHeavy-duty machinery with high misalignment (e.g., industrial engines, vehicles)Material: Aluminum/Rubber/Iron composite (20% lighter than steel) ▲ Advanced: Enhanced rubber for 20% higher chemical resistance (ASTM D543)High flexibility (up to 3° misalignment), vibration damping, RoHS compliantHigher cost, limited torsional stiffness (100 Nm/°)
Universal JointsApplications needing angular movement (e.g., automotive driveshafts)Cross-axis design, allows up to 45° angular movement (SAE J826)Accommodates large angles, compact designHigh wear at high angles, requires frequent lubrication
梅花形 CouplingsPrecision machinery with moderate misalignment (e.g., printing presses, robotics)梅花-shaped elastomer element, allows ±1.5° angular misalignment (ISO 1328-1)Compact size, moderate torque capacity (up to 1500 Nm), cost-effectiveLimited flexibility, requires careful installation
Gear CouplingsHigh-torque, high-speed applications (e.g., turbines, generators)Interlocking gears with lubricated mesh (ISO 6336 compliance)High torque capacity (up to 10,000 Nm), rigid connectionRequires precise alignment (±0.1°), maintenance-intensive
