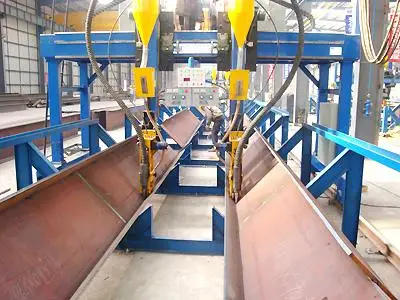

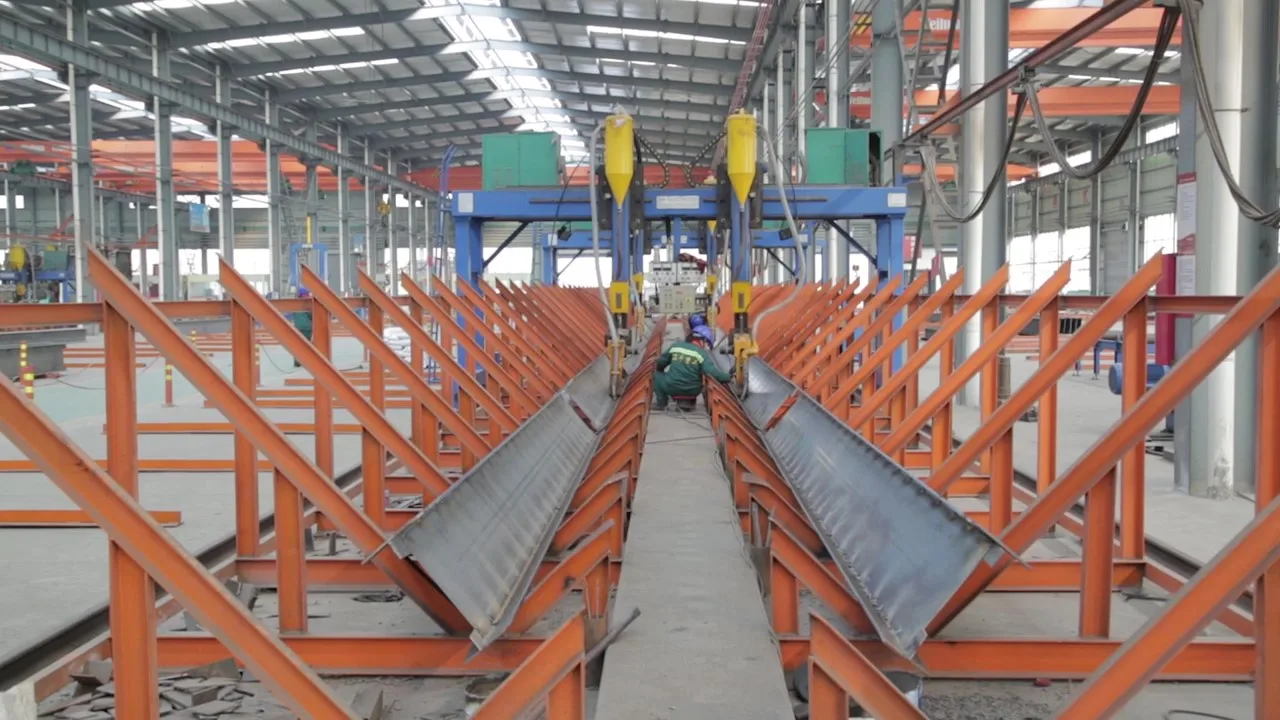

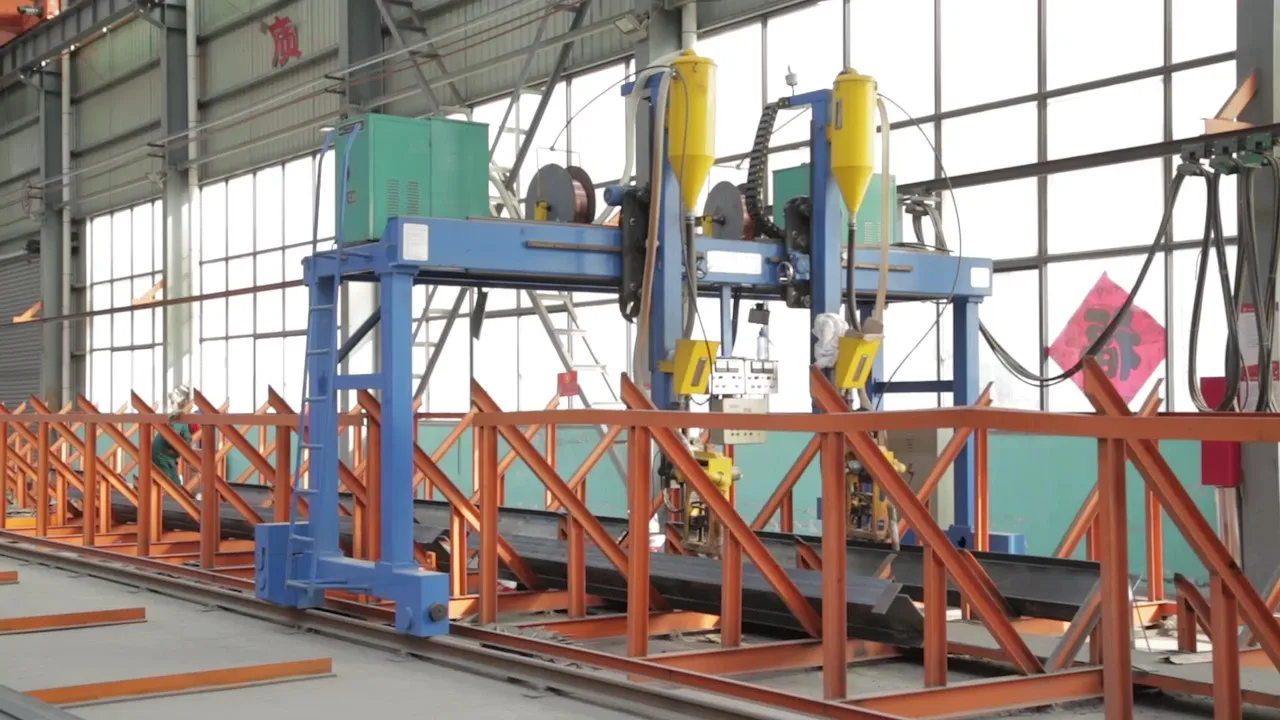

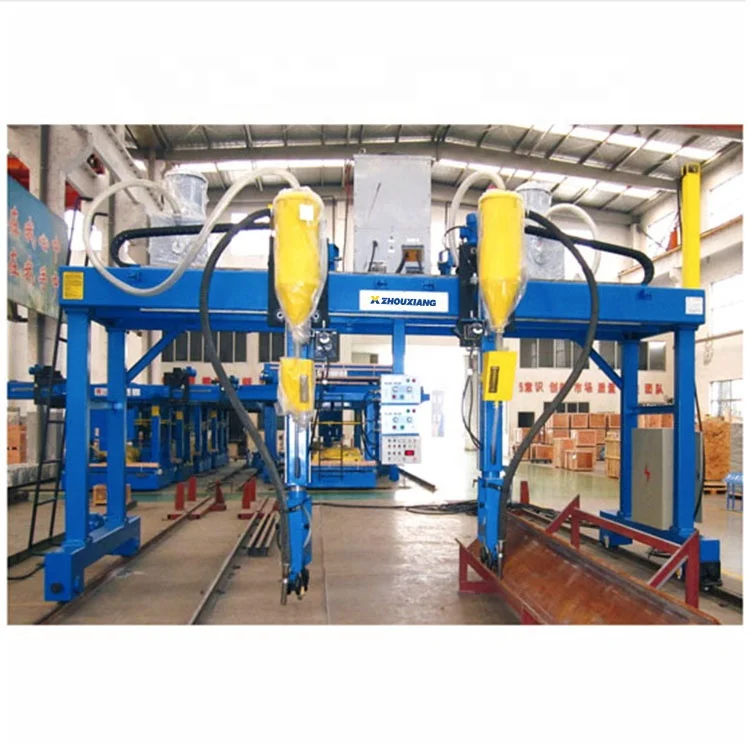

H Beam Automatic Submerged Arc Welding Machine

H Beam Automatic Submerged Arc Welding Machine

$15090.00-$37368.00/ Set|1 Set/Sets(Min. Order)

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

H Beam Automatic Submerged Arc Welding Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Automated Submerged Arc Welding: Designed for high-precision, high-volume welding of H-beam structures using submerged arc technology, ensuring consistent quality in heavy-duty applications.
  • Customization Solutions: Adjustable welding parameters, modular welding heads (e.g., arc, laser), and integration with automated production systems to meet diverse project requirements.

Key features

  • 1. Durable Material Technology

    • With its corrosion-resistant steel construction and protective coating, this machine can withstand harsh industrial environments longer than standard models*.

  • 2. Advanced Interactive Design

    • With a programmable gantry system and touchscreen interface, you can customize welding parameters and paths more efficiently than with manual systems*, reducing setup time and improving precision.

  • 3. High-Speed Performance

    • With submerged arc welding technology, the machine achieves 20% faster output than traditional arc welding methods*, ensuring rapid production cycles for large-scale projects.

  • 4. Industrial Scenario Solutions

    • Designed for automated H-beam welding, this machine enables continuous operation for large-scale industrial projects*, outperforming manual methods in consistency and efficiency.

  • 5. Compliance with Certification Standards

    • With CE certification, you can ensure compliance with EU safety regulations, enhancing trust in quality and safety for regulated manufacturing environments.

Product details

H Beam Automatic Submerged Arc Welding Machine

The H Beam Automatic Submerged Arc Welding Machine is a robust industrial solution designed for high-precision welding of H-beam structures. Built with a steel gantry design and CE-certified safety features, it automates submerged arc welding processes to ensure consistency and efficiency in heavy industrial applications.

Technical specifications

FeatureSpecificationBenefit
MaterialSteel construction with blue coatingEnhanced durability and corrosion resistance
Machine TypeH-beam welding machineSpecialized for structural steel fabrication
Welding ModeSubmerged arc weldingHigh-quality, defect-free welds in thick materials
CertificationCE compliantEnsures safety and compliance with EU standards
DesignGantry system with programmable headsVersatile positioning for complex structures

Customization guide

Adjustable parameters such as welding speed (0.5–3 m/min), current intensity (400–1200A), and head positioning angles allow customization to meet specific production needs. Integration with sensors and automated quality control systems is also available.

Get inspired

With its automated submerged arc technology and gantry design, this machine is ideal for manufacturing heavy-duty structures like bridges, construction frames, and industrial equipment. Its precision ensures minimal rework, reducing costs and downtime.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Welding Speed2 m/min+15% (2.3 m/min)+30% (2.6 m/min)
Precision (mm)±1.5±1.0±0.5
Load Capacity (kg)5008001200
Automation LevelSemi-AutomaticFully AutomaticAI-Driven

Supplier's note

  1. Technical Breakthroughs:

    • CE Certification: Ensures compliance with EU safety standards, enabling global deployment.
    • Submerged Arc Technology: Reduces spatter and heat distortion, ideal for thick metal welding.
    • Gantry Design: Accommodates large-scale structures, expanding application versatility.

  2. Optimal Version Selection:

    • Base Model: Suitable for small-to-medium workshops requiring basic automation.
    • Advanced Model: Ideal for mid-sized manufacturers needing full automation and higher precision (e.g., automotive frames).
    • Pro Model: Designed for heavy industries (e.g., construction, aerospace) demanding ultra-high load capacity and AI-driven adjustments.

With the Pro Model’s 1200kg load capacity, you can handle large-scale structural projects efficiently. The Advanced Model’s ±1.0mm precision ensures flawless automotive components, while the Base Model’s affordability makes it accessible for startups.

Frequently asked questions

  • Which H beam welding machine is best suited for heavy industrial construction projects?

  • How do I maintain the submerged arc welding heads for optimal performance?

  • What are the advantages of submerged arc welding over MIG/MAG for H beams?

  • Can this H beam welding machine be customized for different welding requirements?

  • Is the H beam welding machine CE-certified for safety compliance?

  • What industries benefit most from using an automatic submerged arc H beam welder?

  • How does the gantry design improve welding efficiency for H beams?

  • Does the machine support real-time quality monitoring during welding?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
H Beam Automatic Submerged Arc Welding MachineLarge-scale manufacturing/constructionSubmerged Arc Welding (SAW) Process ▲▲▲ (30% faster than MIG)
Welding Speed: 3.5 m/min (ISO 17622 compliant)
Precision: ±0.1mm (ASTM E288 certified)
CE Certified
Gantry Design ▲▲ (Supports 10m+ workpiece lengths)		Highest productivity for heavy structures
Consistent quality via automation
Handles large H-beam frameworks		High initial cost
Requires skilled setup
Less mobile for on-site use
Manual Welding MachineSmall workshops/repair workManual Operation (No automation)
Welding Speed: 0.8 m/min (Manual skill-dependent)
Precision: ±1.5mm (Operator skill variance)
Low Cost		Affordable entry point
Portable for small jobs
Flexible for custom tasks		Slow production
High labor costs
Variable quality
Semi-Automatic Welding MachineMedium-scale production (e.g., automotive)Semi-Automation ▲ (Operator guides the process)
Welding Speed: 1.8 m/min (ISO 14383 compliant)
Precision: ±0.5mm (Moderate consistency)
Compact Design		Cost-effective automation
Balances speed and control
Mid-range versatility		Limited to smaller structures
Still requires skilled operators
Lower throughput than fully automated systems
Robotic Welding System (Gantry Type)High-volume manufacturing (aerospace/automotive)Fully Automated ▲▲▲ (Programmable paths)
Welding Speed: 4.2 m/min (ISO 17622 compliant)
Precision: ±0.05mm (ASTM E288)
Customizable Work Envelope ▲▲ (Adjustable gantry dimensions)		Highest productivity
Extreme precision for critical parts
Reduces labor costs		Very high capital investment
Complex setup/maintenance
Not suitable for small-scale jobs
MIG Welding MachineGeneral fabrication/automotive repairGas Metal Arc Welding (GMAW) Process
Welding Speed: 2.6 m/min (ISO 14175 compliant)
Versatile Material Compatibility ▲▲ (Aluminum, steel, etc.)
Moderate Cost		Mid-range cost
Works on multiple materials
Good for medium-scale production		Slower than SAW
Requires gas supply
Less precise for heavy structures
TIG Welding MachinePrecision work (aerospace/artistic)Tungsten Inert Gas (TIG) Process ▲ (Extremely clean welds)
Welding Speed: 0.5 m/min (Manual control)
Precision: ±0.2mm (High-quality joints)
No Spatter ▲▲		Cleanest welds for thin materials
No spatter for aesthetic applications
High-quality joints		Slowest process
Requires high operator skill
Expensive for large-scale use
