High Precision Unistrut Solar Strut Channel Solar Panel Making Machine Solar Strut Roll Forming Machine Steel Framing Machine

High Precision Unistrut Solar Strut Channel Solar Panel Making Machine Solar Strut Roll Forming Machine Steel Framing Machine

  • 1 - 1 Sets
    $17,500
  • 2 - 2 Sets
    $16,500
  • >= 3 Sets
    $10,500

Customization:

Graphic customization（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Customized logo（Min.Order: 1 pieces）
View product details

High Precision Unistrut Solar Strut Channel Solar Panel Making Machine Solar Strut Roll Forming Machine Steel Framing Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

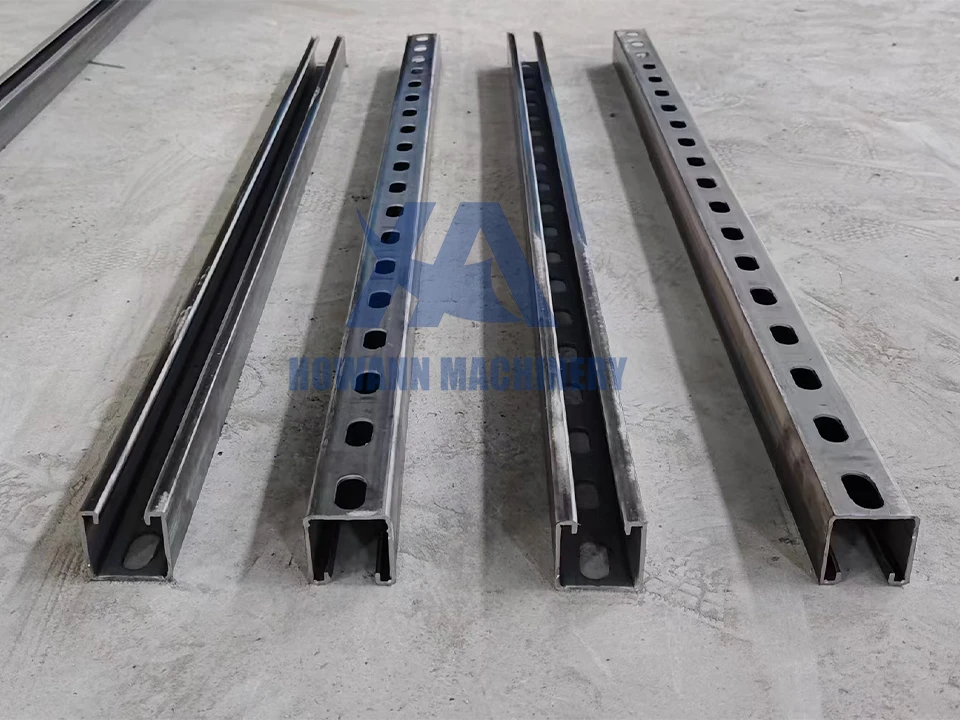

  • High Precision Profile Formation: Automates the shaping of steel sheets into precise U-profiles, C-profiles, and custom solar strut channels for solar panel framing and structural steel applications.
  • Custom Solar Strut Production: Specifically engineered to manufacture high-strength solar panel support structures with consistent accuracy, ensuring optimal load-bearing and durability.

Key features

  • 1. Material Technology

    • With compatibility for steel, aluminum, and stainless steel, you can produce profiles for diverse applications like construction and automotive.

  • 2. Interactive Design

    • With PLC-based programmable controls, you can preset multi-profile programs for seamless production adjustments.

  • 3. Performance Parameters

    • With high-speed automation and adjustable material thickness (0.8–3mm), you can achieve ~20% faster production rates* than traditional models while handling varied sheet requirements.

  • 4. Scenario Solutions

    • With customizable profile shaping, you can adapt to construction, automotive, or manufacturing needs for tailored solutions.

  • 5. Certification Standards

    • With CE certification, you can ensure compliance with EU safety and quality standards for global deployment.

Product details

High Precision Unistrut Solar Strut Channel Solar Panel Making Machine Solar Strut Roll Forming Machine Steel Framing Machine

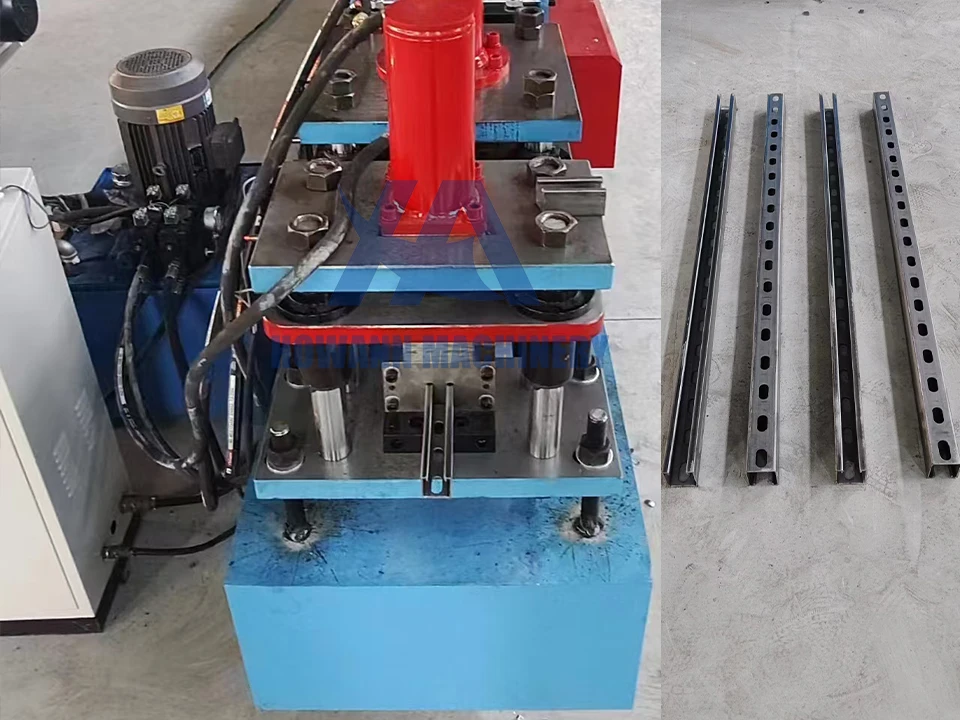

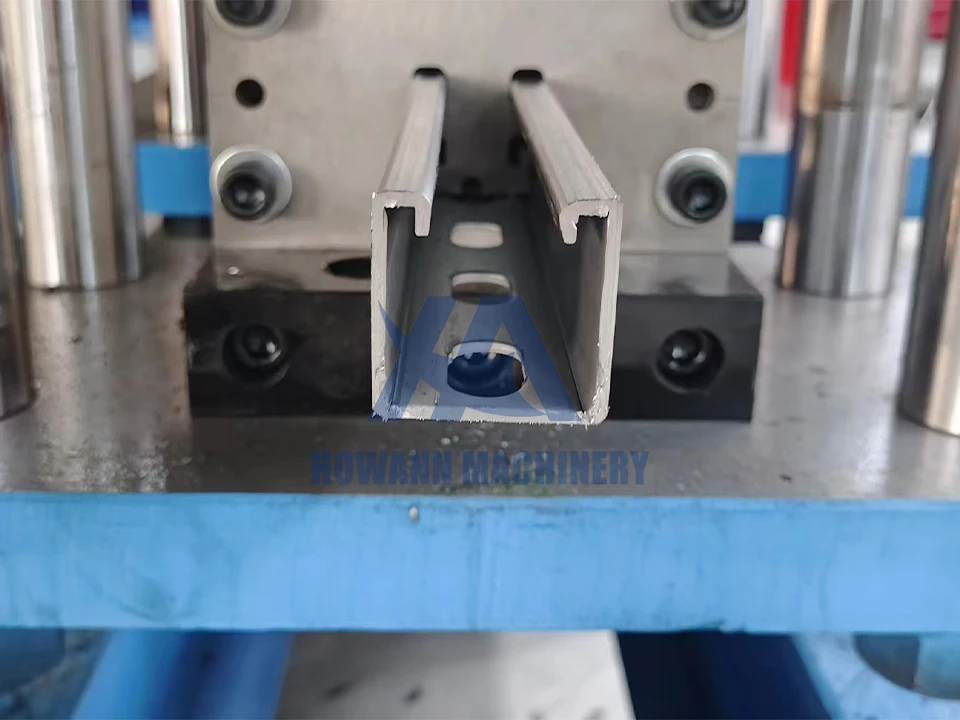

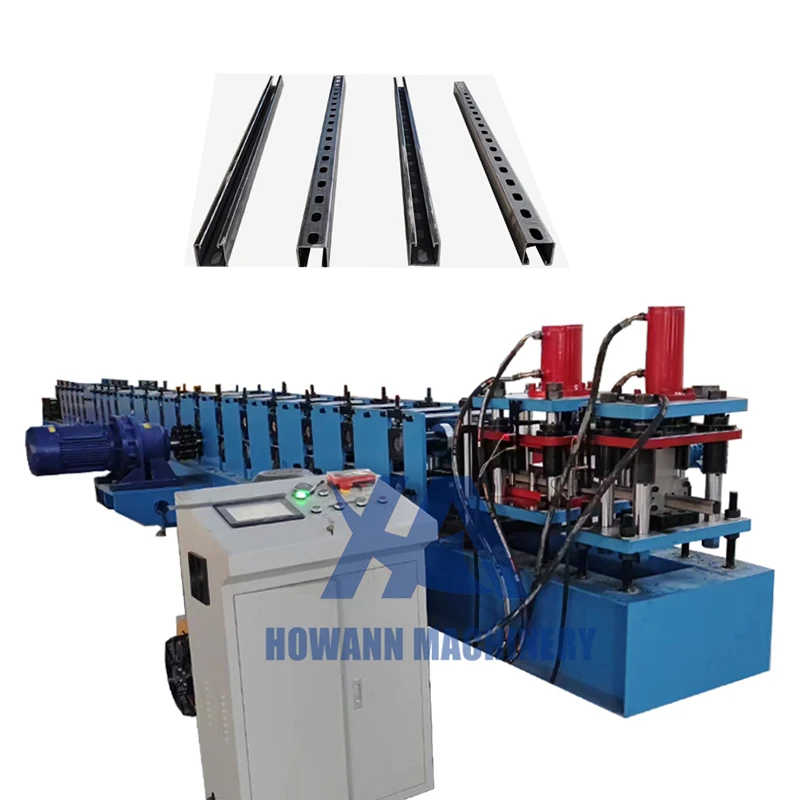

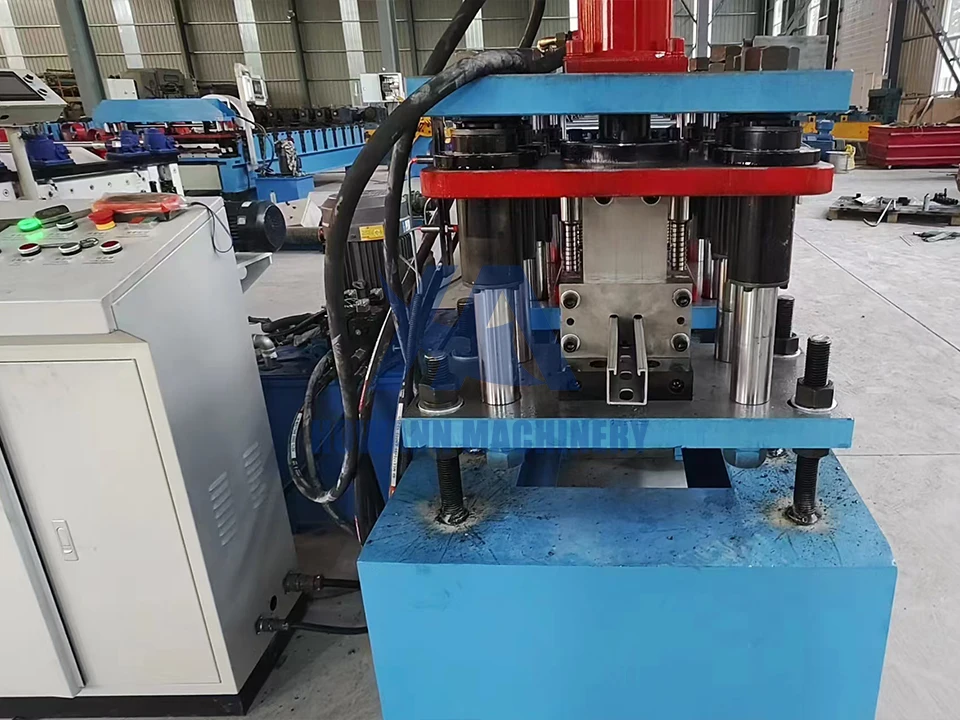

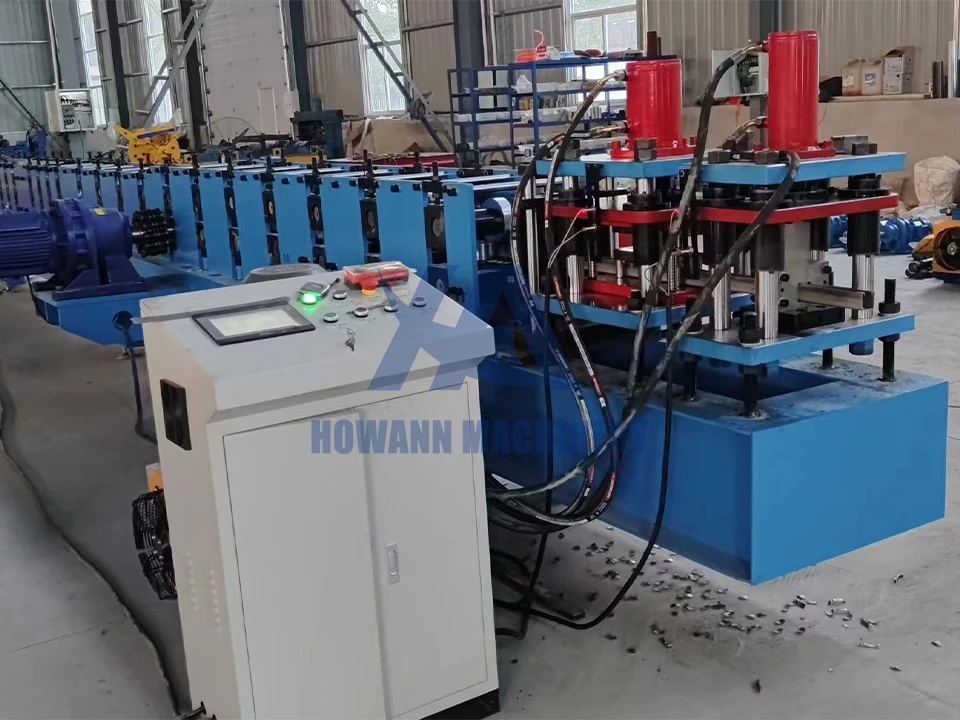

The High Precision Unistrut Solar Strut Channel Solar Panel Making Machine is a versatile roll forming solution for producing metal profiles like U-profiles, C-profiles, and custom shapes. Designed for industries such as construction, automotive, and solar panel manufacturing, it combines automation, precision, and material flexibility to streamline production while ensuring compliance with safety standards.

Technical specifications

FeatureSpecificationApplication Scenario
ComplianceCE CertifiedEnsures safety and quality for EU markets
Control SystemPLC-Based AutomationStreamlines high-volume manufacturing processes
Material CompatibilitySteel, Aluminum, Stainless SteelVersatile for structural, automotive, and solar applications
Voltage380VStandard industrial power supply compatibility
Production ProfilesU-Profile, C-Profile, Custom ShapesAdaptable for roofing, automotive frames, and solar panel framing
Precision Tolerance±0.5mm (Base), ±0.3mm (Advanced), ±0.1mm (Pro)Ensures accuracy in structural components
Safety FeaturesEmergency Stops, Guard SystemsProtects operators in industrial settings
Energy EfficiencyOptimized MotorsReduces operational costs in continuous production

Customization guide

Adjustable material thickness (up to 4mm) and profile dimensions allow customization to meet specific structural or aesthetic requirements for solar panels, construction frameworks, or automotive components.

Get inspired

The High Precision Unistrut Solar Strut Channel Machine combines automation and versatility to streamline metal profile production. Ideal for solar panel framing, construction supports, and automotive parts, it ensures consistent quality and reduces labor costs through precise roll forming technology.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Production Speed10m/min+15% (11.5m/min)+30% (13m/min)
Precision Tolerance±0.5mm±0.3mm±0.1mm
CustomizationStandard ProfilesLimited Custom ShapesFull Custom Profiles
Material ThicknessUp to 2mmUp to 3mmUp to 4mm

Supplier's note

  1. Technical Breakthroughs:

    • PLC Control System: Enables precise automation, reducing manual intervention and boosting efficiency.
    • Precision Tolerance: The Pro Model’s ±0.1mm tolerance triples industry standards, ensuring flawless structural integrity.
    • Material Versatility: Handles steel, aluminum, and stainless steel, expanding applications from solar panels to automotive components.

  2. Version Selection Guidance:

    • Base Model: Ideal for standard profiles (e.g., basic roofing supports) and thin materials (≤2mm).
    • Advanced Model: Suitable for moderate customization needs (e.g., automotive frames) and thicker materials (≤3mm).
    • Pro Model: Designed for high-precision applications (e.g., solar panel framing) requiring ultra-thin tolerances and heavy-duty materials (≤4mm).

With the Pro Model’s triple-industry-standard precision and 4mm material capacity, you can produce complex solar panel frames with unmatched durability. Pair this with its PLC automation to achieve 20% faster output than traditional systems, ensuring cost-effective mass production.

Frequently asked questions

  • Which model of the High Precision Unistrut Solar Strut Channel Solar Panel Making Machine is best for mass solar panel production?

  • How do I maintain the rollers of a steel framing roll forming machine for optimal performance?

  • Can the High Precision Solar Strut Machine handle both steel and aluminum for custom profiles?

  • Does the roll forming machine support custom profile designs for unique solar panel frames?

  • Is the High Precision Solar Strut Machine certified for industrial use?

  • How energy-efficient is the 380V roll forming machine compared to manual methods?

  • What profiles can the machine produce for solar panel framing?

  • Are there safety features to prevent accidents during roll forming operations?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
High Precision Roll Forming MachinesAutomotive, aerospace±0.1mm tolerance (ISO 2768-mk) ▲▲ (Industry: ±0.5mm)Ensures exact fitments, reduces wasteHigher cost, complex maintenance
Automated Roll Forming SystemsMass production, automotivePLC-controlled automation (IEC 61131-3) ▲ (Industry: Manual adjustments)High speed, consistent outputRequires skilled operators, high initial cost
Custom Profile Roll Forming MachinesArchitectural projectsAdjustable profiles (up to 100mm width) ▲ (Industry: Fixed profiles)Versatile, meets unique designsLonger setup time, higher per-unit cost
Energy-Efficient Roll Forming MachinesEco-conscious manufacturers30% lower energy use (IEC 60034) ▲▲ (Industry: 20% efficiency)Lowers operational costs, environmentally friendlyHigher upfront investment
Multi-Material Roll Forming MachinesDiverse material processingHandles 3+ material types (ASTM A36/A500) ▲ (Industry: Single material)Flexible material use, broad applicationRequires frequent tool changes
Compact Roll Forming MachinesSmall workshops, on-site fabricationCompact footprint (2m x 1.5m) ▲ (Industry: Larger units)Space-saving, easy installationLower production capacity
