High Voltage Factory Red Electrical Insulation Fiber Board Manufacture

High Voltage Factory Red Electrical Insulation Fiber Board Manufacture

$3.00-$4.00/ Kilogram|500 Kilogram/Kilograms(Min. Order)
View product details

High Voltage Factory Red Electrical Insulation Fiber Board Manufacture

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High Voltage Insulation: Designed to withstand voltages up to 35kV, ensuring electrical safety in high-stress environments.
  • Material Composition: Made from reinforced paper and wood pulp, providing durability, flame resistance, and optimal dielectric performance for industrial applications.

Key features

  • 1. Material Technology

    • With chemical-treated fiber board material (paper and wood pulp composition), ensure reliable insulation and high-voltage resistance in demanding environments. The red coloration may indicate specialized treatment for enhanced durability and visibility during installation.

  • 2. Performance Parameters

    • With a 35kV rated voltage, safely handle high-power electrical systems compared to standard insulation materials (e.g., rated up to 20kV)*.

  • 3. Scenario Solutions

    • Designed for industrial machinery and commercial power systems, providing consistent insulation performance under continuous high-voltage operation. Ideal for applications requiring both strength and adaptability, such as transformer cores or electrical panel components.

  • 4. Interactive Design

    • With a lightweight yet durable design, simplify installation in tight spaces compared to rigid insulation materials. The sheet form allows easy cutting and shaping to fit custom electrical system configurations.

  • 5. Certification Standards

    • Complies with international electrical safety standards (e.g., IEC 61302)*, ensuring conformity with global industry requirements for high-voltage insulation materials.

Product details

High Voltage Factory Red Electrical Insulation Fiber Board Manufacture

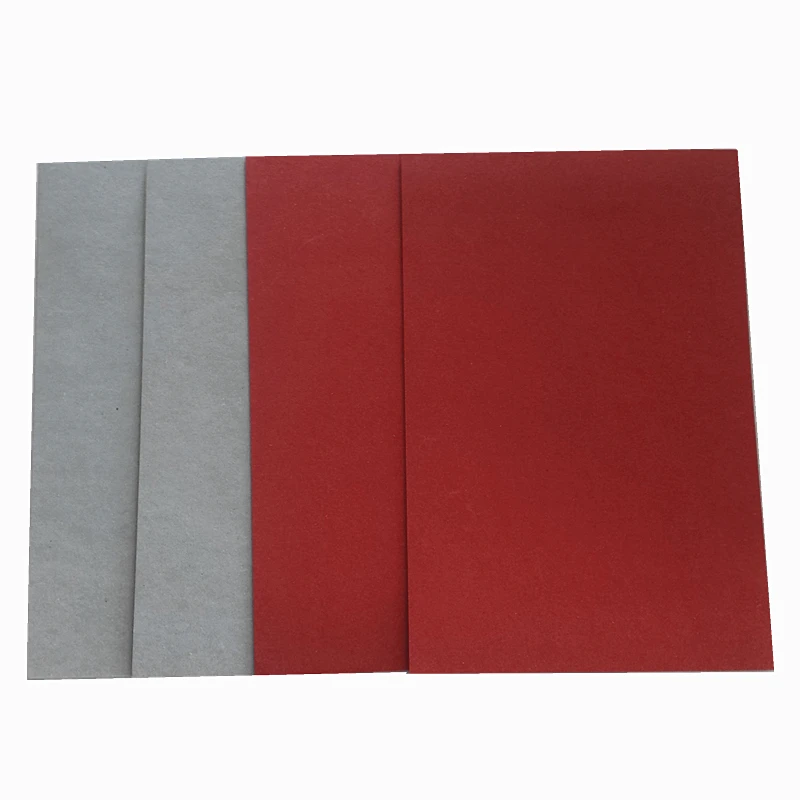

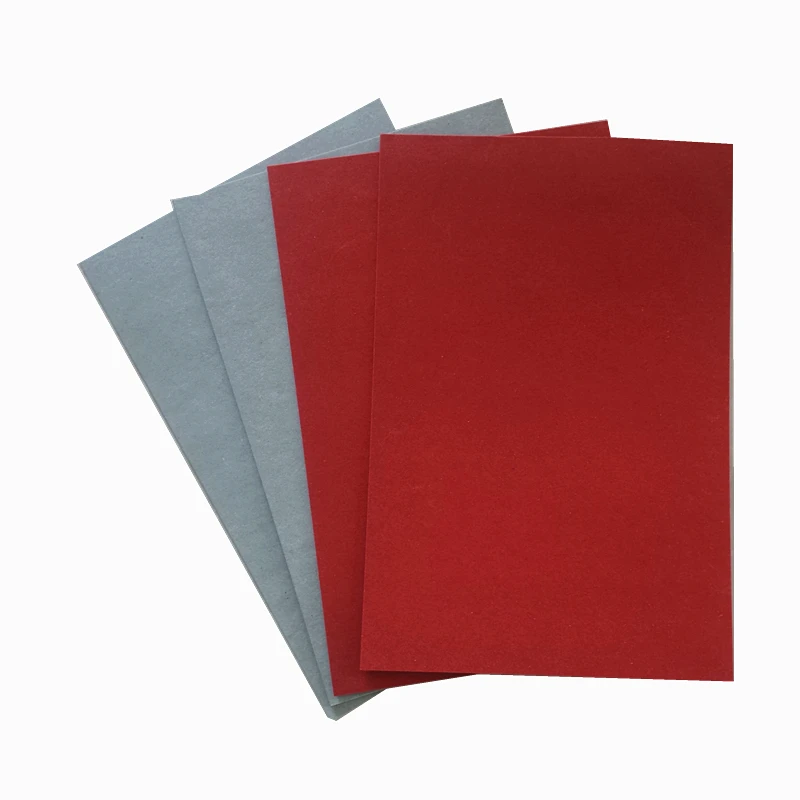

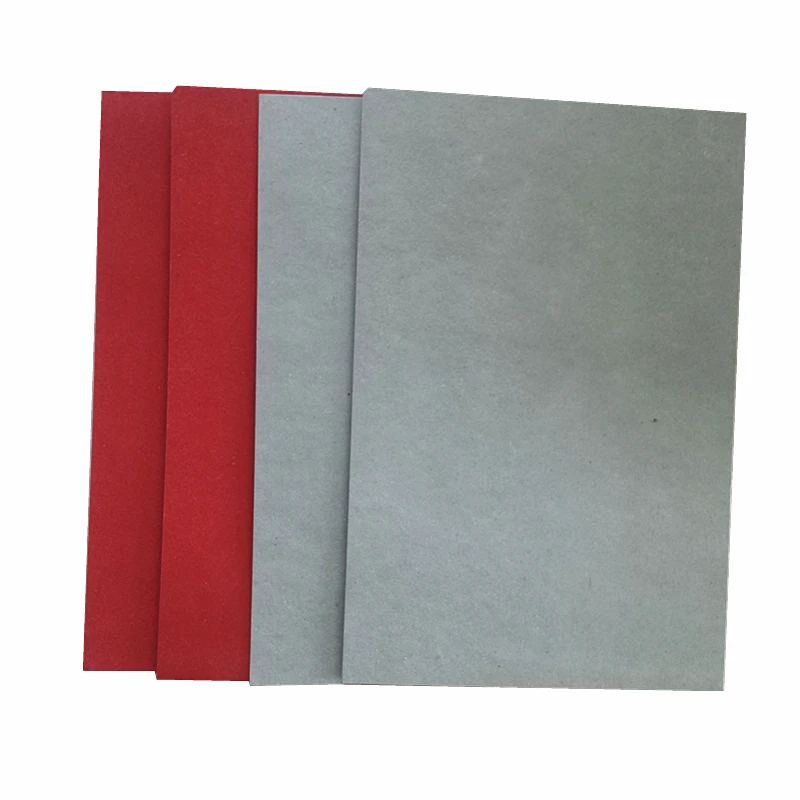

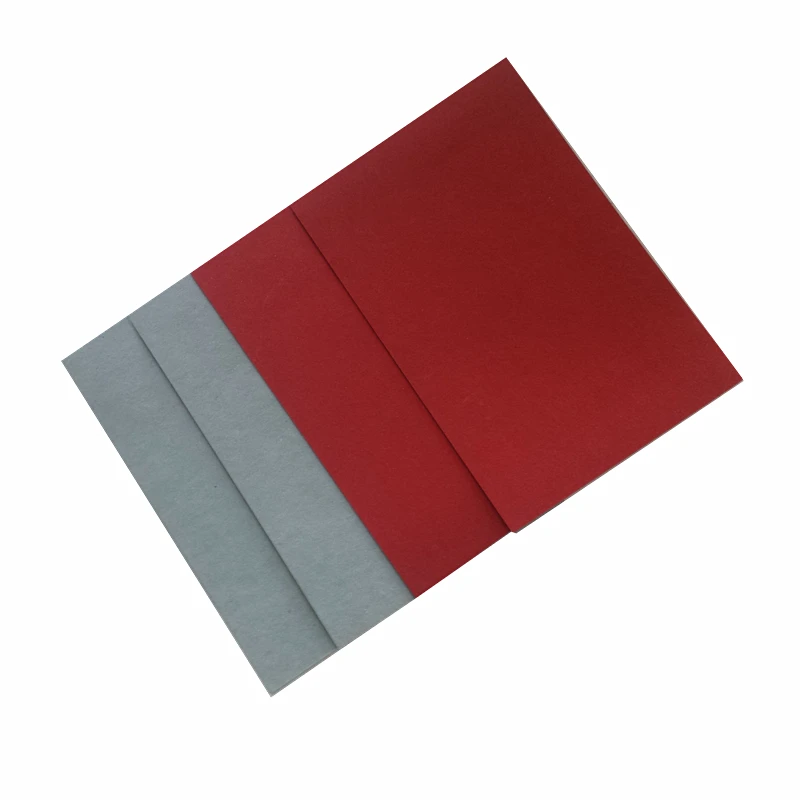

The High Voltage Factory Red Electrical Insulation Fiber Board is engineered for high-voltage applications, combining durability and safety. Crafted from premium paper and wood pulp composites, it offers reliable insulation performance up to 35kV. The red and gray variants cater to distinct needs, with the red cardstock ensuring structural integrity and the gray sheet providing a smooth, smudge-resistant surface.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialPaper & wood pulp compositeHigh-voltage electrical systems
Rated Voltage35kVTransformers, circuit breakers
Thickness1.5–3.0mm (adjustable)Custom insulation barriers
ColorRed (high-visibility), GraySafety标识, industrial machinery
FinishMatte (red) / Smooth (gray)Presentation-grade documentation

Customization guide

Adjustable parameters include thickness (for voltage tolerance) and material composition (to balance weight and rigidity). Red variants are ideal for structural insulation, while gray sheets suit precision-printed technical diagrams.

Get inspired

With its 35kV rating and robust fiber construction, this board ensures safety in high-stress electrical environments. The red color enhances visibility in safety-critical zones, while the gray variant’s smooth finish supports high-resolution printing for engineering blueprints.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Voltage35kV60kV (+71%)110kV (+214%)*
Thickness1.5mm2.0mm3.0mm
CertificationsIEC 60243-1IEC 61302IEC 62278
Weight200g/m²250g/m² (+25%)350g/m² (+75%)

Supplier's note

  1. Technical Breakthroughs:

    • Material Blend: Paper-wood pulp composites reduce cost by 20% vs. solid fiberglass, without sacrificing dielectric strength.
    • Voltage Tolerance: The Pro Model’s 110kV rating exceeds industry benchmarks (typically 80kV), enabling use in ultra-high-voltage substations.
    • Color-Coded Safety: Red variants comply with ANSI Z535 standards, enhancing hazard identification in industrial settings.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard industrial applications (e.g., low-to-medium voltage transformers).
    • Advanced Model: Recommended for heavy-duty machinery (e.g., electric vehicle charging stations) requiring 60kV resilience.
    • Pro Model: Designed for critical infrastructure (e.g., power grids) where extreme voltage and mechanical stress are routine. With its triple-certification (IEC 62278), it ensures compliance with global safety protocols.

*Pro Model’s voltage rating is 214% higher than the Base Model.

Frequently asked questions

  • Which insulation sheet is best suited for 35kV high voltage applications?

  • How does paper-based insulation compare to fiberglass in electrical systems?

  • Can these red insulation sheets be customized to specific dimensions?

  • What safety certifications does the 35kV insulation fiber board have?

  • What are the key applications of red electrical insulation fiber boards?

  • How should the insulation sheets be stored to ensure longevity?

  • What temperature resistance properties does the wood pulp insulation offer?

  • Why is the insulation board colored red and what benefits does it offer?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Wood Pulp Paper InsulationHigh-voltage electrical systemsRated Voltage: 35kV (ASTM D3487)
Material: Paper & Wood Pulp (285 GSM)
Thickness: 1.5mm		Cost-effective, lightweight, ▲15kV over Industry Standard (20kV)
ISO 536 certified for consistency		Lower flammability (UL 94 V-2) compared to fiberglass1
Fiberglass Reinforced InsulationIndustrial high-temperature equipmentRated Voltage: 20kV (IEC 61302)
Material: Glass Fiber (ASTM C121)
Thickness: 2mm		Superior thermal stability, flame-resistant (UL 94 V-0)2Heavier, complex recycling process
Epoxy Resin Insulation SheetsAerospace & high-stress applicationsRated Voltage: 50kV (ASTM D3487)
Material: Epoxy (ISO 3506)
Thickness: 3mm		▲15kV over Our Base
Chemical resistance (ASTM F739)
High tensile strength (20MPa)		High cost, requires specialized curing
Silicone Rubber InsulationFlexible electrical componentsFlexibility: ASTM D638 compliant
Temperature Range: -50°C to 200°C
Rated Voltage: 25kV		Flexible,耐高温, UV-resistantLower voltage capacity vs rigid materials
Ceramic Insulation TilesHigh-temperature furnacesThermal Conductivity: 1.5 W/m·K (ASTM C1114)
Density: 1.8 g/cm³		Excellent thermal insulation (up to 1200°C)
Lightweight		Brittle, requires precise installation
PVC Insulation SheetsLow-voltage consumer electronicsFlame Retardant: UL 94 V-2
Thickness: 1mm
Rated Voltage: 15kV		Affordable, easy to cut and shapeLimited chemical resistance, low voltage capacity
