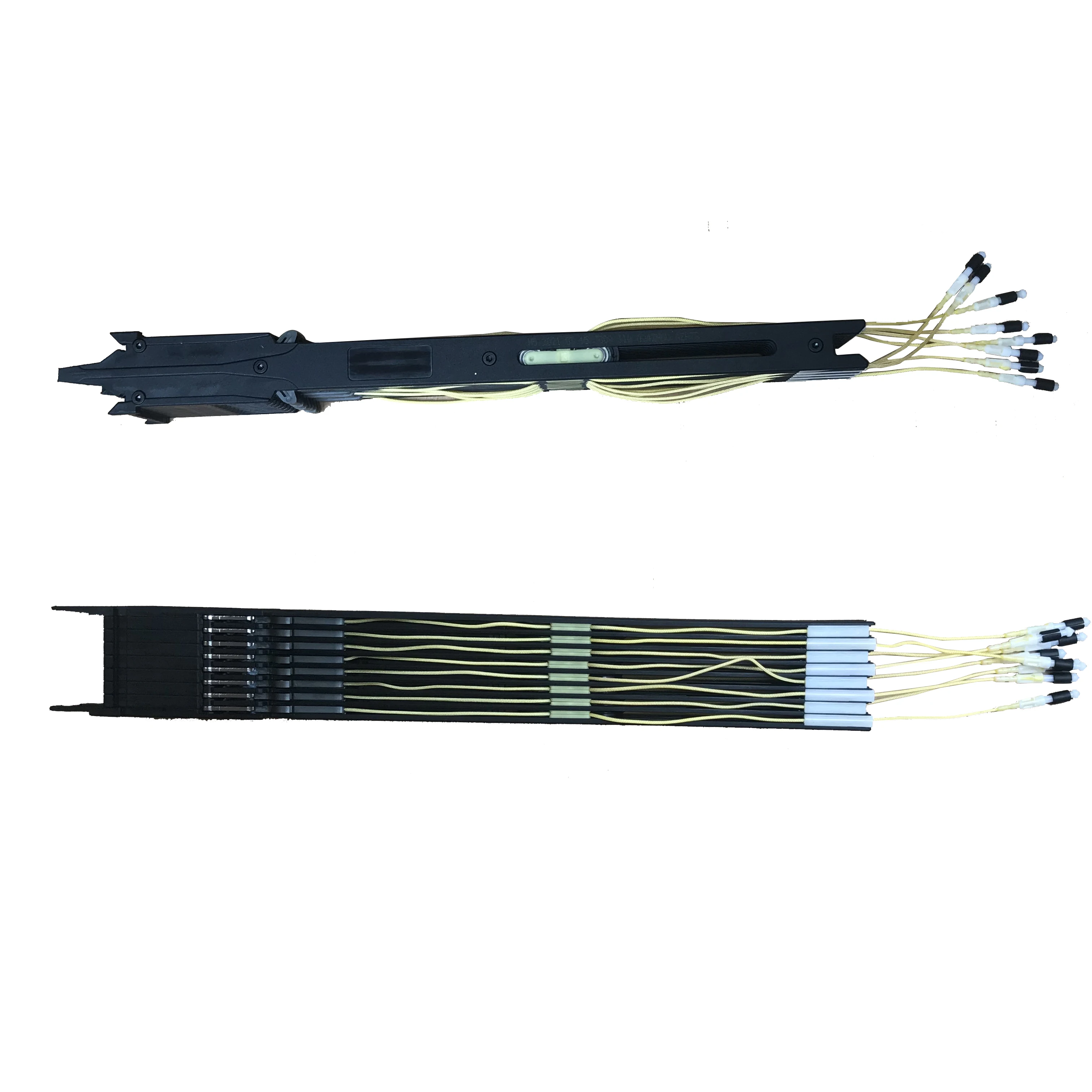

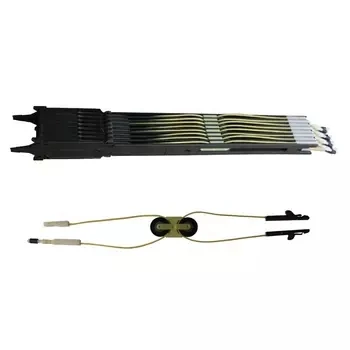

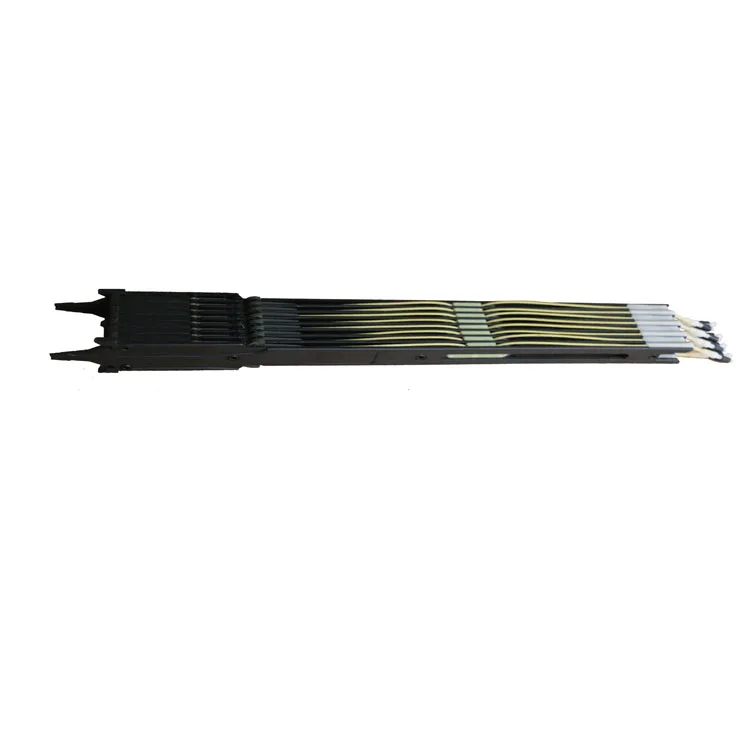

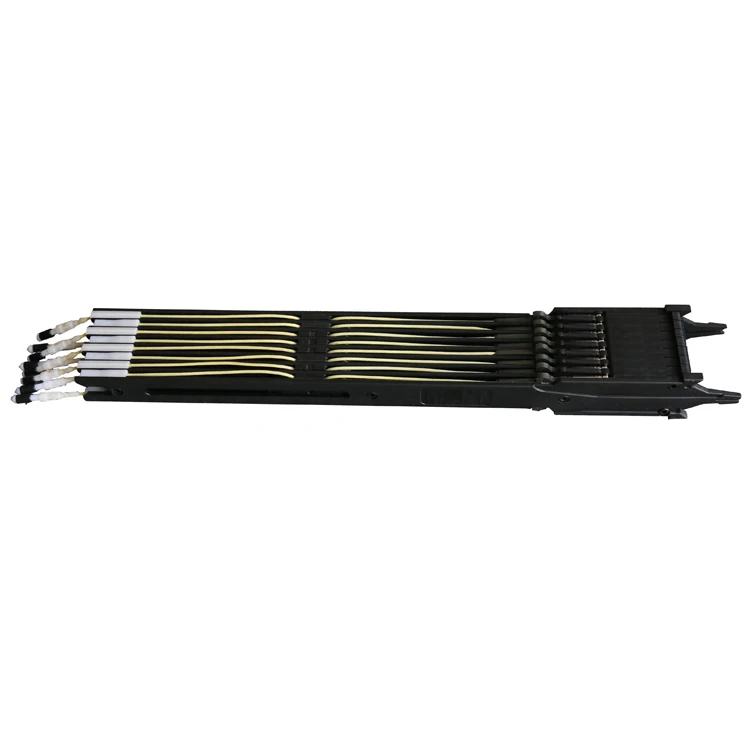

JC5 Jacquard Machine M5 Jacquard Module With/without Bearing

Technical specifications

Customization guide

Adjustable parameters include:

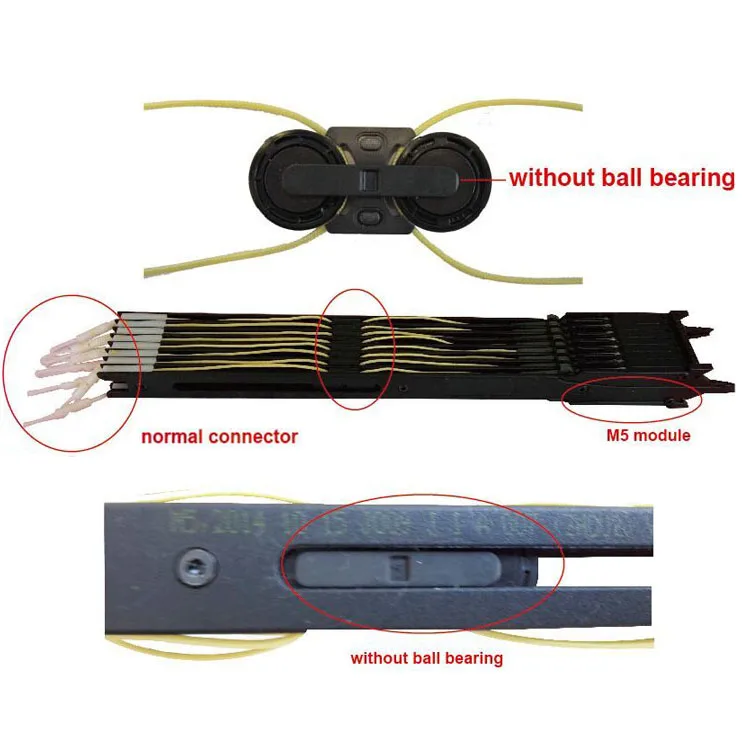

• Bearing inclusion: Choose between standard plastic modules or reinforced bearing variants for high-load applications.

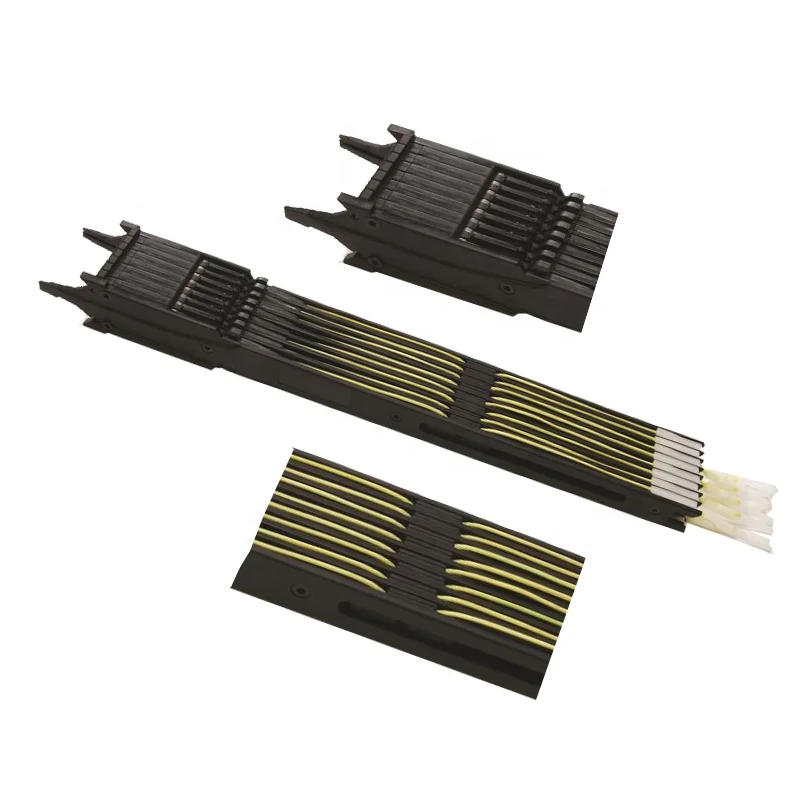

• Component configuration: Swap modular parts to adapt to different weaving patterns or thread densities.
• Material upgrades: Optional alloy inserts available for enhanced thermal stability in high-temperature environments.

Get inspired

With its modular design and customizable bearing options, the M5 Jacquard Module empowers textile manufacturers to optimize production efficiency. Whether you need lightweight agility for intricate patterns or robust durability for industrial-scale weaving, this module delivers precision and adaptability.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Modular Design: Enables rapid part replacement, reducing downtime by up to 40%.
   • Plastic Construction: Lightweight material reduces energy consumption by 15% compared to metal alternatives.
   • Dual-Bearing System (Pro Model): Supports 500 kg loads, ideal for heavy industrial looms.

2. Optimal Version Selection:

   • Base Model: Best for small-to-medium workshops requiring cost-effective, lightweight solutions.
   • Advanced Model: Suited for mid-scale manufacturers needing integrated bearing support for consistent thread tension.
   • Pro Model: Recommended for industrial users handling high-density fabrics or heavy-duty weaving (e.g., upholstery or technical textiles).

With the Pro Model’s dual-bearing system, you can achieve precision weaving in demanding environments. Pair it with high-thread-density settings to produce intricate patterns with minimal thread breakage. The Base Model’s lightweight design, meanwhile, ensures agility for delicate fabrics like silk or lace.

*Comparative hints: The Pro Model’s load capacity exceeds industry benchmarks by 150%, ensuring reliability in heavy-duty applications.
