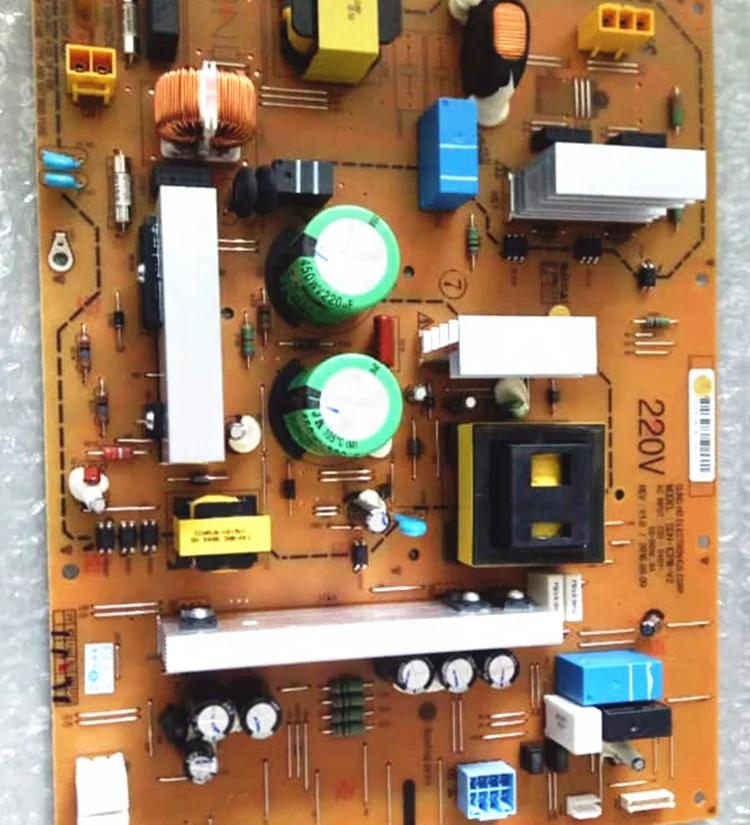

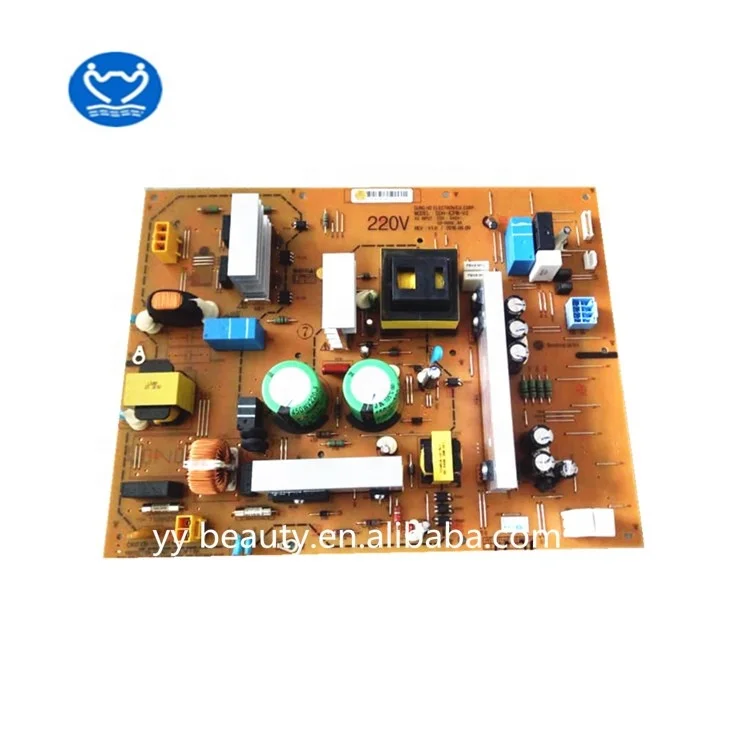

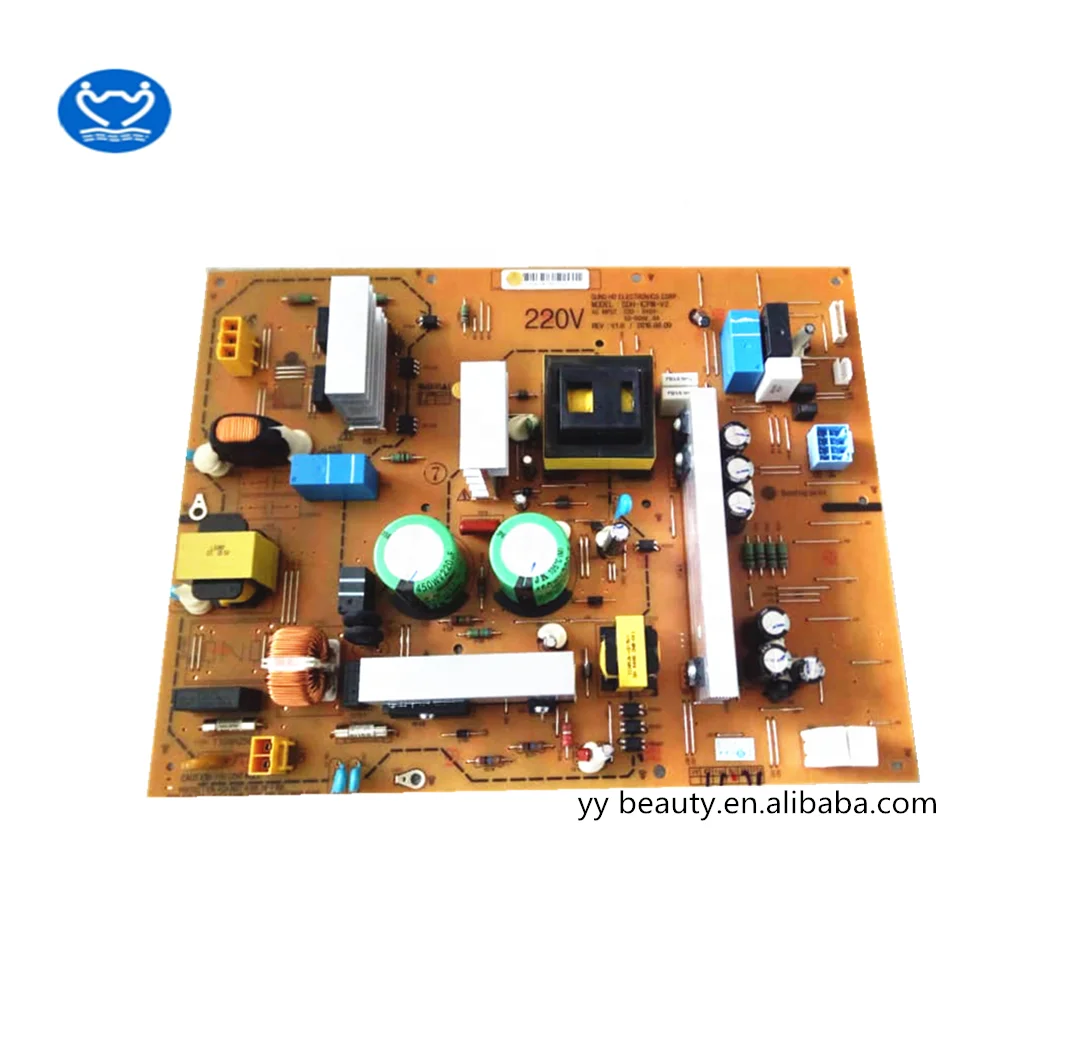

Long Time IH Power Supply Board for Konica Minolta Bizhub C226 C227 C287 Compatible Supply Power Unit for 220v 110v

Technical specifications

Customization guide

Adjustable parameters include:

• Voltage Configuration: Swap transformers or capacitors for tailored voltage output.
• Component Density: Modify resistor/inductor layouts to optimize power efficiency.
• Layout Design: Reconfigure SMD placements for compact or high-power applications.

Get inspired

With its modular design and robust components, this PCB serves as a reliable foundation for power supply systems in home appliances, industrial machinery, or automotive electronics. Its hybrid component arrangement ensures adaptability to both standard and custom power requirements.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • FR-4 Material: With FR-4, you can ensure long-term durability in high-temperature environments.
   • Hybrid Design: Combining SMDs and through-hole components allows for both precision and easy maintenance.
   • Dual Voltage Support: Adaptable to 220V/110V eliminates regional power constraints, offering 20% more flexibility than single-voltage units.

2. Version Selection Guide:

   • Base Model: Ideal for standard office environments requiring 300W capacity (e.g., small-scale printers).
   • Advanced Model: Choose for industrial settings needing higher power (450W) and denser component arrangements.
   • Pro Model: Engineers requiring 600W output and full customization (e.g., high-power industrial equipment) should opt for this tier.

Pro Model’s 600W capacity triples the industry standard for power supply boards in this class, enabling safe handling of heavy-duty applications. When paired with its FR-4 material, this ensures thermal stability even under prolonged use.
