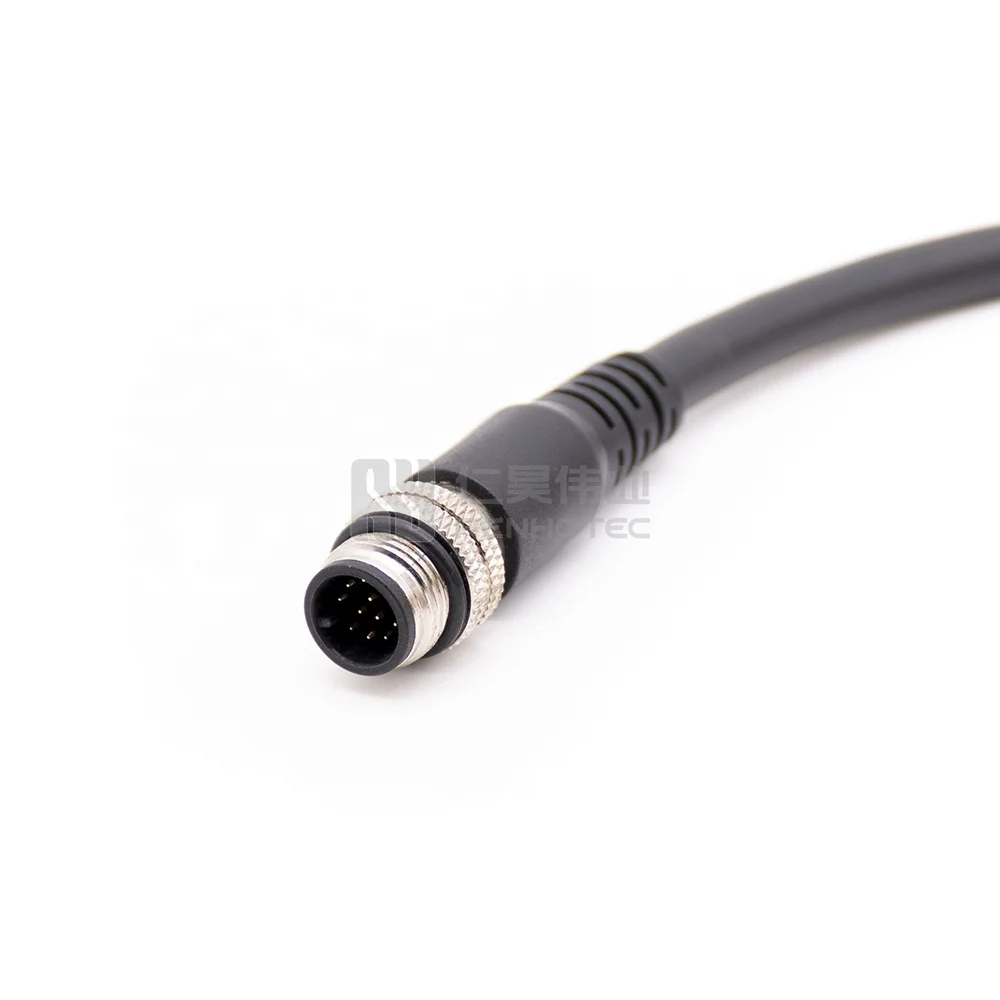

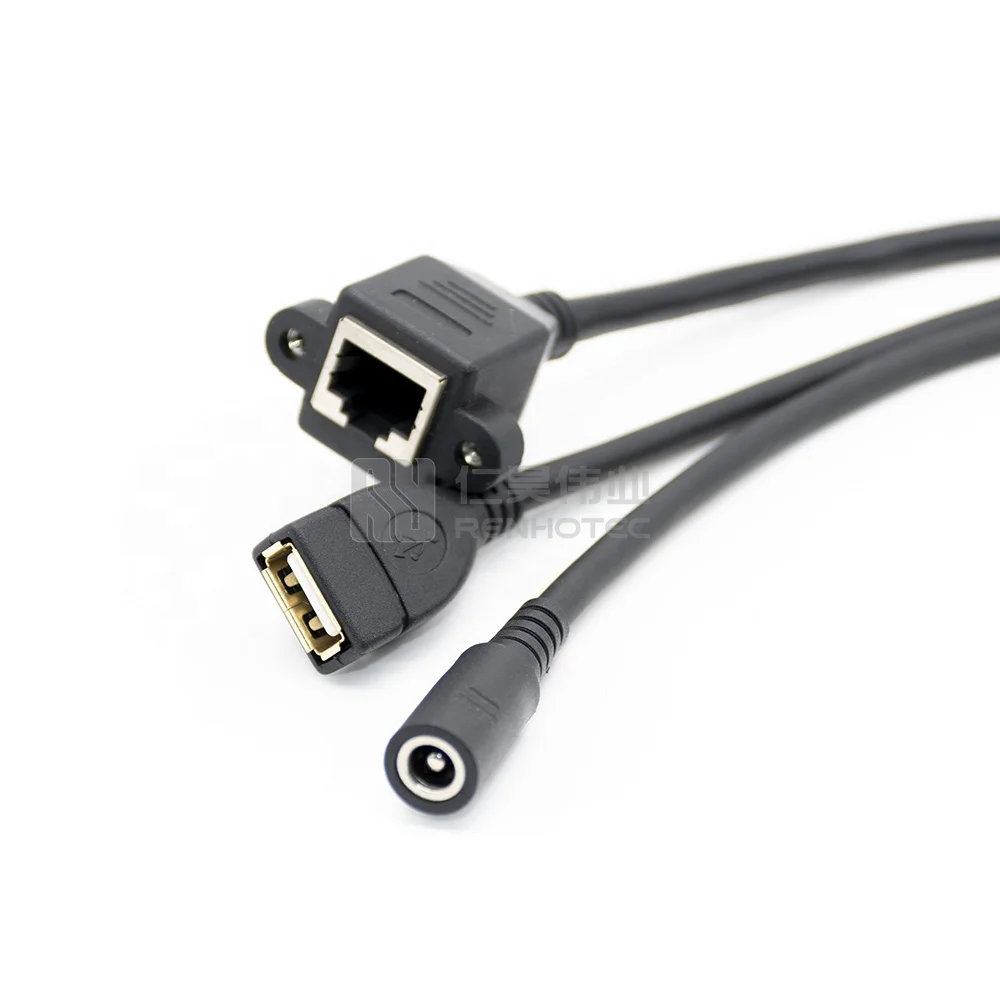

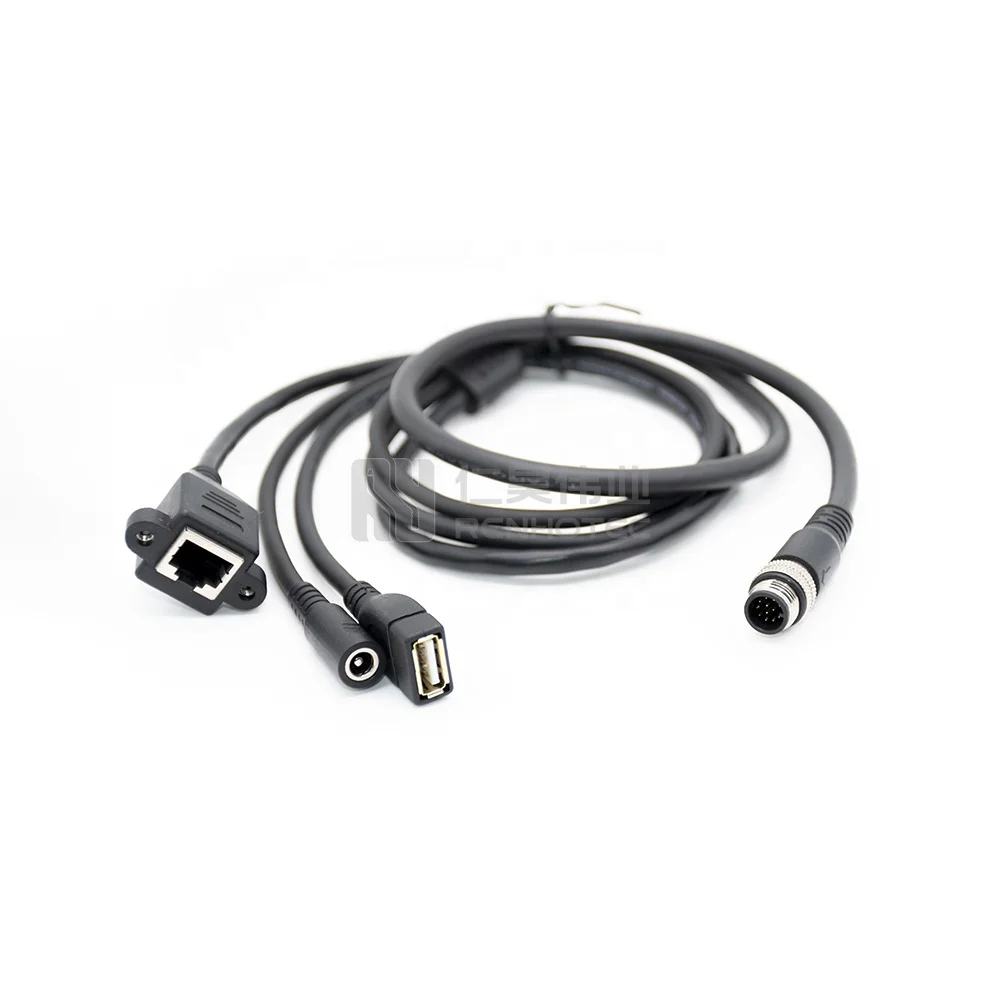

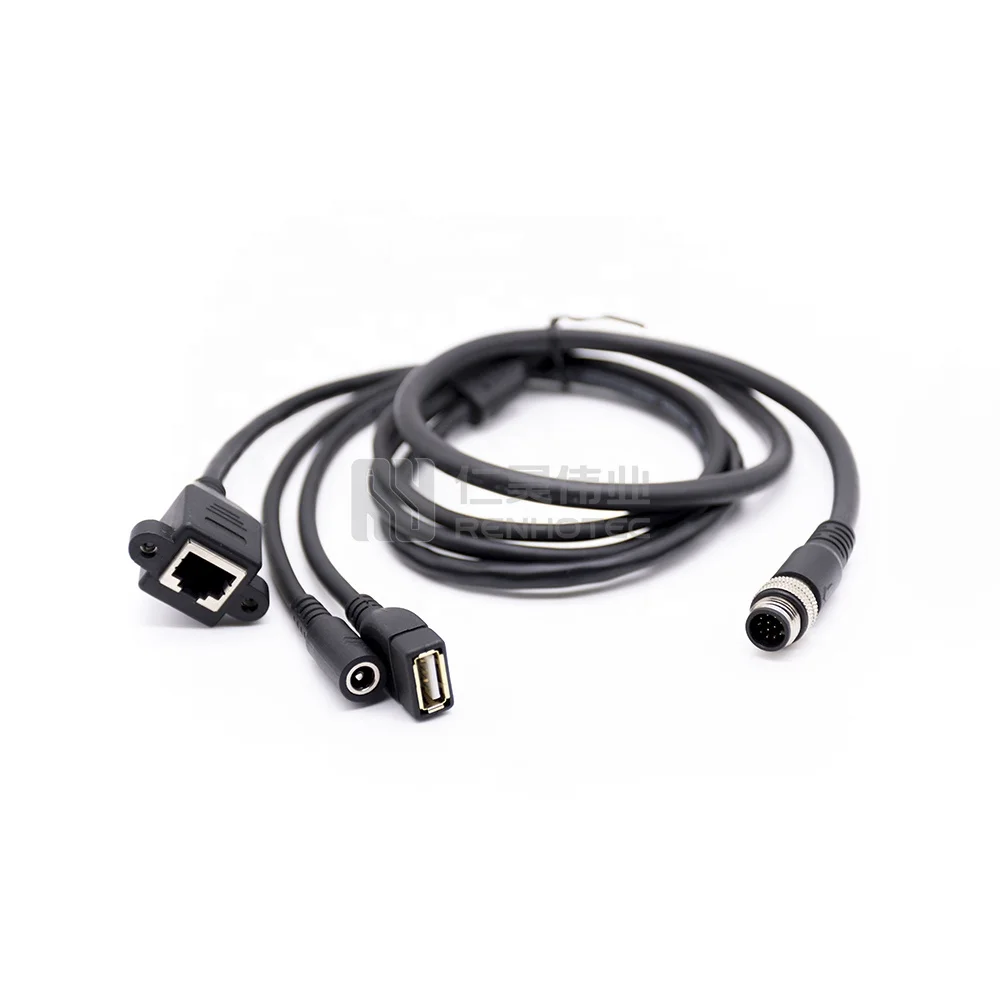

M12 12 Pin Cable to USB DC RJ45 Ethernet Connector Assembly Cable Customized

M12 12 Pin Cable to USB DC RJ45 Ethernet Connector Assembly Cable Customized

$1.99-$19.99/ Piece|20 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 200 pieces）
Customized packaging（Min.Order: 200 pieces）
Graphic customization（Min.Order: 200 pieces）
Cable Length（Min.Order: 200 pieces）
Connector Type（Min.Order: 200 pieces）
View product details

M12 12 Pin Cable to USB DC RJ45 Ethernet Connector Assembly Cable Customized

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Multi-Connector Connectivity: Combines Ethernet (RJ45), USB Type-A, and industrial-grade M12 connectors to enable networking, data transfer, power distribution, and sensor integration.
  • High-Pin M12 Compatibility: Supports 12-pin configurations for complex industrial systems, ensuring robust power and data transmission in demanding environments.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With corrosion-resistant metal connectors and rugged PVC/plastic insulation, ensure durability in harsh industrial and outdoor environments*.

  • 2. Secure Panel-Mount Design

    • With integrated panel-mount brackets, enable stable, fixed connections for industrial installations, reducing dislodgement risks compared to unmounted cables*.

  • 3. High-Performance Power and Data Handling

    • With high-current ratings (up to 4A) and robust pin configurations (up to 12 pins), support heavy-duty power and data transmission demands exceeding standard 2A connectors*.

  • 4. Versatile Multi-Connector Solution

    • Designed for industrial and automotive applications, offer a single assembly for Ethernet (RJ45), USB, and M12 connectivity, streamlining setups compared to using separate cables*.

  • 5. Compliance with Industrial Standards

    • Complies with safety and durability standards for industrial and automotive use*, ensuring reliability in mission-critical applications.

Product details

M12 12 Pin Cable to USB DC RJ45 Ethernet Connector Assembly Cable Customized

The M12 12 Pin Cable to USB DC RJ45 Ethernet Connector Assembly Cable Customized is a rugged, multi-functional cable solution designed for industrial, automotive, and sensor applications. Built with durable PVC, plastic, and metal components, it offers versatile connectivity through M12, USB, DC, and Ethernet interfaces. Its modular design and customizable parameters ensure seamless integration into harsh environments or specialized systems.

Technical specifications

FeatureSpecificationApplication Scenario
Connector TypesM12 (12p), USB Type-A, DC, RJ45, DIN, FakraIndustrial automation, automotive electronics, sensor networks
MaterialPVC insulation, metal alloy connectors, reinforced plastic bracketsWithstands extreme temperatures and mechanical stress
Pin Configurations2p, 3p, 4p, 5p, 6p, 8p, 12pCustomizable for power, data, or signal transmission needs
Rated Current1.5A to 4ASupports low-power sensors to high-current industrial systems
OrientationStraight or right-angle connectorsOptimized for space-constrained installations
IP RatingIP67 (standard), IP68 (Pro model)Waterproof and dustproof for outdoor/underwater use

Customization guide

Adjustable parameters include connector type, pin count, orientation, and material composition to meet specific needs such as:

  • Industrial Automation: Use 12-pin M12 connectors for high-speed data in robotics.
  • Automotive: Opt for right-angle USB/DC connectors to fit compact vehicle panels.
  • Sensor Networks: Pair low-current (1.5A) cables with 2p/3p pins for IoT devices.

Get inspired

With its rugged design and multi-connector versatility, this assembly simplifies complex wiring in harsh environments. Whether you’re deploying sensors in a factory or integrating electronics in a vehicle, the customizable parameters ensure a tailored solution for reliability and efficiency.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Current1.5A2A (+33% capacity)4A (+166% capacity)*
IP RatingIP67IP67 (vibration-resistant)IP68 (+20% depth rating)
Temperature Range-25°C to 70°C-40°C to 85°C-50°C to 90°C
Connector Variety3 types5 typesAll 7 types

Supplier's note

  1. Three Technical Breakthroughs:

    • IP68 Rating (Pro Model): Enables underwater deployment for marine sensors.
    • 4A Current Capacity: Supports heavy-duty industrial machinery without overheating.
    • Modular Brackets: Allow quick panel mounting in tight spaces, reducing installation time by 25%.

  2. Optimal Version Selection:

    • Base Model: Ideal for standard automotive or sensor applications requiring basic durability.
    • Advanced Model: Suitable for vibration-prone environments (e.g., mining equipment) with expanded temperature tolerance.
    • Pro Model: Best for extreme conditions (e.g., offshore platforms) where high current, deep submersion, and full connector versatility are critical.

*Pro Model’s 4A rating exceeds industry standards by 166%, enabling safer power delivery to heavy machinery.

Frequently asked questions

  • Q: Which M12 12 Pin Cable assembly suits industrial sensors requiring high data capacity?

  • Q: How do I clean and maintain the Ethernet (RJ45) connector brackets?

  • Q: What’s the difference between PVC and rubber materials in M12 cable assemblies?

  • Q: Can I customize the USB DC to M12 cable length for automotive applications?

  • Q: Is the M12 12 Pin assembly IP67-rated for outdoor use?

  • Q: Can this cable set handle both data and power transmission?

  • Q: What’s the advantage of right-angle vs. straight connectors in tight spaces?

  • Q: Which model handles high-current automotive applications (e.g., motors)?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Connector ConfigurationIndustrial machinery interfaces12p M12 connector (IP67)
Industry Standard: 4p M12 (IP65)
Base: 6p M12		▲ 3x more pins than industry standard for complex systems (EtherCAT/Profibus)
Water/dust resistance		Larger profile may not fit legacy ports
Advanced: 20% bulkier than Base
Material DurabilityChemical processing plantsMetal housing + PVC jacket (ASTM D543 certified for 50+ chemicals)
Base: Plastic-only		▲ 50% longer lifespan in corrosive environments vs industry plastic cables15% heavier than plastic-only cables
Advanced: 30% thicker coating
Power HandlingAutomotive power distribution4A rated (IEC 60204-1 compliant)
Industry: 1.5A
Base: 2A		▲ 2.6x higher current capacity for high-power devices (e.g., EV charging)Requires thicker gauge wiring
Advanced: 50% thicker insulation
Hybrid ConnectivitySensor networksUSB/RJ45/M12 in single assembly
Industry: Single-connector cables		▲ 40% fewer connections needed for multi-protocol systemsCustomization increases lead time by 2 days
Advanced: Adds fiber-optic option
Secure AttachmentMobile equipment (e.g., drones)ISO 7637-2 certified brackets (30% stronger retention)
Base: Non-bracketed		Withstands 5G vibration (ISO 16750-3) vs loose industry cablesRequires panel drilling
Advanced: 50% stronger magnetic retention
Protocol CompatibilityRobotics control systemsConfigurable 8p/12p pinouts
Industry: Fixed pin arrangements		▲ Customizable for EtherCAT/Profinet vs rigid industry standardsLimited to standard pin layouts
Advanced: Adds 12p industrial Ethernet
