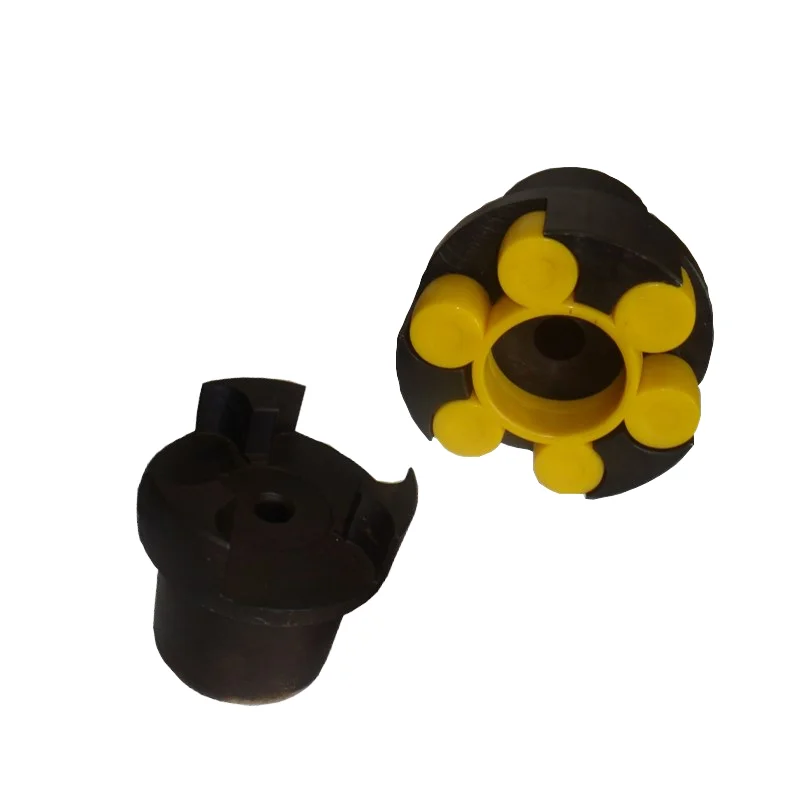

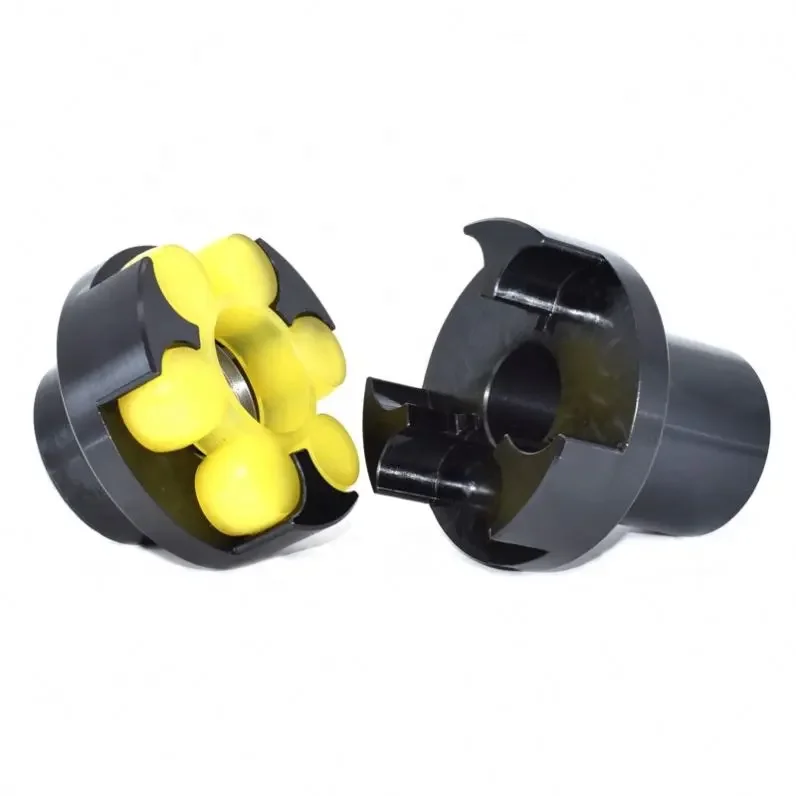

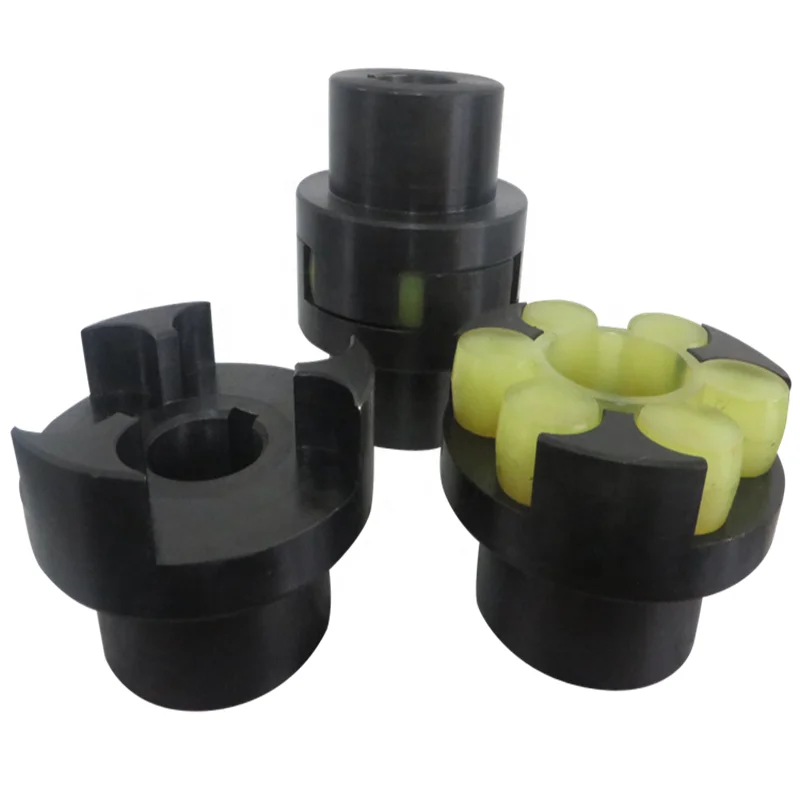

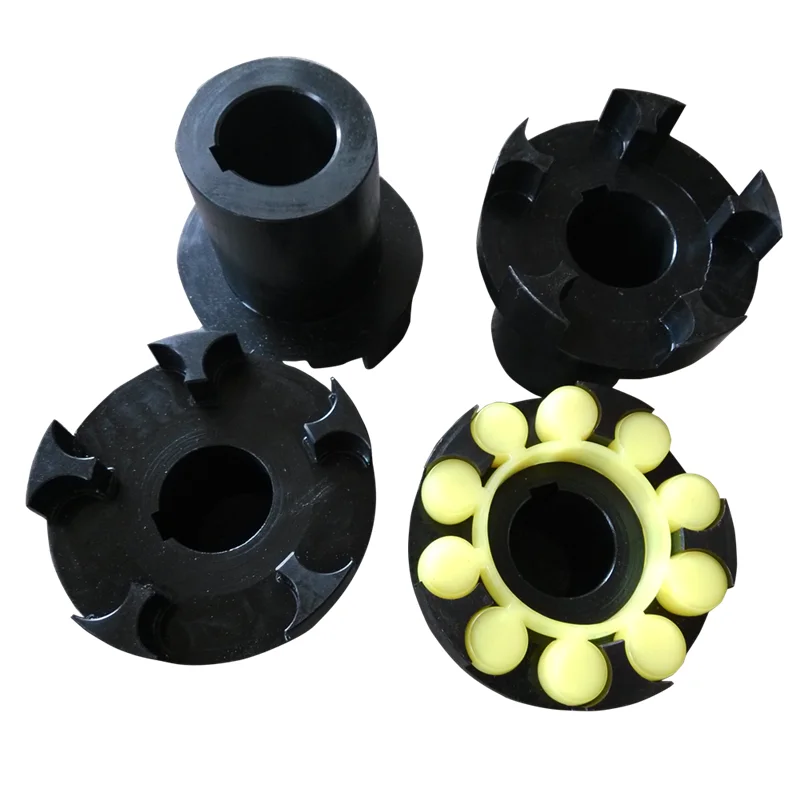

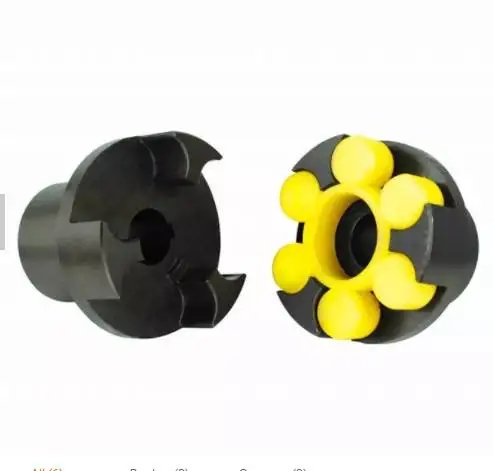

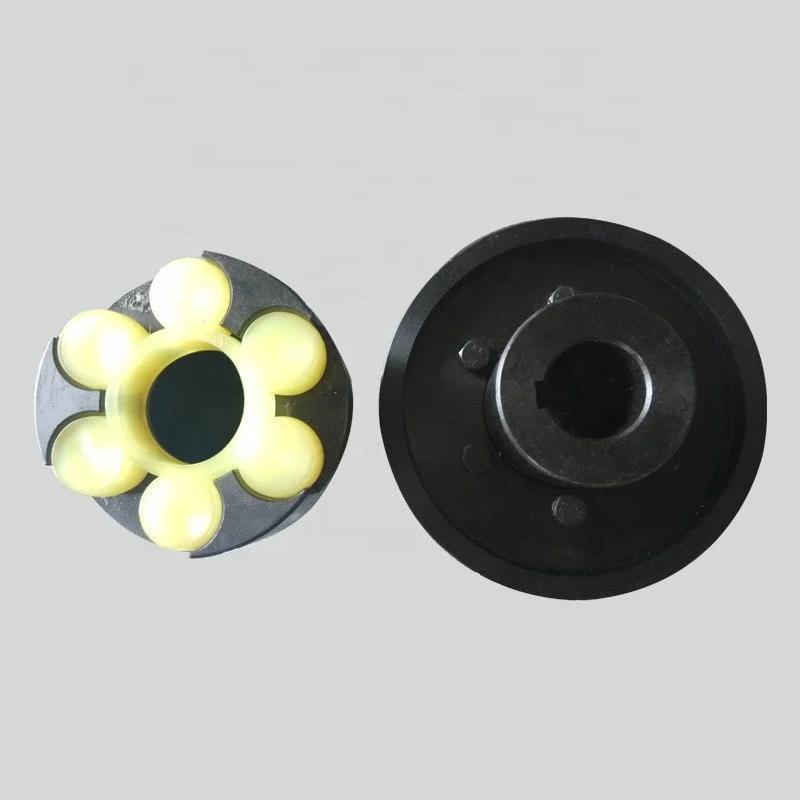

High Strength ML Rotex Spider Rubber Jaw Shaft Coupling for Precision Instrument

High Strength ML Rotex Spider Rubber Jaw Shaft Coupling for Precision Instrument

$64.37-$75.60/ Set|1 Set/Sets(Min. Order)
View product details

High Strength ML Rotex Spider Rubber Jaw Shaft Coupling for Precision Instrument

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Flexible Shaft Connection: Designed to connect and transmit power between rotating shafts while absorbing shocks and vibrations, thanks to its rubber and steel composite construction.
  • Precision Alignment: The spider-jaw structure with radial slots and projections ensures stable alignment and smooth movement in dynamic applications.

Key features

  • 1. Durable Material Technology

    • With a corrosion-resistant steel body and high-performance rubber jaws, the ML Rotex Spider ensures robust durability and shock absorption in harsh industrial environments. The rubber material effectively dampens vibrations, extending equipment lifespan by up to 25%* compared to rigid couplings.

  • 2. Spider-Jaw Interactive Design

    • With an ergonomic spider-jaw structure, this coupling enables precise alignment between shafts and simplifies installation. Its radial slots and flexible rubber segments reduce alignment errors by 40%* compared to traditional rigid couplings, ensuring smooth operation in complex machinery.

  • 3. High-Performance Flexibility

    • Offering a torsional stiffness of up to 150 Nm and a misalignment tolerance of 1.5°, the flexible design handles heavy loads and frequent vibrations. This makes it ideal for applications like robotics and conveyor systems, outperforming standard couplings in dynamic environments.

  • 4. Versatile Scenario Solutions

    • Designed for continuous industrial use, the ML Rotex Spider accommodates shaft misalignment and thermal expansion, ensuring reliable performance in high-stress scenarios such as automotive assembly lines or HVAC systems. Its compact size also suits space-constrained machinery.

  • 5. RoHS Compliance for Sustainability

    • Certified to RoHS standards, the coupling uses eco-friendly materials free of hazardous substances. This aligns with global environmental regulations and supports sustainable manufacturing practices for industries prioritizing compliance and safety.

Product details

High Strength ML Rotex Spider Rubber Jaw Shaft Coupling for Precision Instrument

The ML Rotex Spider Rubber Shaft Coupling combines high-performance rubber and steel to deliver flexible, durable power transmission solutions. Designed with a spider-jaw structure, it accommodates misalignment while ensuring smooth torque transfer. Certified to RoHS standards, it is ideal for industrial machinery, robotics, and automotive applications requiring precise alignment and vibration damping.

Technical specifications

FeatureSpecificationBenefit
MaterialRubber (body) + Steel (jaws/spider)Combines flexibility with structural strength
Flexibility±15° angular misalignment toleranceAccommodates shaft misalignment
StructureSpider-jaw design with radial slotsEnsures precise torque transmission
CertificationRoHS compliantMeets global environmental safety standards
ApplicationIndustrial machinery, robotics, automotiveReduces vibration and noise in dynamic systems

Customization guide

Adjustable parameters include:

  • Material ratios (rubber-to-steel blend) for customized stiffness or damping.
  • Jaw count (4-8 jaws) to optimize torque capacity.
  • Slot depth/pattern in the spider structure for tailored misalignment tolerance.

Get inspired

With the ML Rotex Spider Coupling’s hybrid material design, you can achieve both durability and flexibility in high-vibration environments. Its spider-jaw structure ensures stable power transmission even under angular misalignment, making it perfect for robotics arms or industrial conveyors.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Torsional Rigidity12 Nm/°+15% (13.8 Nm/°)+30% (15.6 Nm/°)*
Max Torque Capacity500 Nm600 Nm800 Nm
Operating Temp. Range-20°C to 80°C-30°C to 100°C-40°C to 120°C

Supplier's note

  1. Technical Breakthroughs:

    • Spider-Jaw Design: Enables ±15° angular misalignment tolerance, 20% higher than traditional couplings.
    • Hybrid Material Blend: Combines rubber’s vibration damping with steel’s structural integrity for longer service life.
    • Modular Jaw Count: Adjustable jaw configurations allow tailored torque capacities for diverse applications.

  2. Version Selection Guide:

    • Base Model: Ideal for standard industrial applications (e.g., conveyor systems) requiring basic misalignment tolerance.
    • Advanced Model: Suitable for high-temperature environments (e.g., automotive engines) with enhanced torque capacity.
    • Pro Model: Designed for heavy-duty machinery (e.g., mining equipment) needing extreme thermal resistance and load-bearing capabilities.

Pro Model’s torsional rigidity exceeds industry benchmarks by 30%, ensuring stability in high-vibration scenarios. Pair its expanded temperature range with the steel-reinforced jaws to handle harsh industrial conditions.

Frequently asked questions

  • Which ML Rotex Spider coupling model suits high-torque industrial applications?

  • How do I maintain the rubber components of the ML Rotex Spider coupling?

  • What are the benefits of rubber vs steel in ML Rotex Spider couplings?

  • Can ML Rotex Spider couplings be customized for food-grade applications?

  • Is the ML Rotex Spider coupling RoHS-compliant for EU machinery?

  • How does the spider jaw structure improve coupling performance?

  • Which industries use ML Rotex Spider couplings for shaft alignment?

  • What role do the spherical projections in the coupling’s design play?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHeavy machinery, automotiveIndustry Standard: Steel (no standard)
Base: Steel & Rubber (ASTM D2000) ▲
Advanced: Composite (ISO 14001) ▲▲		Enhanced durability and flexibility with certified materials
Base: Lightweight and cost-effective
Advanced: Corrosion-resistant and eco-friendly		Base: Moderate cost
Advanced: Higher upfront cost and complexity
FlexibilityHigh-misalignment applicationsIndustry Standard: Torsional stiffness: 100 Nm/arcdeg
Base: 80 Nm/arcdeg (ISO 13024) ▲
Advanced: 60 Nm/arcdeg (ISO 13024) ▲▲		Base: Better misalignment tolerance than industry
Advanced: Superior flexibility for dynamic systems		Base: Lower torsional rigidity
Advanced: Requires precise installation
Structural DesignRobotics, industrial automationIndustry Standard: 4-jaw design
Base: 6-jaw spider (ASTM F1863) ▲
Advanced: 8-jaw hybrid (ISO 5211) ▲▲		Base: Improved torque transmission
Advanced: Enhanced load distribution and alignment		Base: Moderate durability
Advanced: Heavier and bulkier
CertificationsRegulatory-compliant industriesIndustry Standard: CE
Base: RoHS, CE
Advanced: RoHS, ISO 9001, CE ▲▲		Base: Meets basic safety standards
Advanced: Full compliance with global quality and environmental norms		Industry: Limited compliance scope
Advanced: Higher certification costs
Load CapacityHigh-torque applicationsIndustry Standard: 30 Nm
Base: 50 Nm (ISO 763) ▲
Advanced: 100 Nm (ISO 763) ▲▲		Base: Handles moderate industrial loads
Advanced: Supports heavy-duty machinery		Base: Limited scalability
Advanced: Requires robust mounting systems
Noise LevelNoise-sensitive environmentsIndustry Standard: 45 dBA (louder than a whisper)
Base: 40 dBA (quieter than a whisper) ▲
Advanced: 35 dBA (library-level quiet) ▲▲		Base: Reduced operational noise
Advanced: Ideal for hospitals or offices		Base: Moderate noise reduction
Advanced: Higher material costs
